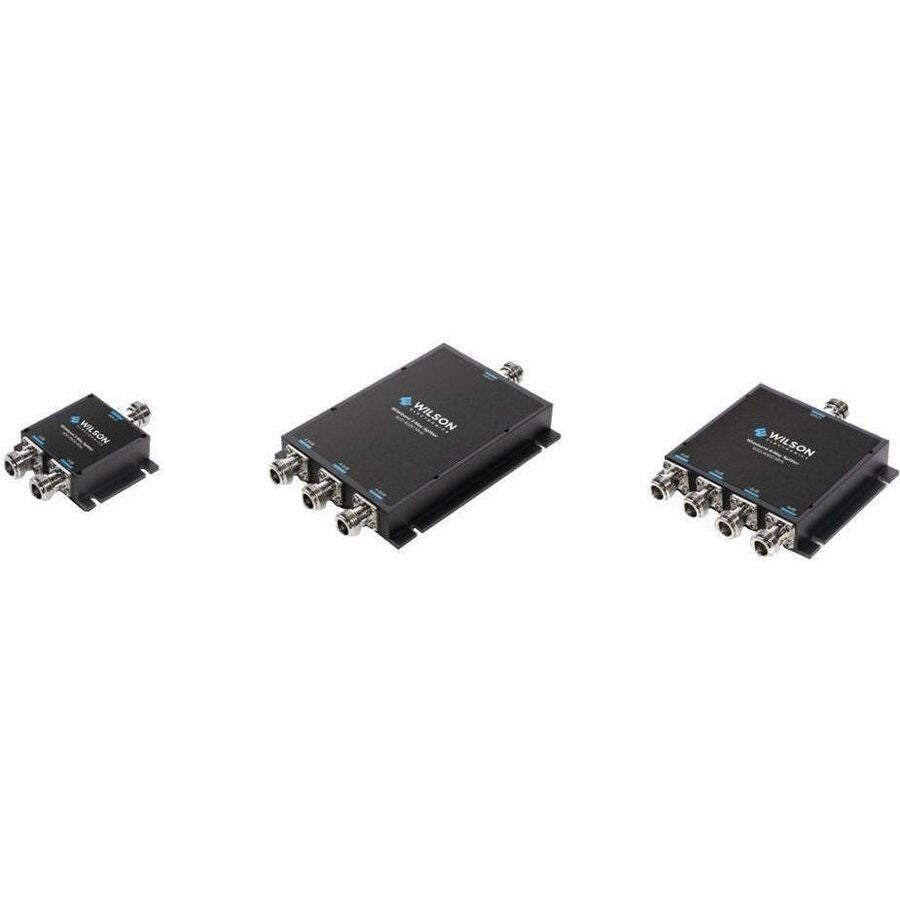

Wilson -4.8 dB 3-Way Splitter 600-4,000 MHz (50 Ohm)

This is a 3-way signal splitter designed for use with WilsonPro cellular repeaters. It divides an incoming signal into three equal parts to support three antennas from a single cable while maintaining similar signal strength.

The splitter is required when adding C-Band antennas including models 311245, 311243, and 311242 along with associated repeaters to an existing system. It is specifically designed for WilsonPro 1337 C-Band products and is compatible with frequencies from 600 MHz to 4,000 MHz. The unit carries an IP65 rating for indoor and outdoor installation, supports C-Band and T-Mobile band 71, and is compatible with the Pro 710i. It features low insertion loss and low VSWR, uses N-Female connectors, and replaces the prior 3-way splitter model 859980.

Key Features

• 3-way signal splitter for WilsonPro cellular repeaters
• Splits signal into three equal parts for three antennas
• Required for adding C-Band antennas 311245, 311243, 311242 and repeaters
• Compatible with WilsonPro 1337 C-Band products
• Frequency range 600 MHz to 4,000 MHz
• IP65 indoor and outdoor rated
• Supports C-Band and T-Mobile band 71
• Pro 710i compatible
• Low insertion loss and low VSWR
• N-Female connectors
• Replaces previous model 859980
