Wilson 100 ft. RG11 75 Ohm Coax Cable F-Male to F-Male
Wilson 100 ft. RG11 75 Ohm Coax Cable F-Male to F-Male
Low stock: 5 left
Save 20%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

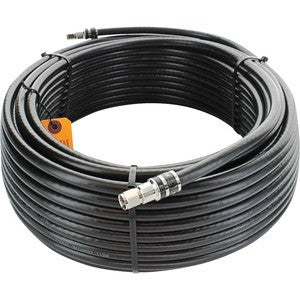

Wilson 100 ft. RG11 75 Ohm Coax Cable with F-Male to F-Male Connectors
This is a Wilson Electronics 100 ft. RG11 coaxial antenna cable with F-Male connectors on both ends, designed for cell signal booster installations. The black 75 Ohm low-loss foam cable measures 13/32" in diameter and supports connections between outdoor donor antennas, amplifiers, indoor broadcast antennas, taps, splitters, and lightning surge protectors for indoor or outdoor use. MPN: 951100; UPC: 811815021780.
Key Features of Wilson RG11 Coax Cable
- RG11 75 Ohm Construction – Low-loss foam dielectric provides around 1-2 dB signal loss per 100 feet, suitable for extending cell signal booster runs.
- F-Male Connectors Both Ends – Pre-terminated F Connector Antenna - Male on one end and F-Type Audio/Video - Male on the other for direct compatibility with amplifiers, antennas, TVs, and related devices.
- Indoor/Outdoor Durability – Black jacket withstands environmental exposure; ideal for routing from donor antennas to amplifiers and then to indoor coverage areas.
- 13/32" Diameter – Robust build handles cellular traffic in moderate use, though 75 Ohm handles less than 50 Ohm in high-traffic scenarios.
- Made in USA – Manufactured by Wilson Electronics for reliable performance in telecommunications mobile communications setups.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Wilson Electronics |
| Brand Name | Wilson |
| Manufacturer Part Number | 951100 |
| UPC | 811815021780 |
| Product Type | Antenna Cable |
| Cable Type | Coaxial RG11 |
| Impedance | 75 Ohm |
| Cable Length | 100 ft |
| Cable Diameter | 13/32" |
| Insertion Loss | 1-2 dB per 100 ft |
| Connector Type on First End | F Connector Antenna - Male |
| Connector Details on First End | 1 x F Connector Antenna - Male |
| Connector Type on Second End | F-Type Audio/Video - Male |
| Connector Details on Second End | 1 x F-Type Audio/Video - Male |
| Device Supported | TV, Amplifier, Antenna |
| Product Color | Black |
| Weight | 5.90 lb |
| Height | 3.70" |
| Width | 11.80" |
| Depth | 8.60" |
| Shipping Height | 13" |
| Shipping Width | 13" |
| Shipping Weight | 5.91 lb |
| Country of Origin | United States |
| Length Description | Long |
Installation & Maintenance for Wilson RG11 Coax Cable
Simple plug-and-play setup for cell signal booster systems; route cable carefully to minimize bends and signal loss.
- Plan Route: Measure path from donor antenna to amplifier, avoiding sharp kinks under 4" radius.
- Connect Ends: Screw F-Male connectors hand-tight onto matching ports on antennas, amplifiers, or splitters.
- Secure Cable: Use zip ties or clips outdoors; weatherproof connections with self-amalgamating tape. Pro tip: Ground surge protectors at entry points.
- Test Signal: Power up booster and check RSSI levels before finalizing.
- Maintenance: Inspect for damage annually; clean connectors with isopropyl alcohol. Avoid high-traffic areas for optimal 75 Ohm performance.
Why Choose Wilson 100 ft. RG11 Cable
Wilson Electronics delivers proven low-loss coaxial performance for telecommunications and mobile communications, ensuring reliable signal distribution in booster setups with USA-made quality.
Enhance your cell signal booster installation—Order Wilson RG11 coax cable today!
Brand: Wilson
Type: Cable
MPN: 951100
Color: Black
Country of Origin: United States
Compatible Brand: Wilson
Connector A: F Male
Connector B: F Male
Cable Length: 100 ft
Connection Split/Duplication: 1:1
UPC: 811815021780
