Key Features

• U-Shape Design - Fits snugly over the bottom of most standard interior and exterior doors.
• Dual Material Construction - Combines rigid vinyl for structure and flexible vinyl for a tight seal.
• Weather Protection - Blocks drafts, moisture, dust, and insects from entering your home.
• Energy Savings - Helps reduce heat loss in winter and air conditioning escape in summer.
• Easy Installation - Features slotted screw holes for simple alignment and adjustment.

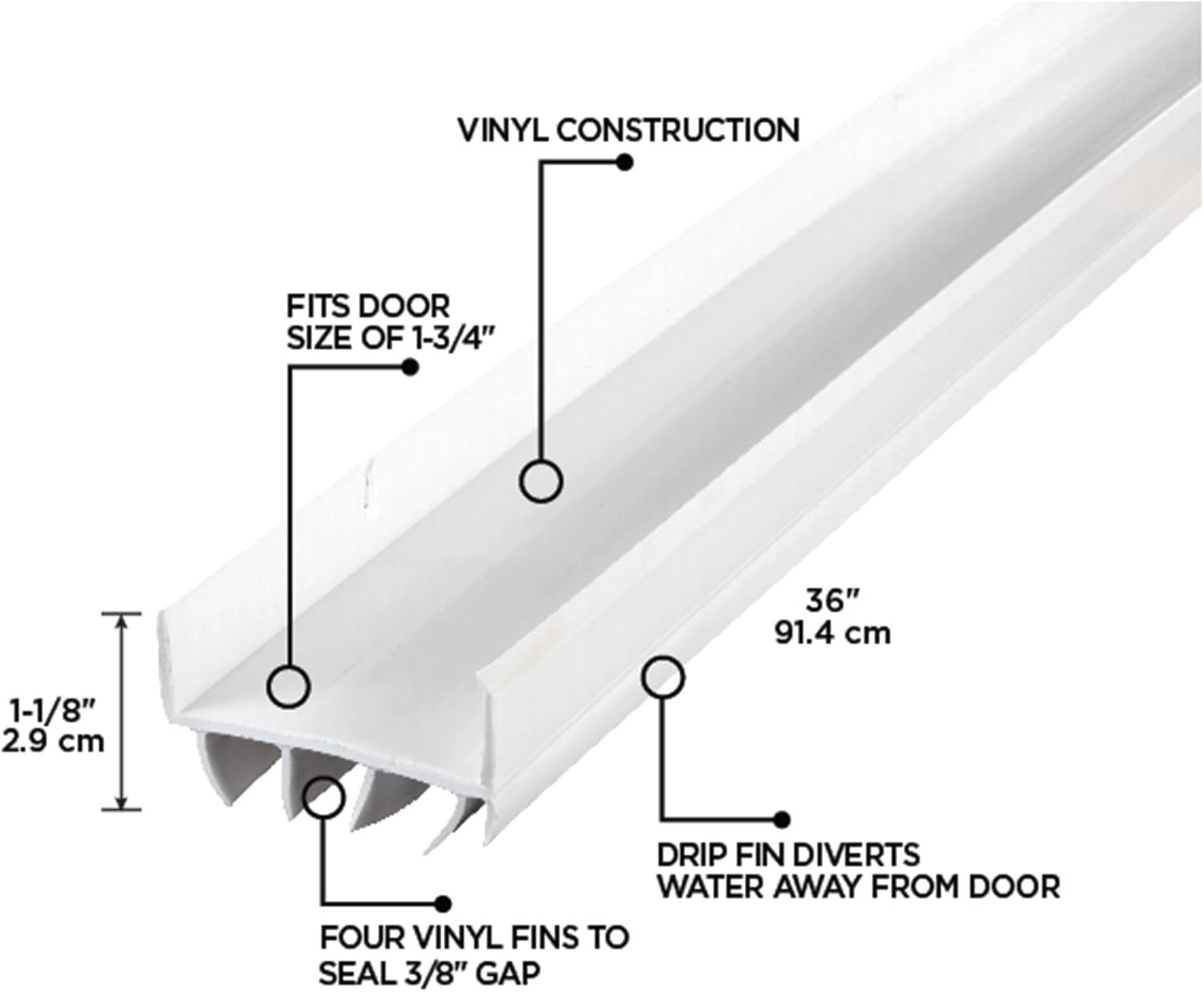

Technical Specifications

Compatible Doors

This under-door seal is designed to fit most standard residential doors with the following characteristics:

• Door width: Up to 36 inches (standard interior and exterior doors)
• Door thickness: 1-3/8" to 1-3/4" (most common residential doors)
• Door type: Interior or exterior hinged doors (wood, metal, or fiberglass)
• Threshold: Works with standard flat or low-profile thresholds

Note: Not suitable for sliding doors, garage doors, or doors with very thick bottom rails (>1-3/4"). Measure your door bottom clearance before installation to ensure at least 1/4"–1/2" space for proper fit.

Installation Guide

Installation is straightforward and requires only basic tools:

1. Measure & Trim (if needed): If your door is narrower than 36", cut the seal to size with a hacksaw or utility knife.

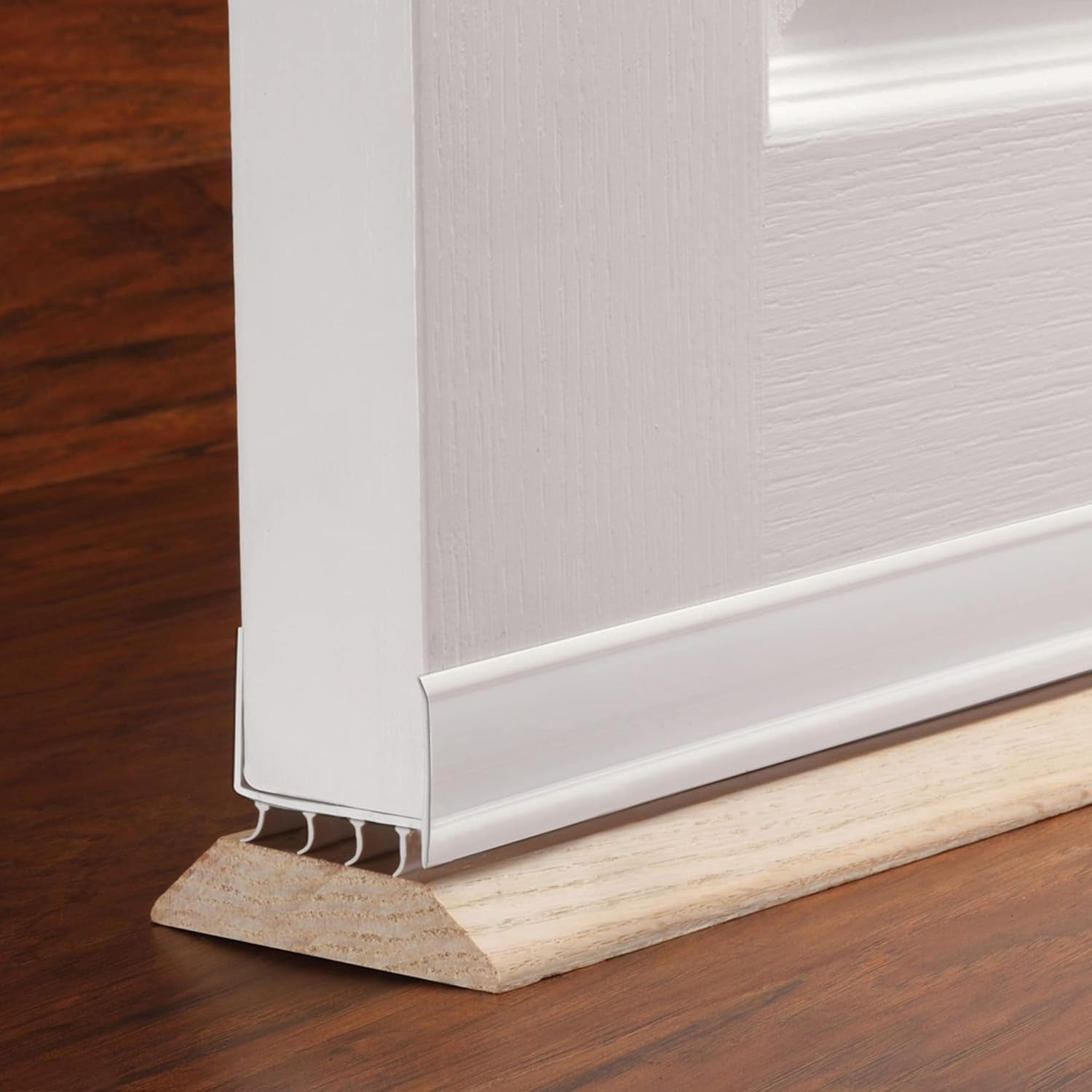

2. Position Seal: Place the U-shape over the bottom edge of the door (door removed or open for easier access).
3. Align & Mark: Slide the seal up or down so it makes light contact with the threshold when the door is closed.
4. Mark Screw Holes: Use a pencil to mark screw positions through the slotted holes.
5. Drill Pilot Holes: Drill small pilot holes to prevent splitting (especially on wood doors).

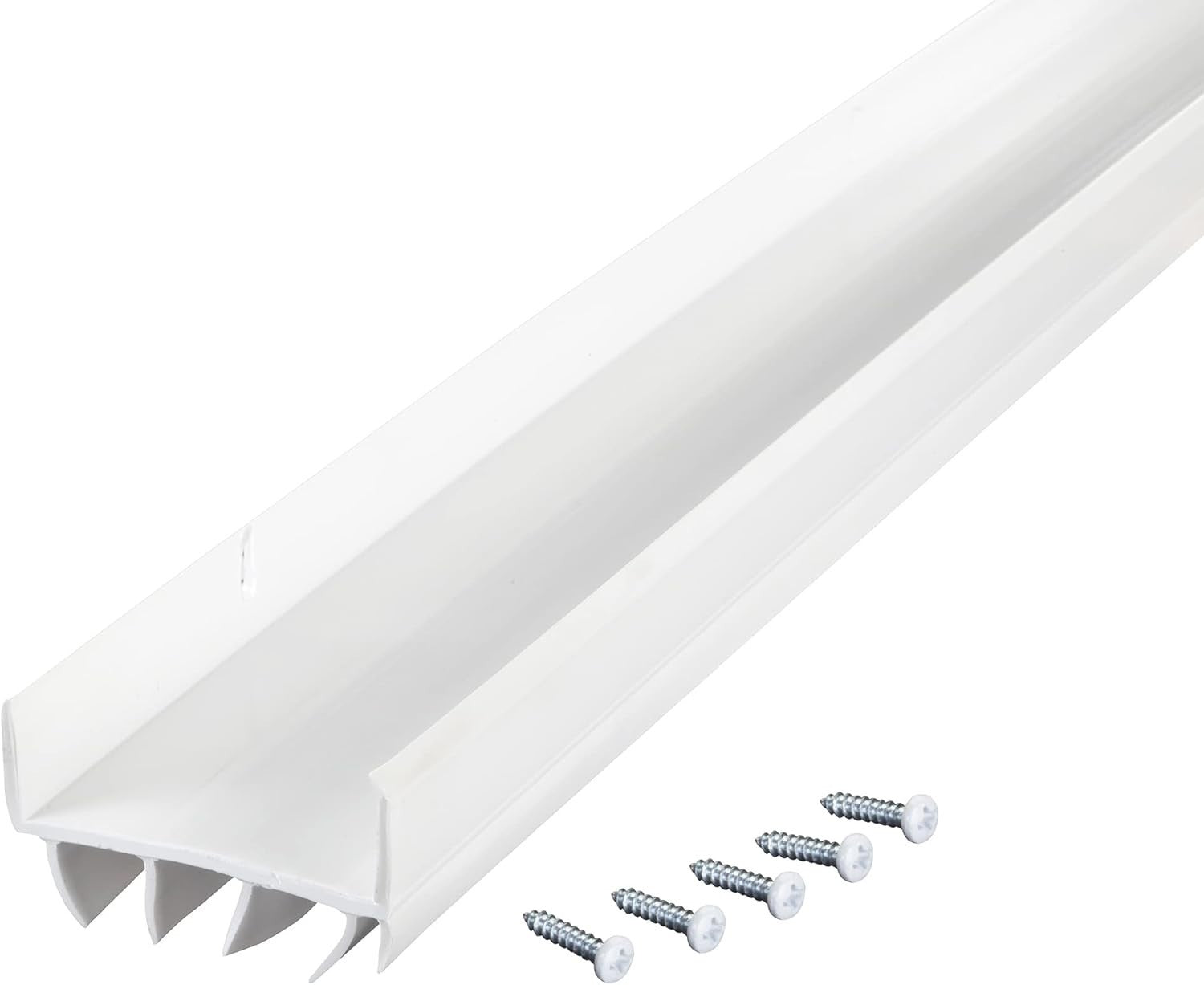

6. Secure Seal: Screw the seal in place using the provided or appropriate screws (not included).
7. Test Operation: Open and close the door several times to ensure smooth movement and good sealing.

Benefits for Your Home

This simple upgrade can noticeably improve comfort and lower energy bills. By creating a reliable seal at the door bottom, it prevents cold drafts in winter, keeps cool air inside during summer, and stops dust, pollen, and insects from entering your living space. The white vinyl finish blends well with most door colors and trim.
