Description

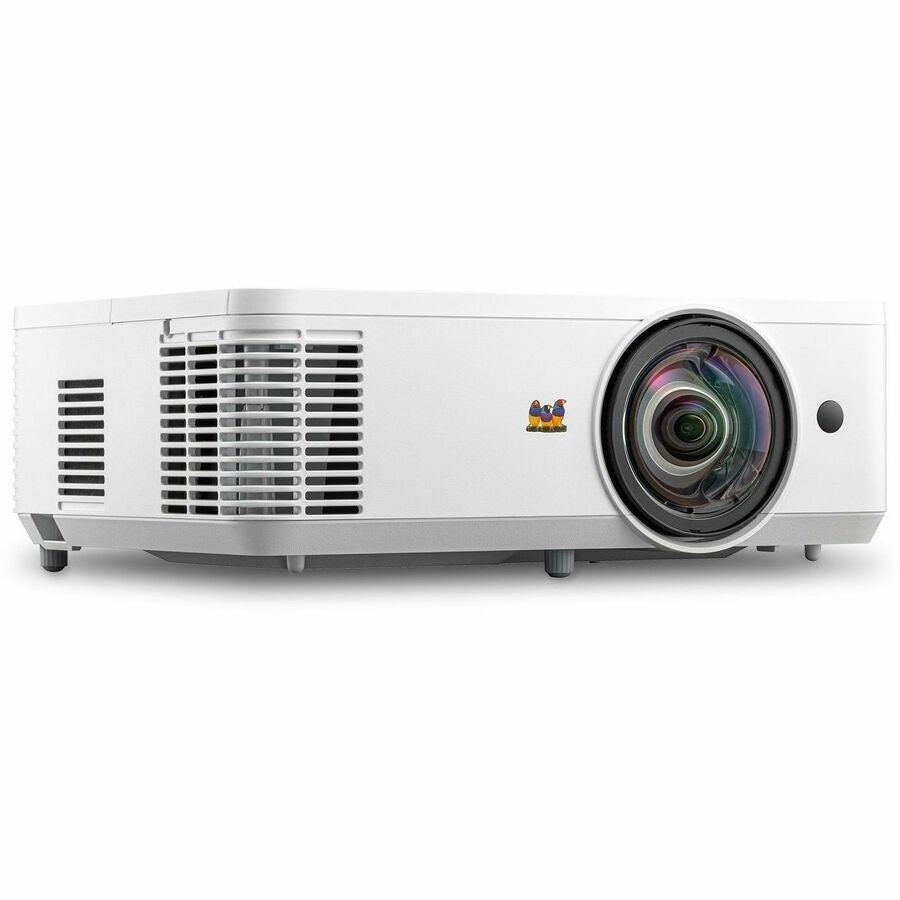

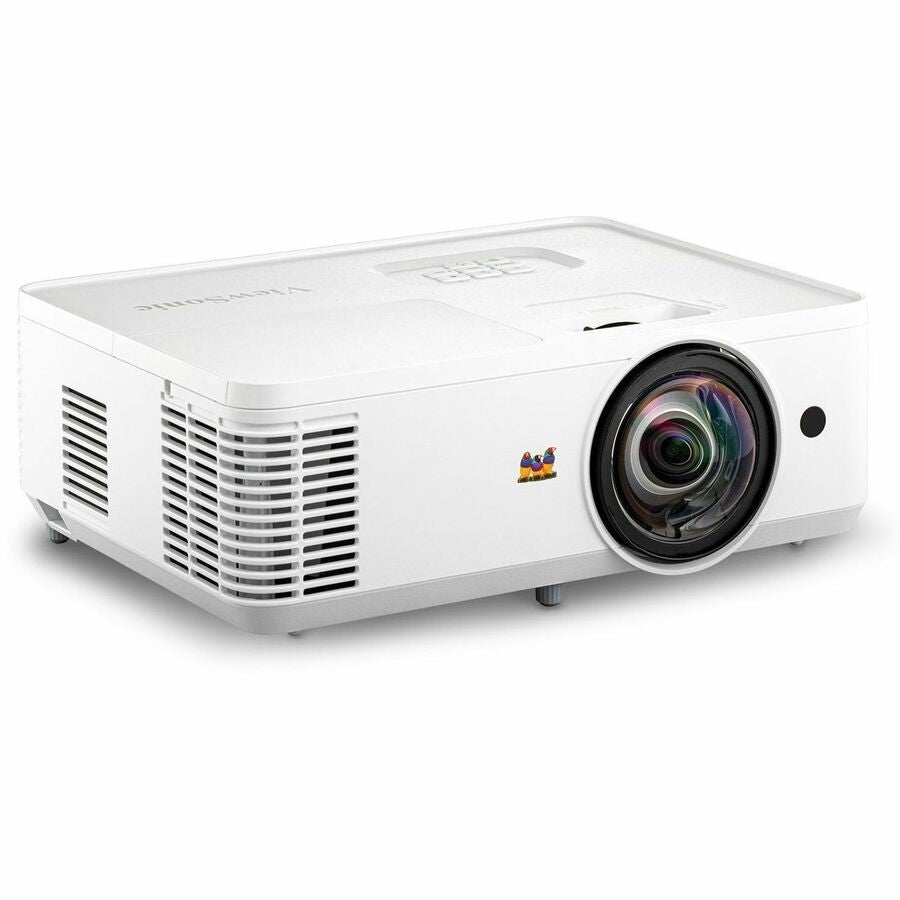

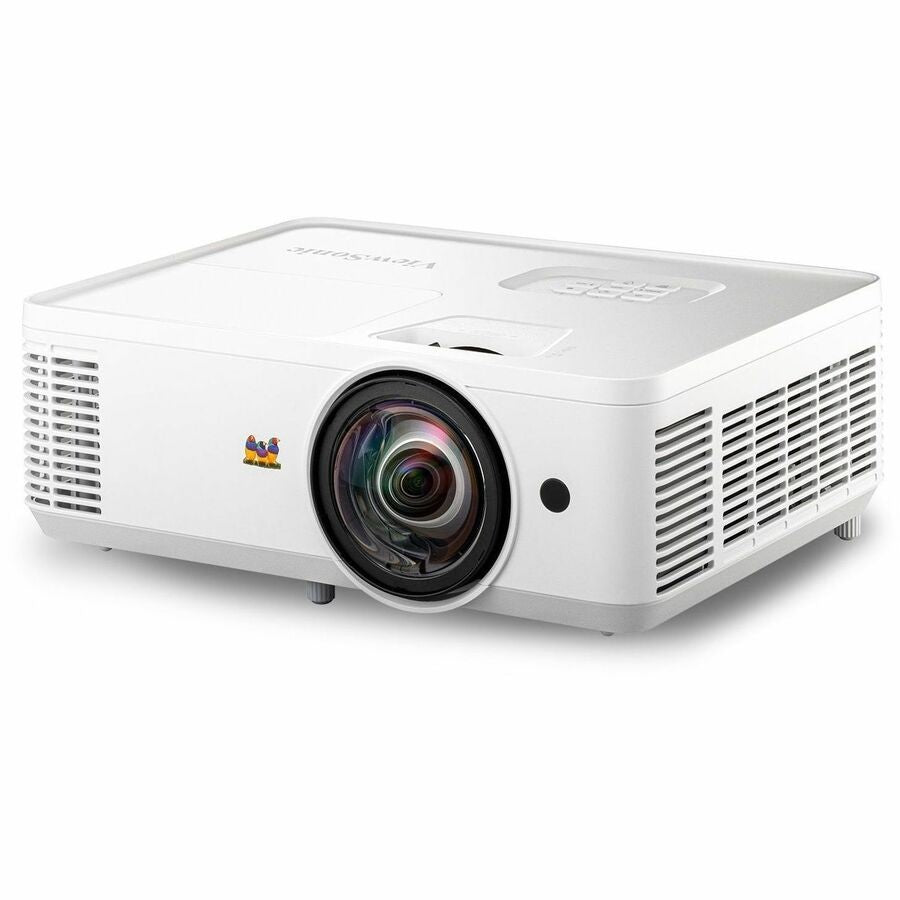

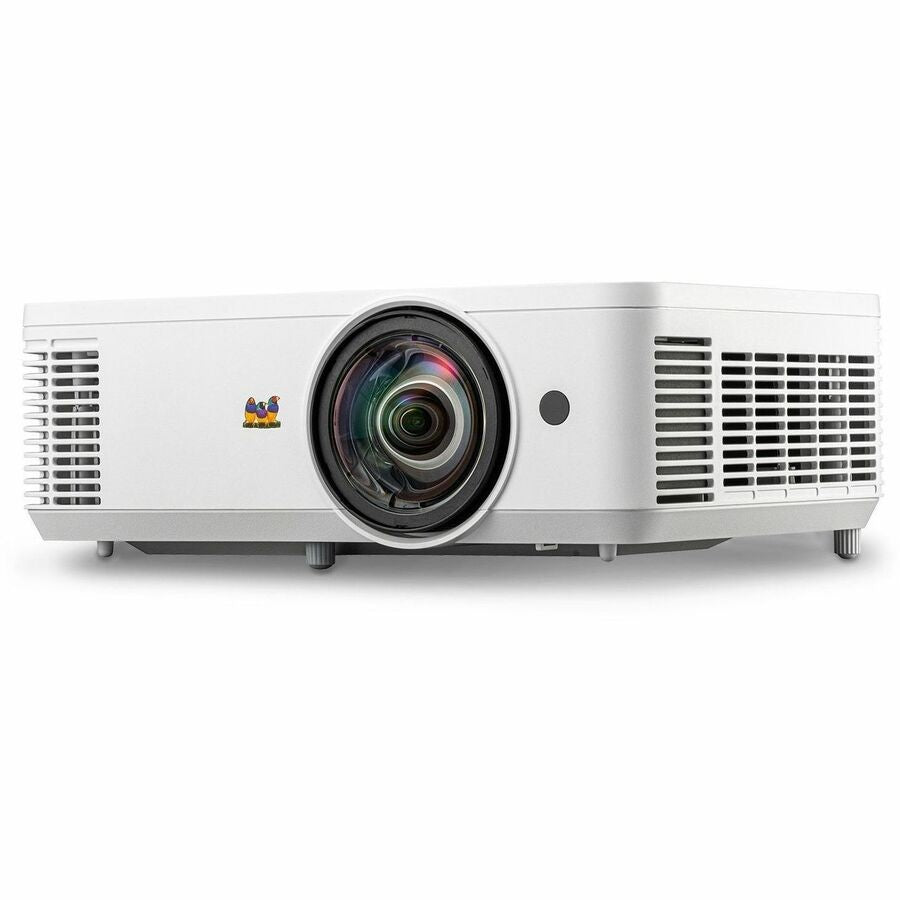

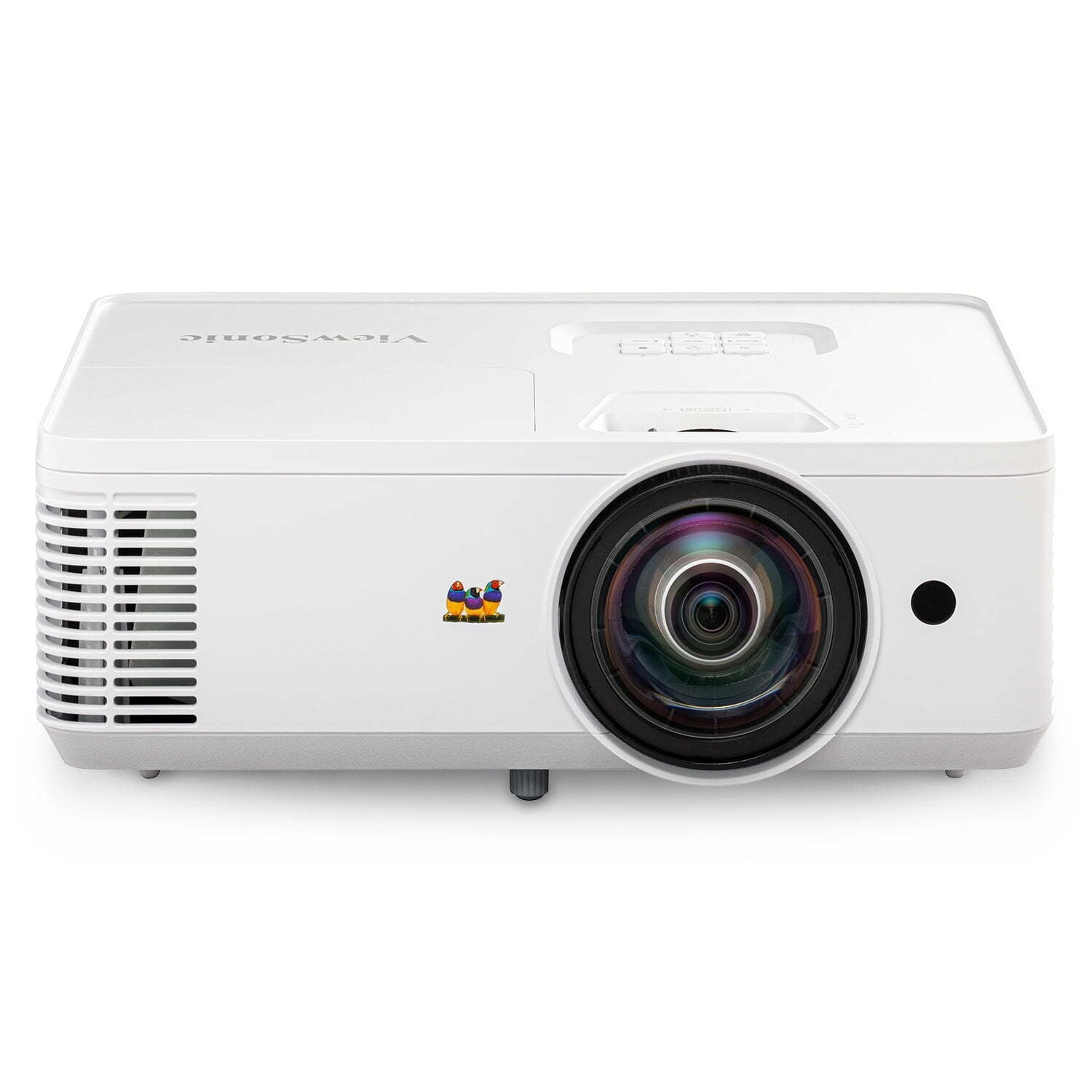

ViewSonic PS502W - 4000 Lumens WXGA Bright Short Throw Projector with Dual HDMI, USB A
This is a DLP Projector. The ViewSonic PS502W delivers 4000 ANSI lumens of brightness for business and education use. It supports WXGA native resolution with a short throw ratio of 0.52 for shadow-free 100-inch images from close range and projects up to 300 inches maximum.

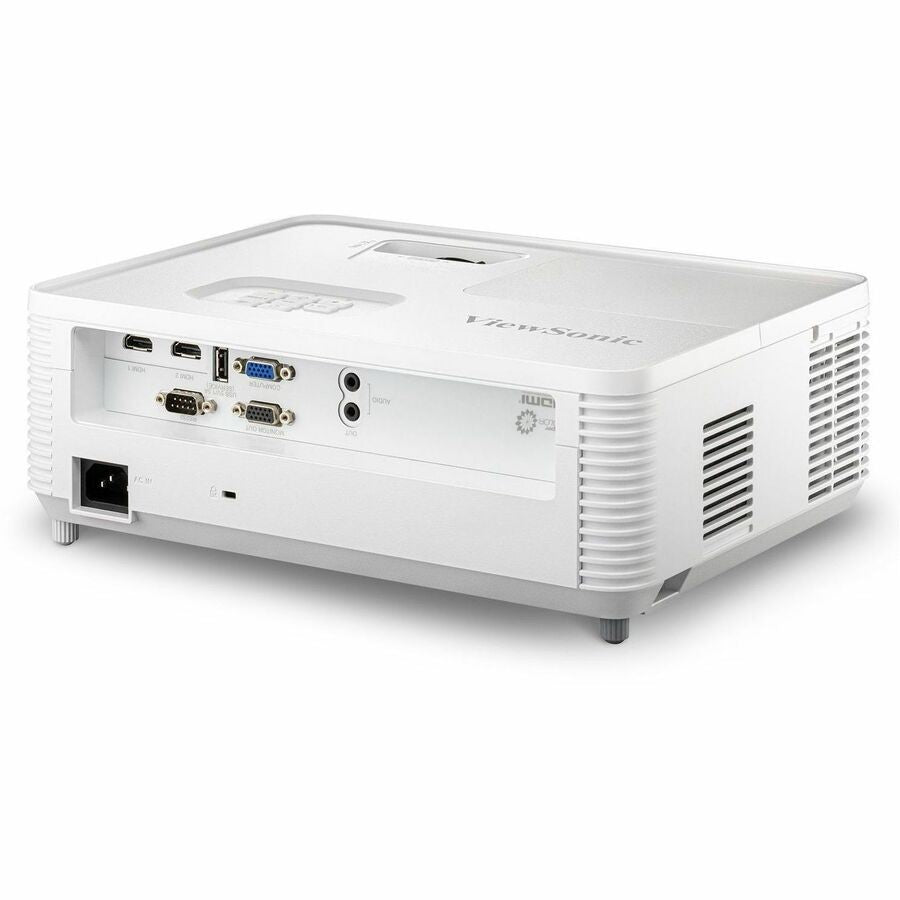

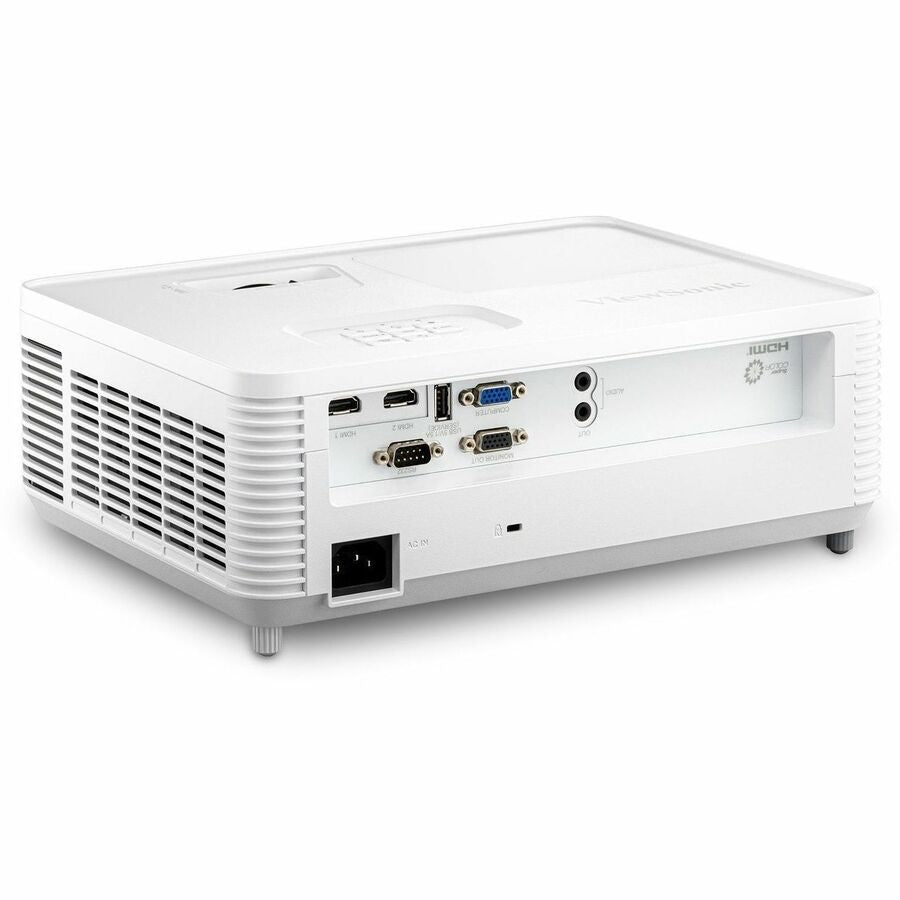

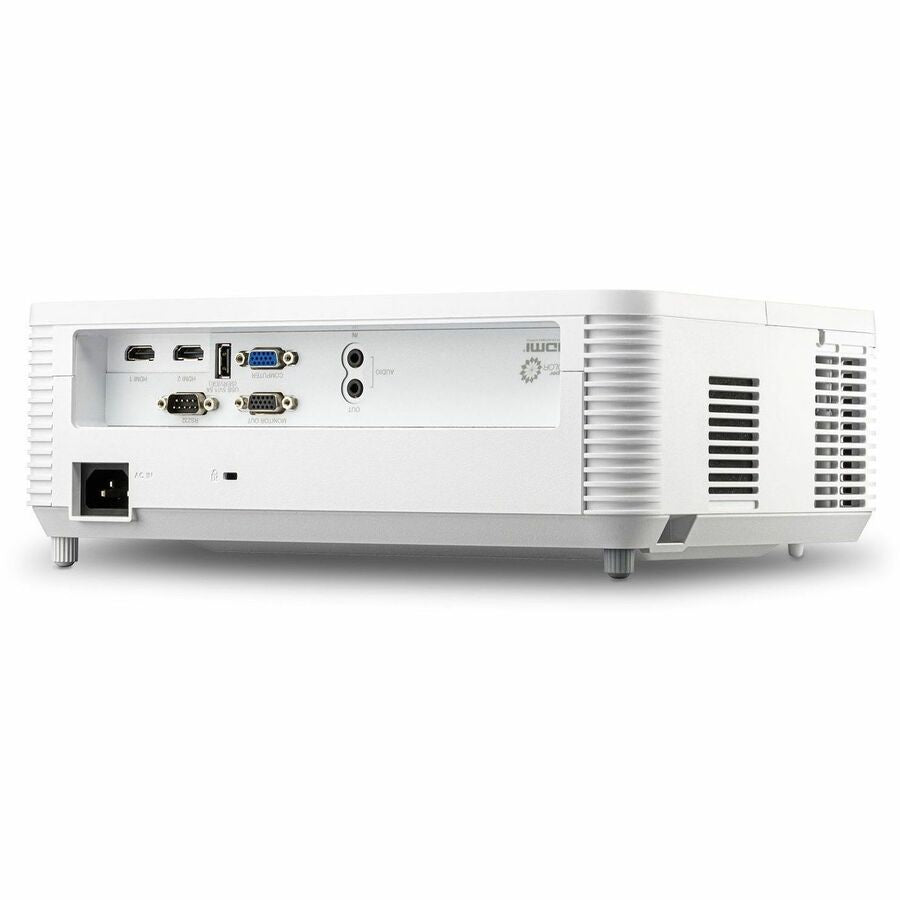

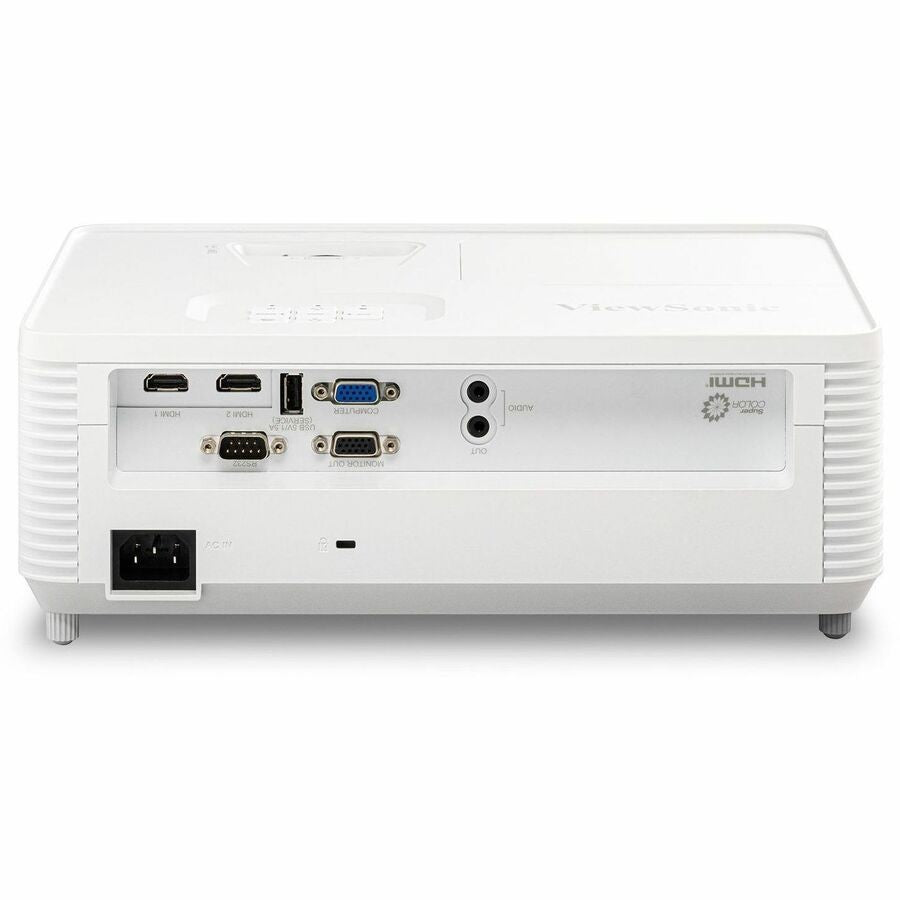

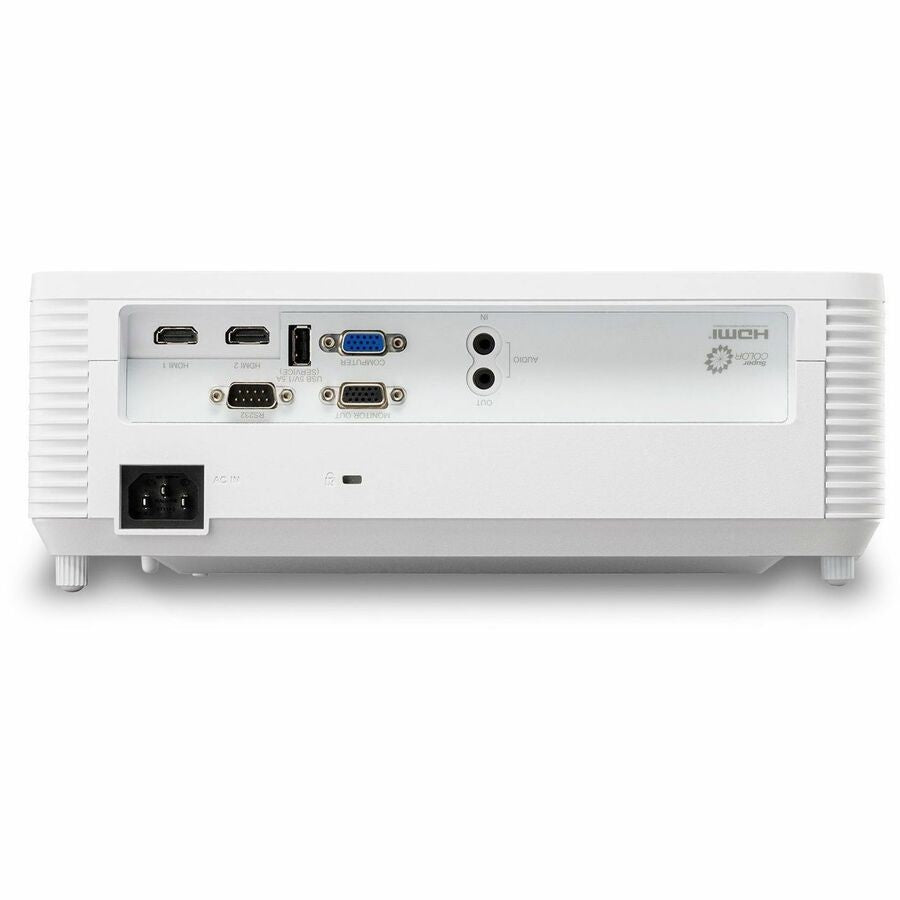

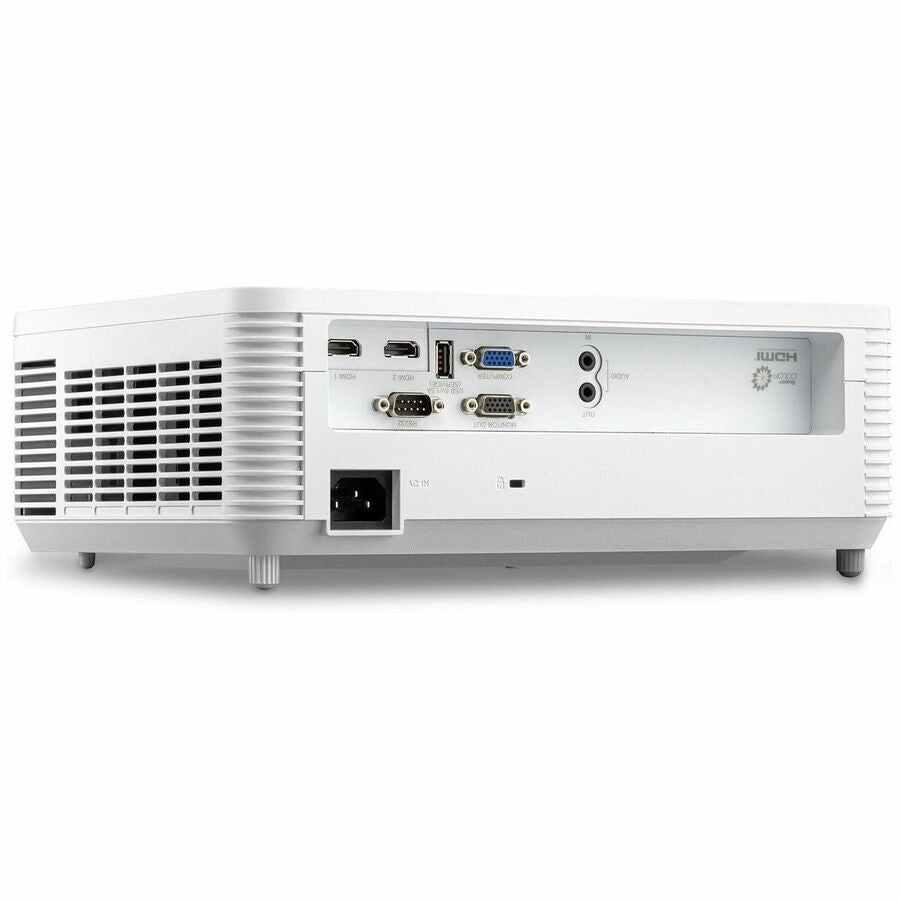

Key connectivity includes dual HDMI ports and a USB-A port for wireless dongle power and firmware updates via USB cable. The unit features one UHP lamp rated at 240 W with 4000 hours normal mode life and 12000 hours economy mode life. A built-in speaker is included.
Key Features
- 4000 ANSI lumens brightness for clear images up to 300 inches
- 0.52 short throw ratio for 100-inch images from a few feet away
- Dual HDMI ports for multiple device connections with easy source switching
- USB-A port supplies power to wireless HDMI dongles
- USB firmware updates without service center visits
- Native 1280 x 800 WXGA resolution with 1920 x 1080 maximum support
- 15000:1 contrast ratio and 16:10 native aspect ratio
- Front projection method with 2x optical zoom
- Built-in speaker for audio output
- White color finish suitable for classroom and conference room settings
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Brand Name | ViewSonic |
| Product Model | PS502W |
| Manufacturer Part Number | PS502W |
| UPC | 766907020038 |
| Product Type | DLP Projector |
| Projection Method | Front |
| Throw Type | Short Throw |
| Maximum Focal Length | 7.51 mm |
| Maximum Diagonal Image Size | 25 ft |
| Optical Zoom | 2x |
| Minimum Projection Distance | 26.38" |
| Maximum Projection Distance | 11.02 ft |
| Number of Lamps | 1 |
| Lamp Type | UHP |
| Lamp Power | 240 W |
| Normal Mode Lamp Life | 4000 Hour |
| Economy Mode Lamp Life | 12000 Hour |
| Standard Mode Brightness | 4000 lm |
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Maximum Resolution | 1920 x 1080 |
| Native Aspect Ratio | 16:10 |
| Contrast Ratio | 15,000:1 |
| Minimum Vertical Sync | 23 Hz |
| Maximum Vertical Sync | 120 Hz |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Speaker Included | Yes |
| HDMI | Yes |
| USB | Yes |
| Operating Power Consumption | 295 W |
| Product Color | White |
| Color Family | White |
| Height | 4.5" |
| Width | 12.2" |
| Depth | 9.2" |
| Weight (Approximate) | 6.33 lb |
| Application/Usage | Business Education Meeting Class Room Presentation |
Package Contents
ViewSonic PS502W projector, power cable, and documentation.
UPC: 766907020038
Display Technology: DLP
MPN: PS502W
Image Brightness: 4000 ANSI Lumens
Color: White
Brand: ViewSonic
Connectivity: Wired
Native Resolution: 1280 x 800
Contrast Ratio: 15000:1
Features: Ceiling Projection
Throw Ratio: Short Throw
Aspect Ratio: 16:10
Type: Filmstrip Projector
Maximum Resolution: 1080p (FHD)
Model: ViewSonic PS502W
Item Weight: 6.33 lbs
