Description
ViewSonic LS630W 4500 Lumens DLP WXGA Laser Projector with 1.3x Optical Zoom, H/V Keystone, 360 Degrees Projection and LAN Control

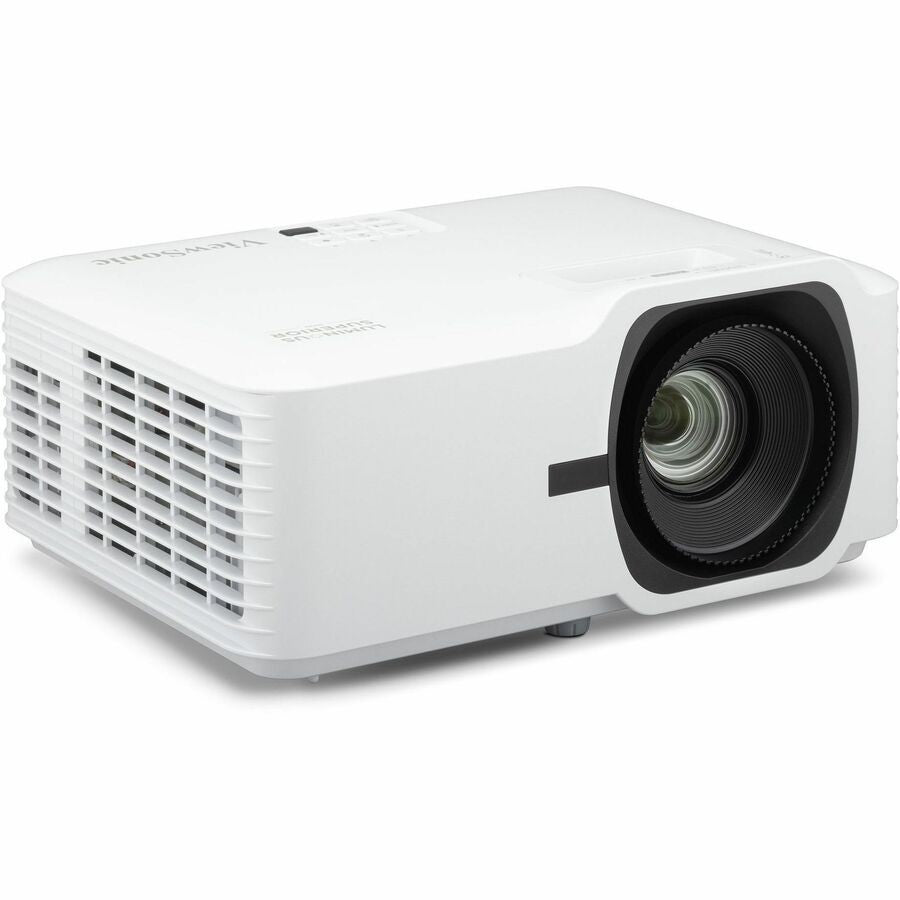

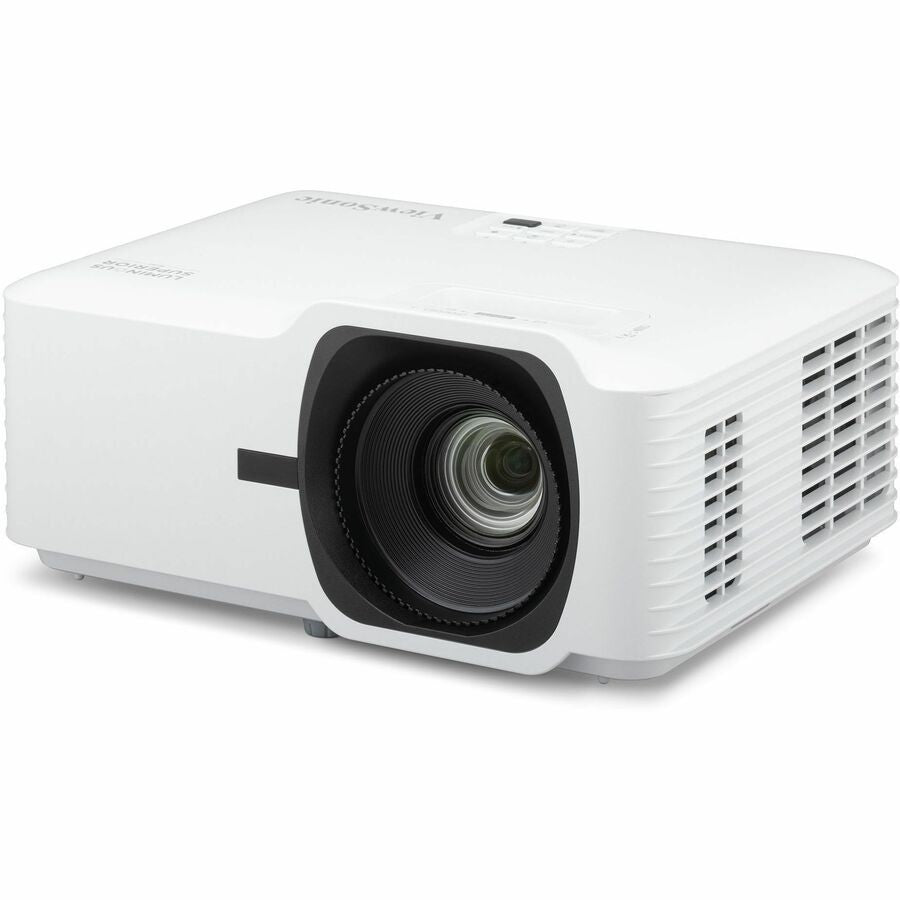

This is a DLP Projector. The ViewSonic LS630W 4500 Lumens DLP WXGA Laser Projector with 1.3x Optical Zoom, H/V Keystone, 360 Degrees Projection and LAN Control is a lamp-free WXGA model that delivers 4500 ANSI lumens of brightness for business and education use. It supports up to 30000 hours of operation in economy mode with a laser phosphor light source and includes flexible mounting options plus LAN control.
The projector provides front projection, manual focus and zoom lens, 1.3x optical zoom, 1280 x 800 native resolution, 16:10 aspect ratio, and 300000:1 contrast ratio. It accepts HDTV signals with 1080p output scan format and includes a built-in speaker.
Key Features
- 4500 ANSI lumens brightness for well-lit rooms
- Laser phosphor lamp with 20000 hours normal mode and 30000 hours economy mode life

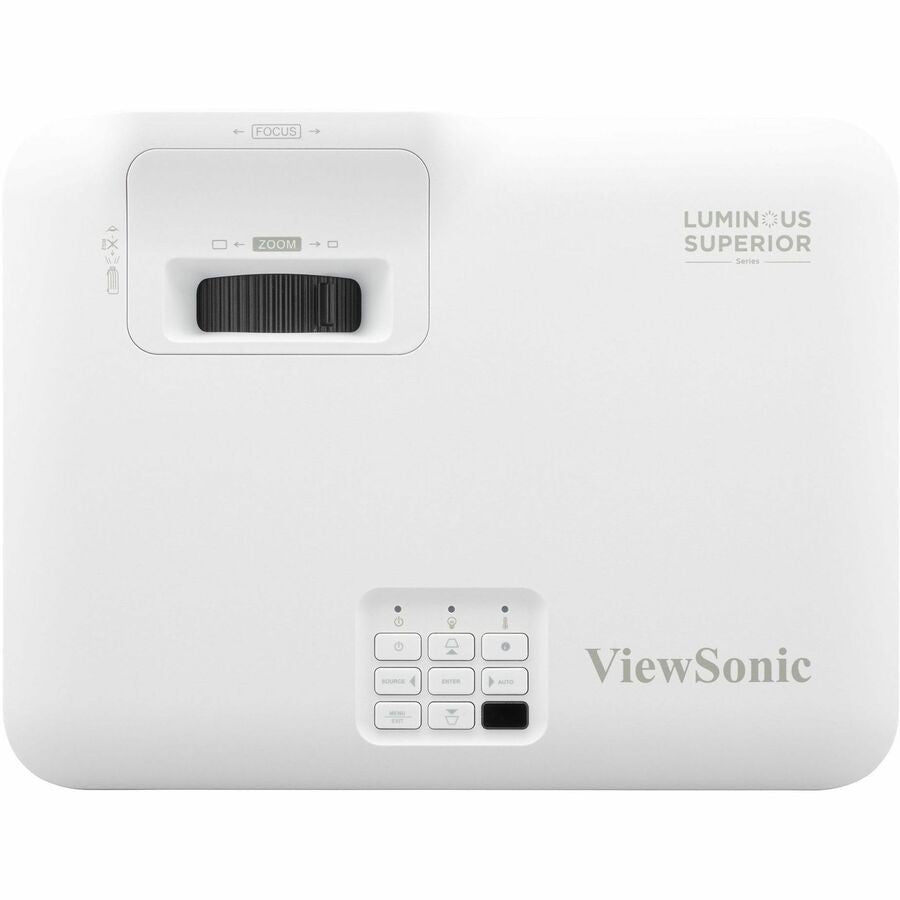

- 1.3x optical zoom with manual focus

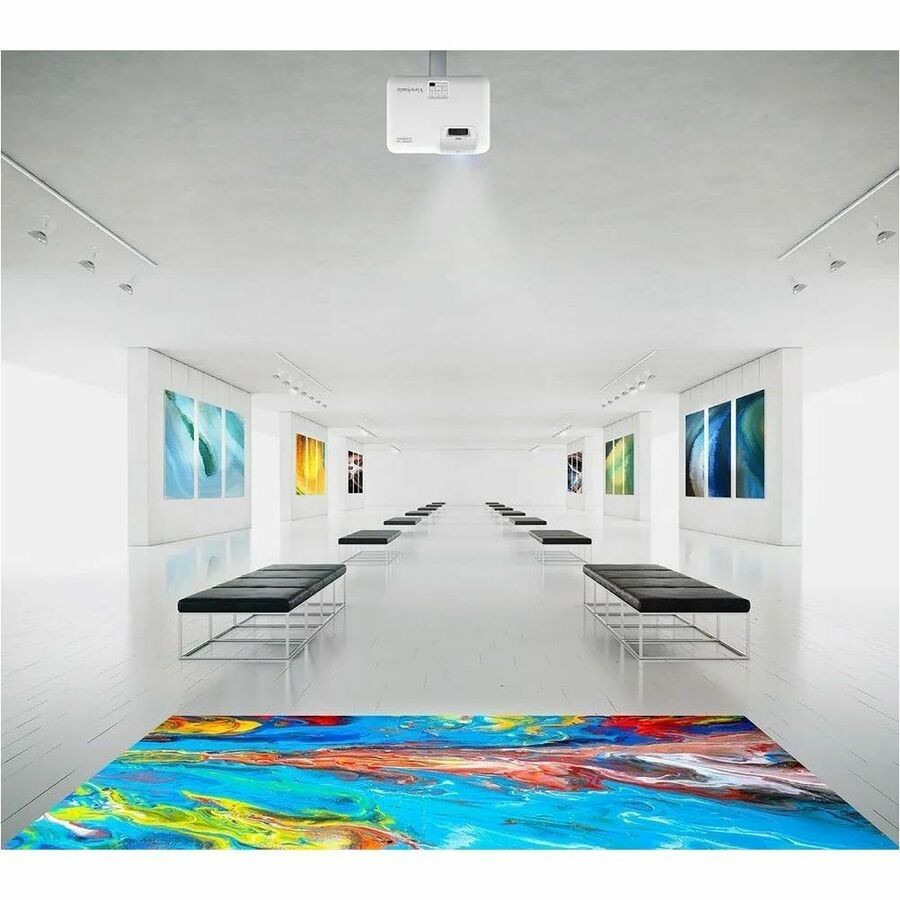

- 360 degree projection capability

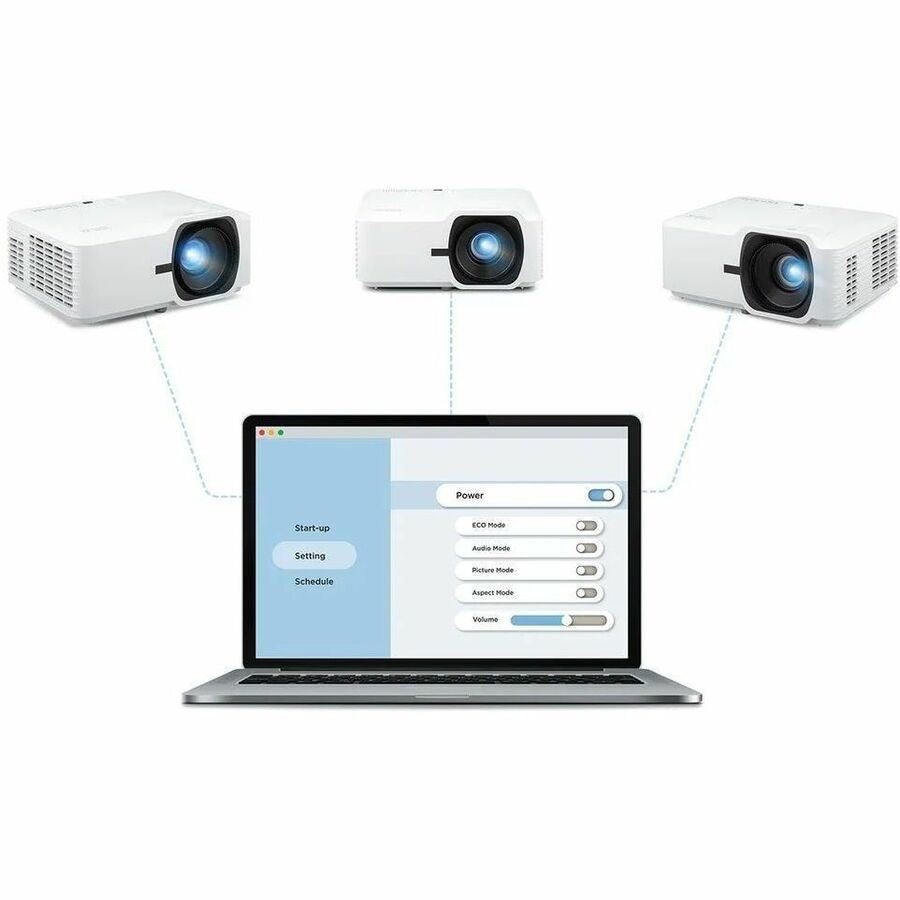

- LAN control for centralized management

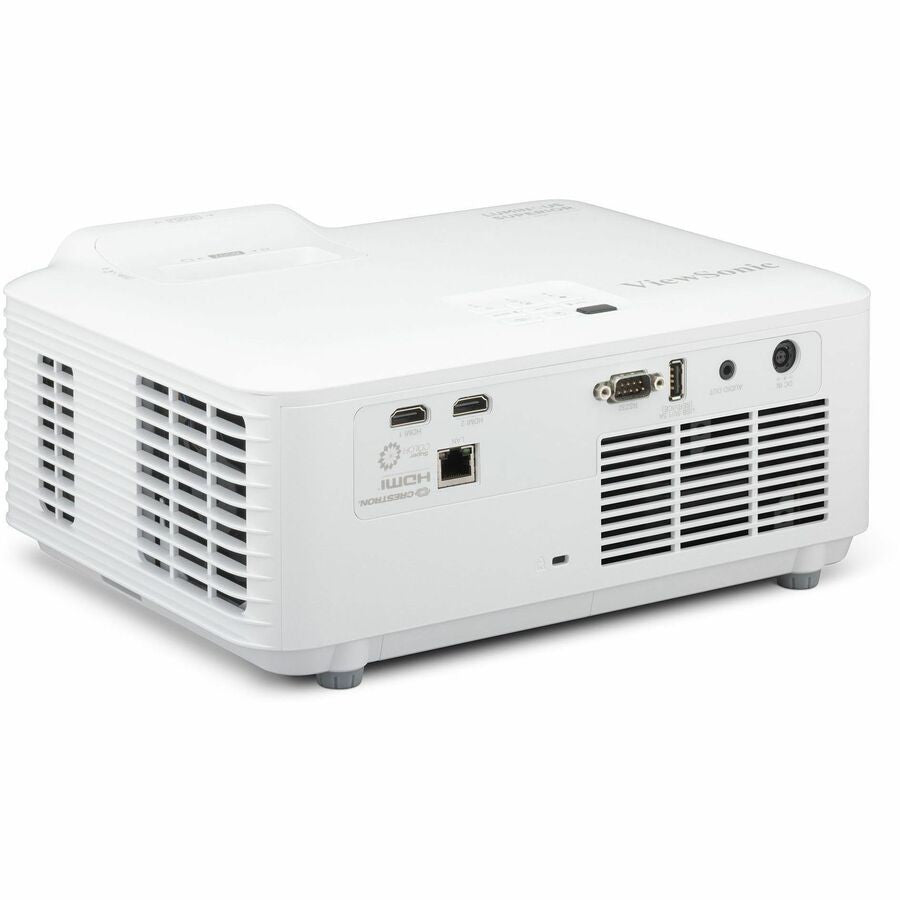

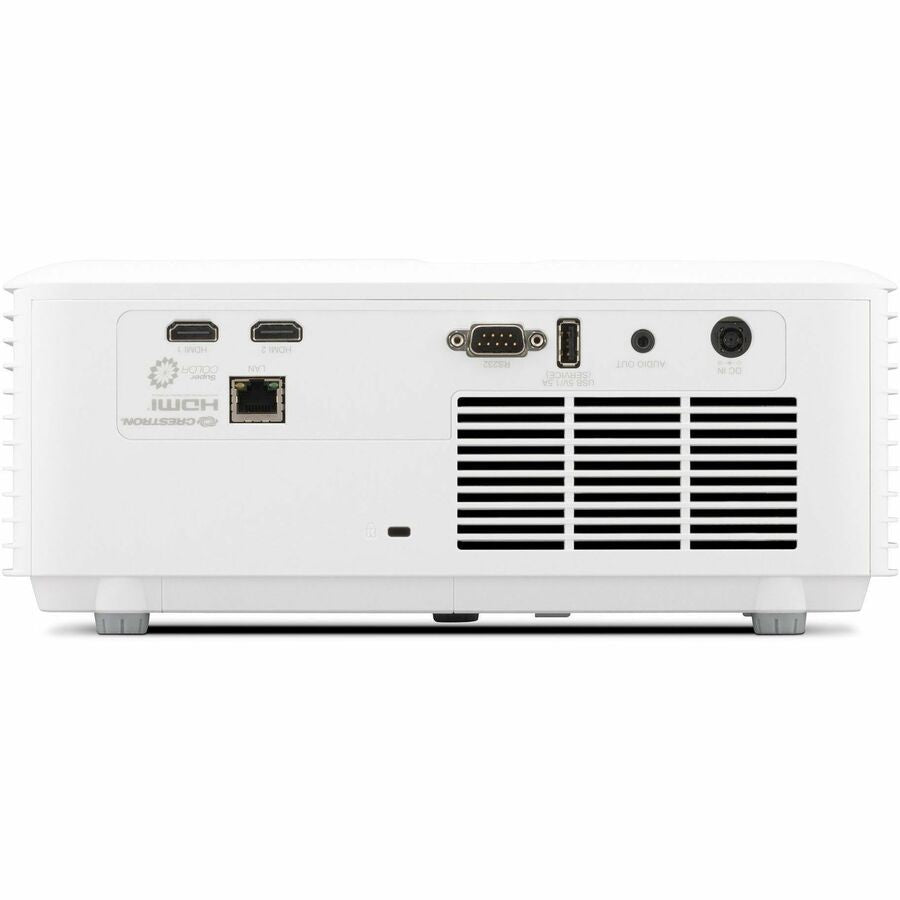

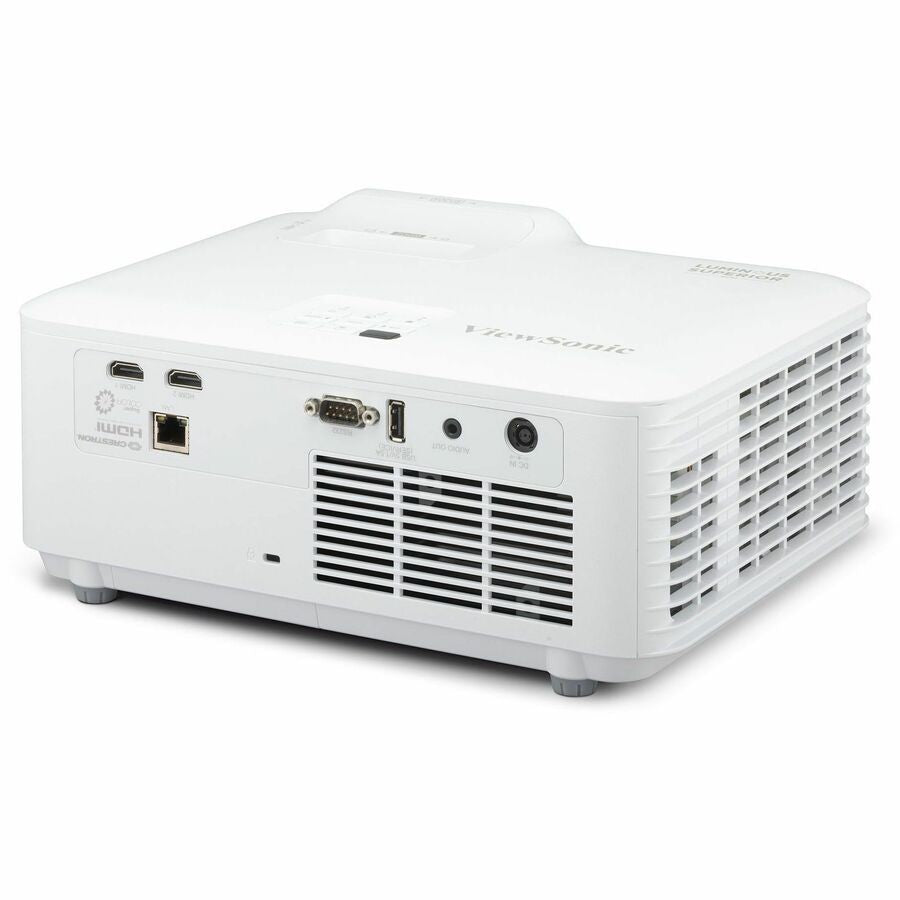

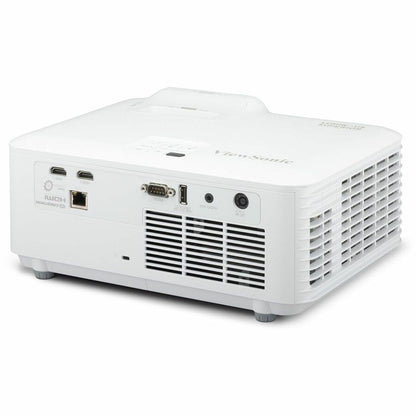

- Two HDMI ports, USB port, and network RJ-45 port

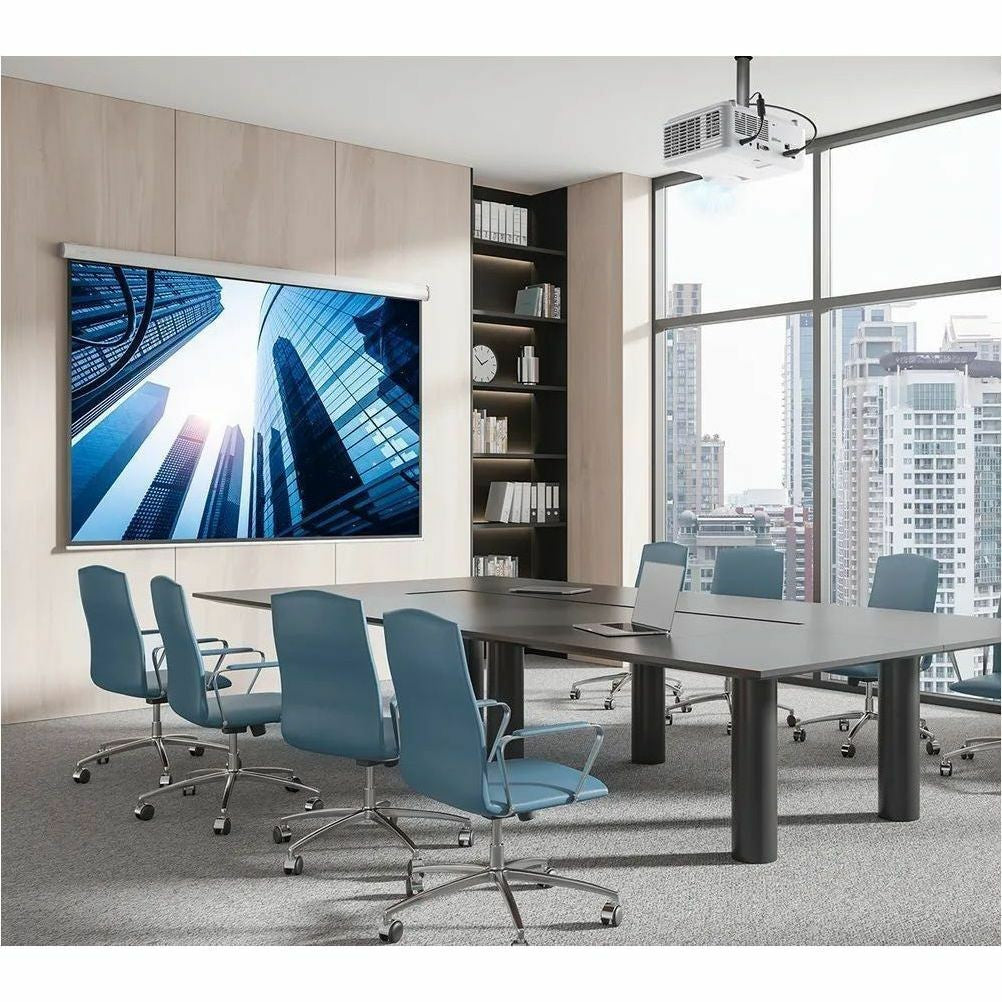

- Wall, ceiling, and floor mountable form factor
- 1.07 billion colors supported
- 24 Hz to 120 Hz vertical sync range
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | ViewSonic Corporation |
| Brand Name | ViewSonic |
| Product Line | Luminous Superior |
| Product Model | LS630W |
| Manufacturer Part Number | LS630W |
| UPC | 766907031270 |
| Product Type | DLP Projector |
| Projection Method | Front |
| Interactive | Yes |
| Lens Type | Manual Focus, Manual Zoom |
| Minimum Focal Length | 16.90 mm |
| Maximum Focal Length | 21.61 mm |
| Minimum Diagonal Image Size | 30 inches |
| Maximum Diagonal Image Size | 25 ft |
| Optical Zoom | 1.3x |
| Minimum Projection Distance | 30.31 inches |
| Maximum Projection Distance | 32.74 ft |
| Number of Lamps | 1 |
| Lamp Type | Laser/Phosphor |
| Normal Mode Lamp Life | 20000 Hour |
| Economy Mode Lamp Life | 30000 Hour |
| Standard Mode Brightness | 4500 lm |
| White Brightness | 4500 lm |
| Color Supported | 1.07 Billion Colors |
| Native Resolution | 1280 x 800 |
| Graphic Mode | WXGA |
| Native Aspect Ratio | 16:10 |
| Throw Ratio | 1.18 to 1.54 |
| Contrast Ratio | 300000:1 |
| Minimum Vertical Sync | 24 Hz |
| Maximum Vertical Sync | 120 Hz |
| Video Signal Standard | HDTV |
| Output Scan Format | 1080p |
| Speaker Included | Yes |
| Number of HDMI Ports | 2 |
| USB | Yes |
| Network RJ-45 | Yes |
| Operating Power Consumption | 175 W |
| Product Color | White |
| Color Family | White |
| Form Factor | Wall Mountable, Ceiling Mountable, Floor Mountable |
| Height | 5.1 inches |
| Width | 11.3 inches |
| Depth | 8.5 inches |
| Weight Approximate | 6.83 lb |
| Application Usage | Education, Business, Board Room, Lecture Hall, Sports, Class Room, Meeting |
Package Contents
- 4,500 ANSI Lumens WXGA Laser Business/Education Projector
- Power Cable

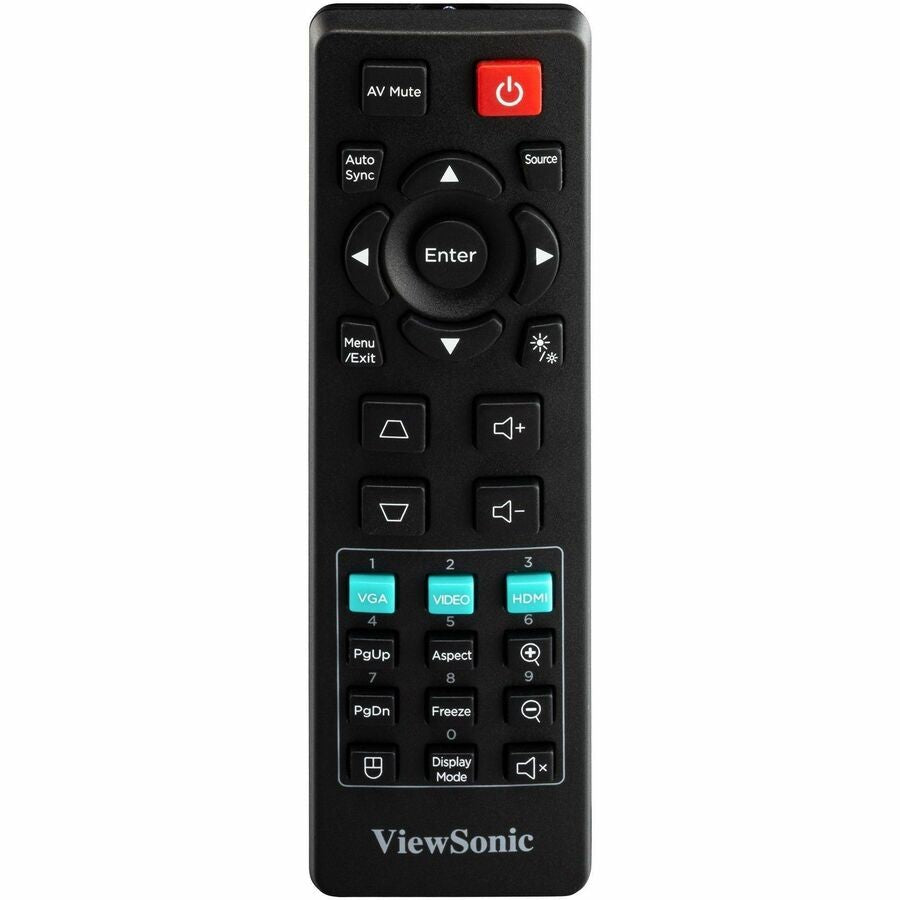

- Remote Control
- Quick Start Guide
Brand: ViewSonic
Model: LS630W
MPN: LS630W
UPC: 766907031270
