Description

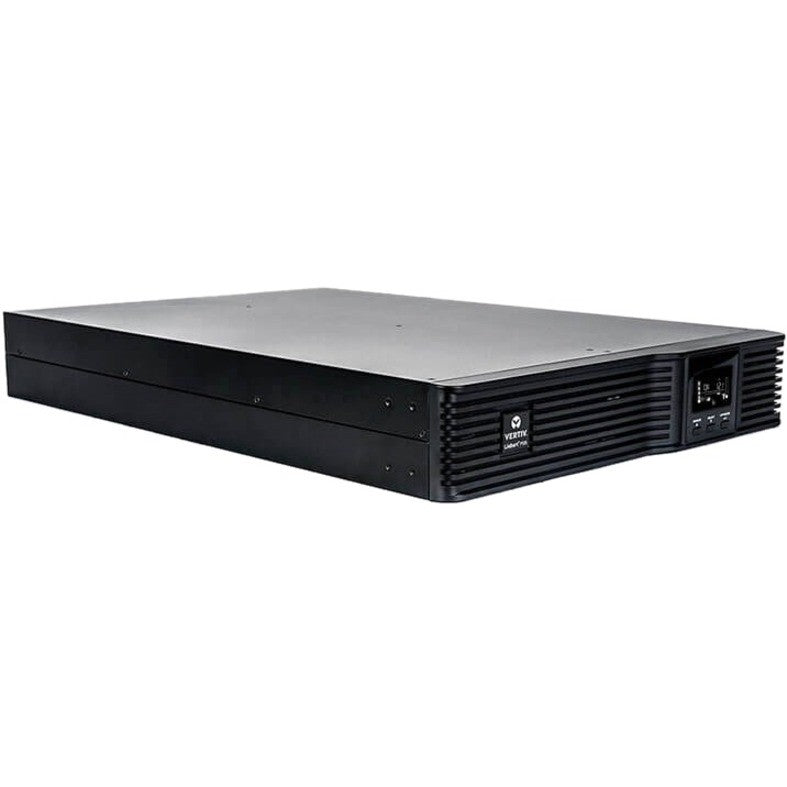

Vertiv Liebert PSI5 3000VA UPS 120V 2U Rack Tower AVR
This is a Line-interactive UPS. The Vertiv Liebert PSI5 uninterruptible power supply protects electronic devices in school, home and office environments from power outages, brownouts, sags, surges and noise interference. It delivers 3000 VA / 2700 W capacity with pure sine wave output and automatic voltage regulation from 83 to 159 VAC without battery use. Transfer time to battery is 6 ms. The unit supports orderly shutdown of critical equipment and allows optional remote monitoring of up to 50 systems via Vertiv Liebert Unity communication card with free Vertiv Trellis Power Insight Application.
Key Features
- Automatic Voltage Regulation (AVR) extends battery life
- Pure sine wave output for critical IT applications including network closets and small data centers
- Single phase operation with NEMA L5-30P plug

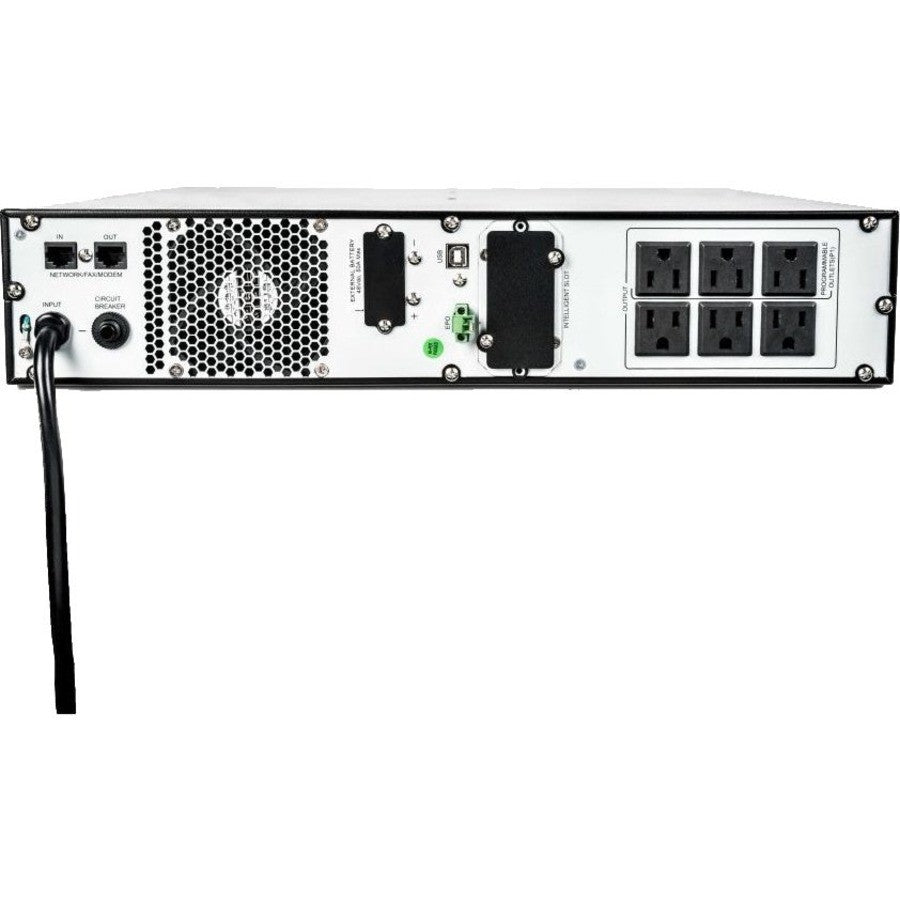

- 6 battery and surge outlets: 3 x NEMA 5-15/20R, 1 x NEMA L5-30R, 3 x NEMA 5-20R

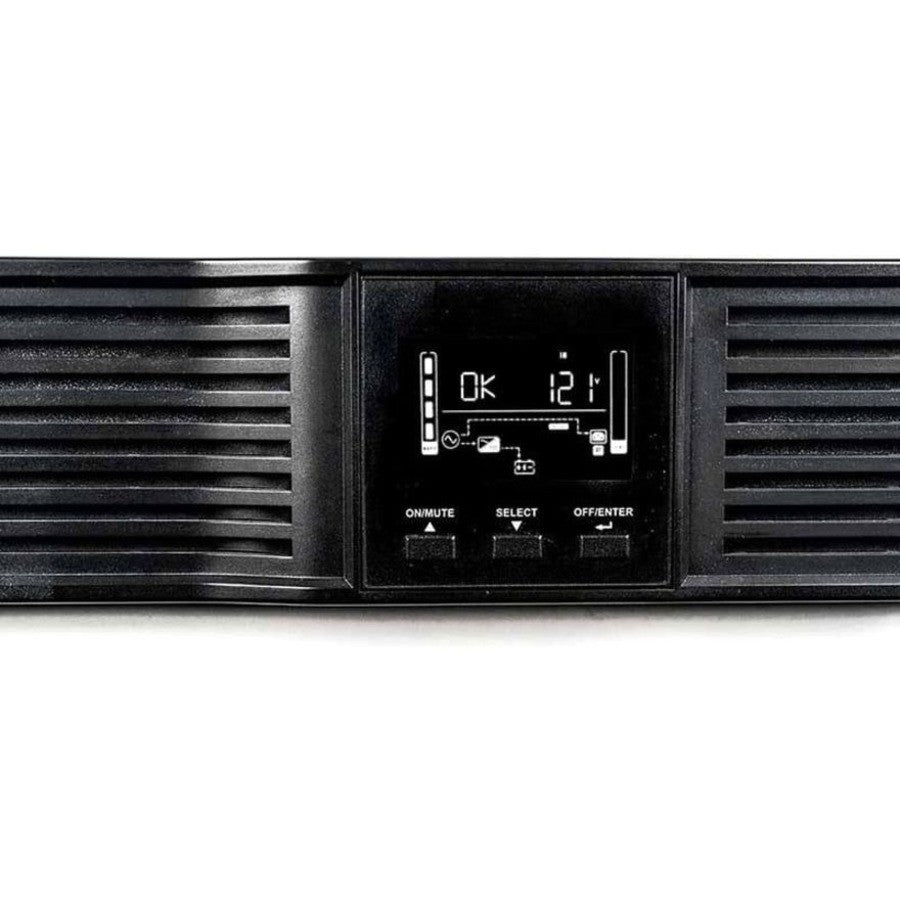

- LCD display status indicators
- Network (RJ-45), EPO and USB (HID Compliant) ports
- Valve-regulated lead acid battery, hot swappable and replaceable
- 3 minute runtime at full load, 12 minute runtime at half load
- 4 hour typical recharge time
- Supports up to 6 external battery cabinets
- 1372 J surge energy rating
- Energy Star and RoHS compliant
Comprehensive Technical Specifications
| Manufacturer | Vertiv Corp |
| Brand Name | Vertiv Liebert |
| Product Series | PSI5 |
| Manufacturer Item Number | PSI5-3000RT120 |
| UPC | 812105028731 |
| Product Type | Line-interactive UPS |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 115 V AC, 120 V AC, 125 V AC, 110 V AC, 100 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| AVR | Yes |

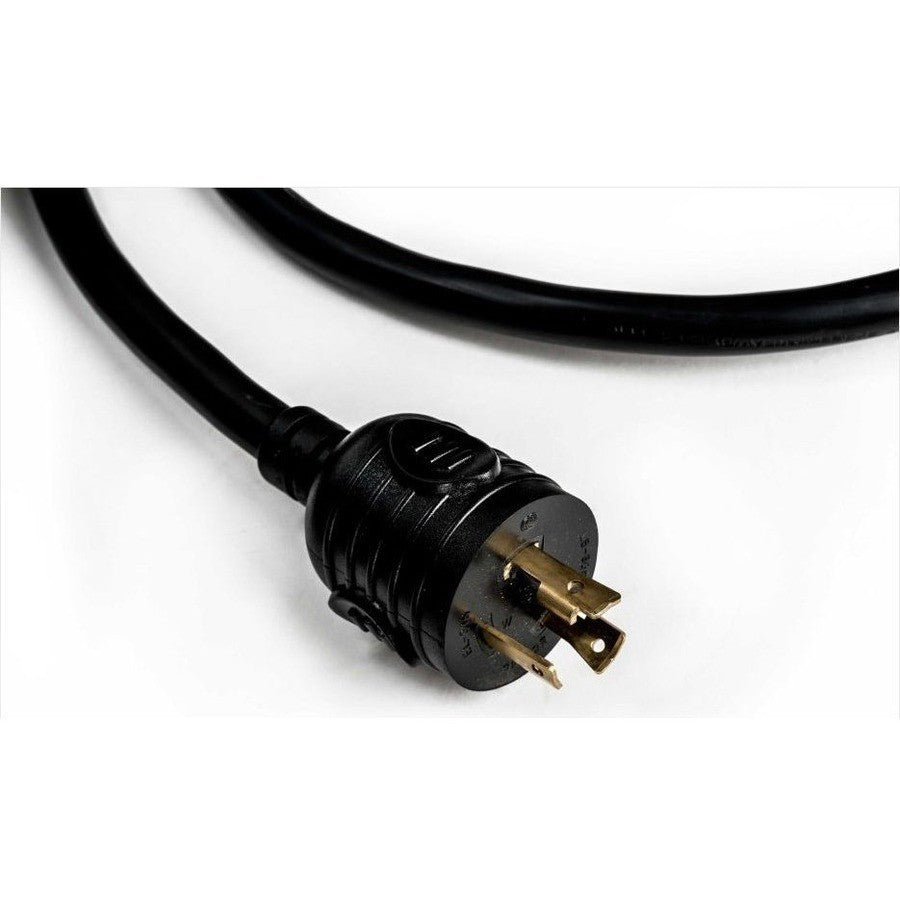

| Plug/Connector Type | NEMA L5-30P |
| Receptacle Detail | 3 x NEMA 5-15/20R, 1 x NEMA L5-30R, 3 x NEMA 5-20R |
| Number of Battery and Surge Outlets | 6 |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Surge Energy Rating | 1372 J |
| Status Indicators | LCD Display |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Number of External Battery Cabinets | 6 |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Height | 3.5" |
| Width | 17.2" |
| Depth | 24.8" |

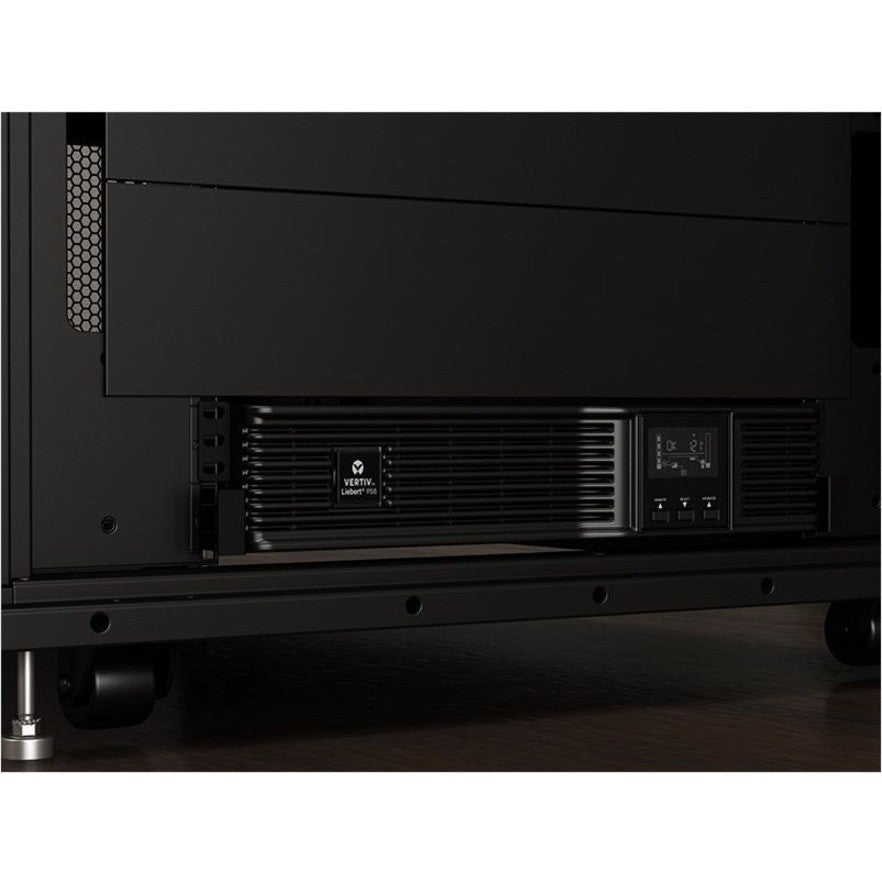

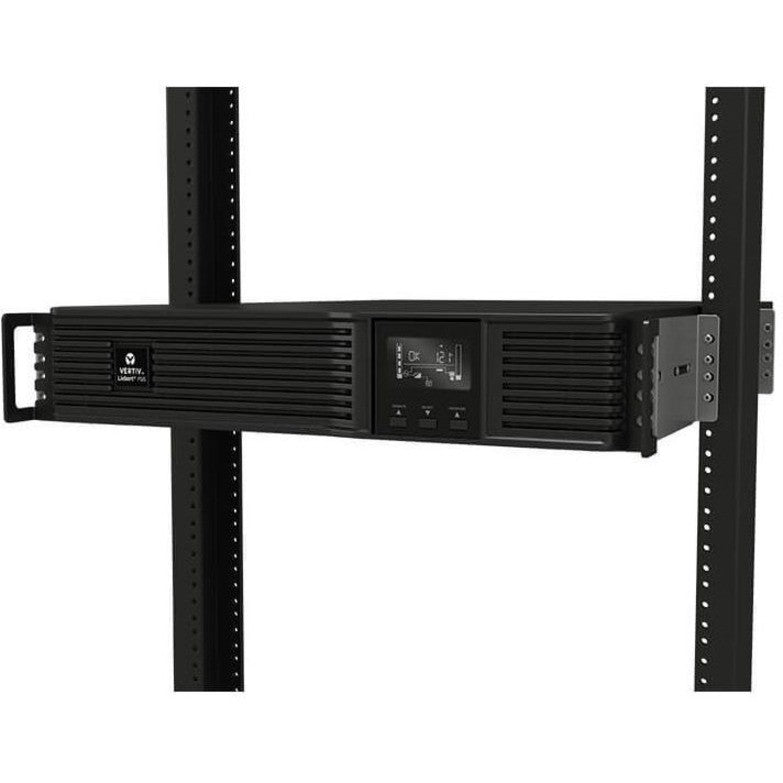

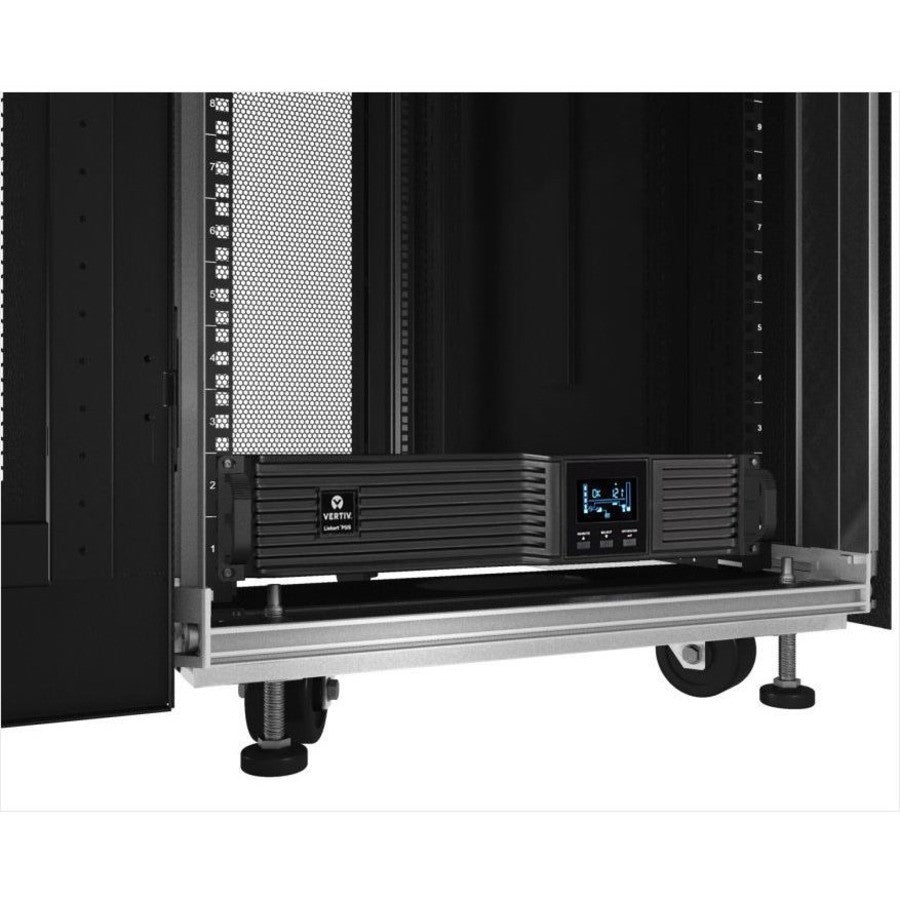

| Rack Height | 2U |

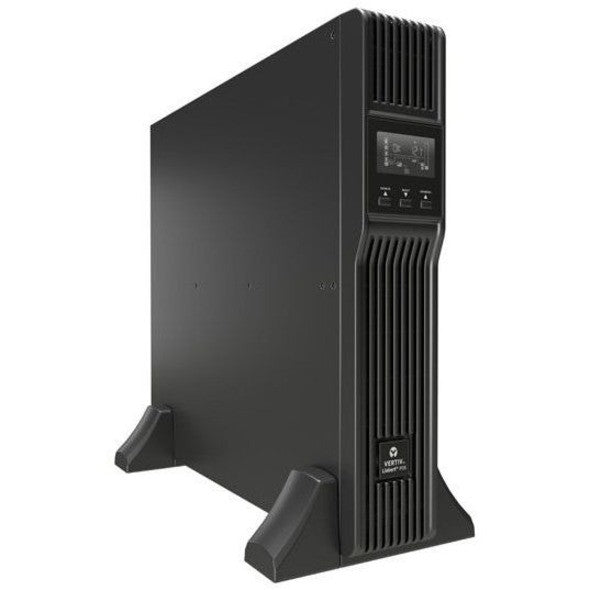

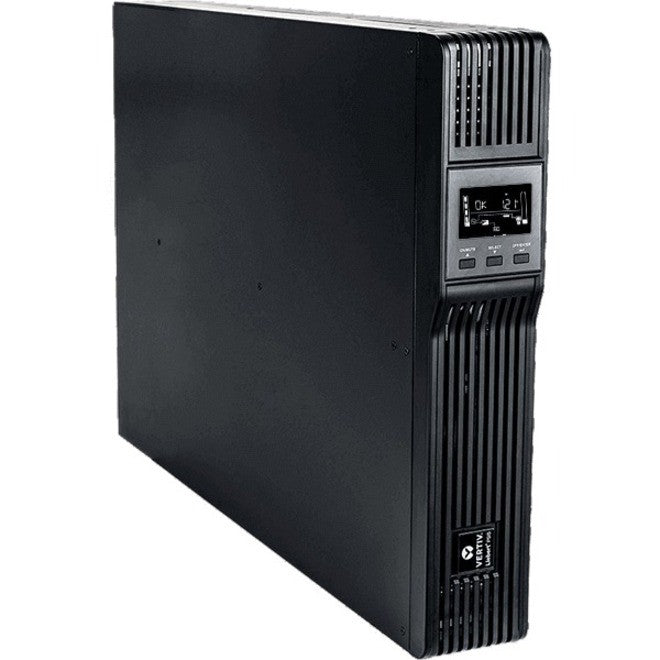

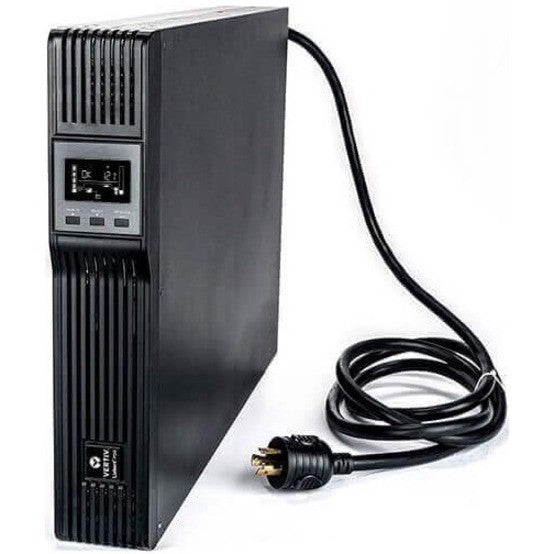

| Form Factor | Rack/Tower |
| Weight (Approximate) | 70.80 lb |
| Energy Star | Yes |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |

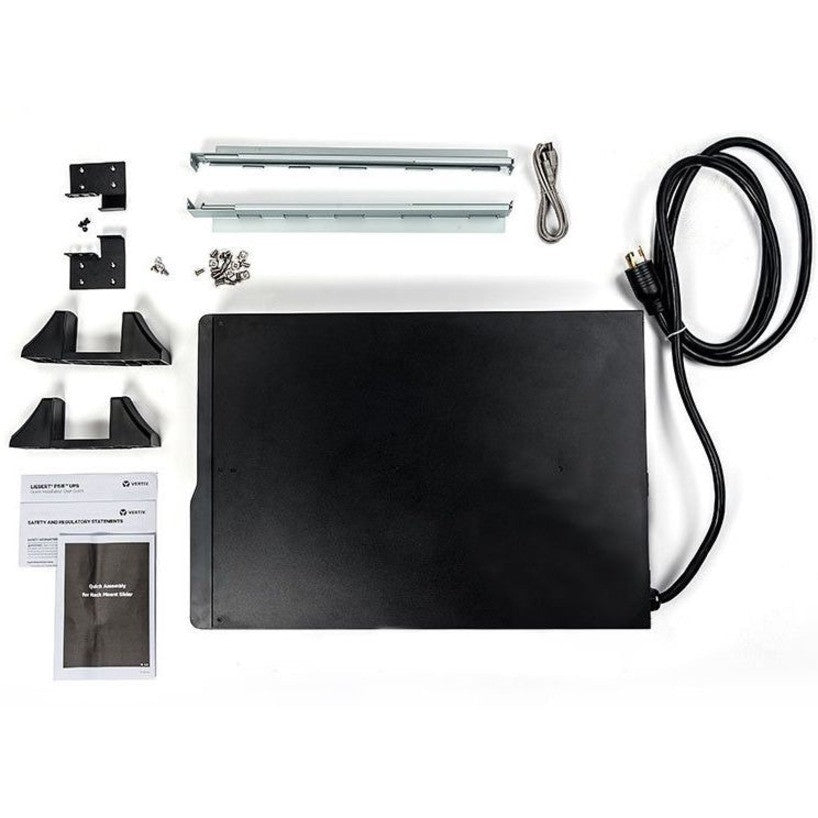

Package Contents
- PSI5 3000VA/2700W, 120VAC, Rack-tower
- USB Type A To USB Type B Cable, 1.8 Meter (6 ft) In Length
- Printed Quick Start Guide With Safety Instructions
- CD
- Tower Support Stands
Output Voltage Rating (AC): 120 V
Mounting Style: Rack Mount
Nominal Voltage Rating (AC): 120 V
Series: AVR
Backup Time: 12 min
Maximum Operating Temperature: 40 °C (104 °F)
Country of Origin: China
UPC: 812105028731
MPN: PSI5-3000RT120
Maximum Power: 120 W
Number of Outlets: 6
Voltage Compatibility: 120 V
Compatible Brand: Universal
Color: Black
Brand: Liebert
Maximum Wattage: 2700 W
Features: Audible Alarm
Type: Enterprise/Data Center UPS
Model: Liebert PSI5-3000RT120
