Vertiv Liebert PSI5 1500VA/1350W 120V 2U Rack Tower UPS
Vertiv Liebert PSI5 1500VA/1350W 120V 2U Rack Tower UPS
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

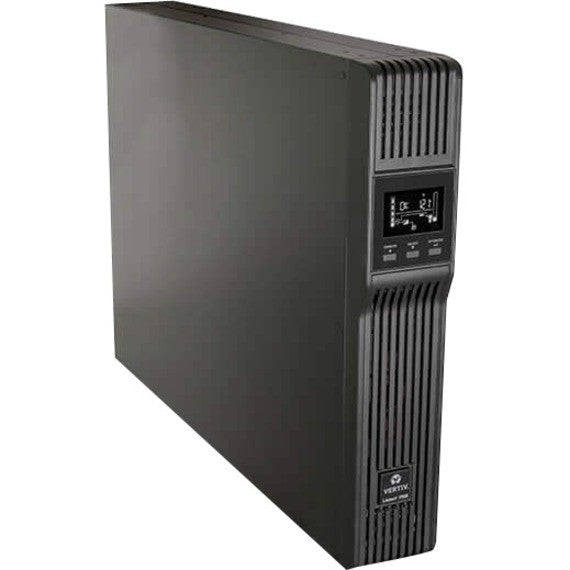

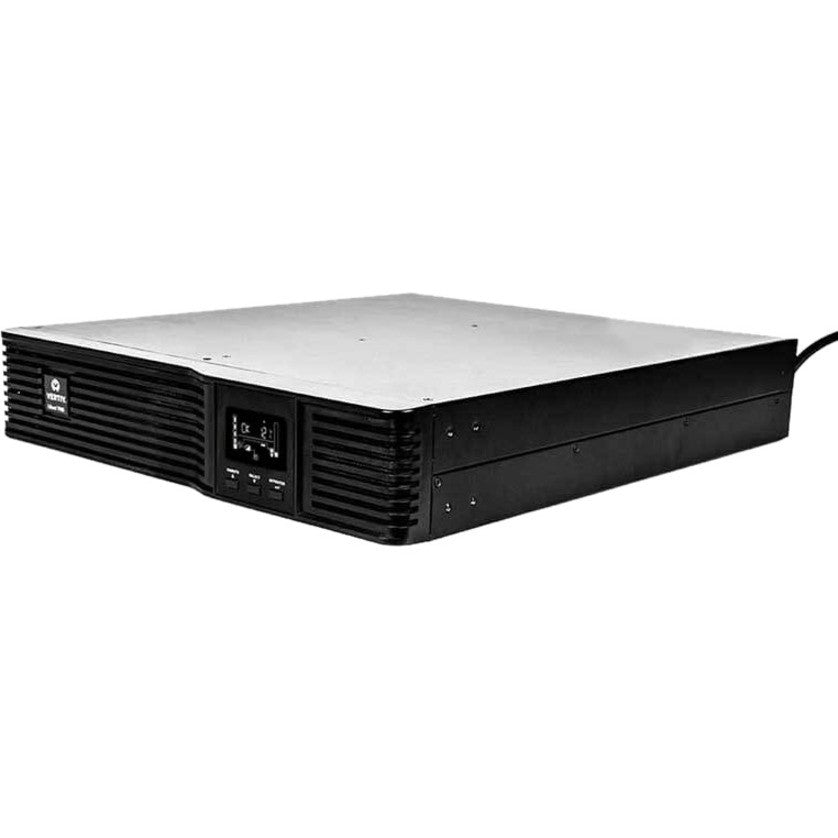

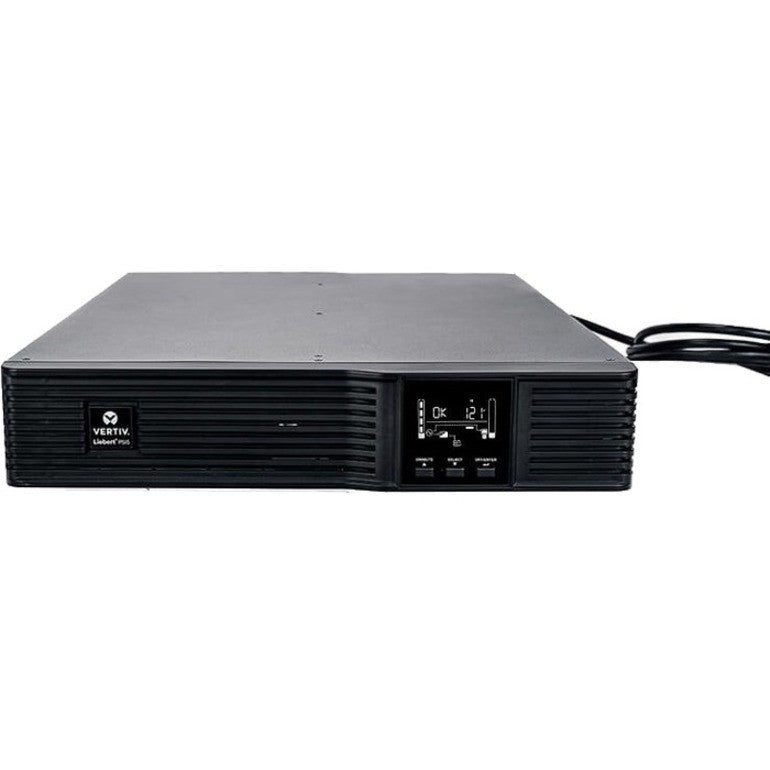

Vertiv Liebert PSI5 UPS - 1500VA/1350W 120V 2U Line Interactive AVR Tower/Rack
This is a Vertiv Liebert PSI5 line-interactive uninterruptible power supply with 1500 VA / 1350 W capacity. It provides automatic voltage regulation, pure sine wave output, and battery backup for servers, network closets, workstations, VoIP systems, and other critical IT equipment. The unit supports rack or tower installation in a 2U form factor.
Manufacturer: Vertiv Corp. Manufacturer Item Number: PSI5-1500RT120. UPC: 812105028717. Product Series: PSI5. Product Name: PSI5 1500VA/1350W, 120VAC, Rack-tower.
Key Features
- Automatic Voltage Regulation (AVR) maintains output from 83 to 159 VAC without battery use.
- Pure sine wave output for compatibility with sensitive electronics.
- Line-interactive design with 6 ms transfer time to battery.
- Hot-swappable and replaceable valve-regulated lead-acid battery.

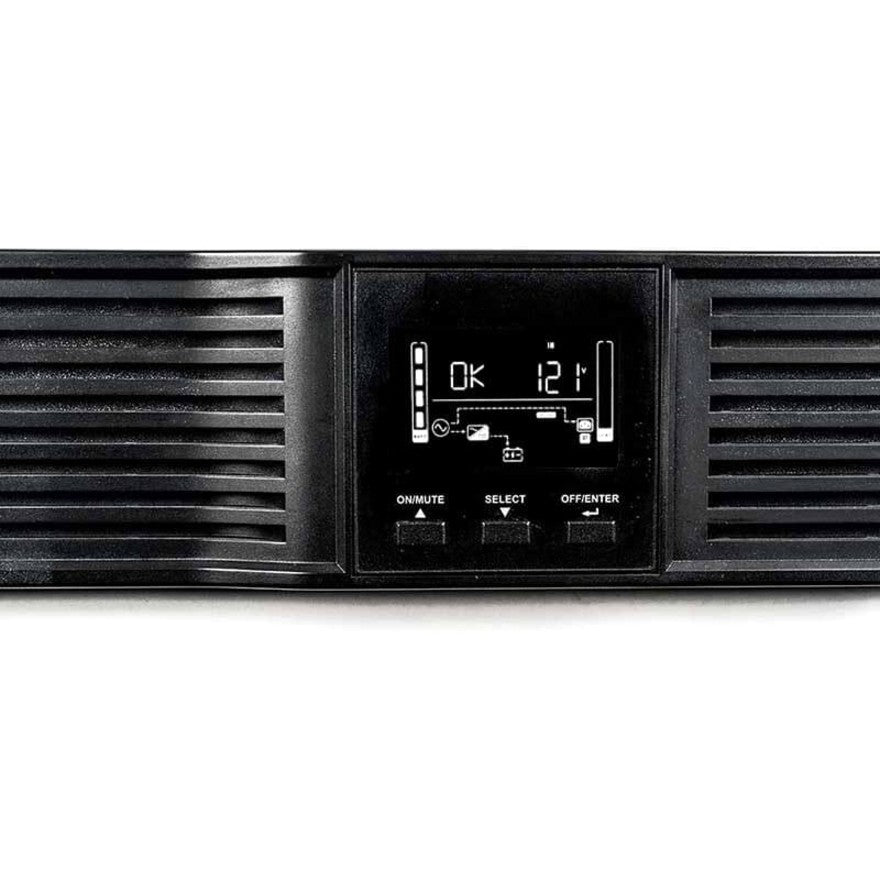

- LCD display for status monitoring.

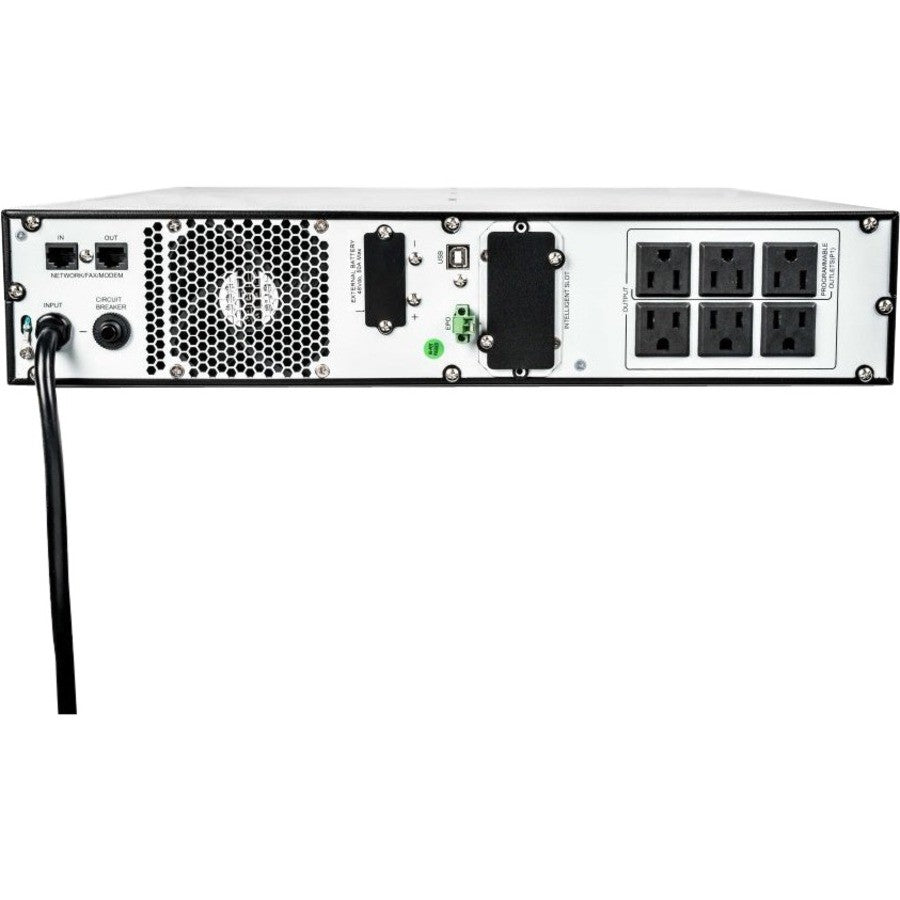

- USB HID compliant port, network RJ-45 port, and EPO port.
- Supports up to six external battery cabinets for extended runtime.
- Energy Star and RoHS compliant.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Vertiv Corp |
| Manufacturer Item Number | PSI5-1500RT120 |
| UPC | 812105028717 |
| Product Series | PSI5 |
| Product Type | Line-interactive UPS |
| Load Capacity | 1500 VA / 1350 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC / 110 V AC / 115 V AC / 120 V AC / 125 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R, NEMA 5-20R |
| Receptacle Detail | 4 x NEMA 5-15R, 2 x NEMA 5-20R |
| Number of Battery and Surge Outlets | 6 |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Status Indicators | LCD Display |
| Network Port | RJ-45 |
| EPO Port | Yes |
| USB Port | HID Compliant |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Backup Run Time Full Load | 4 Minute |
| Backup Run Time Half Load | 12 Minute |
| Number of External Battery Cabinets Supported | 6 |
| Backup Run Time With External Battery Cabinet Full Load | 2.82 Hour |
| Backup Run Time With External Battery Cabinet Half Load | 6.38 Hour |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Replaceable Battery | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Unit Height | 3.5" |
| Unit Width | 17.2" |
| Unit Depth | 20" |
| Unit Weight | 42.60 lb |
| Package Contents | UPS Unit, USB Type A To USB Type B Cable 1.8 Meter, Printed Quick Start Guide With Safety Instructions, CD, Tower Support Stands |
| Certifications and Standards | UL 1778, c-UL-us Listed, FCC Part 15 Class B, UL 497 B, ISTA Procedure 1A, Energy Star |
| Country of Origin | China |
| Environmental Compliance | RoHS |

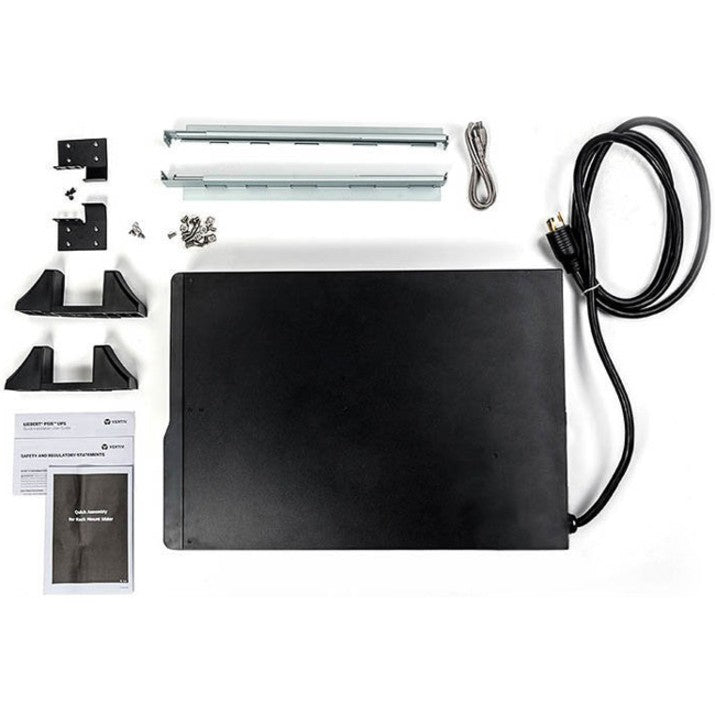

Package Contents
UPS Unit. USB Type A To USB Type B Cable, 1.8 Meter (6 ft) In Length. Printed Quick Start Guide With Safety Instructions. CD. Tower Support Stands.
Type: Line-interactive UPS
Output Voltage Rating (AC): 120 V
Mounting Style: Rack Mount
Color: Black
Features: Hot Swappable
MPN: PSI5-1500RT120
Backup Time: 12 min
Country of Origin: China
Maximum Operating Temperature: 40 °C (104 °F)
Item Depth: 20 in
Brand: Does not apply
UPC: 812105028717
