Vertiv Liebert PSI5 1000VA 900W 120V 1U Rack Mount Line Interactive UPS AVR
Vertiv Liebert PSI5 1000VA 900W 120V 1U Rack Mount Line Interactive UPS AVR
Low stock: 3 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

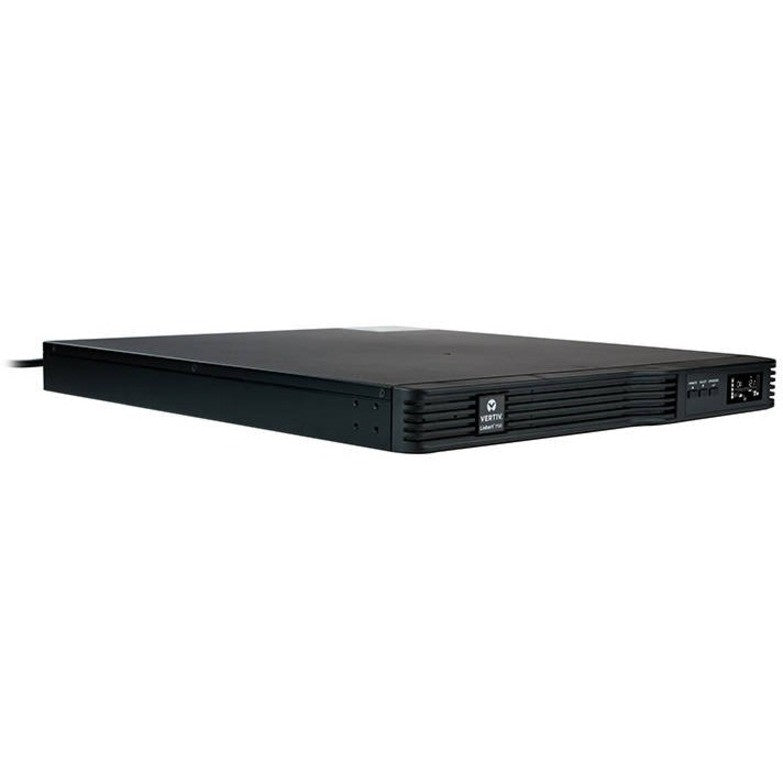

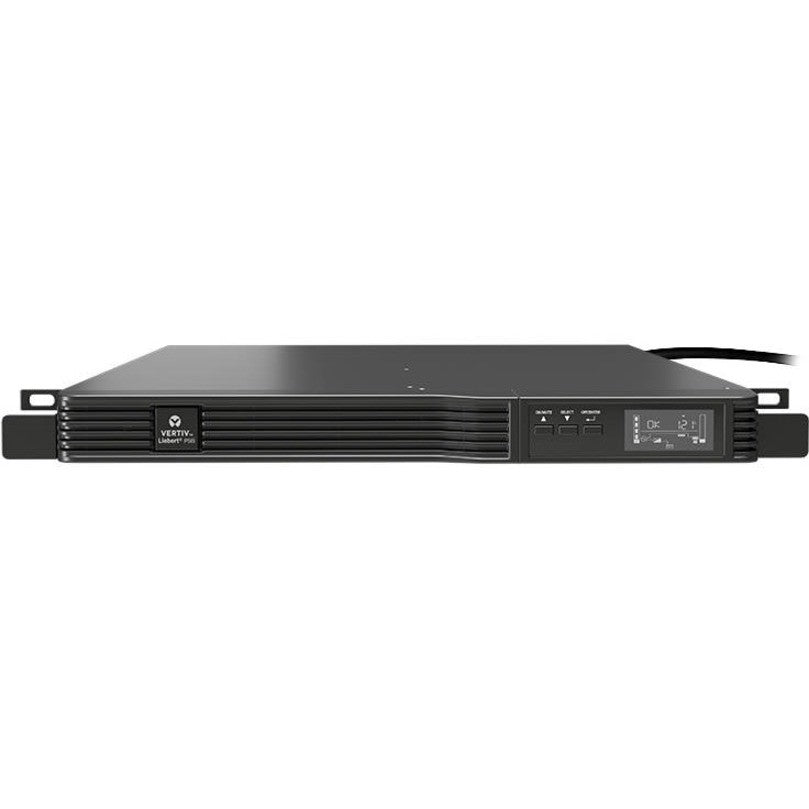

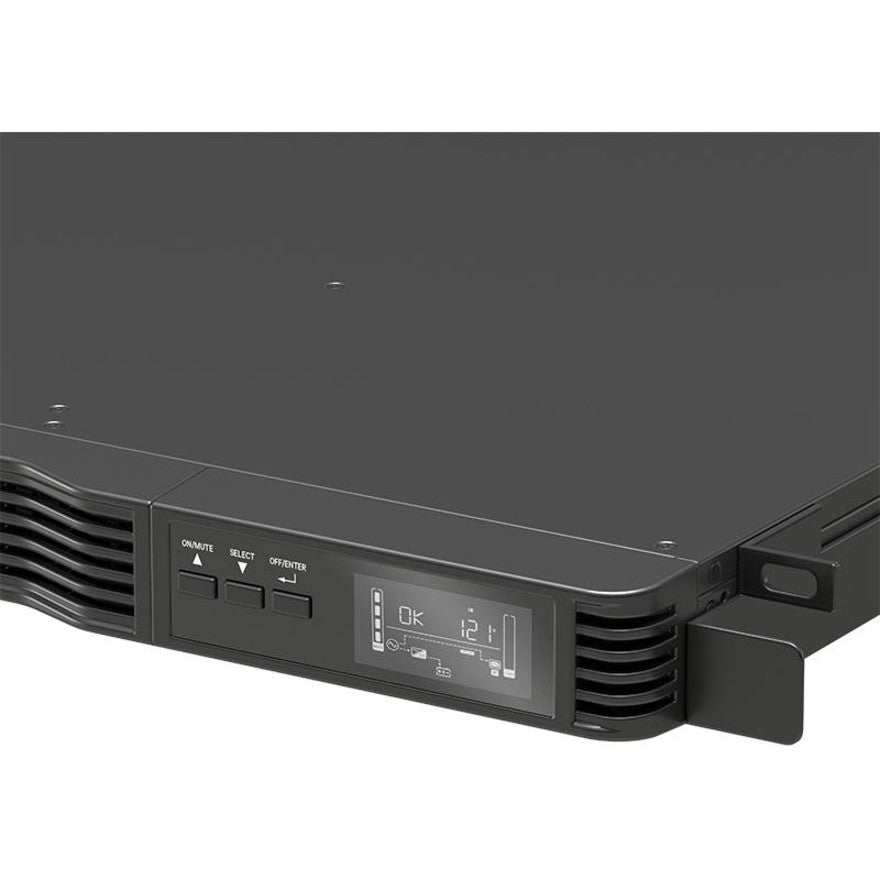

Vertiv Liebert PSI5 1000VA 900W 120V 1U Rack Mount Line Interactive UPS AVR
This is a Line-interactive UPS from Vertiv Corp. The Vertiv Liebert PSI5 UPS - 1000VA 900W 120V 1U Line Interactive AVR Rack Mount UPS, 0.9 Power Factor provides cost-effective protection from power outages, brownouts, sags, surges, and noise interference for electronic devices in school, home, office, network closets, and small data centers. It features Automatic Voltage Regulation from 83 to 159 VAC without battery use and delivers pure sine wave output with a transfer time of 4 ms.
Key Features
- Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment.
- Pure sine wave output ensures compatibility with sensitive IT applications.
- 1U rack-mountable form factor with rack mount ears included.
- Hot-swappable batteries allow replacement without powering down connected equipment.
- USB HID compliant port and EPO port for monitoring and emergency shutdown.
- Supports optional Vertiv Liebert Unity communication card for remote monitoring of up to 50 units via Vertiv Trellis Power Insight Application.
- Recharge time of 6 hours with 5 minutes runtime at full load and 13 minutes at half load.
- Environmentally friendly with REACH and RoHS compliance; manufactured in China.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Vertiv Corp |
| Manufacturer Part Number | PSI5-1000RM1201U |
| UPC | 767041028027 |
| Product Series | PSI5 |
| Product Model | PSI |
| Product Type | Line-interactive UPS |
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 900 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 75 V AC - 146 V AC |
| Output Voltage | 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC |
| Input Frequency | 65 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |

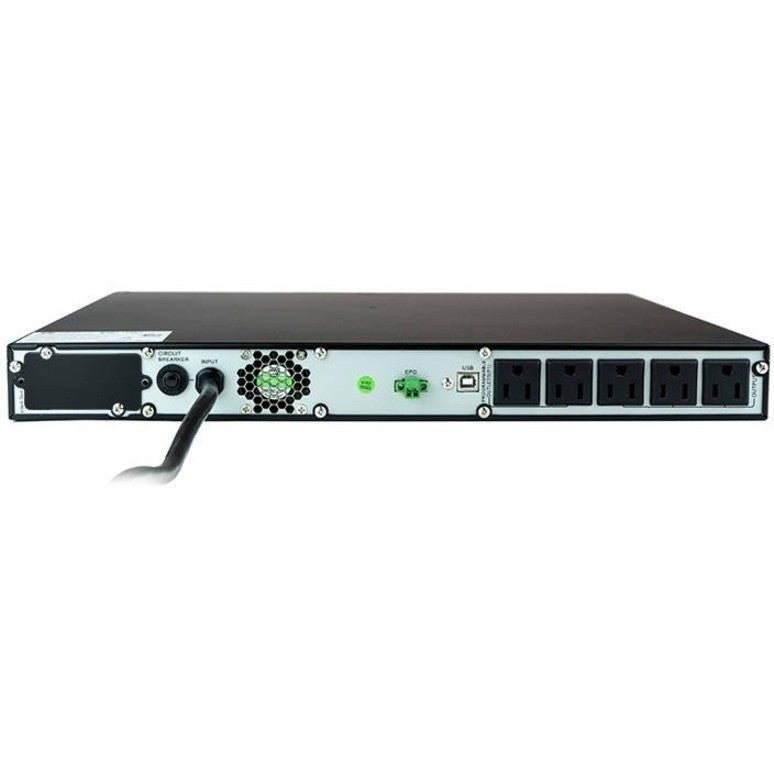

| Receptacle Detail | 5 x NEMA 5-15R |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| DC System Voltage | 6 V DC |
| Number of Batteries | 4 |
| Battery Chemistry | Lead Acid |
| Battery Size | 6V |
| Battery Capacity | 9000 mAh |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Typical Battery Recharge Time | 6 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Operating Humidity | 20% - 90% |
| Storage Relative Humidity | 20% - 90% |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 17.7" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 36.40 lb |
| Application/Usage | Electronic Device, Education, Home, Office, Mission Critical Equipment, Data Center, Network Closet |
| Software Included | Power Insight 2.2 |
| Package Contents | PSI5-1000RM1201U UPS, Rack Mount Ears, USB Cable, Safety Manual, Quick Installation Guide |
| Country of Origin | China |
| Environmental Compliance | REACH, RoHS |
Package Contents
PSI5-1000RM1201U UPS, Rack Mount Ears, USB Cable, Safety Manual, Quick Installation Guide.
Brand: Vertiv Corp
Type: Line-interactive UPS
Compatible Brand: Vertiv Corp
Voltage Compatibility: 120 V
Color: Black
MPN: PSI5-1000RM1201U
Compatible Model: PSI
Features: AVR (Automatic Voltage Regulation)
Model: PSI
Form Factor: Rack-mountable
Maximum Power: 900 W
Number of Outlets: 5
Country of Origin: China
Maximum Wattage: 900 W
UPC: 767041028027
