Vertiv Liebert POD PD5 - (2) NEMA L6-30R| (4) NEMA 5-15/20R| UPS Maintenance Bypass for GXT5 (PD5-003)

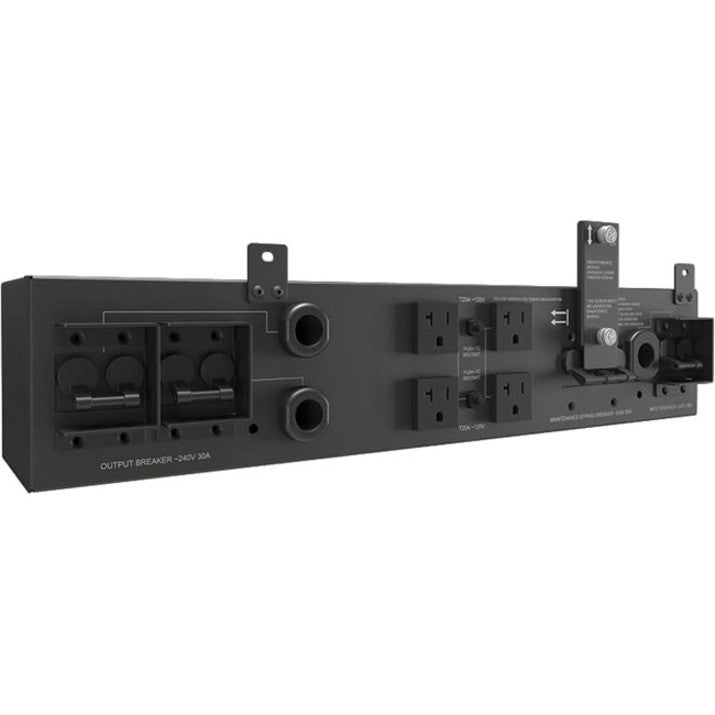

This is a UPS Power Output Distribution Module with built-in maintenance bypass feature. It is designed for the GXT5 5-10kVA uninterruptible power supply models and allows UPS maintenance and replacements without power interruption to the connected load. The unit automatically transfers the current from the UPS to the original power source in cases of UPS failures. It is a plug-and-play unit that replaces the existing POD box on the back of the UPS and is equipped with a NEMA L14-30P input connector.

The Vertiv Liebert PD5-003 provides two NEMA L6-30R and four NEMA 5-15/20R output connectors. It is manufactured by Vertiv Corp under part number PD5-003 with UPC 767041026917. Country of origin is China.

Key Features

• Power output distribution POD unit with built-in maintenance bypass
• Plug-and-play replacement for existing POD box on GXT5 UPS models
• Two NEMA L6-30R output connectors
• Four NEMA 5-15/20R output connectors
• NEMA L14-30P input connector
• Automatic transfer to original power source during UPS failure
• Supports continuous uptime for connected equipment during maintenance

Comprehensive Technical Specifications
