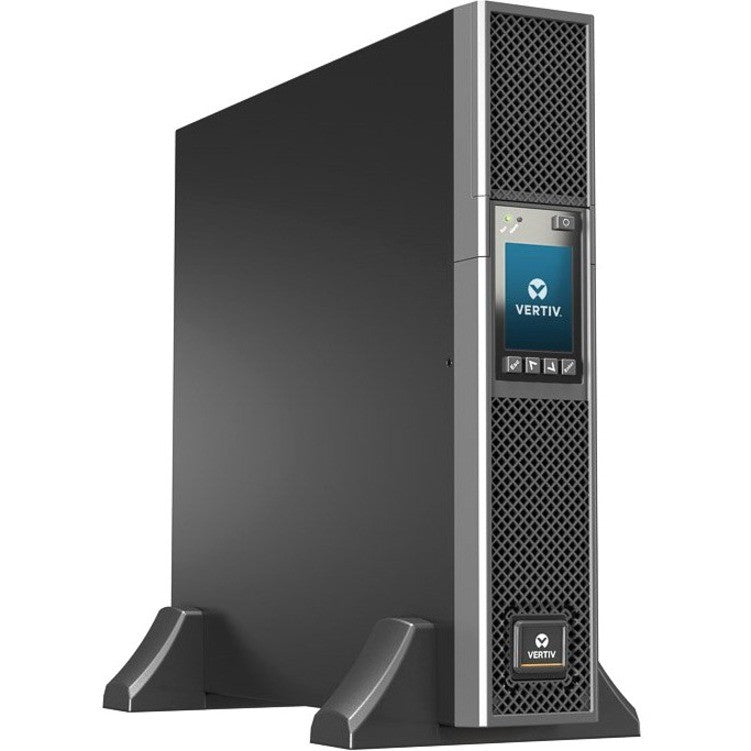

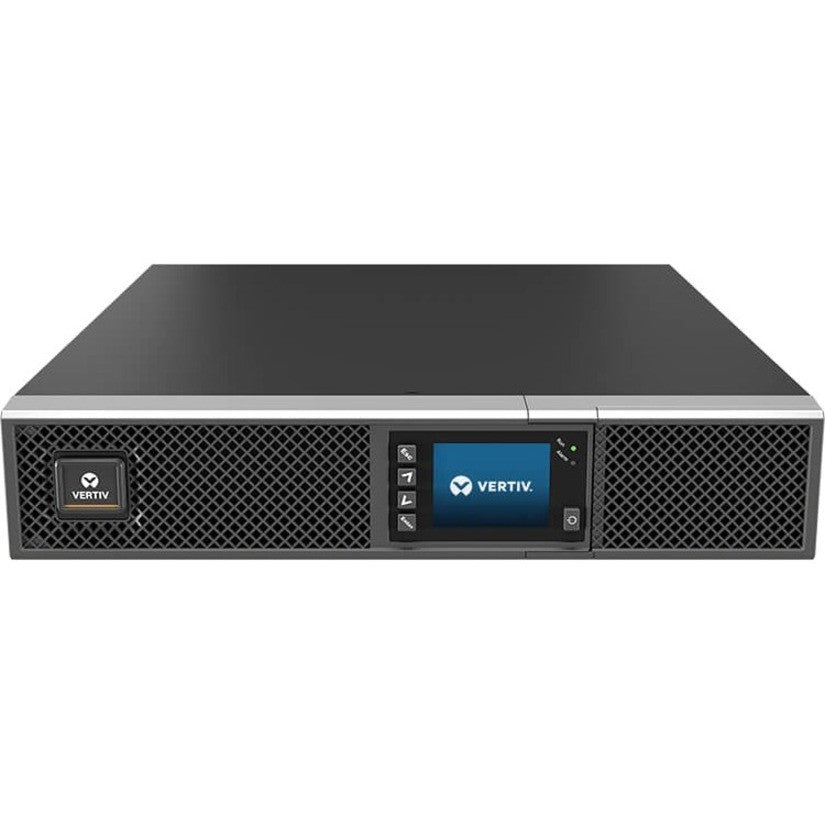

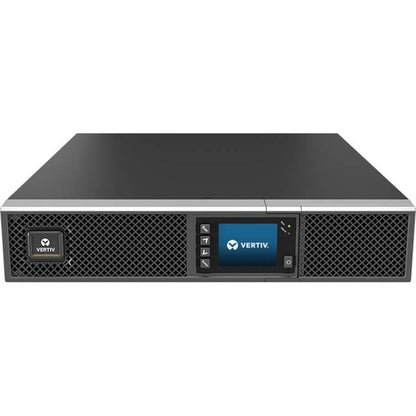

Vertiv Liebert GXT5 1500VA 120V UPS with SNMP/Webcard
Vertiv Liebert GXT5 1500VA 120V UPS with SNMP/Webcard
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Vertiv Liebert GXT5 1500VA 120V UPS with SNMP/Webcard
This is a Double Conversion Online UPS. The Vertiv Liebert GXT5 1500VA 120V UPS with SNMP/Webcard delivers online double-conversion power protection for mission critical equipment, network racks, and cabinets. It supports 110-125V AC input with pure sine wave output and includes the Liebert RDU101 communications card for SNMP management and remote monitoring via the Vertiv Trellis Power Insight application.
Key Features
- Online double-conversion topology with 0 ns transfer time protects against all power disturbances without battery drain.
- 1500 VA / 1350 W load capacity with 120 V AC output and pure sine wave waveform.
- SNMP manageable via included Liebert RDU101 card supporting up to 100 units with real-time environmental monitoring and alarms.
- Hot-swappable batteries with 5-minute runtime at full load and 13-minute runtime at half load; scalable with up to 10 external battery cabinets.

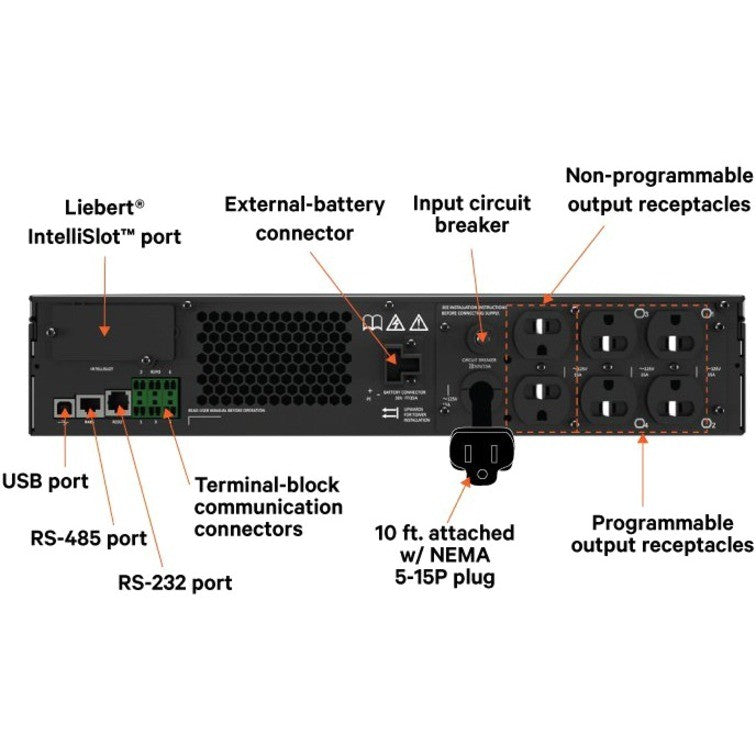

- 6 x NEMA 5-15R receptacles, NEMA 5-15P plug, 10 ft cord, and 15 A circuit breaker.
- 2U rack/tower form factor with included 4-post rack mounting hardware and tower stands; ENERGY STAR 2.0.

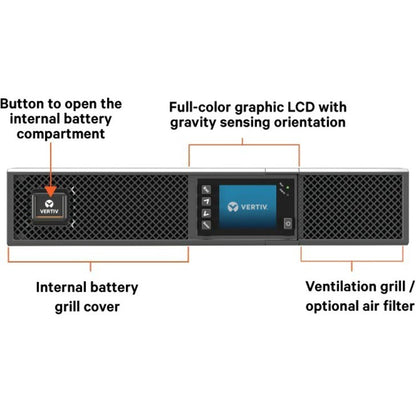

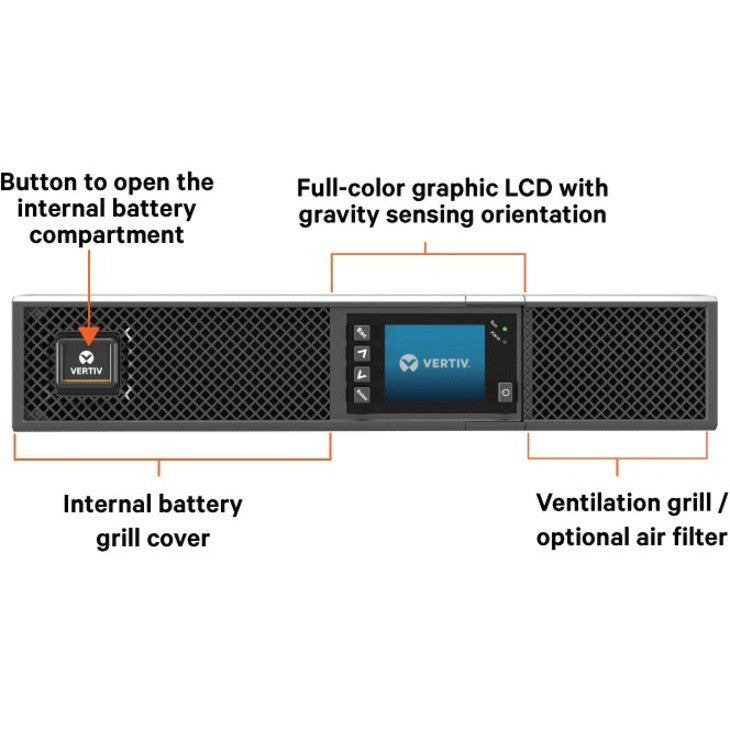

- Full color LCD status indicators, serial port, network RJ-45, EPO port, and USB HID compliant port.
- Valve-regulated lead acid batteries with 3-hour recharge time and 5-year battery life; maximum operating temperature 104°F.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Vertiv Corp |
| Brand Name | Vertiv Liebert |
| Product Series | GXT |
| Manufacturer Part Number | GXT5-1500LVRT2UXLN |
| D&H Item Number | GXT51500LVRT2UN |
| UPC | 767041029192 |
| Product Type | Double Conversion Online UPS |
| Load Capacity (VA) | 1500 VA |
| Load Capacity (Watt) | 1350 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 110 V AC - 125 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Output Current | 1.50 A |
| Waveform Type | Pure Sine Wave |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Cord Length | 10 ft |
| Transfer Time | 0 ns |
| Phase | Single Phase |
| Network Management | SNMP Manageable |
| Status Indicators | Full Color LCD |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| DC System Voltage | 12 V DC |
| Number of Batteries | 3 |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 13 Minute |
| Battery Life | 5 Year |
| Typical Battery Recharge Time | 3 Hour |
| Hot Pluggable | Yes |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Color Family | Black |
| Product Color | Black |
| Height | 3.3" |
| Width | 16.9" |
| Depth | 18.6" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 57.40 lb |
| Application/Usage | Mission Critical Equipment, Network, Rack Cabinet |
| Certifications & Standards | UL1778 4th Ed., FCC Part 15 Class A, ANSI C62.41 Cat. B, ISTA 1A, ENERGY STAR 2.0 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | REACH, RoHS |
| Additional Information | Circuit Breaker 15A, Diagnostic LEDs Full Color LCD, Backup/Run Time With Optional Battery Scalable Up to 10 EBC's, Sound Emission < 46db |
Package Contents
- GXT5 1500VA 120V UPS with SNMP/Webcard
- 4 Post Rack Mounting
- Tower Stand
- USB Cable
- User Guide
- Safety Instruction Manual
Brand: Liebert
Type: Double Conversion Online UPS
MPN: GXT5-1500LVRT2UXLN
Mounting Style: Rack Mount
Nominal Voltage Rating (AC): 120 V
Color: Black
Features: Hot Swappable
Number of Batteries: 3
Backup Time: 13 min
Nominal Current Rating: 12 A
Nominal Voltage Rating (DC): 12 V
Maximum Operating Temperature: 40 °C (104 °F)
Country of Origin: China
UPC: 767041029192
