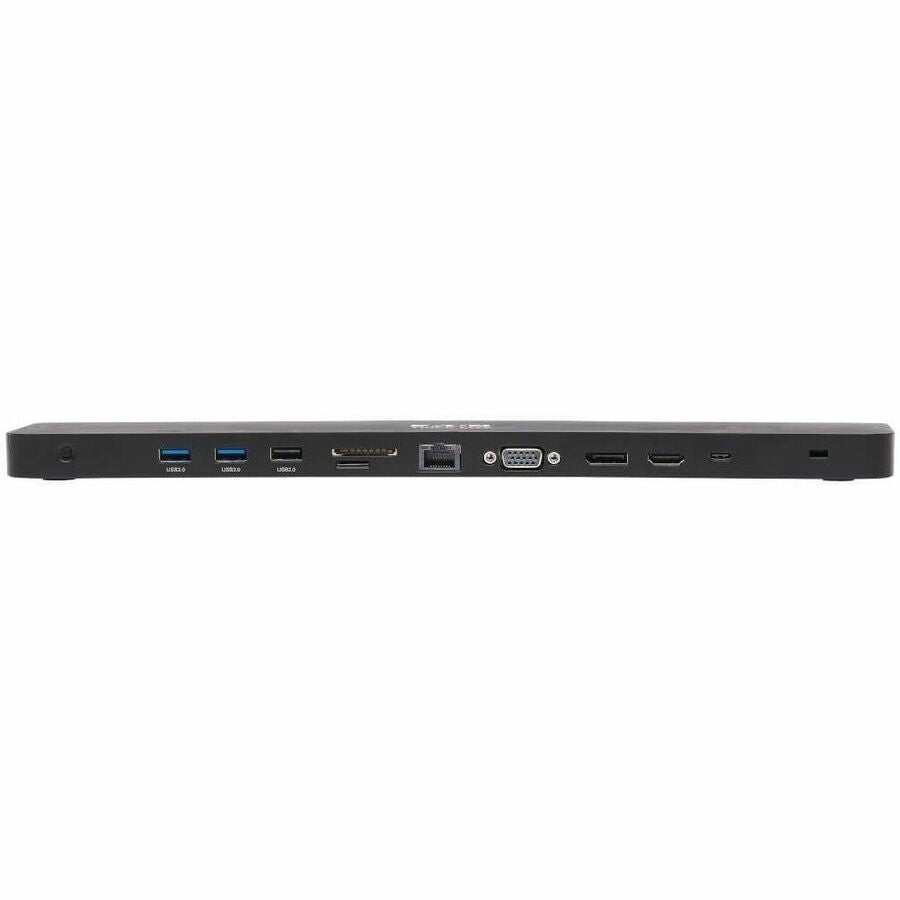

Eaton Tripp Lite U442-DOCK7D-B USB-C Triple Display Dock 4K HDMI DP VGA 100W PD GbE Black
Eaton Tripp Lite U442-DOCK7D-B USB-C Triple Display Dock 4K HDMI DP VGA 100W PD GbE Black
Low stock: 3 left
Save 64%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K HDMI & DP, VGA, USB 3.x (5Gbps) and USB 2.0 Hub Ports, GbE, 100W PD Charging

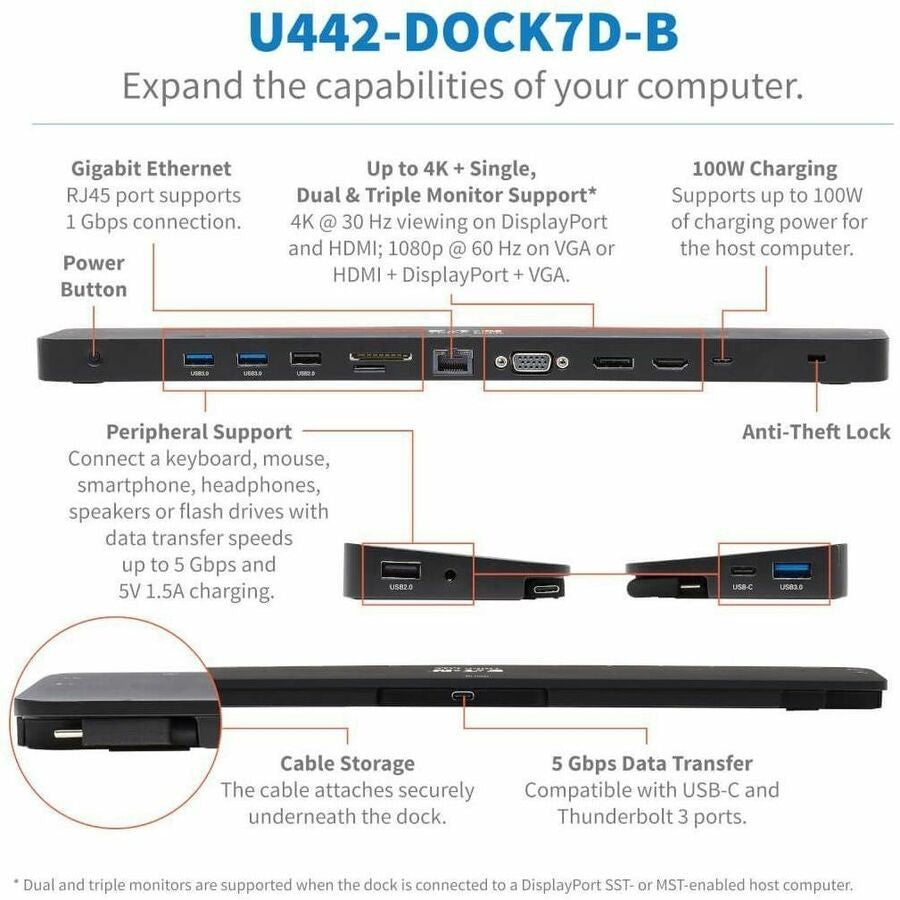

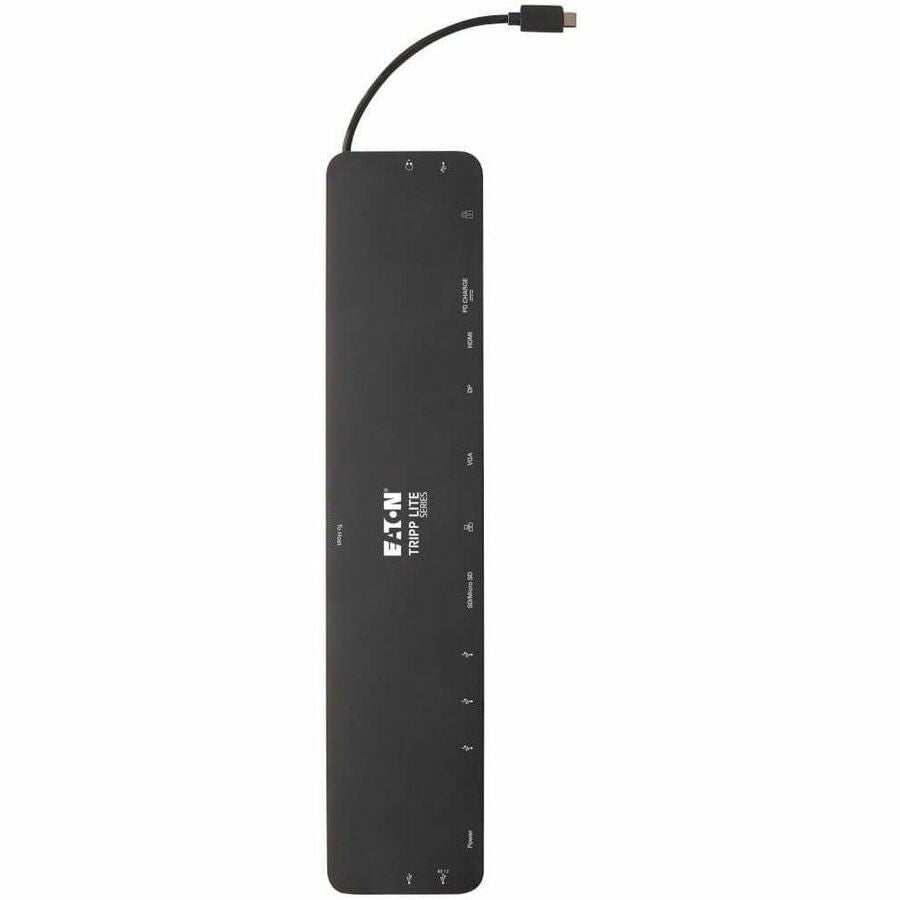

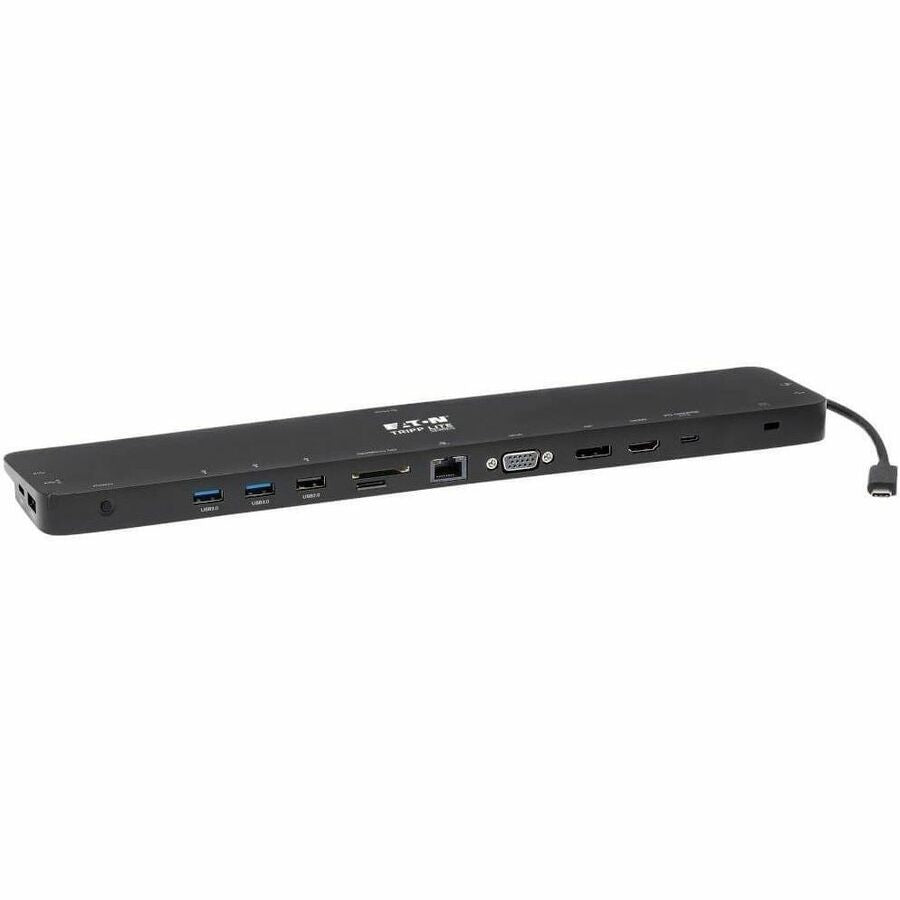

This is a universal USB-C docking station that turns your laptop's USB-C or Thunderbolt 3 port into 14 new ports, including triple display support with 4K HDMI, 4K DisplayPort, and VGA. Compatible with notebooks, tablets, Chromebooks, MacBooks, smartphones, and PCs supporting USB-C DisplayPort Alternate Mode. Manufacturer: Eaton Corporation; MPN: U442-DOCK7D-B; UPC: 037332250698. Delivers Gigabit Ethernet, 100W PD charging, high-speed USB hubs, and card readers for expanded connectivity.
Advanced Triple Display and Connectivity Features

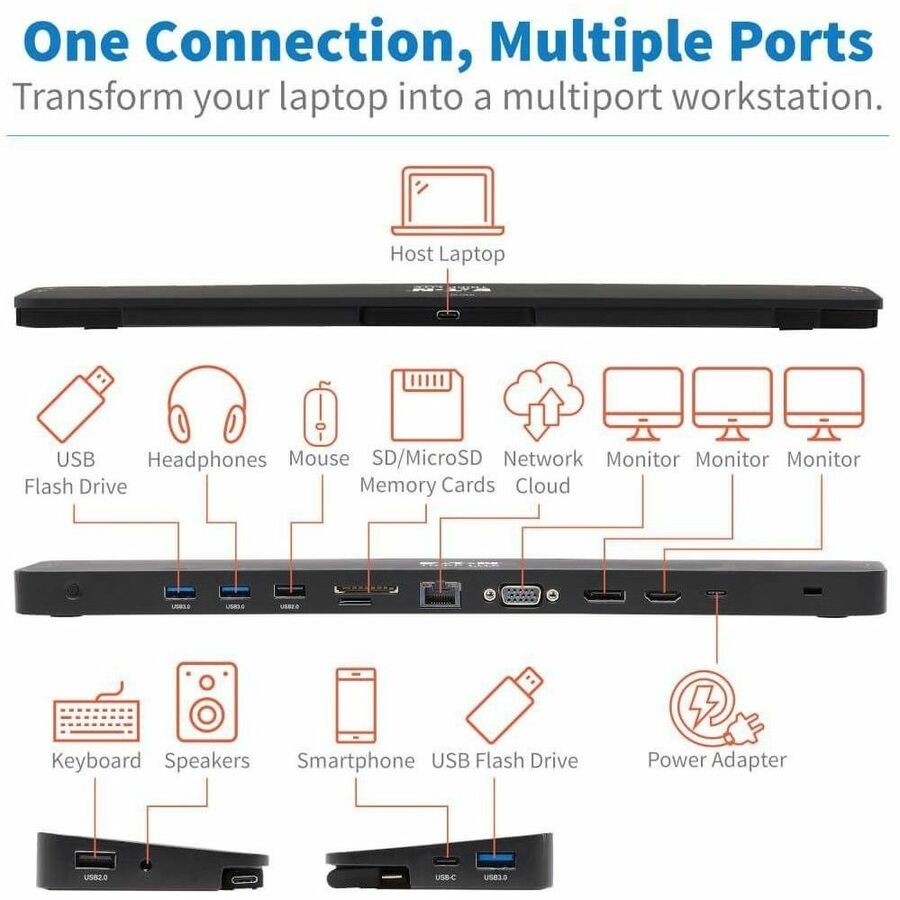

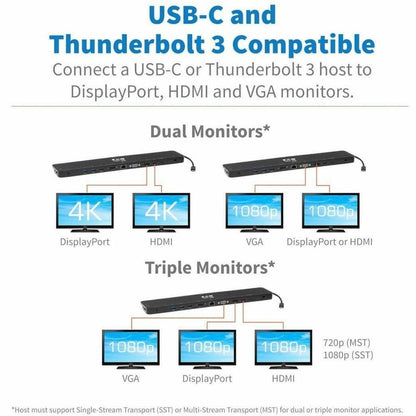

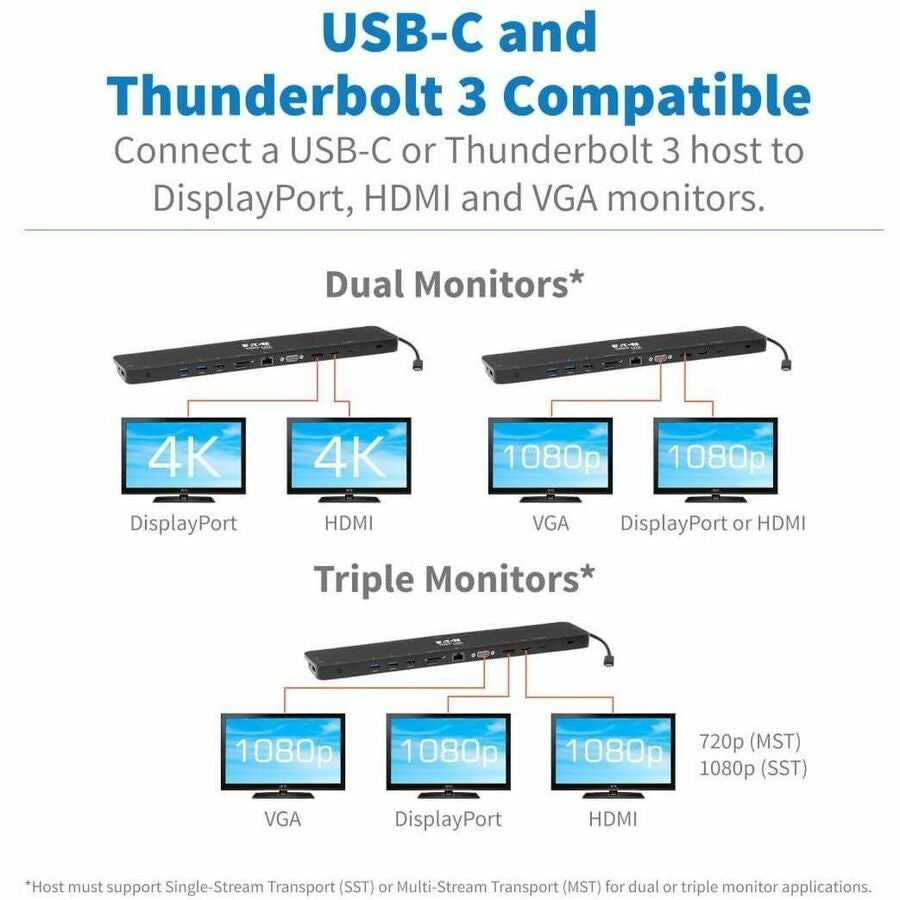

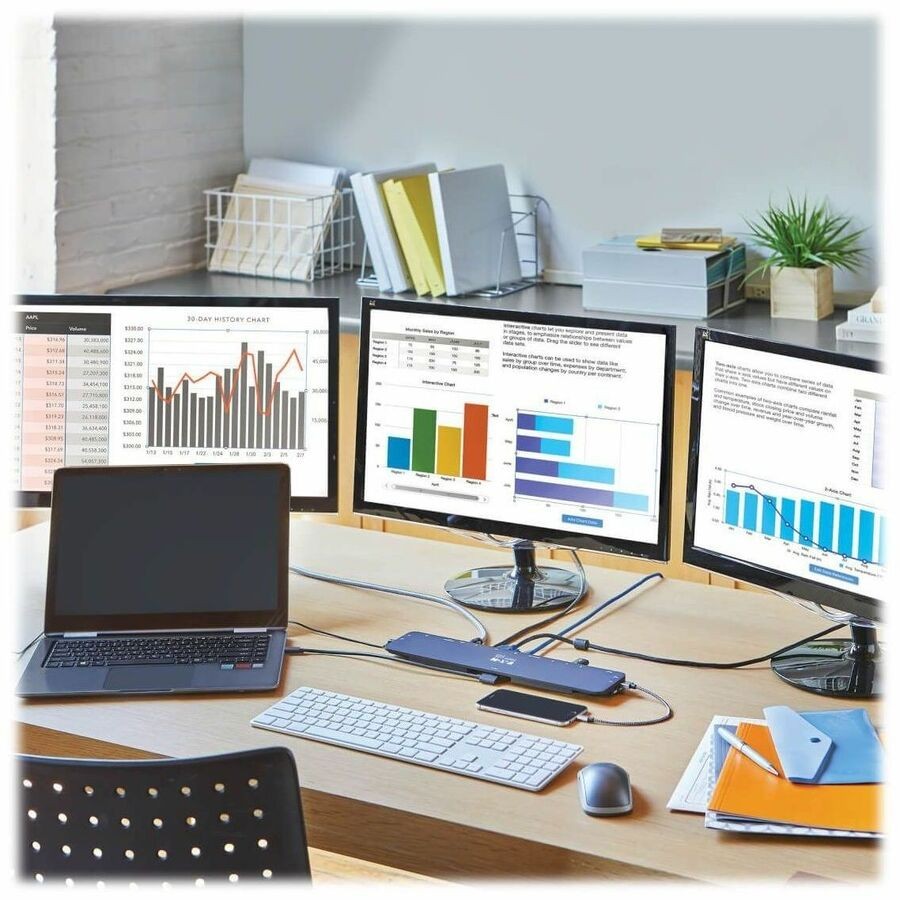

- 14-Port Expansion: 4K HDMI, 4K DisplayPort, 1080p VGA for triple monitors; extends or mirrors displays via SST/MST.
- 4K Video Output: Up to 4096x2160@30Hz (4:4:4) on HDMI/DP; VGA up to 1920x1200@60Hz including 1080p.
- USB Hub: 3x USB 3.0 (5Gbps, one BC 1.2 fast charge up to 1.5A), 2x USB 2.0 for peripherals like keyboards, drives, printers.

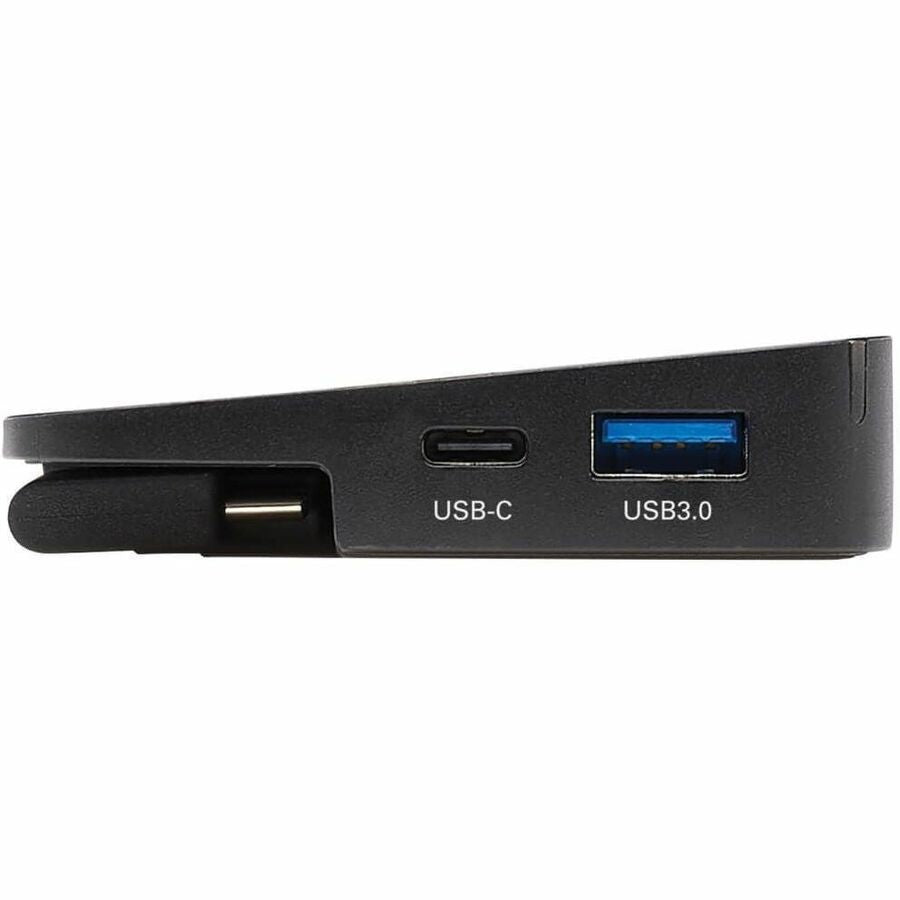

- 100W PD Charging: USB-C PD port (20V/5A) with PD 3.0 Fast Role Swap; also data transfer at 5Gbps; additional USB-C data port.
- Gigabit Ethernet: RJ45 port for 10/100/1000 Mbps wired network access.

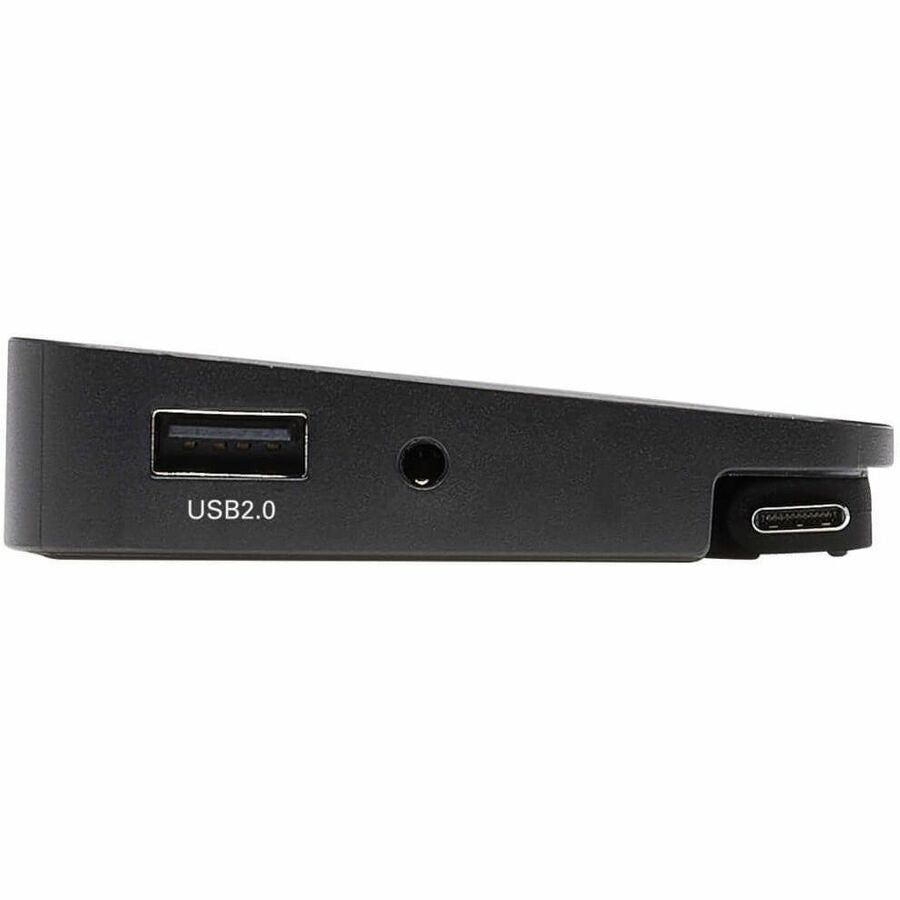

- Audio and Storage: 3.5mm headphone/microphone combo, SD/microSD card slots.
- Plug-and-Play: Uses included USB-C 3.1 cable; no drivers needed for DisplayPort Alt Mode video/audio.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | U442-DOCK7D-B |
| Product Type | Docking Station |
| MPN | U442-DOCK7D-B |
| UPC | 037332250698 |
| Connectivity Technology | Wired |
| Host Interface | USB Type-C (Thunderbolt 3 compatible) |
| Device Supported | Notebook, Tablet, Smartphone |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 3 (one with BC 1.2 charging) |
| USB Type-C Ports | 2 (PD Charging 100W, Data 5Gbps) |
| Network (RJ-45) | Yes (Gigabit Ethernet 10/100/1000 Mbps) |
| HDMI | 1 port (4K@30Hz) |
| DisplayPort | 1 port (4K@30Hz) |
| VGA | 1 port (1920x1200@60Hz) |
| Headphone/Microphone Combo Port | Yes (3.5mm) |
| Card Readers | SD, microSD |
| Maximum Power Supply Wattage | 100W (20V 5A PD) |
| Product Color | Black |

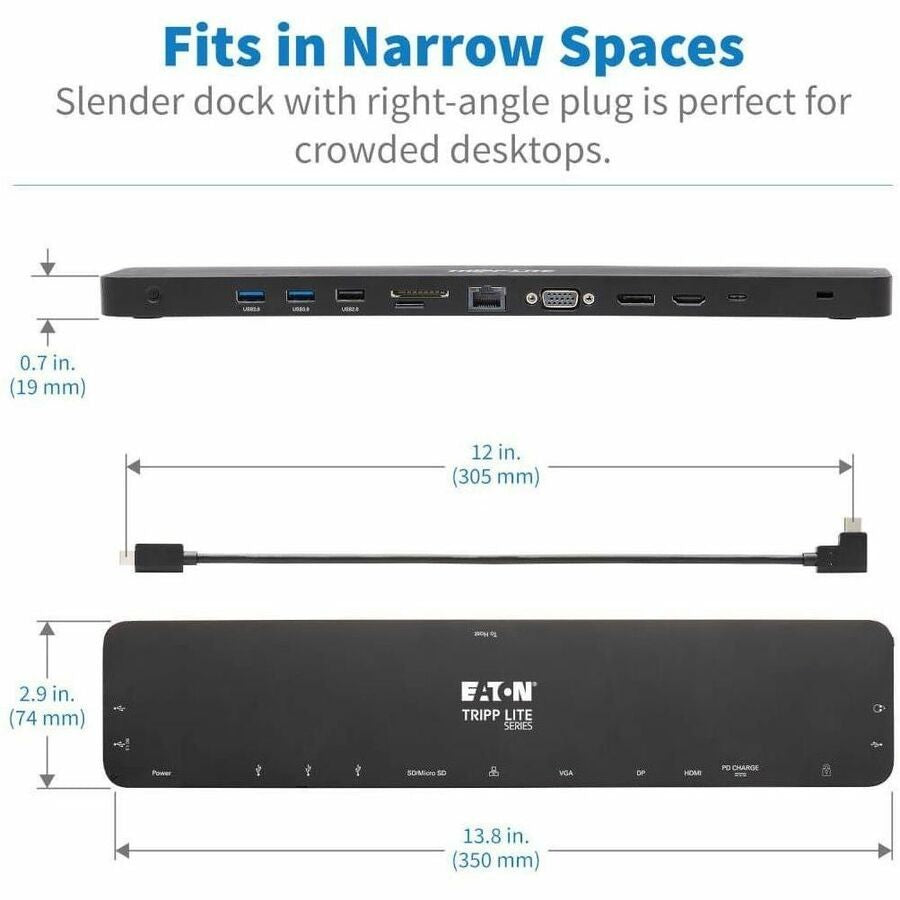

| Dimensions (H x W x D) | 0.74" x 13.78" x 2.91" |
| Weight (Approximate) | 8.80 oz |
| Country of Origin | Vietnam |
| Environmental Compliance | REACH, RoHS |

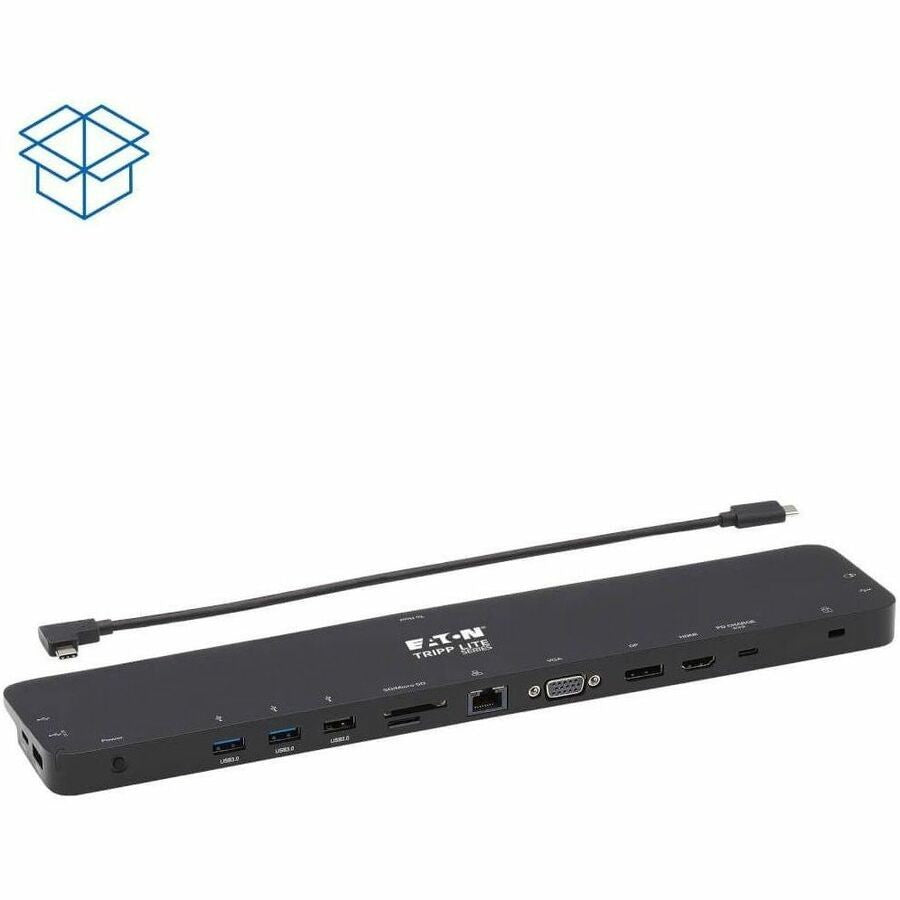

Package Contents and Additional Details

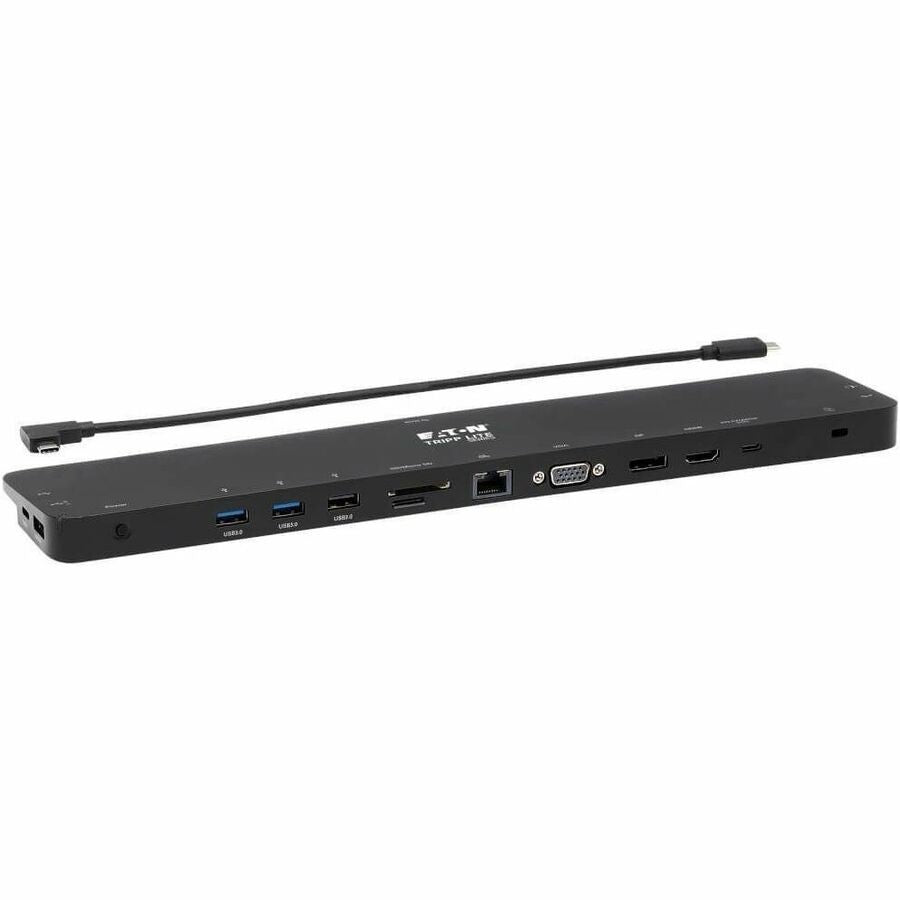

- U442-DOCK7D-B Docking Station

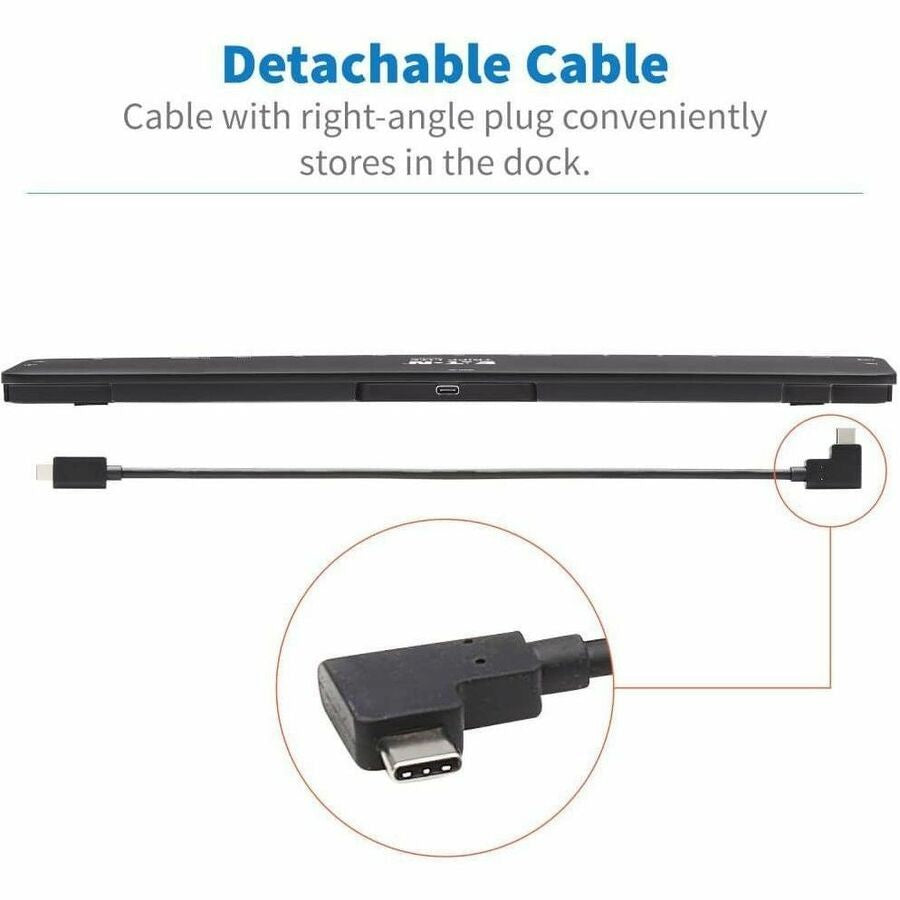

- USB-C 3.1 Cable (M/M), 1 ft
- Owner's Manual
Why Choose Eaton Tripp Lite USB-C Dock
Expands USB-C/Thunderbolt 3 devices with versatile ports for multi-monitor setups, fast data transfer, reliable charging, and wired networking in a compact black design compliant with REACH and RoHS standards.
Enhance your setup with the Eaton Tripp Lite USB-C Triple Display Dock—Order now!
Country of Origin: Vietnam
Item Height: 0.74 in
Item Width: 13.78 in
Item Length: 2.91 in
UPC: 037332250698
MPN: U442-DOCK7D-B
Compatible Product Line: Universal
Features: USB-Powered
Compatible Brand: Universal
Color: Black
Compatible Model: Universal
Ports: VGA
Brand: Tripp Lite
Type: Docking Station
Model: Tripp Lite U442-DOCK7D-B
