Tripp Lite SmartRack SRW12UDP 12U Low-Profile Wall-Mount Rack Enclosure
Tripp Lite SmartRack SRW12UDP 12U Low-Profile Wall-Mount Rack Enclosure
Low stock: 3 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Tripp Lite SmartRack SRW12UDP 12U Low-Profile Wall-Mount Rack Enclosure

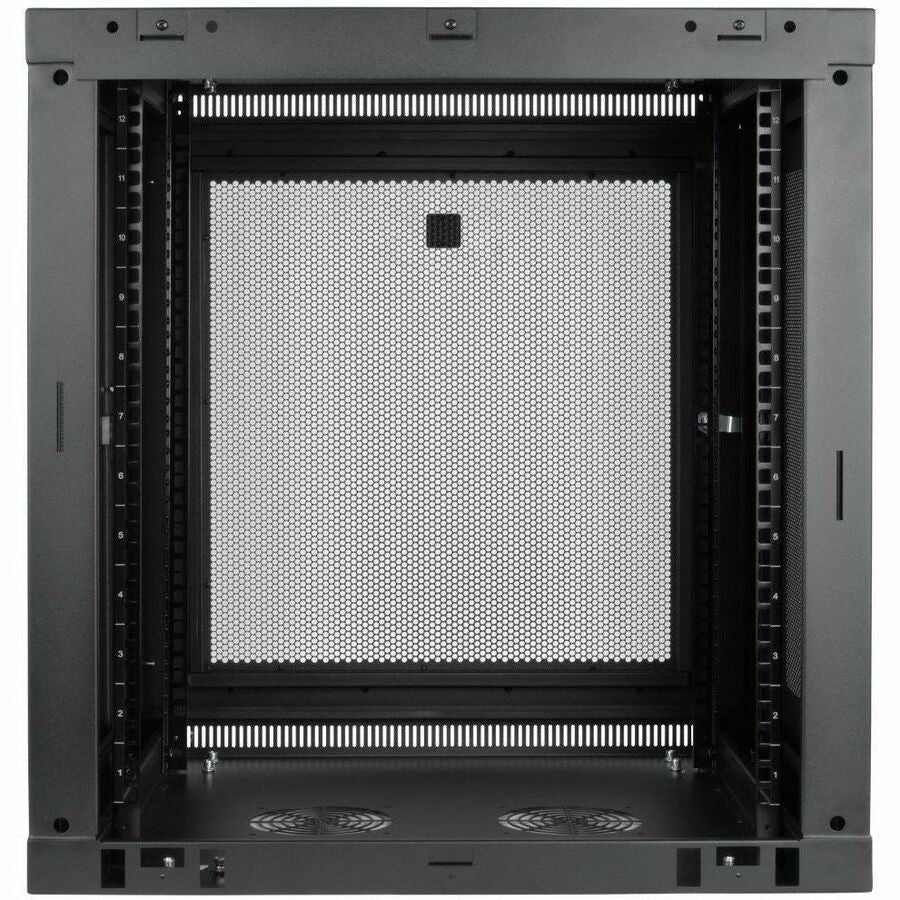

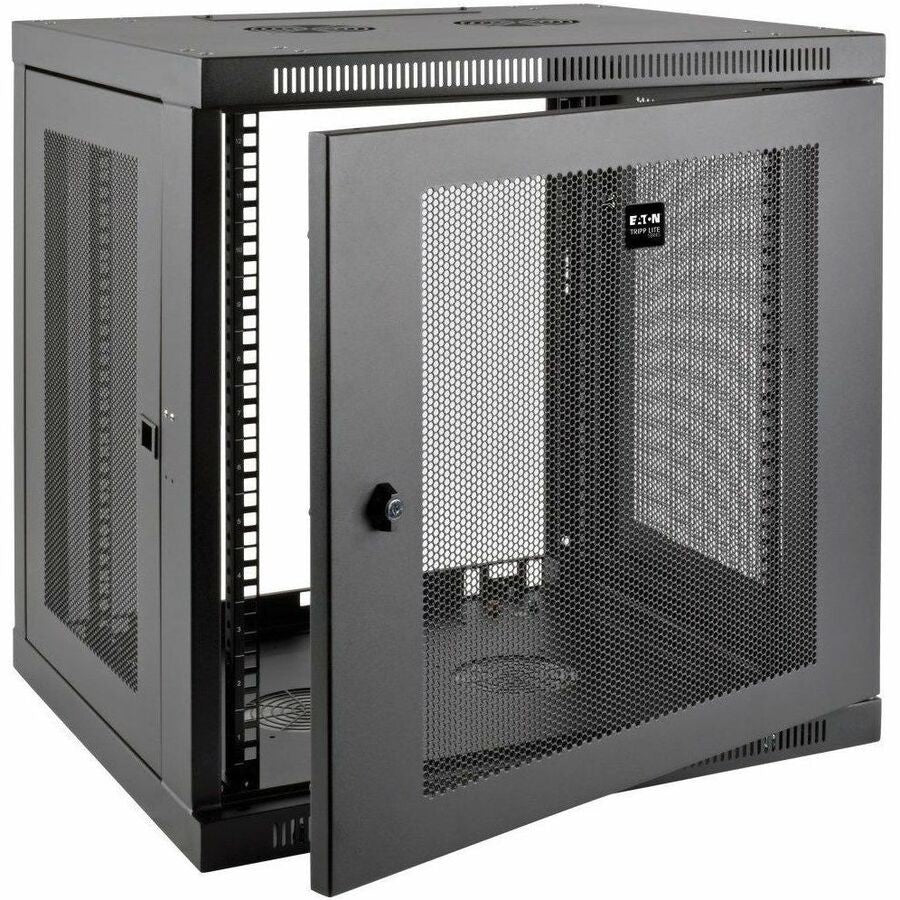

This is a Tripp Lite by Eaton SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Small Rack Enclosure Cabinet designed to house EIA-standard 19-inch rack equipment. The SRW12UDP features heavy-duty steel construction with a black powder-coated finish, vented panels for airflow, reversible front door, and adjustable vertical mounting rails supporting equipment up to 20.5 inches deep. MPN: SRW12UDP; UPC: 037332191472. Ideal for network wiring closets, retail locations, classrooms, and back offices with limited floor space.
Key Features of Tripp Lite by Eaton SmartRack SRW12UDP
- Secure Locking Design – Side panels and front door lock to prevent damage, tampering, or theft.
- Vented Panels – Front, top, bottom, and removable sides allow air flow to keep equipment cool.

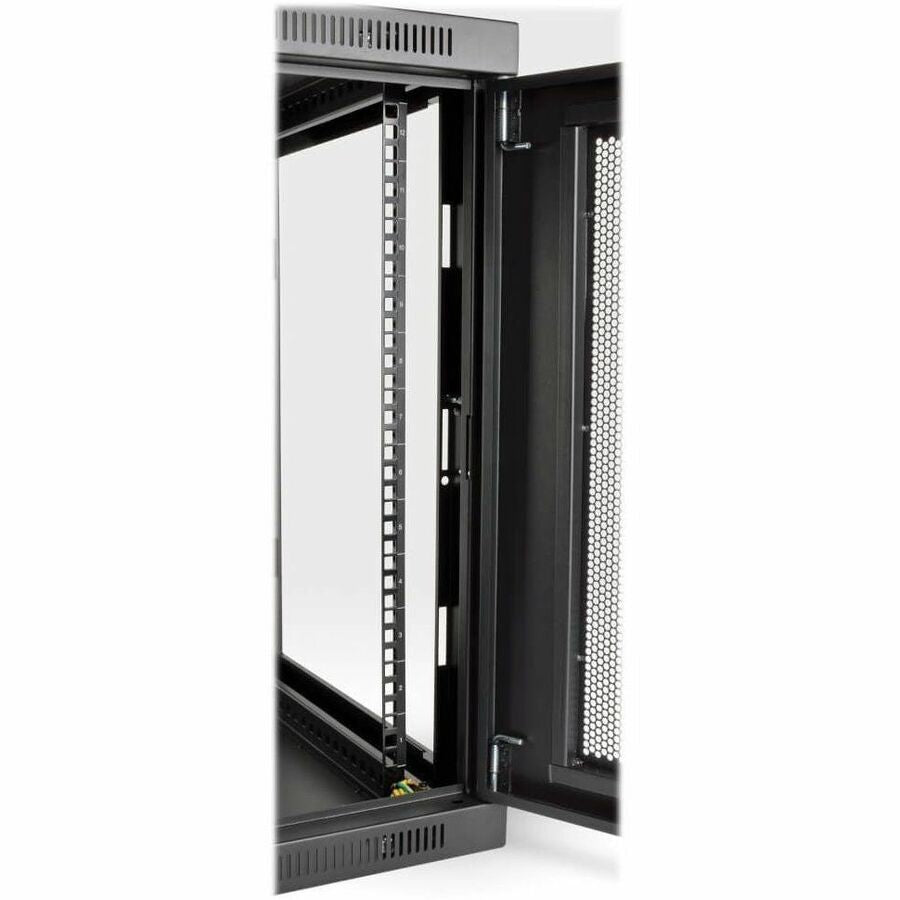

- Reversible Front Door – Opens left or right by rotating cabinet 180° before mounting.
- Cable Routing Ports – Convenient top and bottom ports for easy cable management.
- Adjustable Rails – Vertical mounting rails adjust in 7/8-inch increments for equipment up to 20.5 inches deep, like network switches and patch panels.
- Mounting Options – Square and threaded holes with numbered rack spaces; fully assembled and wall-ready, or add optional SRCASTER caster kit for mobility.
- Cable Management – Built-in support for organized wiring.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Model | SRW12UDP |
| Product Type | Rack Cabinet |
| UPC | 037332191472 |
| Rack Height | 12U |
| Rack Width | 19" |
| Rack Depth | 20.50" |
| Form Factor | Wall Mountable |
| Product Color | Black |
| Product Material | Heavy-Duty Steel |
| Finish | Black Powder-Coated |
| Maximum Weight Capacity | 200 lb |
| Static Weight Capacity | 200 lb |
| Height | 25.1" |
| Width | 23.6" |
| Depth | 21.8" |
| Weight Approximate | 58.40 lb |
| Application/Usage | LAN Switch, Patch Panel |
| Features | Cable Management |
| Country of Origin | China |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Warranty | 5 Year |

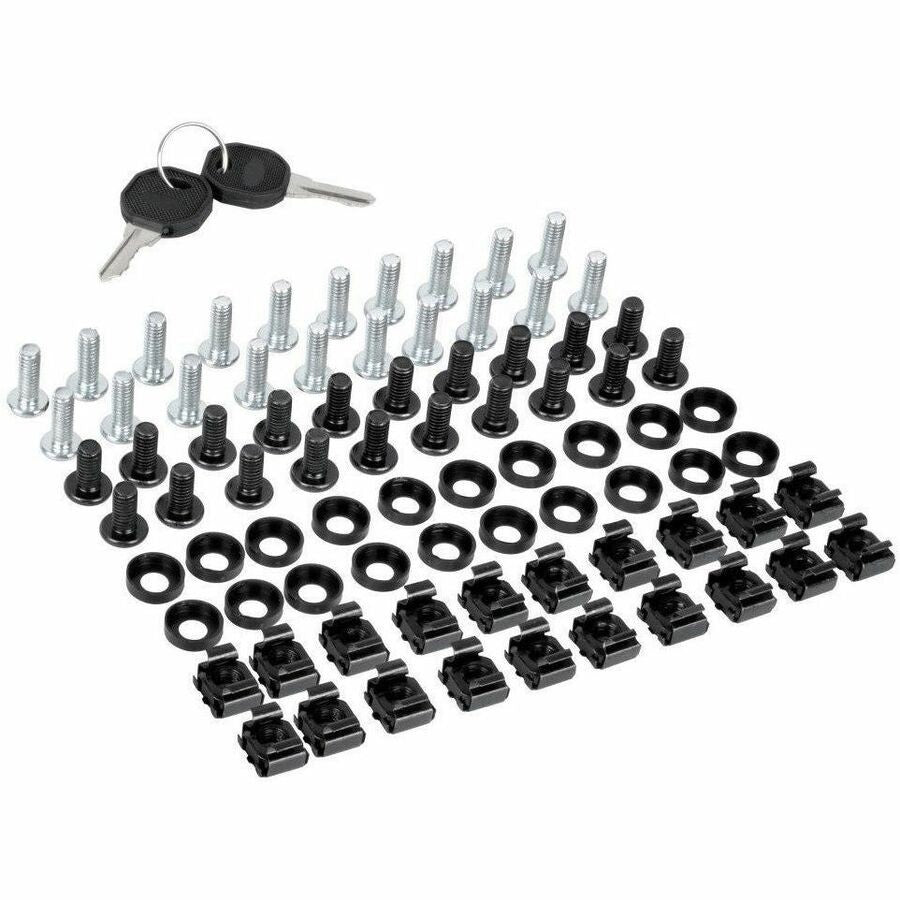

Package Contents
- SmartRack 12U Low-Profile Switch-Depth-Plus Wall-Mount Rack Enclosure Cabinet
- 20 x M6 Screws
- 20 x M6 Cage Nuts
- 20 x M6 Washers
- 20 x 12-24 Screws
- 2 x Keys
- Owner's Manual
Installation and Maintenance
Fully assembled with no assembly required. Mount directly to wall or use optional SRCASTER kit for mobility.
- Choose secure wall location capable of supporting 200 lb load plus equipment.
- Rotate cabinet if needed for door swing direction.
- Secure to wall using appropriate anchors (not included).
- Route cables through top/bottom ports.
- Install equipment using provided screws, cage nuts, and washers; adjust rails as needed.
- Lock doors and panels for security.
- Periodically clean vents and check locks for optimal performance.
Why Choose Tripp Lite by Eaton SmartRack SRW12UDP
Provides secure, organized storage for 19-inch rack gear in space-constrained environments with robust steel build, ventilation, and easy-access features.
Secure your network equipment with Tripp Lite SmartRack SRW12UDP—order now!
Brand: Tripp Lite by Eaton
Model: SRW12UDP
MPN: SRW12UDP
Country of Origin: China
UPC: 037332191472
