Tripp Lite Series B118-008E-UHD-2 8-Port 4K@60Hz HDMI Splitter HDCP 2.2 EDID
Tripp Lite Series B118-008E-UHD-2 8-Port 4K@60Hz HDMI Splitter HDCP 2.2 EDID
Low stock: 4 left
Save 22%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series 8-Port HDMI Splitter - 4K @ 60 Hz, HDCP 2.2, EDID Management
This is an Eaton Tripp Lite Series B118-008E-UHD-2 8-Port 4K@60Hz HDMI Splitter that transmits 4K x 2K video and audio from one HDMI source to eight HDMI displays simultaneously. Compliant with HDMI 2.0 and HDCP 2.2 standards, it features user-adjustable EDID management via DIP switches for optimal resolution control. MPN: B118-008E-UHD-2; UPC: 037332239907. Ideal for home theaters, digital signage, classrooms, showrooms, offices, churches, restaurants, bars, hotels, and trade shows.
Advanced Features of Tripp Lite B118-008E-UHD-2 HDMI Splitter
- 8-Port Output – Distributes identical 4K video/audio to eight HDMI displays; cascade up to three levels for up to 512 displays.
- UHD 4K@60Hz Support – Max resolution 4096 x 2160@60Hz with 18 Gbps bandwidth, no data loss.
- EDID Management – Default copies lowest common resolution; DIP switches allow manual override for custom A/V settings.
- Premium Audio Formats – DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 surround sound; lip sync pass-through.
- Enhanced Video – 36-bit Deep Color, xvYCC, x.vColor, 3D compatible.
- Plug-and-Play – No software/drivers needed; amber power LED and eight blue signal LEDs for status.
- Metal Construction – Durable, rackmountable design with desktop/wall mounting hardware.
- Wide Device Compatibility – Works with notebooks, Blu-ray players, satellite receivers, video game consoles, cable boxes, media servers, TVs, projectors, monitors, PCs, cameras, video surveillance stations, POS displays.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation / Tripp Lite series |
| Brand Name | Eaton Tripp Lite Series Connectivity |
| Model | B118-008E-UHD-2 |
| MPN | B118-008E-UHD-2 |
| UPC | 037332239907 |
| Product Type | HDMI Splitter |

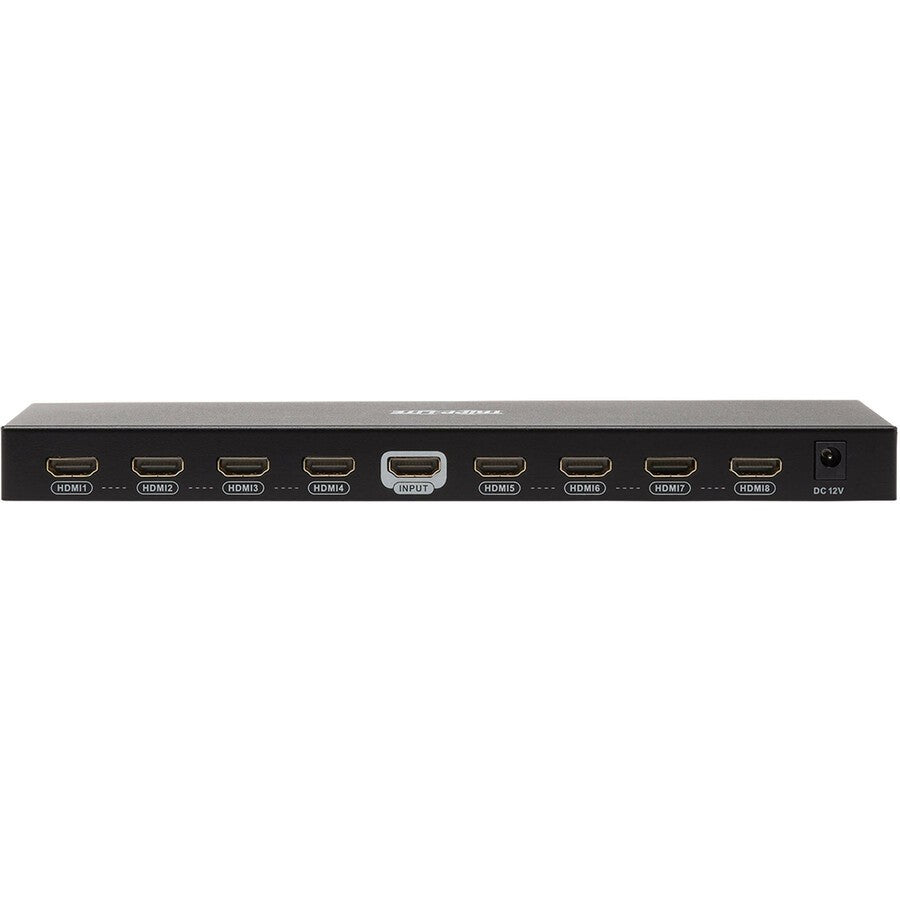

| HDMI Inputs | 1 x HDMI In |
| HDMI Outputs | 8 x HDMI Out |
| Max Video Resolution | 4096 x 2160 @ 60Hz (4K x 2K) |
| HDMI Specification | 2.0 |
| HDCP Specification | 2.2 |
| Bandwidth | 18 Gbps |
| Color Depth | 36-bit Deep Color |
| Audio Formats | DTS-HD, Dolby TrueHD, Dolby Digital Plus, LPCM 7.1 Channel Surround Sound |
| EDID Management | Yes, with DIP switches |
| Cable Length Support | Up to 15 ft (4 m) with 28 AWG HDMI cables |
| Power Input | 100-240V, 50/60 Hz, 0.6A; Output 12V DC 2A |
| Dimensions (H x W x D) | 0.9" x 3.2" x 10.4" |
| Weight | 1 lb (approximate) |
| Color | Black |
| Material | Metal |

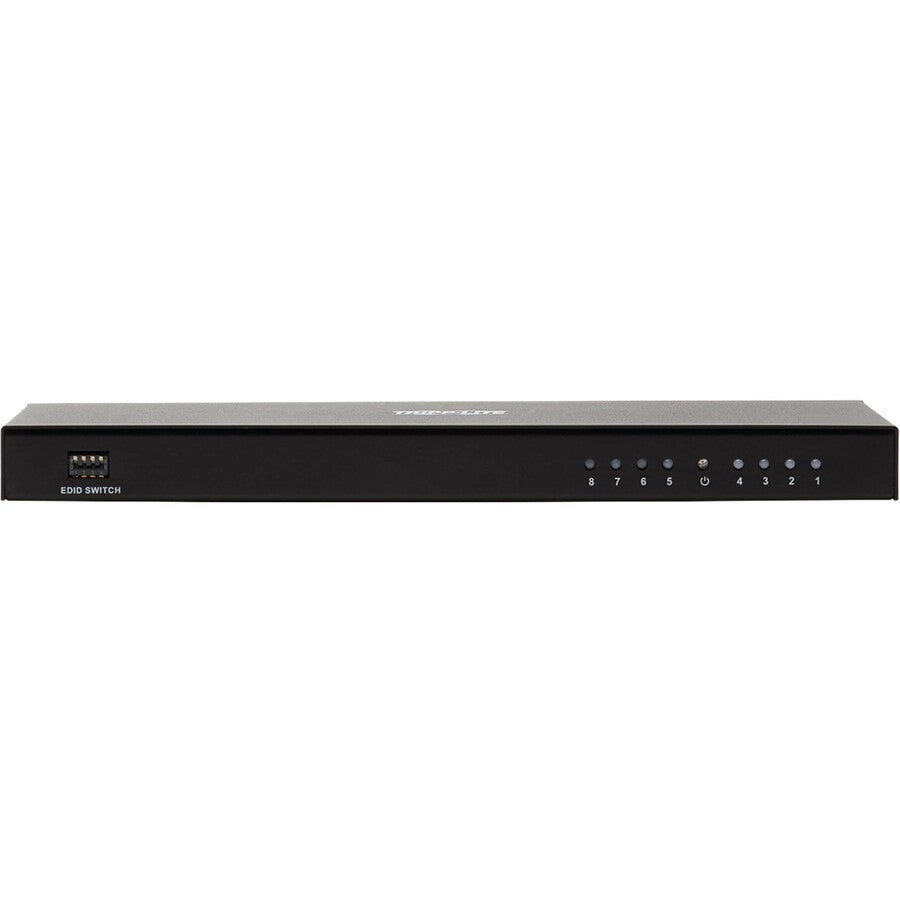

| LED Indicators | 1x Amber (Power), 8x Blue (Signal) |
| Mounting | Rackmountable, Desktop/Wall Mount |
| Certifications | UL, cUL, NEMA, FCC, RoHS, REACH |
| Country of Origin | China |
Installation Guide for Eaton Tripp Lite 8-Port HDMI Splitter
Plug-and-play setup requires no software or drivers. Pro tip: Use high-quality HDMI cables like Tripp Lite P569-Series for optimal 4K performance.
- Connect HDMI source to input port.
- Connect up to eight HDMI displays to output ports using cables ≤15 ft.
- Plug external power supply into AC outlet and splitter.
- Verify amber power LED and blue signal LEDs.
- Adjust DIP switches if needed for EDID settings.

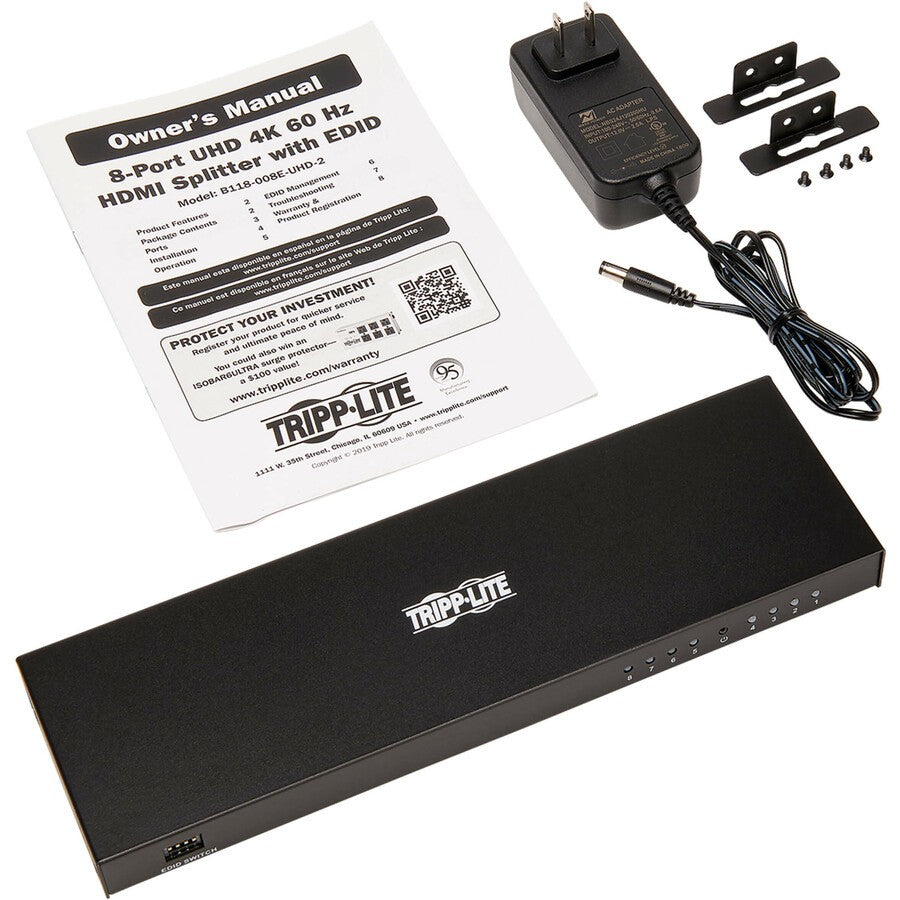

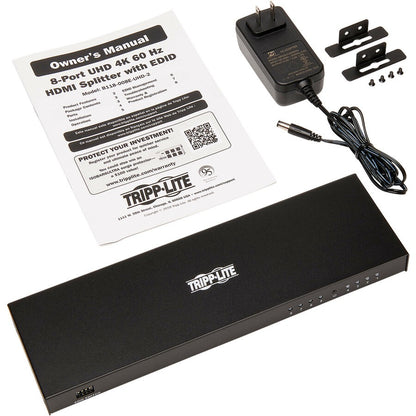

- Mount using included hardware for desktop or wall installation.
Why Choose Eaton Tripp Lite Series B118-008E-UHD-2
Delivers reliable 4K@60Hz splitting with advanced EDID control and broad format support for professional AV setups and multi-display applications.
Enhance your multi-display setup—Order the Eaton Tripp Lite 8-Port HDMI Splitter today!
Type: HDMI Splitter
Compatible Brand: Eaton Tripp Lite Series Connectivity
MPN: B118-008E-UHD-2
Country of Origin: China
Compatible Model: B118-008E-UHD-2
Compatible Product: Projector
Audio/Video Outputs: HDMI
Connection Split/Duplication: 1 : 8 (8-Way)
Brand: Does not apply
UPC: 037332239907
