Eaton Tripp Lite Series 1.4kW Single-Phase Switched Automatic Transfer Switch PDU, 2 120V 5-15P 15A Inputs, 8 5-15R Outputs, 1U, TAA

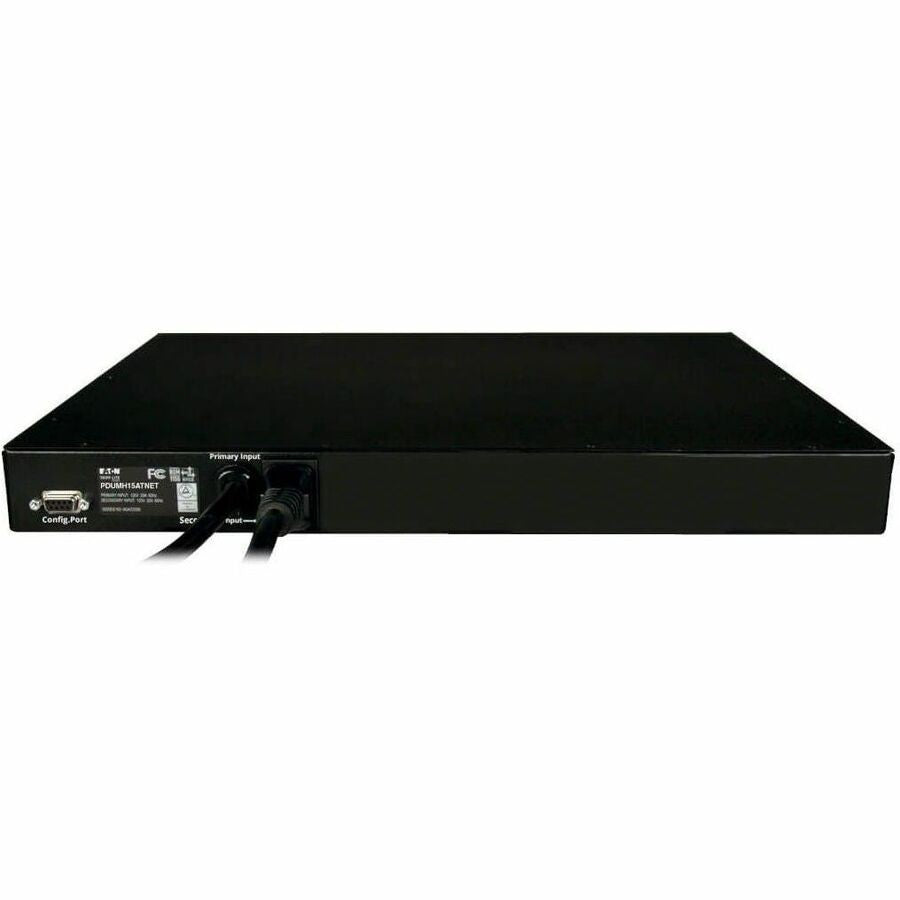

This is a PDU Switched ATS 120V 15A 8 Outlet manufactured by Eaton Corporation under the Tripp Lite series. The PDUMH15ATNET model provides redundant power for single-corded network devices through dual input cords connected to primary and secondary power sources. It maintains continuous output from the primary source and switches to the secondary source when the primary becomes unstable or fails.

The unit supports 120 V AC input and output with an 1800 VA power rating. It includes individually controllable output receptacles and a Java-free HTML5-based LX Platform interface for remote monitoring via web browser, SNMP, telnet, or SSH. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, BOOTP, and NTP. Super-fast switchover occurs within milliseconds. ATS functionality works with any two compatible AC power sources regardless of phase angle.

Key Features

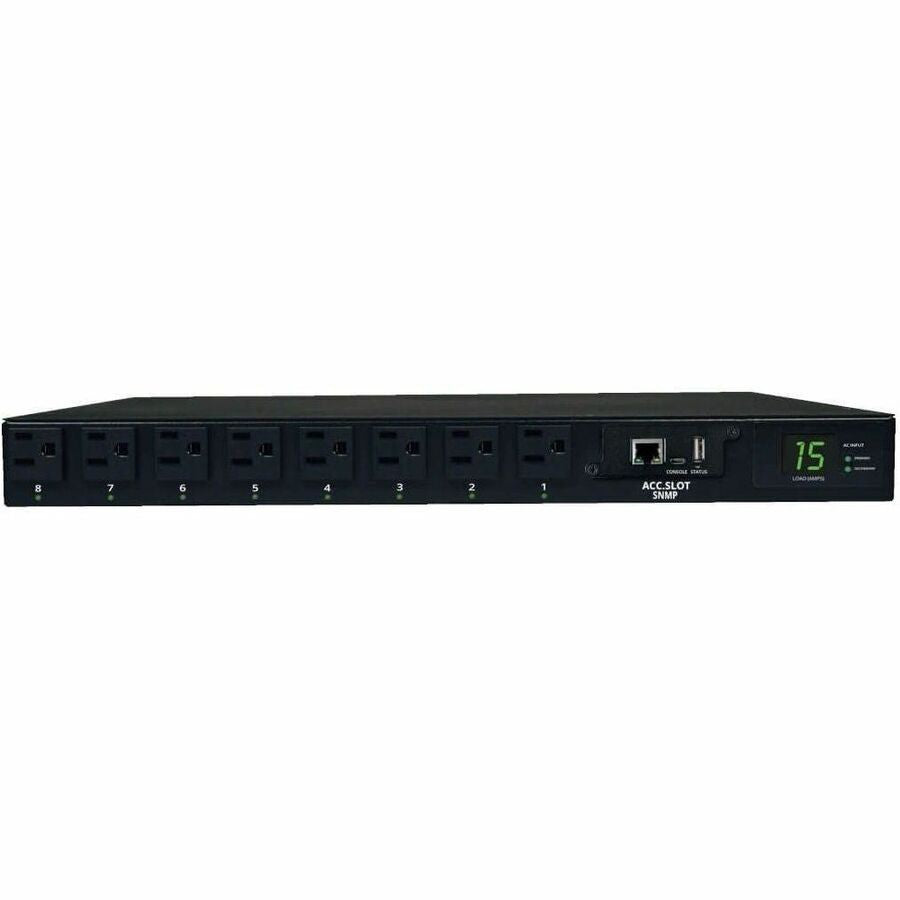

• Switched PDU with 8 NEMA 5-15R receptacles and 2 NEMA 5-15P inputs
• Integrated Automatic Transfer Switch for secondary source operation on primary failure
• Sequential outlet power-on to prevent inrush-related equipment interaction
• Programmable or real-time outlet power control via web or network monitoring card
• Front input LEDs display primary or secondary power availability
• Supports optional EnviroSense2 modules for environmental monitoring
• Enables fault tolerant hot-swappable UPS protection with single or dual UPS systems
• On-board ATS processor evaluates power quality on both inputs
• 1U rack-mountable design with vertical mounting orientation
• TAA compliant and RoHS compliant construction

Comprehensive Technical Specifications

Package Contents

• PDUMH15ATNET PDU Switched ATS 120V 15A 8 Outlet
• PDU with attached 5-15P input power cord
• Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input
• User manuals with warranty information
