Tripp Lite NetDirector B030-008-17-IP 8-Port 1U Rack HDMI KVM Switch 17" LCD
Tripp Lite NetDirector B030-008-17-IP 8-Port 1U Rack HDMI KVM Switch 17" LCD
Out of stock
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Tripp Lite NetDirector B030-008-17-IP 8-Port 1U Rack HDMI KVM Switch 17" LCD

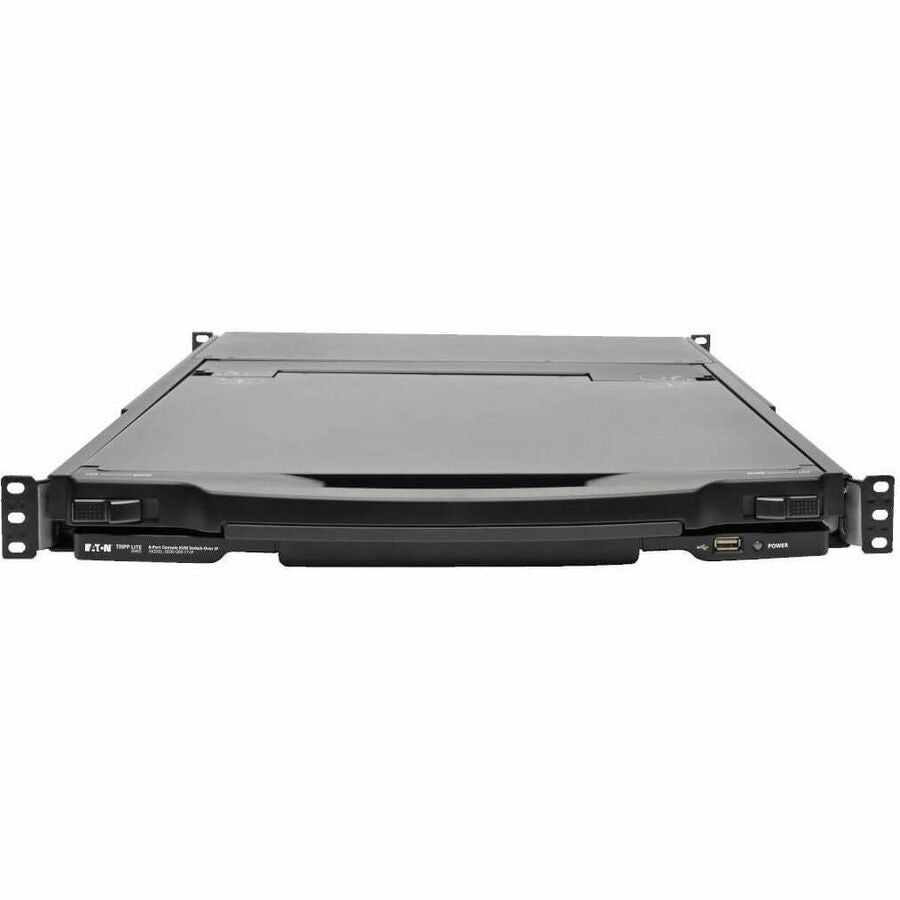

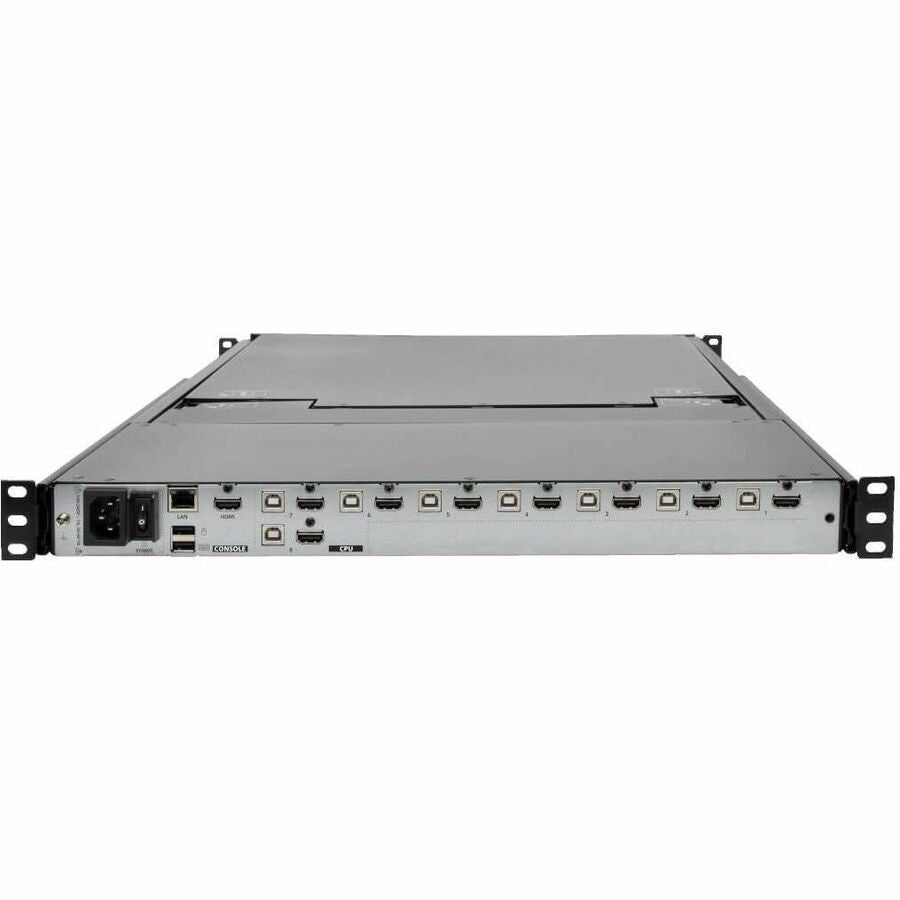

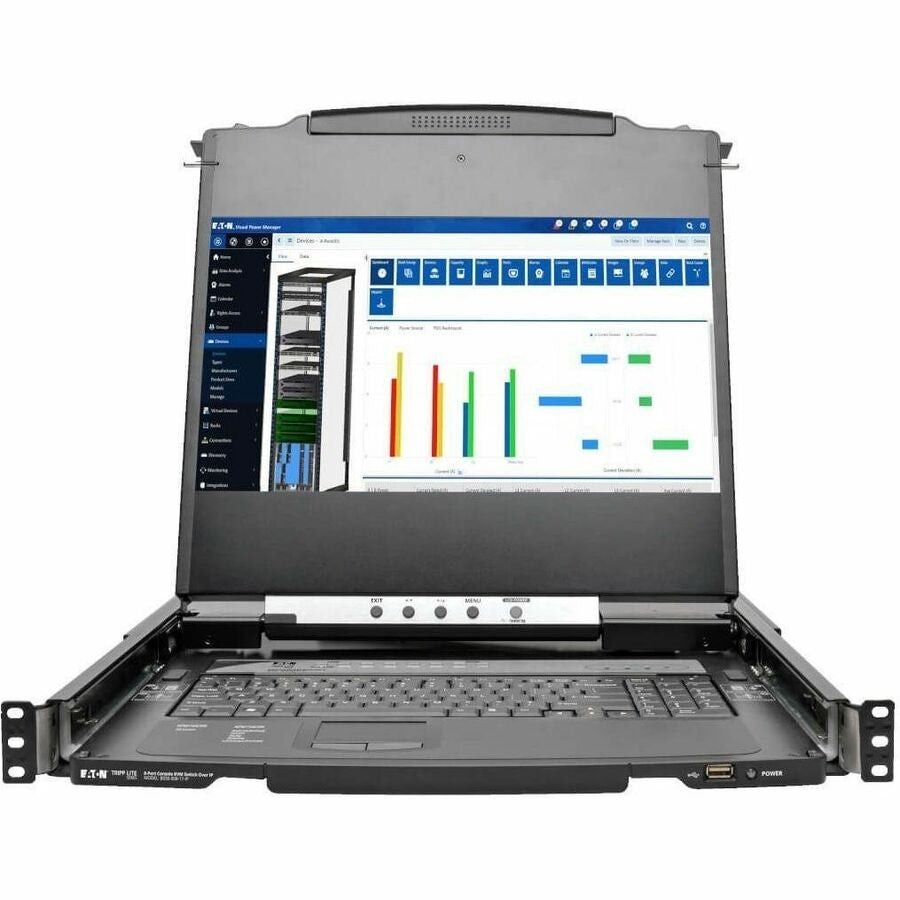

This is a Eaton Tripp Lite Series NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch with 17 in. LCD and IP Remote Access, Dual Rail, TAA. The B030-008-17-IP combines a rack-mountable keyboard, 17-inch LCD monitor, touchpad, and built-in IP remote access in a compact 1U housing for controlling up to eight USB computers or servers. Manufacturer: Eaton; MPN: B030-008-17-IP; UPC: 037332194206. Supports video up to 1920 x 1080, IPv4/IPv6, and advanced security for LAN/WAN/Internet access from anywhere.
Key Features & Capabilities
- Complete Remote Control: Built-in IP access for managing 8 computers via LAN, WAN, or Internet; supports IPv4, IPv6, TCP/IP, HTTP, HTTPS, UDP, RADIUS, DHCP, SSL, ARP, DNS, 10Base-T/100Base-TX.
- 17" Full HD LCD: 1920 x 1080 resolution with DDC emulation for optimal display adjustment; dual-rail design allows keyboard retraction while LCD remains visible.
- Switching Options: On-console buttons, OSD, hot keys, panel array mode, auto-scan; add/remove computers without powering down.
- Advanced Security: 1024-bit RSA, 256-bit AES, 56-bit DES, 128-bit SSL encryption; up to 64 user accounts, 32 concurrent remote users; RADIUS, LDAP/S authentication.
- Ease of Use: Windows/Java applications for browserless access; Windows log server for event tracking; flash firmware upgrades over network.
- Build Quality: Heavy-duty steel housing; compatible with all major OS and browsers; TAA compliant for GSA purchases.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | NetDirector |
| Product Model | B030-008-17-IP |
| Manufacturer Part Number | B03000817IP |
| UPC | 037332194206 |
| D&H Item Number | B03000817IP |
| Product Type | LCD Rack Console |
| Device Type | LCD Rack Console |
| KVM Switch | Yes |
| KVM Technology | Digital |
| Number of Computers Supported | 8 |
| Screen Size | 17" |
| Display Screen Type | LCD |
| Screen Mode | Full HD |
| Screen Resolution | 1920 x 1080 |
| Input Devices - Keyboard | Yes |
| Pointing Device Type | TouchPad |
| Network (RJ-45) Ports | 1 |
| USB Ports | 10 |
| HDMI Ports | 9 |
| Input Voltage Range | 120V AC to 230V AC |
| Product Color | Black |
| Product Material | Steel |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 18.9" |
| Depth | 26.8" |
| Weight (Approximate) | 26.01 lb |
| Shipping Weight | 43.00 lb |
| Shipping Dimensions (HxWxD) | 6.00" x 33.00" x 27.00" |
| Ship Via | UP |
| Freight | 46.68 |
| Certifications & Standards | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Platform Supported | PC |
Package Contents & Additional Details

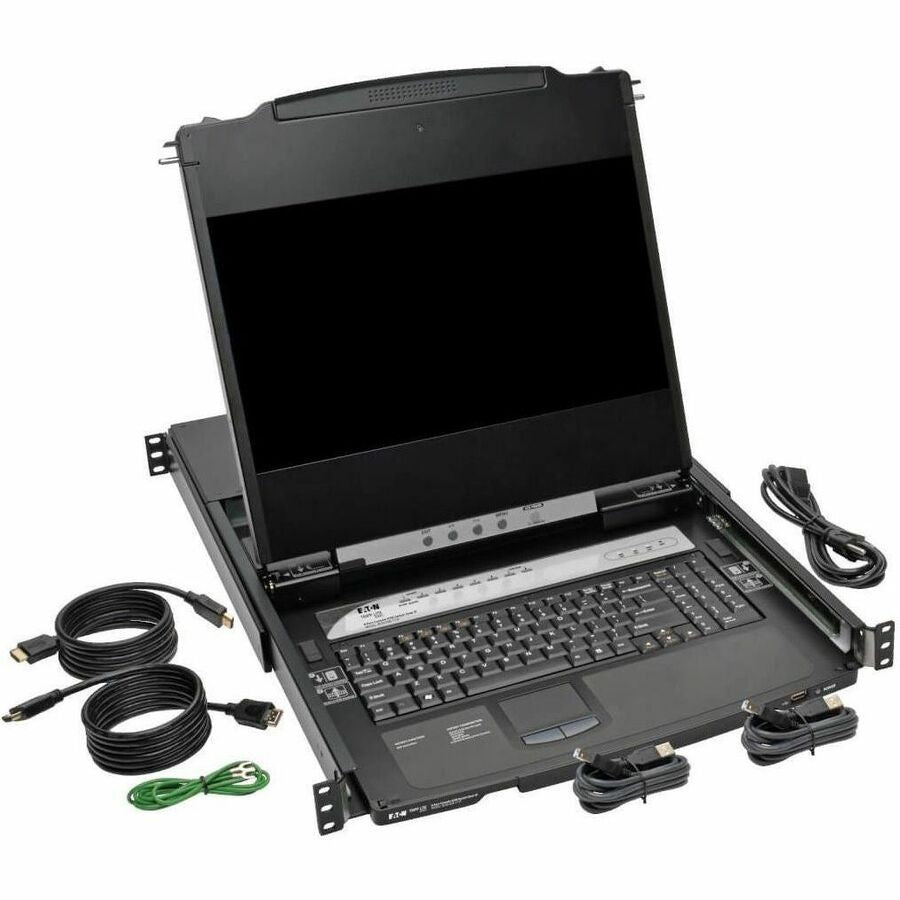

- B030-008-17-IP NetDirector 8-Port 1U Rack-Mount Console HDMI KVM Switch
- 2 x High-speed HDMI Cables, 6 ft.
- 2 x USB 2.0 A/B Cables, 6 ft.
- C13 to NEMA 5-15P Power Cord
- Mounting Hardware
- Owner's Manual
Note: Requires P782-XXX-DH Series KVM Cable Kit (sold separately) for each USB computer/server connection. In Stock Indicator: In Stock; Quantity Available: 11.
Why Choose Eaton Tripp Lite NetDirector KVM Switch
Designed for data centers and server rooms, this TAA-compliant unit offers space-saving 1U design, global remote access, multi-user support, and robust security to streamline IT management and reduce on-site needs.
Elevate your rackmount KVM capabilities—Order the Tripp Lite NetDirector B030-008-17-IP today!
Brand: Tripp Lite
Type: LCD Rack Console
MPN: B030-008-17-IP
Color: Black
Compatible Brand: Tripp Lite series
Country of Origin: Taiwan
Compatible Model: B030-008-17-IP
Manufacturer Warranty: 3 Years
Connection Split/Duplication: 1:8
Cable Length: 6 ft
Item Height: 1.7"
Item Width: 18.9"
Item Length: 26.8"
UPC: 037332194206
