Tripp Lite NetDirector B020-U16-19-K 16-Port 1U KVM LCD Console

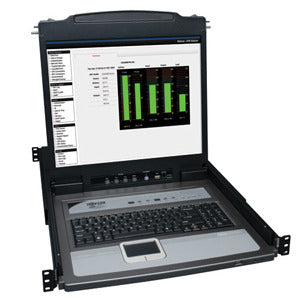

This is an Eaton Tripp Lite Series NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables, TAA. The unit combines a rack-mountable keyboard, 19-inch LCD, and touchpad in a single 1U console for controlling up to 16 computers or servers.
Key Features
- Integrated 19-inch SXGA LCD supports resolutions up to 1280 x 1024 with on-console push buttons, OSD, and keyboard hot keys for port switching.
- Daisy-chain expansion supports up to 264 computers by connecting up to 31 B022-U08 KVM switches.
- Multi-level password security allows configuration for one administrator and up to four local users.
- Eight included P778-series combo cables support both PS/2 and USB connections without adapters.

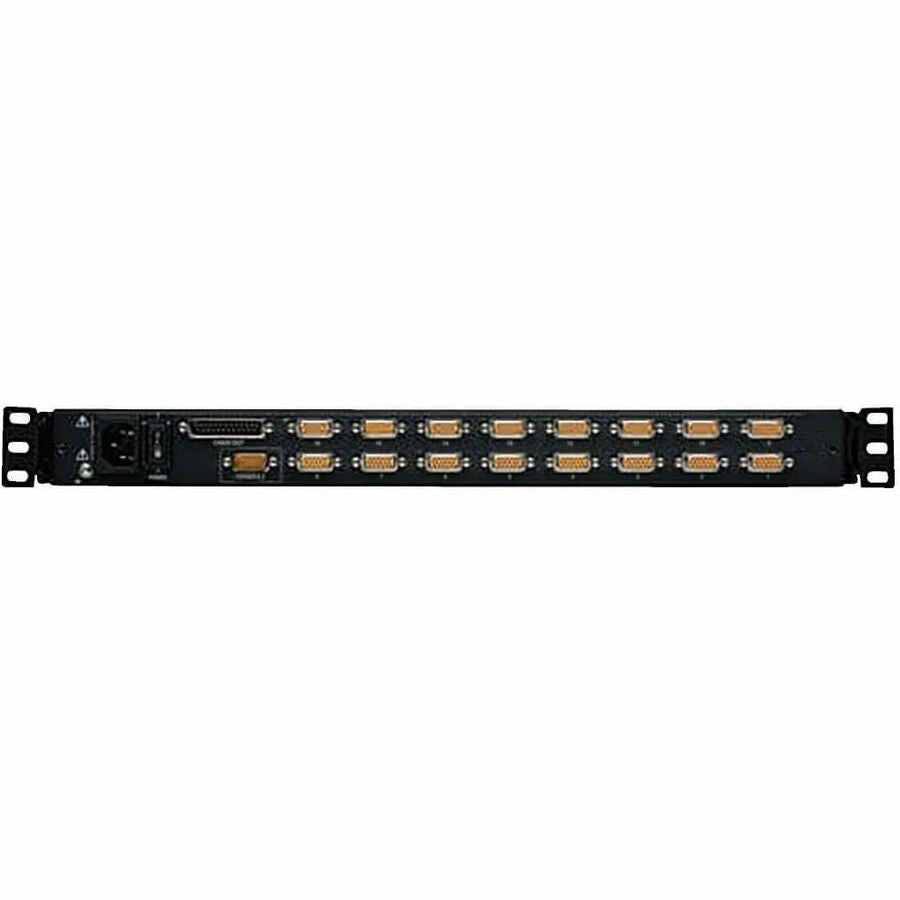

- Rear console port accepts Tripp Lite B051-000 IP Remote Access Unit or external console cable kit.
- Front USB ports include one for external mouse and one USB 1.1 port for shared peripherals across servers.
- Heavy-duty steel housing with rack-drawer storage and pull-out design for infrequent use.
- TAA compliant with country of origin Taiwan and environmentally friendly construction.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Line | NetDirector |
| Product Model | B020-U16-19-K |
| Manufacturer Part Number | B020U1619K |
| Manufacturer Item Number | B020-U16-19-K |
| UPC | 037332150769 |
| Product Type | LCD Rack Console |
| KVM Switch | Yes |
| Number of Computers Supported | 16 |
| Screen Size | 19 inches |
| Screen Mode | SXGA |
| Screen Resolution | 1280 x 1024 |
| Pointing Device Type | TouchPad |
| USB Ports | 2 |
| Physical Height | 1.8 inches |
| Physical Width | 17 inches |
| Physical Depth | 27 inches |
| Weight (Approximate) | 31.30 lb |
| Package Contents | NetDirector Console RM LCD KVM Switch, 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits, PS2/USB Combo Console Cable Kit, RJ11 to DB9 Firmware Upgrade Cable, C13 to 5-15P Power Cord, CD with Owner Manual, Quick Start Guide, Grounding Wire, Rackmount Hardware Kit |
| Certifications & Standards | UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1 |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Compatibility | All major operating systems |
Package Contents
NetDirector Console RM LCD KVM Switch, 8 x P778-006 6 ft. USB/PS2 Combo KVM Cable Kits, PS2/USB Combo Console Cable Kit, RJ11 to DB9 Firmware Upgrade Cable, C13 to 5-15P Power Cord, CD with Owner Manual, Quick Start Guide, Grounding Wire, Rackmount Hardware Kit.
Eaton Tripp Lite Series NetDirector 16-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables, TAA
Type: LCD Rack Console
Color: Black
Compatible Brand: Tripp Lite series
Compatible Model: B020-U16-19-K
Connection Split/Duplication: 1:16
Country of Origin: Taiwan
Item Height: 1.8 inches
Item Length: 27 inches
Item Width: 17 inches
UPC: 037332150769
MPN: B020-U16-19-K
Display Type: LCD
Brand: Tripp Lite
Screen Size: 19 in
