Tripp Lite N785-001-LC-MM Gigabit LC Multimode Fiber Media Converter 550M
Tripp Lite N785-001-LC-MM Gigabit LC Multimode Fiber Media Converter 550M
Low stock: 5 left
Save 28%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Eaton Tripp Lite Series N785-001-LC-MM 10/100/1000 LC Multimode Fiber to Ethernet Media Converter, 550M, 850nm
This is a Tripp Lite series transceiver/media converter that extends network distances up to 550 meters by converting Cat5e UTP Ethernet to multimode fiber optic cabling. The Eaton Tripp Lite N785-001-LC-MM Gigabit LC Multimode Fiber Media Converter features one RJ45 copper port and one LC multimode fiber port, with automatic MDI/MDI-X, speed sensing on UTP, and half/full duplex detection on fiber. MPN: N785-001-LC-MM; UPC: 037332183927. Power is supplied via a 5 V DC small form factor AC adapter.
Key Features of Tripp Lite N785-001-LC-MM Media Converter
- Gigabit Ethernet Conversion – Supports 10/100/1000Base-T on RJ45 to 1000Base-SX on LC multimode fiber at 850 nm wavelength.
- Extended Reach – Up to 550M (0.55 km) over multimode fiber optic cable using Cat5e UTP input.
- Auto-Configuration – Automatic MDI/MDI-X crossover, UTP port auto-senses speed, fiber port auto-detects half or full duplex.

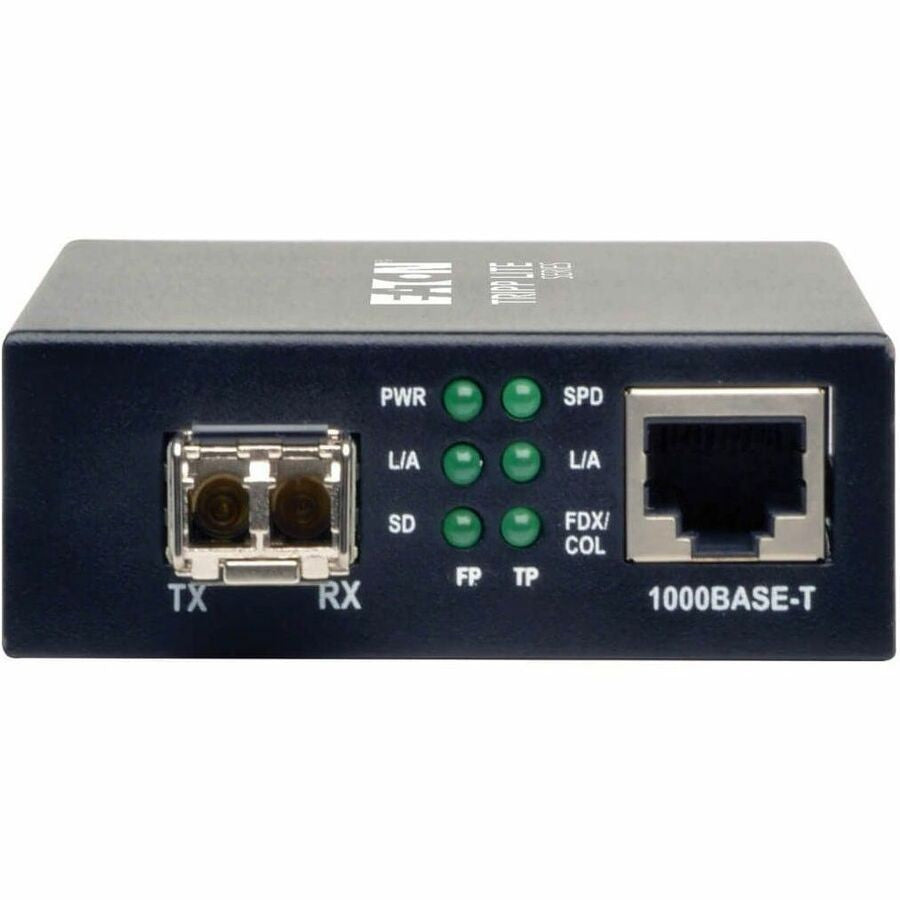

- Dual Ports – 1x Network RJ45 port and 1x LC multimode port for seamless copper-to-fiber integration.
- Desktop Form Factor – Compact black design with plug-and-play setup via external AC adapter.
- Compliance – Meets FCC and CE standards for reliable network deployment.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | N785-001-LC-MM |
| Manufacturer Part Number | N785001LCMM |
| UPC | 037332183927 |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Number of LC Ports | 1 |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 850 nm |
| Maximum Distance Supported | 0.55 km (550M) |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T, 1000Base-SX |
| Input Voltage | 5 V DC |
| Product Color | Black |
| Form Factor | Desktop |
| Height | 1" |
| Width | 4.7" |
| Depth | 2.8" |
| Weight (Approximate) | 1 lb |
| Certifications & Standards | FCC, CE |
| Country of Origin | China |
Installation & Maintenance for N785-001-LC-MM Fiber Media Converter
Plug-and-play design simplifies deployment in networking environments.
- Connect RJ45 Ethernet cable from network source to the UTP port.
- Attach LC multimode fiber cable to the fiber port.

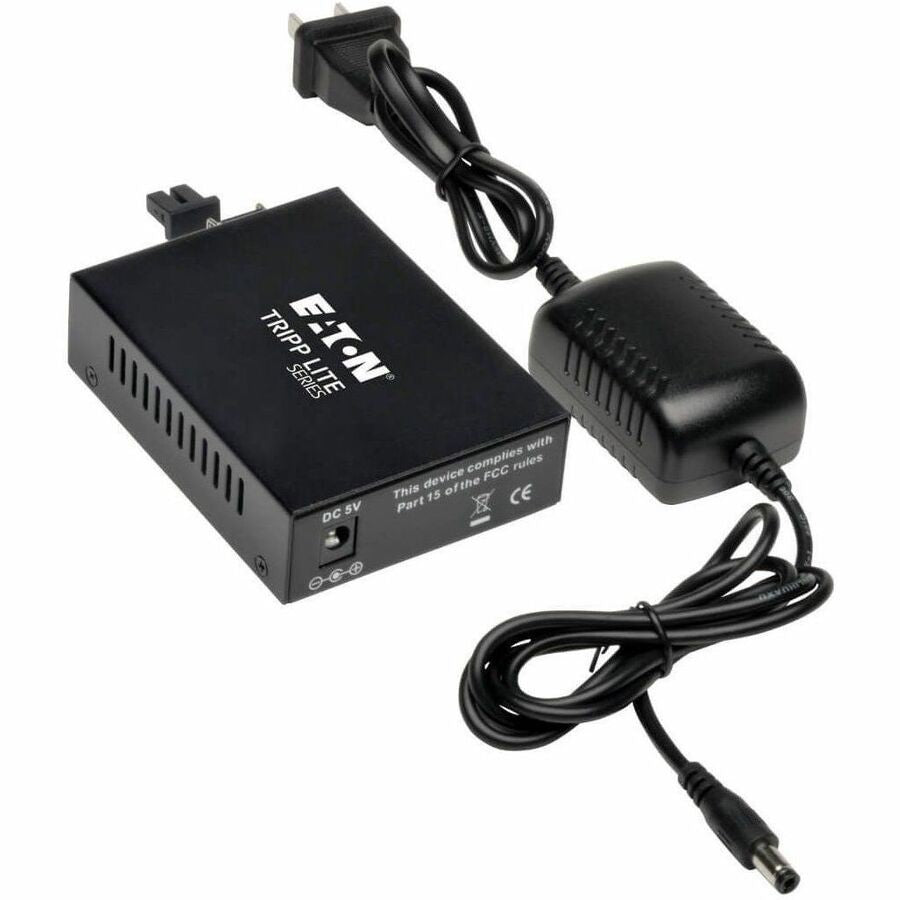

- Plug the included AC adapter into the power input and a standard outlet. Pro tip: Verify LED indicators for link/activity status.
- Monitor auto-negotiation for speed and duplex. Note: Use compatible multimode fiber (50/125 or 62.5/125 μm).
- For maintenance, disconnect power before cleaning; wipe exterior with dry cloth. Avoid direct sunlight or extreme temperatures.
Why Choose Eaton Tripp Lite Series Media Converter
This economical solution delivers reliable Gigabit fiber extension for small to medium networks, with auto-features reducing setup complexity and ensuring compatibility across standard Ethernet infrastructures.
Extend your network with Eaton Tripp Lite N785-001-LC-MM—order today!
Brand: Tripp Lite
Type: Transceiver/Media Converter
Model: N785-001-LC-MM
MPN: N785-001-LC-MM
Country of Origin: China
Number of LAN Ports: 1
Ethernet Technology: Gigabit Ethernet (1000-Mbit/s)
Interface: Ethernet (RJ-45)
Network Management Type: Unmanaged
Maximum Data Transfer Rate: 1 Gbps
Maximum LAN Data Rate: 1000 Mbps/1 Gbps
Network Connectivity: Wired-Ethernet (RJ-45)
UPC: 037332183927
