Description
Eaton Tripp Lite Series 750VA 450W Standby UPS - 12 NEMA 5-15R Outlets, 120V, 50/60 Hz, USB, 5-15P Plug, Desktop / Wall Mount
This is a Standby UPS that offers standby protection for PCs and peripherals to prevent data loss and system downtime by providing battery-supported AC output during brownouts and blackouts. The Eaton Tripp Lite Series INTERNET750U model is an ultra-compact, wall-mountable unit with 12 widely spaced output receptacles to accommodate large transformer plugs.
Manufacturer: Eaton. Brand Name: Tripp Lite series. Product Model: INTERNET750U. Manufacturer Item Number: INTERNET750U. UPC: 037332211088. Product Type: Standby UPS. Packaged Quantity: 1 Each.
Key Features

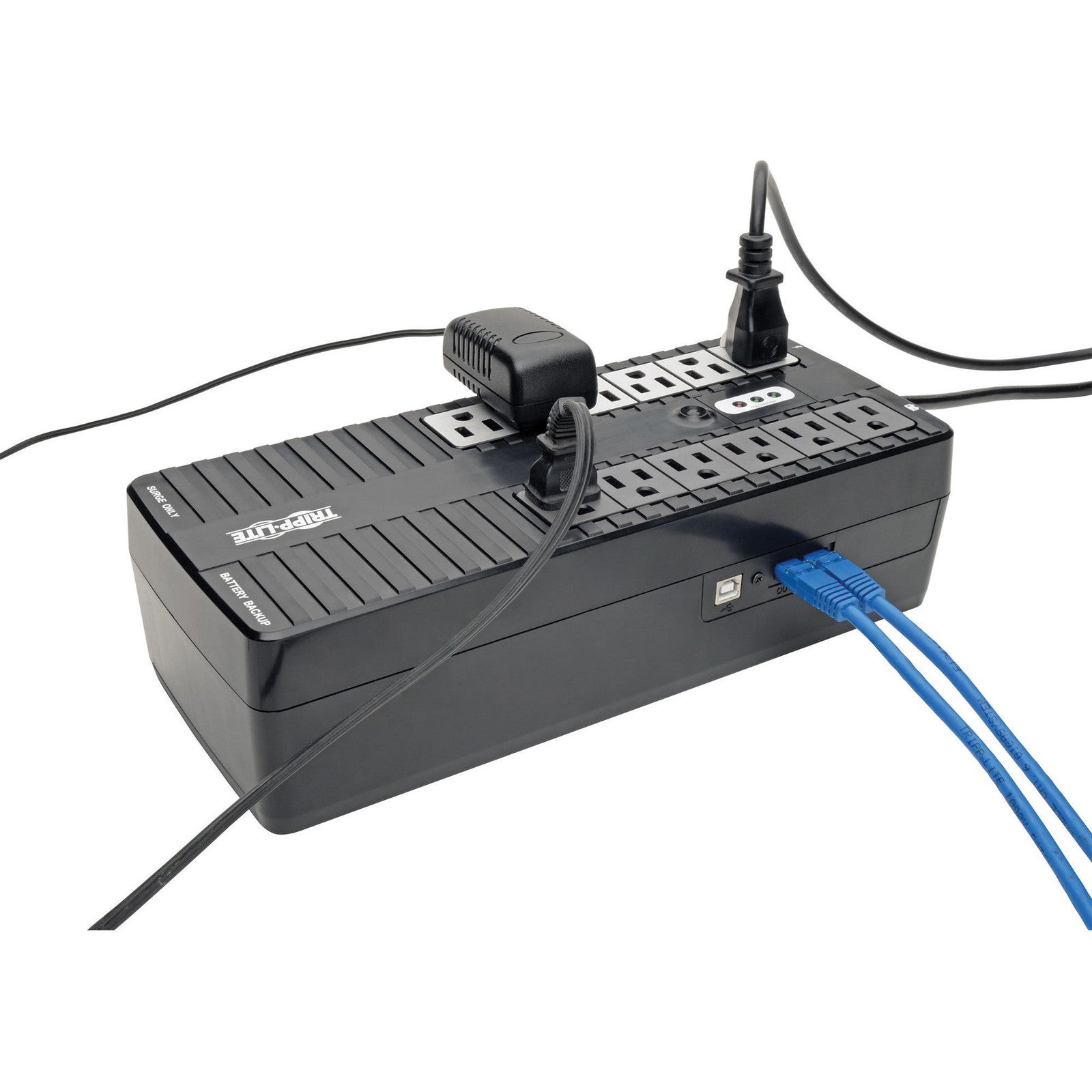

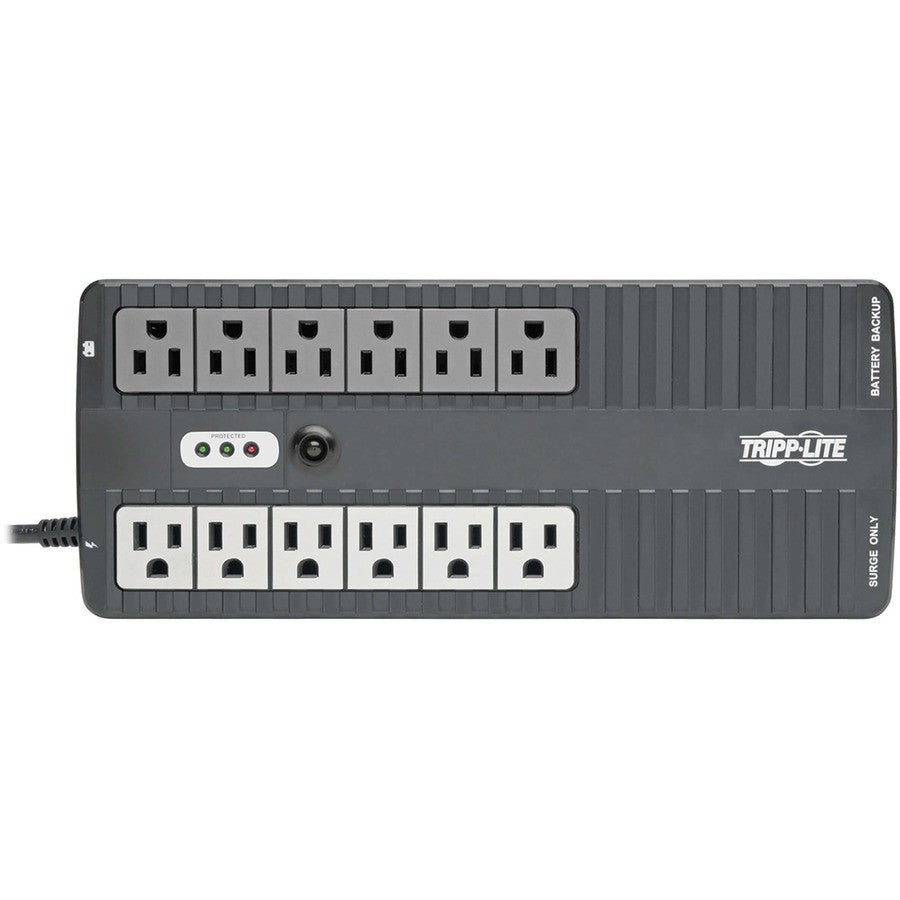

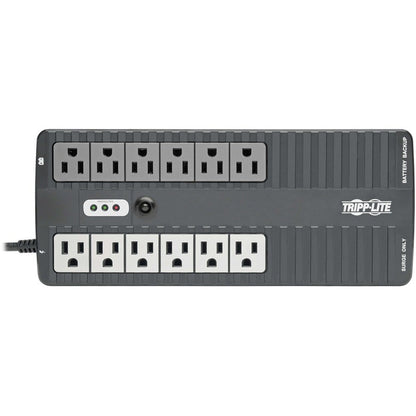

- 12 widely spaced NEMA 5-15R outlets accommodate large transformer plugs without blocking outlets.
- 6 battery-supported outlets protect computers and vital system peripherals.
- 6 surge suppression-only outlets protect system accessories that do not require battery support.

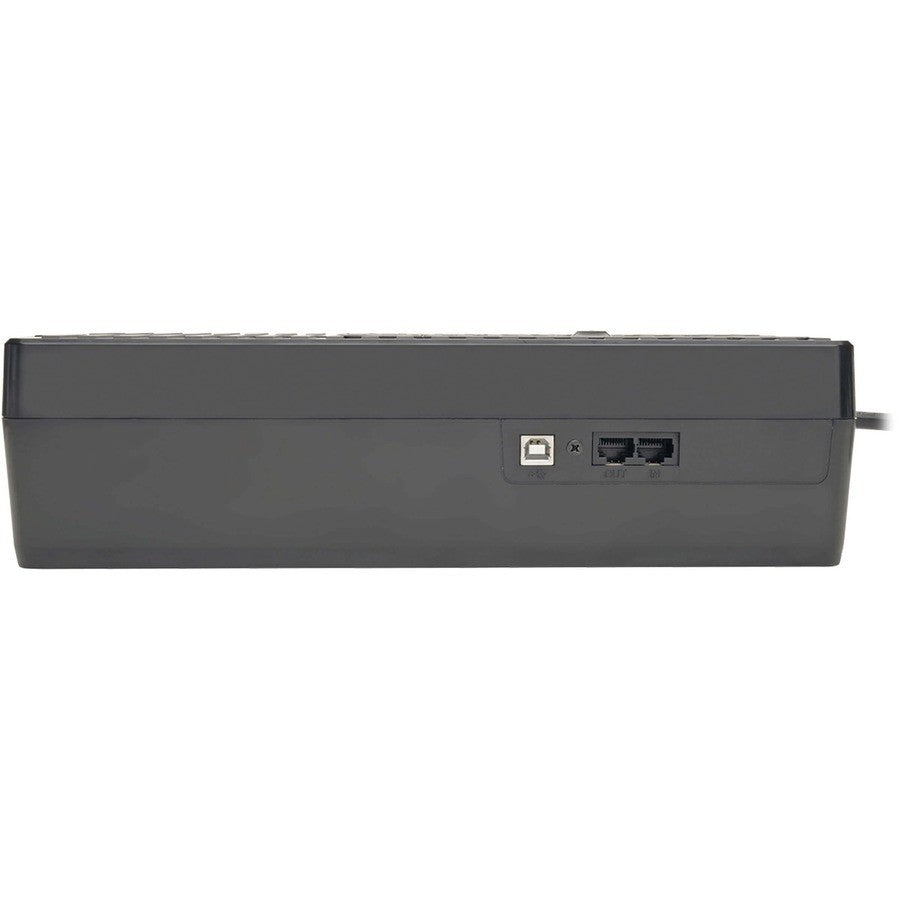

- Single-line RJ-11 telephone suppression jacks protect modem or other peripherals with a standard dialup or DSL phone line connection.
- HID-compliant USB interface enables integration with built-in power management and auto-shutdown features of Windows and Mac OS X.
- Audible alarm and front panel LEDs offer status information regarding line and battery power operation.
- 750VA/450 watt power handling ability supports entry-level PCs for up to 45 minutes during power failures.
- Hot-swap battery replacement supported via battery access door.

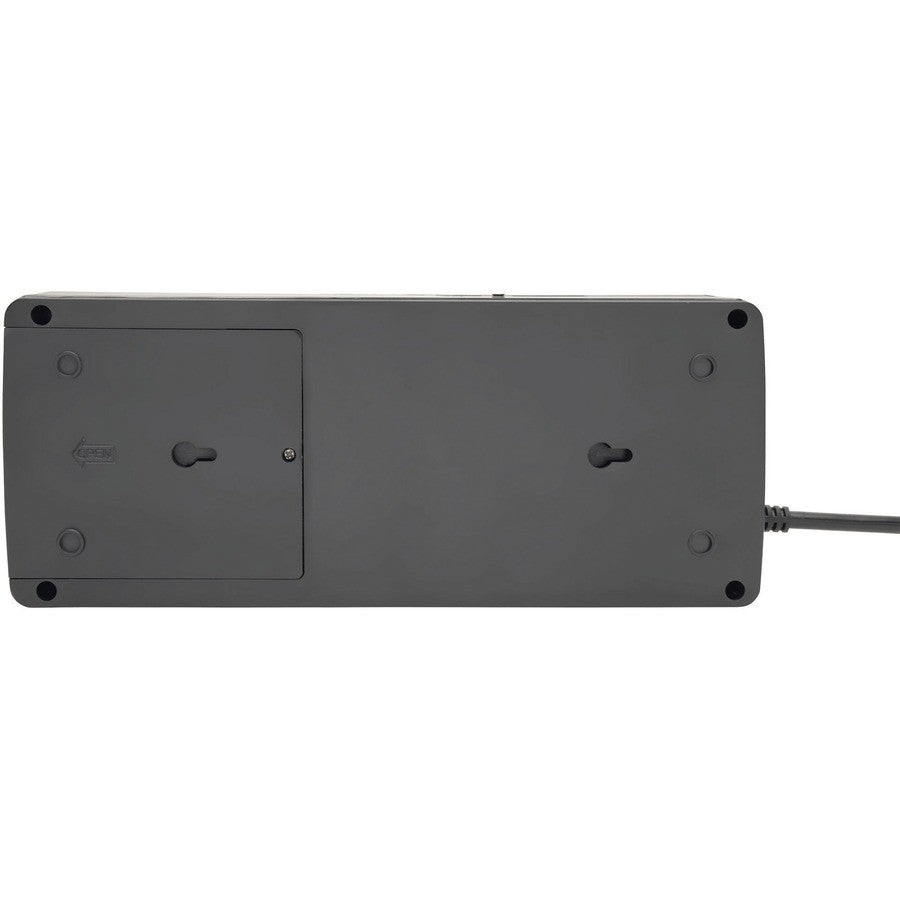

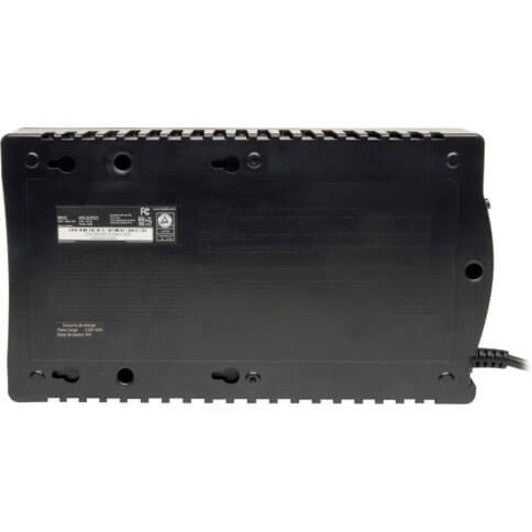

- Keyhole mounting flanges enable secure wallmount installation.
- Space-saving ultra-compact housing.
- Supports Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application/OS or hard power off/on reboot of connected equipment.
- Single-line tel/DSL surge suppression with line splitter protects two directly connected modems, fax machines or cordless phones sharing a single phone line connection.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | INTERNET750U |
| Manufacturer Item Number | INTERNET750U |
| UPC | 037332211088 |
| Product Type | Standby UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-11 |
| Protection Type | Black Out, Brownout, Over Voltage, Surge, Line Noise |
| Cord Length | 5 ft |
| Transfer Time | 4 ms |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 110 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 380 J |
| Alarm | On Battery, Self-test Operation |
| Status Indicators | 2 LEDs indicate on/off and overload/check battery |
| Modem (RJ-11) | Yes |
| USB | Yes |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 2.50 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Color Family | Black |
| Product Color | Black |
| Height | 4" |
| Width | 12" |
| Depth | 7" |
| Form Factor | Ultra-compact Desk-mount |
| Weight (Approximate) | 15.50 lb |
| Application/Usage | Home/Office, Media Center, Commercial, Desktop Computer, Router, Printer, Server, TV, Gaming Console, Blu-ray Player, Audio System, DVR, Media Player, Home Theater, Digital Signage |
| Software Included | PowerAlert Software |
| Country of Origin | Vietnam |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Certifications & Standards | UL1778 (USA), cUL (Canada), FCC Class B (emissions), NOM (Mexico), FCC Part 68 / Industry Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications |
Package Contents
- Internet Office 750VA UPS
- USB cable and phone cord
- Instruction manual with warranty information
Brand: ITE
Type: Standby UPS
Color: Black
Features: Hot Swappable
MPN: INTERNET750U
Nominal Voltage Rating (AC): 120 V
Nominal Power Rating: 450 W
Backup Time: 11 min
Maximum Operating Temperature: 40 °C (104 °F)
Mounting Style: Wall Mount
Country of Origin: Vietnam
Protection Properties: Surge Protection
UPC: 037332211088
