Eaton Tripp Lite Series HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA

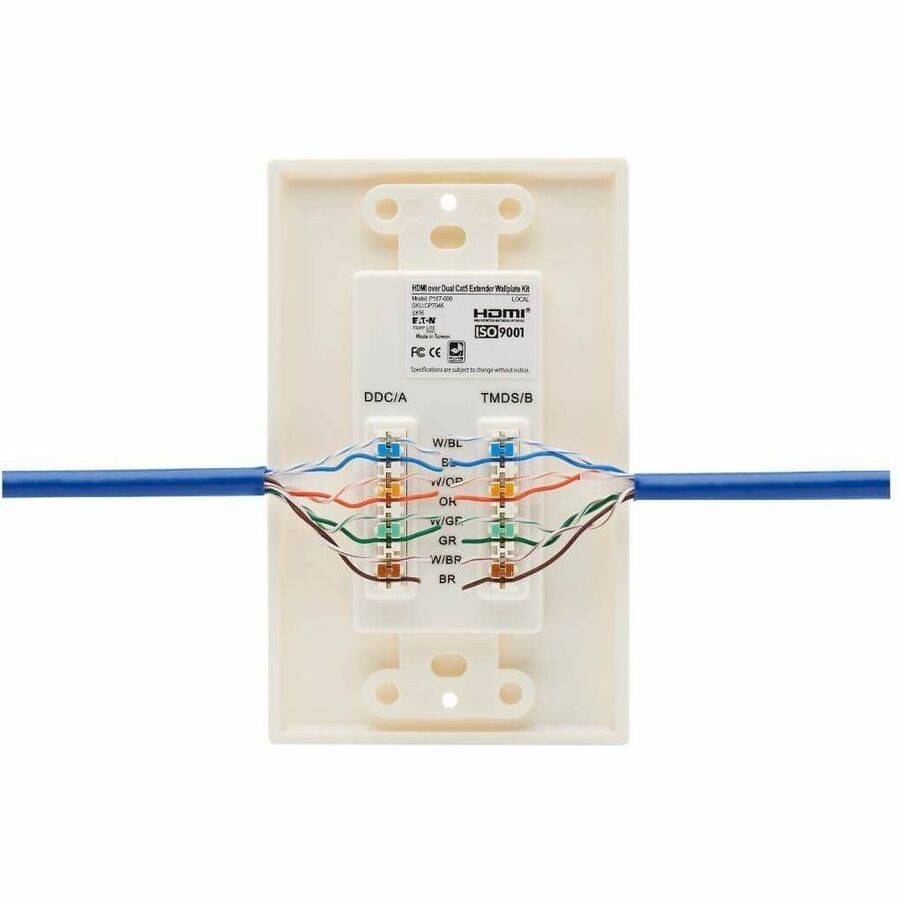

This is a Tripp Lite HDMI over Dual Cat5/Cat6 Extender Wall Plate Kit with Transmitter and Receiver, TAA. The kit enables an HDMI-enabled display to be located up to 230 ft. away from the HDMI source using standard Cat5 or Cat6 UTP cable. It consists of a passive wallplate on the source side and an active wallplate with built-in signal regenerator on the display side.

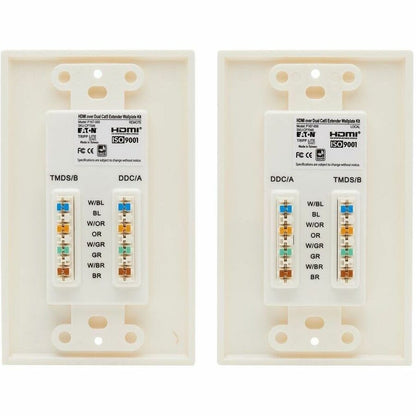

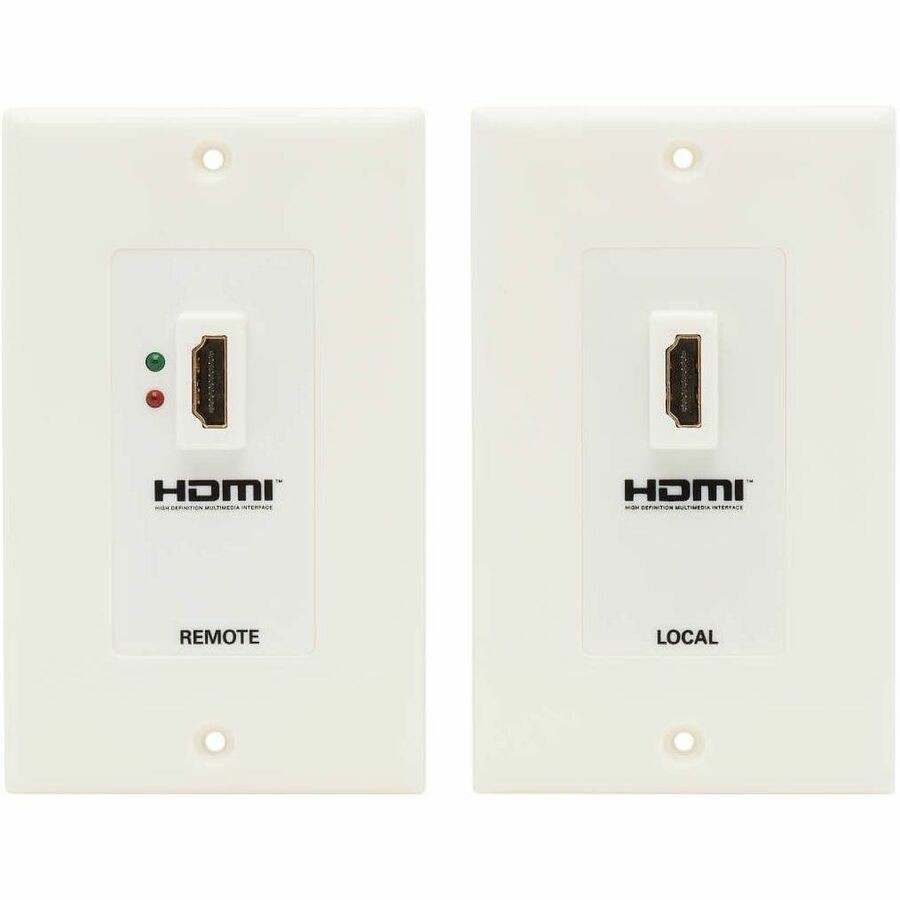

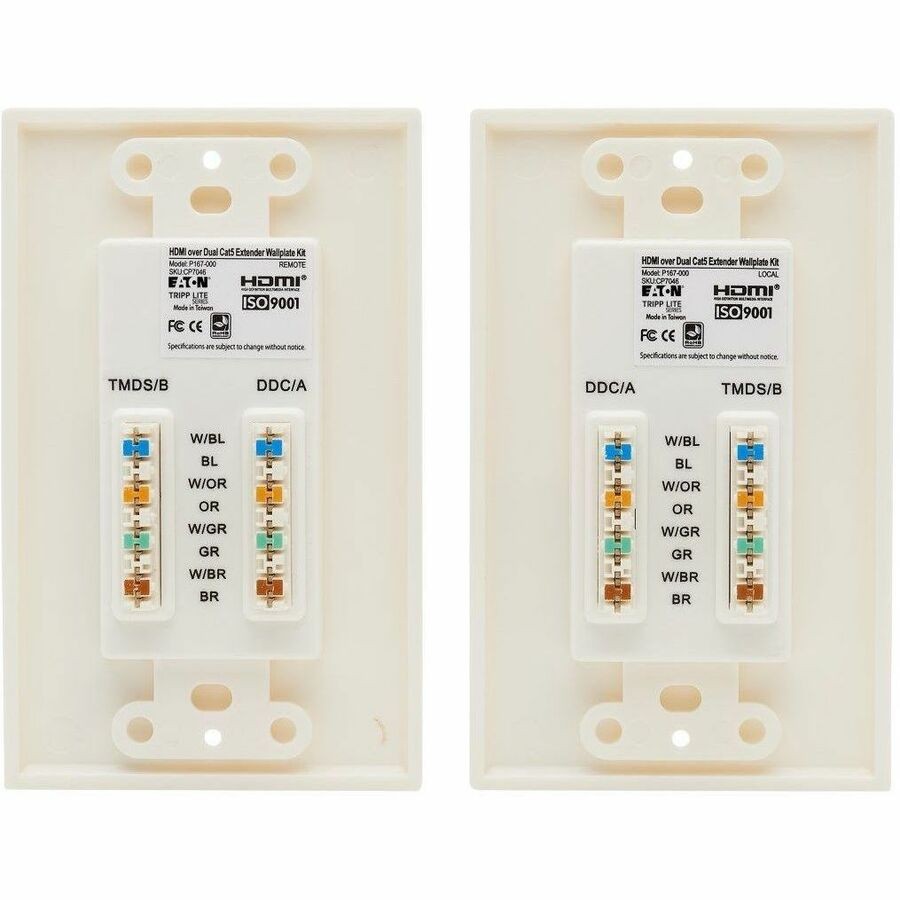

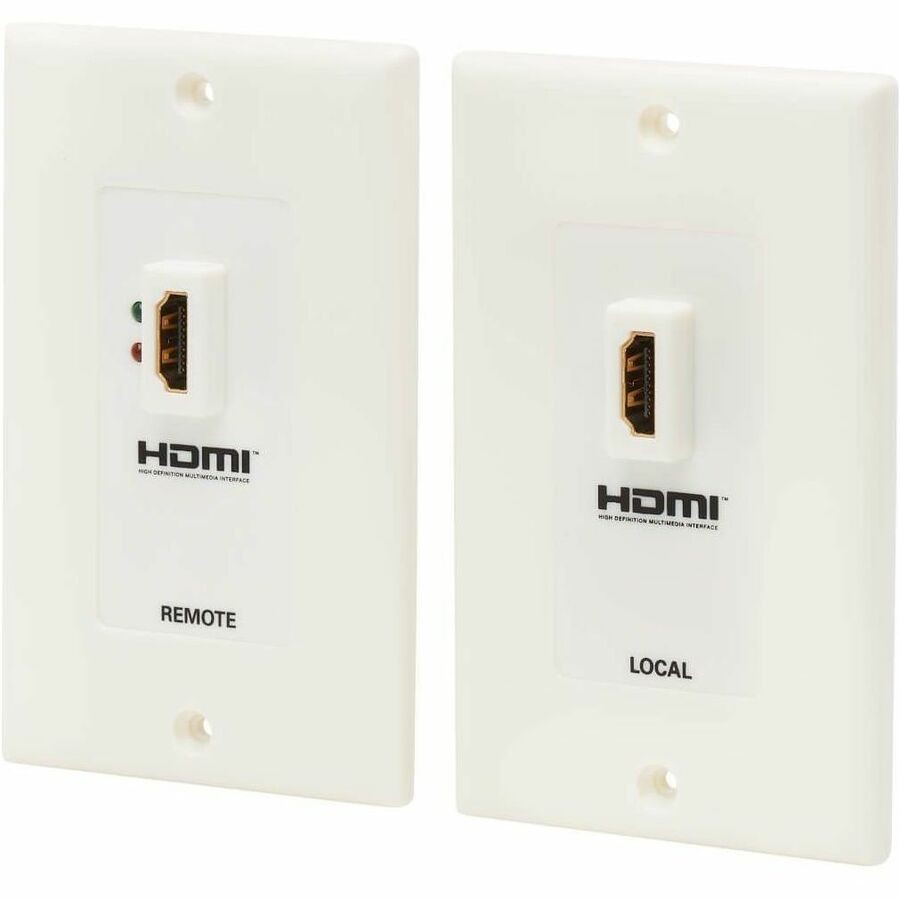

The product is manufactured by Eaton TrippLite Series Connectivity under model P167-000. It supports HDMI v1.3 and HDCP compliance. Two Cat5/6 UTP cables are run between the wallplates, with standard Tripp Lite HDMI patch cables connected at each end. The green LED on the display wallplate indicates power and signal presence, while the red LED indicates signal only.

Key Features

• Locates HDMI display up to 230 ft. from source using Cat5 or Cat6 UTP cable
• Passive wallplate at source side and active wallplate with signal regenerator at display side
• HDMI v1.3 and HDCP compliant
• Green LED confirms power and signal from connected source
• Red LED indicates signal reception only
• Wall mount design for permanent installation
• Packaged quantity of 2 units
• TAA compliant with country of origin Taiwan

Comprehensive Technical Specifications

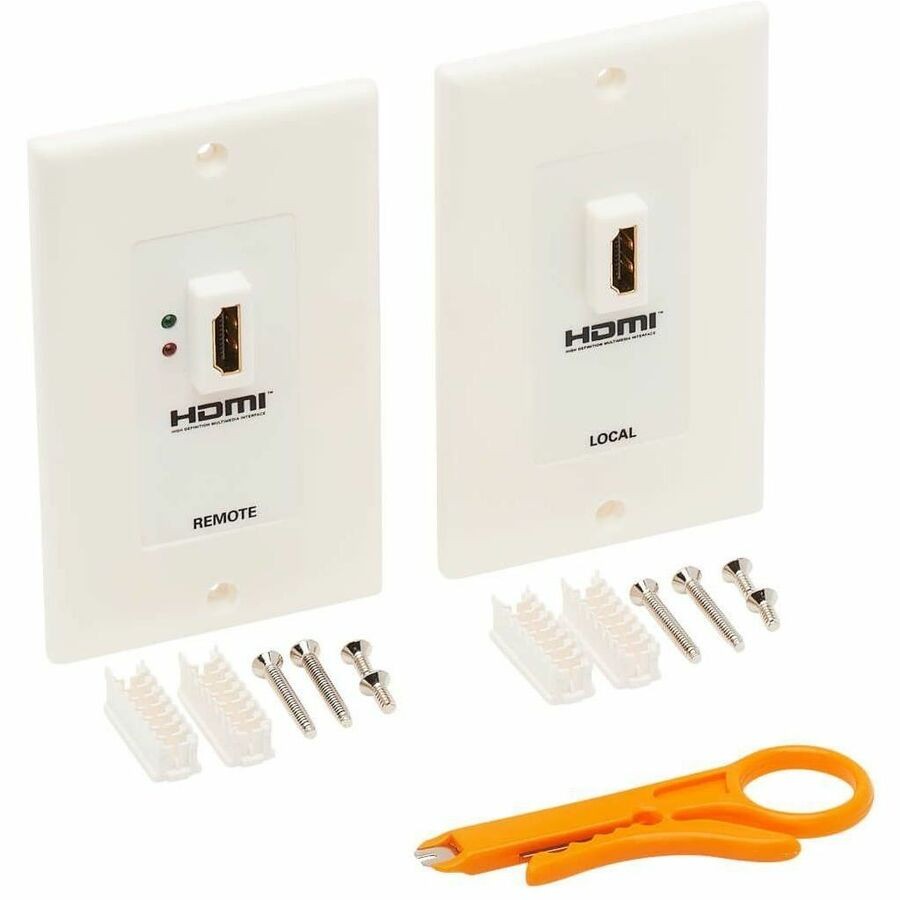

Package Contents

• Cat5 Digital Audio/Video Faceplate
• HDMI Passive Wallplate (video source side)
• HDMI Active Wallplate with Signal Regenerator (display side)
• UTP Stripper/Punch Down Tool
