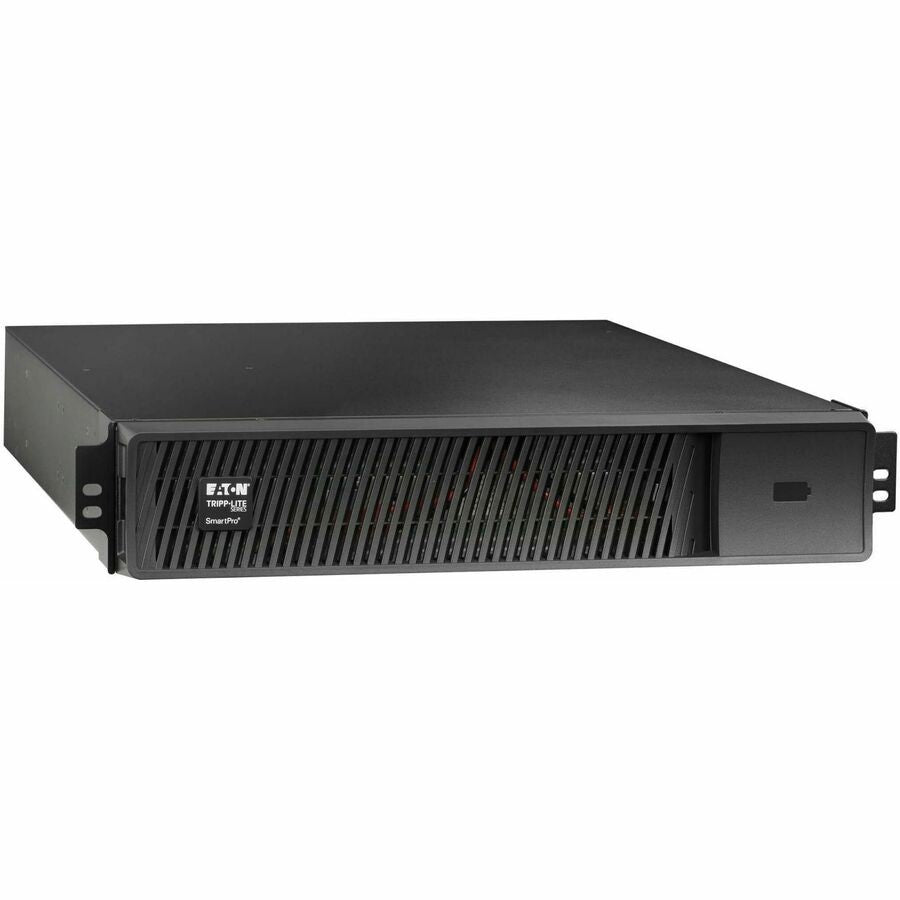

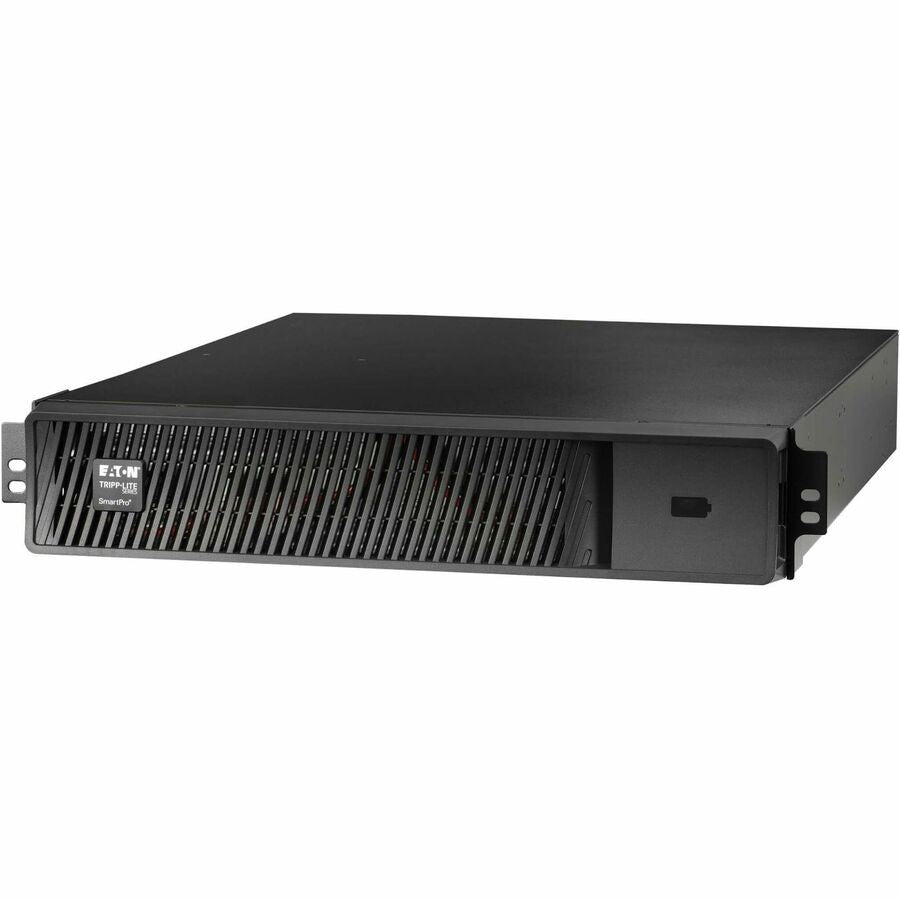

Tripp Lite by Eaton BP72VRM2U 72V Extended Battery Module 2U Rack/Tower

This is a UPS Battery Pack from the Tripp Lite series Extended Battery Modules. The BP72VRM2U provides extended runtime when used with Eaton Tripp Lite series 2200VA and 3000VA SmartPro UPS systems. It supports daisy-chaining of up to four matching battery packs and includes heavy-gauge cabling with high-current DC connectors.

The unit features a multi-use form factor for 2U rack or tower installation in EIA-standard 19-inch open frame racks or enclosures. Tower stands and a 4-post rail kit with mounting brackets are included. Battery characteristics include valve-regulated lead acid chemistry that is user replaceable and hot swappable with 72 V DC output.

Key Features

• External battery pack extends runtime for compatible 2200VA and 3000VA SmartPro UPS systems
• Daisy-chain capability for maximum of four matching battery packs

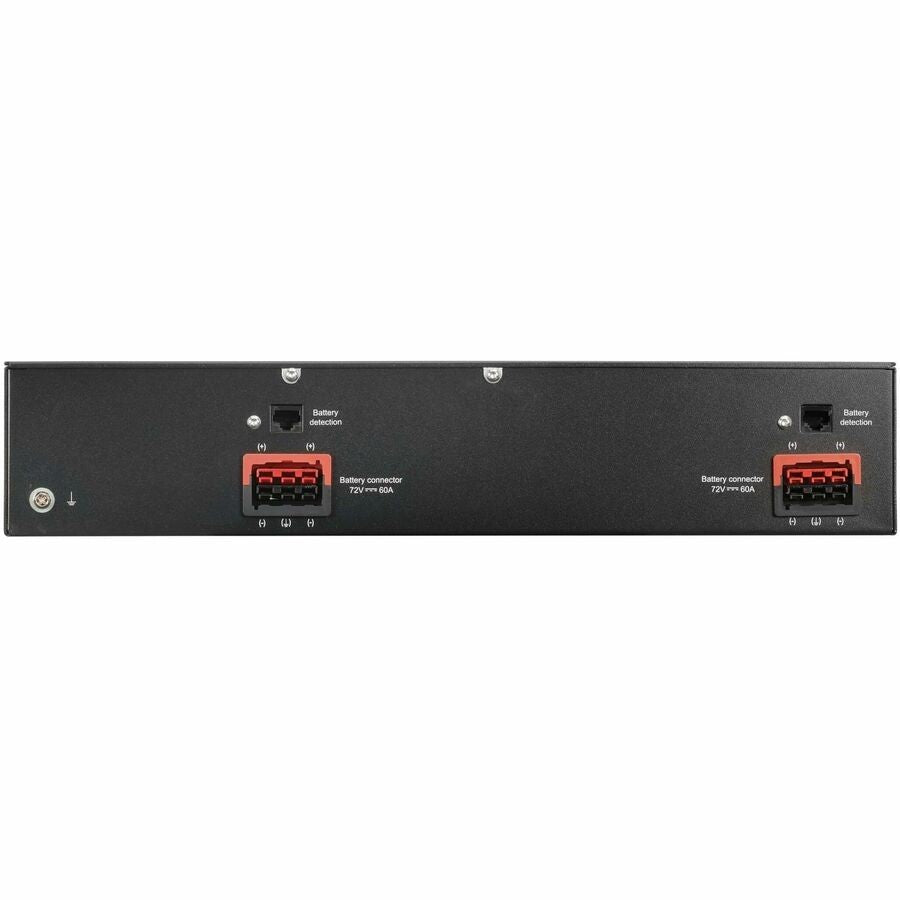

• Heavy-gauge cabling with high-current DC connectors included
• Supports 2U rack mounting in 19-inch EIA-standard enclosures or optional tower configuration
• Valve-regulated lead acid battery that is user replaceable and hot swappable
• 72 V DC output voltage
• Environmentally friendly with RoHS compliance

Comprehensive Technical Specifications

Package Contents

• Extended Battery Modules BP72VRM2U UPS Battery Pack
• External Battery Cable
• Rack-Mounting Hardware
• Tower Support Stands
• Quick Start Guide
