Description
Tripp Lite by Eaton B203-104-PNP 4-Port USB 2.0 Cat5/6 Extender Kit 164ft
This is a Tripp Lite by Eaton 4-Port Plug-and-Play USB 2.0 over Cat5/Cat6 Extender Kit Transmitter & Receiver that extends USB connectivity up to 164.04 ft. (50 m). The B203-104-PNP USB extender hub kit transmits data from a computer to four USB 2.0 peripherals over Cat5e/Cat6 cable. MPN: B203-104-PNP; UPC: 037332185204. It supports high-speed data rates up to 480 Mbps with plug-and-play operation, no drivers required.
Key Features of Tripp Lite B203-104-PNP USB Extender Kit
- Extended Reach – Transmits USB 2.0 signals up to 164 ft. (50 m) over solid conductor Cat5e/Cat6 cable, overcoming standard USB cable limits of 16 ft.
- 4-Port Receiver Hub – Connects up to four USB 2.0 peripherals such as printers, scanners, or security cameras remotely.
- Plug-and-Play – No software or drivers needed; built-in USB cable on transmitter for direct computer connection.
- High-Speed Performance – Supports USB 2.0 data rates up to 480 Mbps; backwards compatible with USB 1.1 devices.
- Broad Compatibility – Works with Windows and Mac systems; ideal for printers lacking network connectivity or off-network locations.
- TAA Compliant – Meets Federal Trade Agreements Act standards for GSA purchases.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Tripp Lite by Eaton |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B203-104-PNP |
| Product Model | B203-104-PNP |
| Product Type | USB Extender |
| UPC | 037332185204 |
| Maximum Distance | 164 ft. (50 m) over solid conductor Cat5e/Cat6 |
| Data Transfer Rate | USB 2.0 high-speed up to 480 Mbps |
| USB Standard | USB 2.0 (backwards compatible with USB 1.1) |
| Receiver Ports | 4 x USB 2.0 Type A |
| OS Compatibility | Windows, Mac |
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Dimensions (H x W x D) | 2.2" x 6.5" x 7.3" |
| Weight | 0.7 lbs |
| Power Supply (Receiver) | Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A |

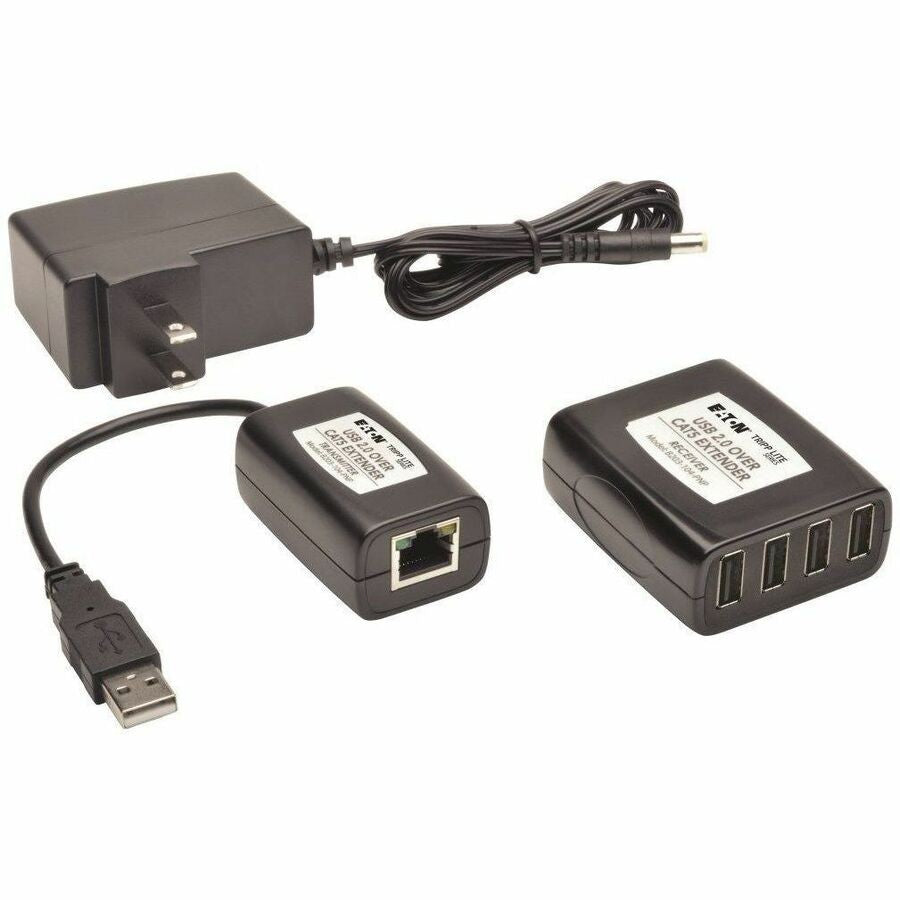

Package Contents & Setup

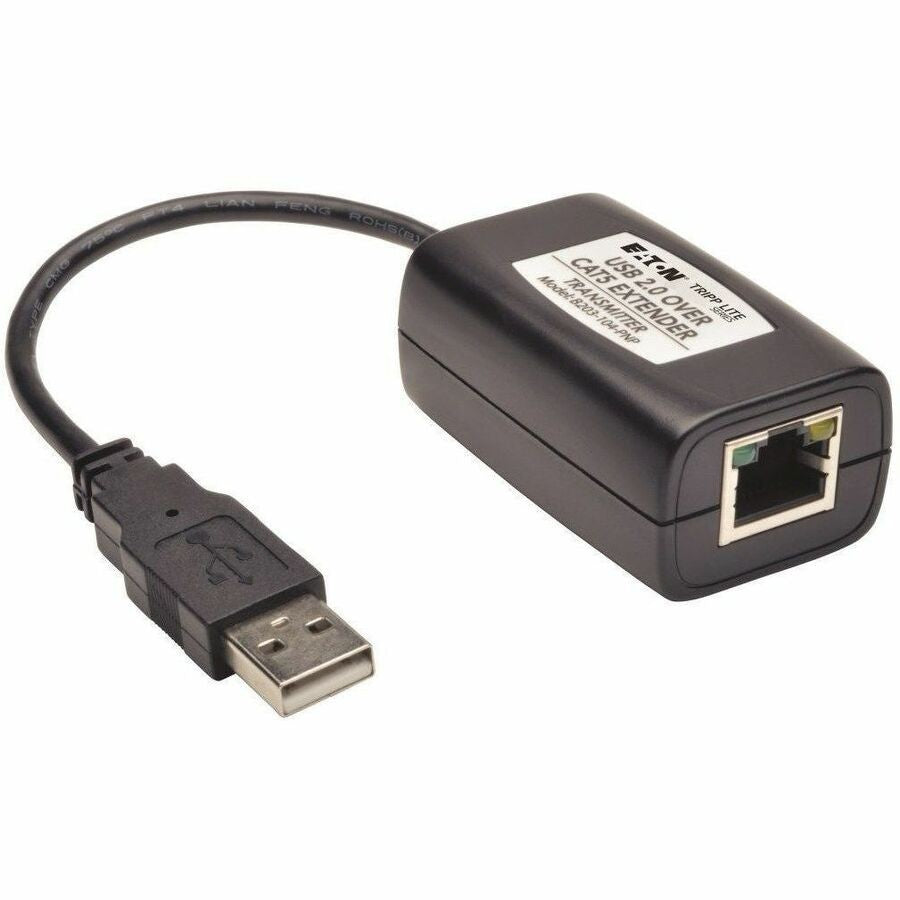

- B203-104-PNP local transmitter with built-in USB cable

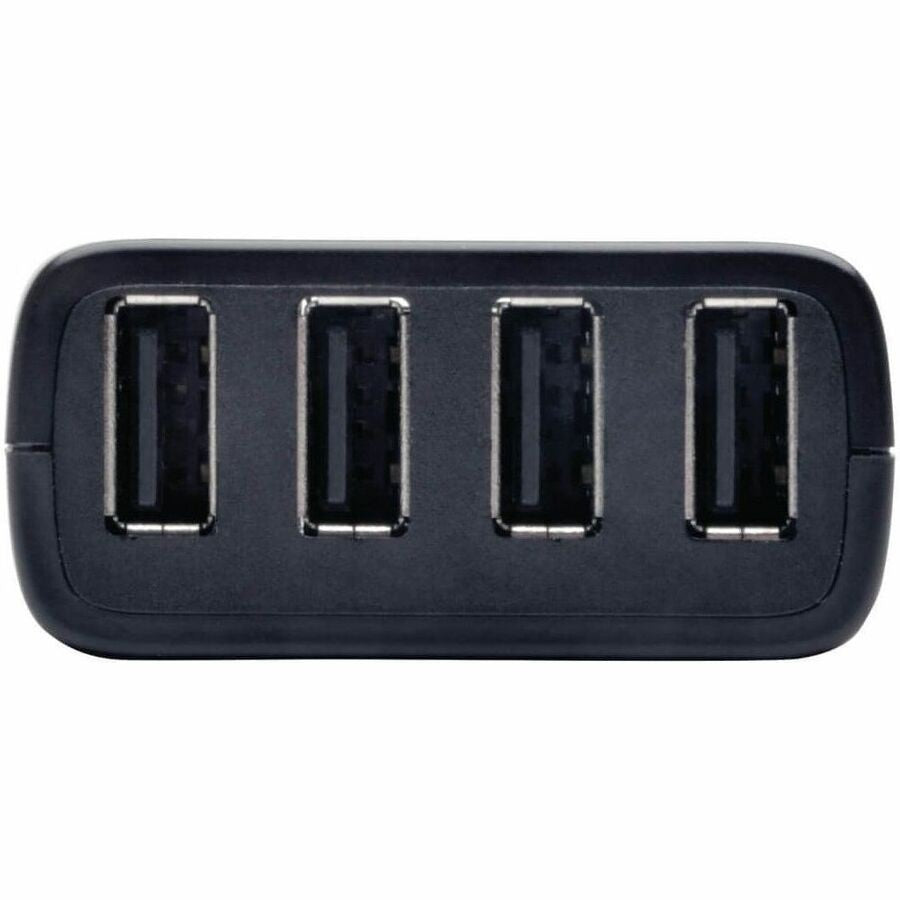

- B203-104-PNP 4-port remote receiver hub
- External power supply for receiver hub
- Owner's Manual
Setup involves connecting the transmitter to the computer via its built-in USB cable, linking transmitter and receiver with user-supplied Cat5e/Cat6 cable, powering the receiver, and attaching USB peripherals. Fully plug-and-play for immediate use.
Applications for Tripp Lite USB Extender
Connect USB printers, impact printers to servers in another room, or peripherals in areas without network access. Cost-effective solution for extending USB beyond standard cable lengths.
Extend your USB connectivity up to 164 feet—Order the Tripp Lite B203-104-PNP kit today!
Brand: Tripp Lite
Type: Extender
MPN: B203-104-PNP
Color: Black
Compatible Brand: Tripp Lite by Eaton
Compatible Model: B203-104-PNP
Country of Origin: Taiwan
Connector A: USB 2.0
Connector B: 2.5 mm Female
Connection Split/Duplication: 1:4
Output Voltage: 5 V
UPC: 037332185204
