Eaton Tripp Lite Series 4-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA
This is a Video Extender Transmitter that splits a single VGA and audio signal into five outputs consisting of one local and four remote connections. The Tripp Lite B132-004A-2 supports daisy-chaining up to six units to reach a maximum of 25 displays consisting of one local and 24 remote. It extends 1920 x 1440 at 60 Hz signals up to 500 ft or 1024 x 768 at 60 Hz signals up to 1000 ft using 24 AWG solid wire Cat5e/6 cable such as Tripp Lite N022-01K-GY or N222-01K-GY. The unit copies EDID information from a connected display to the source computer for optimal compatibility and supports expansion via B132-110A repeater units in chains of up to four remote units.
Key Features
- Splits a single VGA and audio signal into 5 outputs (1 local, 4 remote)
- Daisy-chain up to six units to support up to 25 displays (1 local, 24 remote)
- Extends 1920 x 1440 (60 Hz) up to 500 ft or 1024 x 768 (60 Hz) up to 1000 ft over Cat5e/6
- EDID copy feature ensures optimal display compatibility
- Supports expansion with B132-110A repeater units in chains of up to 4 remote units
- Mounting hardware included for wall, rack, or pole installation
- Up to three units fit in 1U rack space with optional B132-004-RB bracket
- Ideal for digital signage in retail, schools, and churches
- TAA compliant for GSA Schedule purchases
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand Name | Tripp Lite series |
| Product Model | B132-004A-2 |
| Manufacturer Part Number | B132-004A-2 |
| Product Type | Video Extender Transmitter |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 4 |
| Maximum Operating Distance | 1000 ft |
| Maximum Video Resolution | 1920 x 1440 |

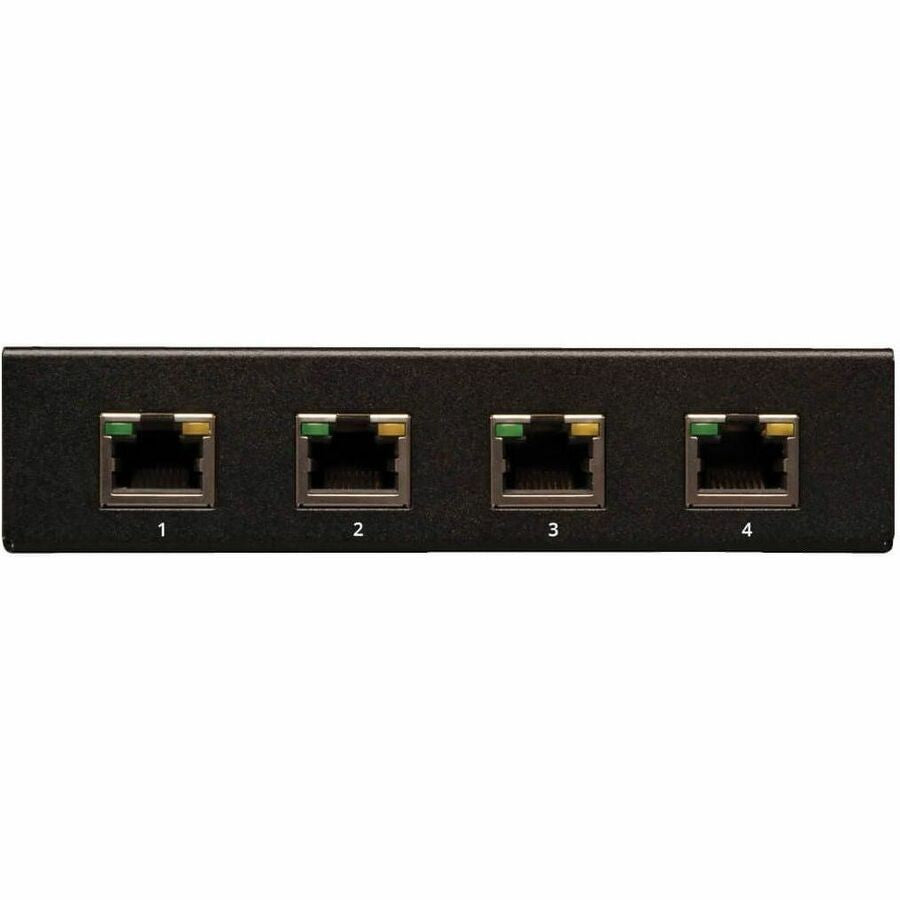

| Network (RJ-45) Ports | 4 |
| VGA In | Yes |
| VGA Out | Yes |
| Headphone | Yes |
| Microphone | Yes |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
| Product Color | Black |
| Transmitter Height | 1.20 in |
| Transmitter Width | 5.30 in |
| Transmitter Depth | 3.90 in |
| Form Factor | Rack-mountable, Wall Mountable, Pole-mountable |
| Transmitter Weight | 13.60 oz |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS |

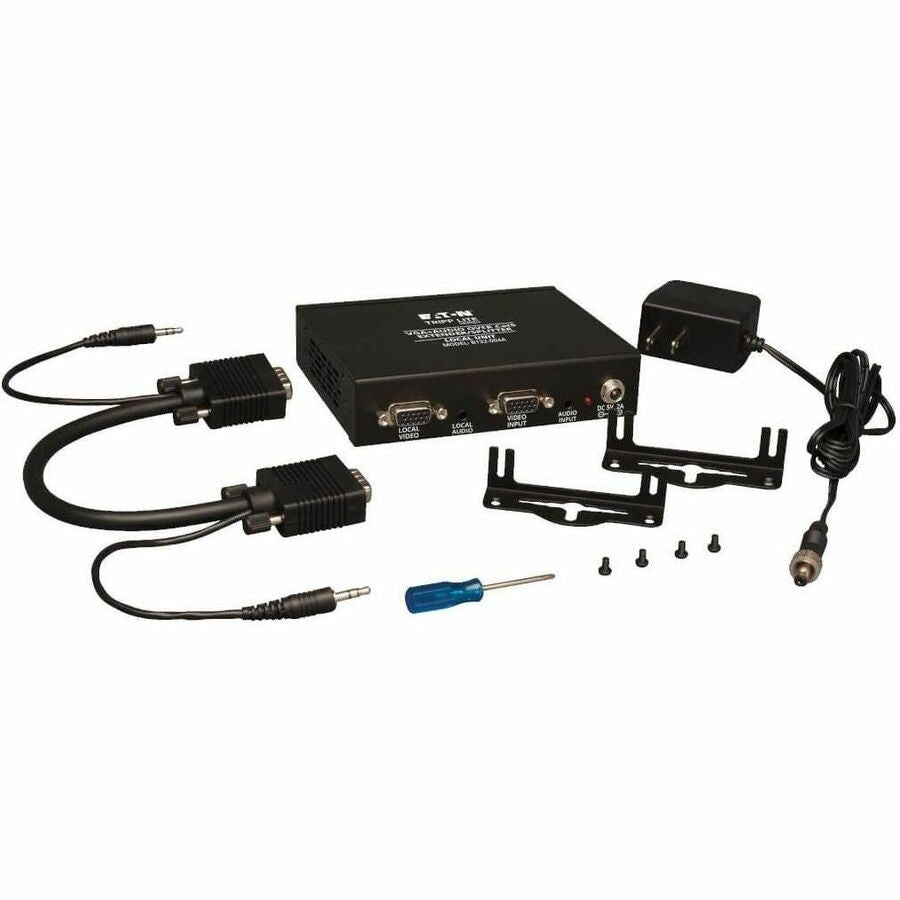

| Package Contents | 4 Port Extender/Splitter Local (Transmitter) Unit, 1 ft. VGA Daisychain Cable, Mounting Hardware, External Power Supply (Input: 100-240V), Owner's Manual |
| UPC | 037332178435 |
Package Contents
4 Port Extender/Splitter Local (Transmitter) Unit, 1 ft. VGA Daisychain Cable, Mounting Hardware, External Power Supply (Input: 100-240V), Owner's Manual.
