Tripp Lite by Eaton 16-Port Rackmount KVM Switch w/ Built in IP and On Screen Display 1U

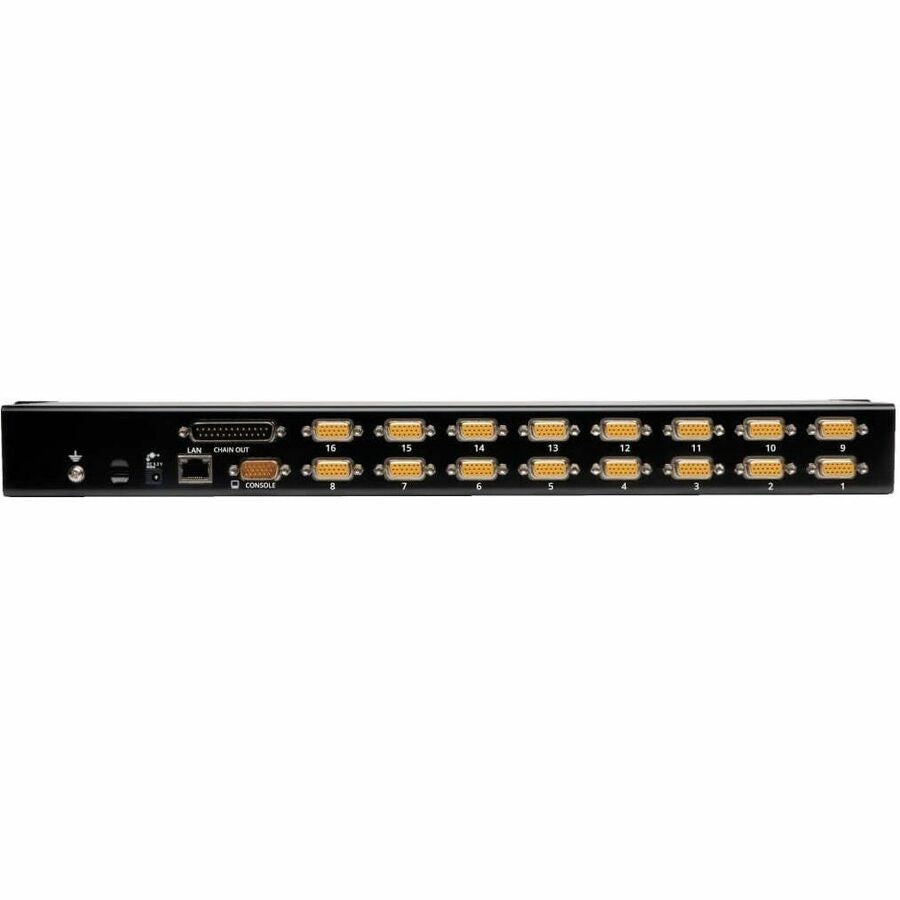

This is a NetDirector 16-Port 1U Rack-Mount IP KVM Switch designed for controlling up to 16 computers or servers from one monitor, keyboard and mouse over LAN, WAN or the Internet. The B022-U16-IP model supports all major operating systems and provides both local and remote access with advanced on-screen display capabilities.

Built-in IP access enables browser-based control using Windows or Java clients in multiple languages, while the unit also supports direct non-browser access. It handles high-definition video up to 2048 x 1536 locally and 1600 x 1200 at 60 Hz remotely with 24-bit color depth, includes Panel Array Mode for simultaneous multi-port monitoring, and offers USB and PS/2 compatibility via included cable kits.

Key Features

• Controls 16 computers or servers with 1 local user and 1 remote user supported
• 1U rack-mountable form factor with built-in IP access for LAN, WAN and Internet control
• Advanced OSD supporting 2048 x 1536 local and 1600 x 1200 remote video resolution
• Panel Array Mode for remote monitoring of multiple ports simultaneously
• Supports IPv4, IPv6, Link Local IPv6 Address and Stateless Auto Configuration
• Encryption including 128-bit SSL, 128-bit RC4, 1024-bit RSA, 56-bit DES, 256-bit AES and 168-bit 3DES
• RADIUS and LDAP/S remote authentication with three security levels and up to 64 accounts
• Selection via on-console pushbuttons or keyboard hotkeys
• Compatible with USB and PS/2 connections
• Environmentally friendly construction with TAA compliance

Comprehensive Technical Specifications

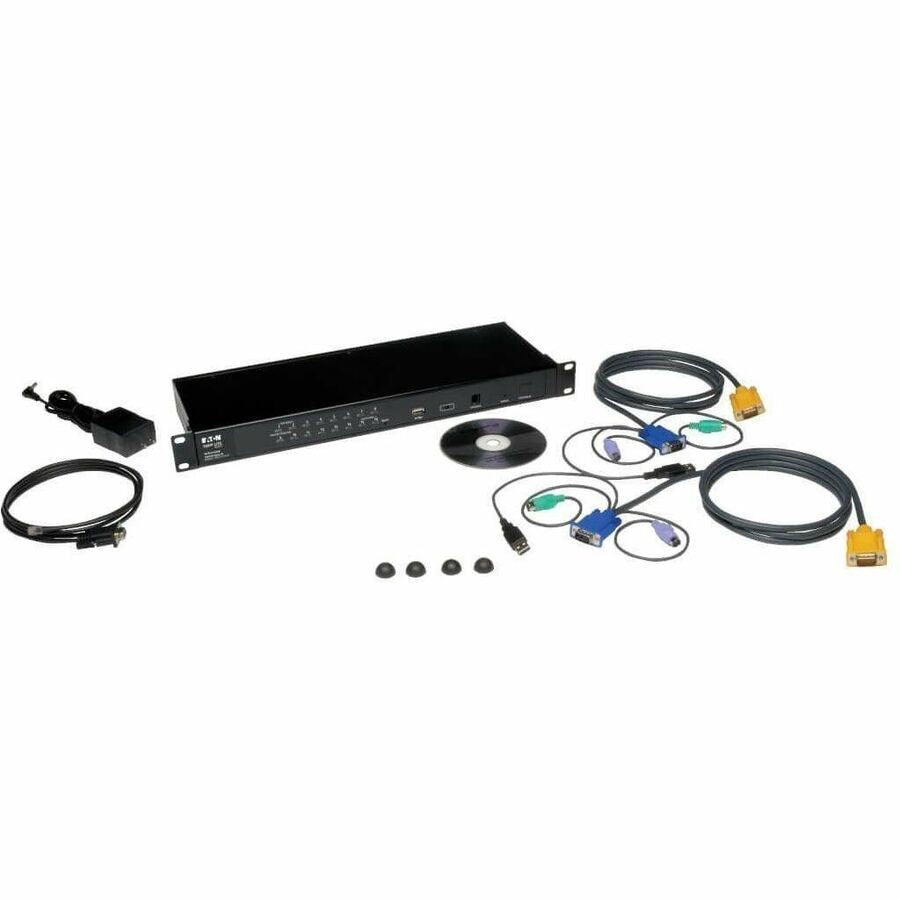

Package Contents

• NetDirector 16-Port 1U Rack-Mount IP KVM Switch
• 2 x USB/PS2 Combo KVM Cable Kits, 6-Ft. Length
• USB/PS2 Combo Console Cable Kit
• RJ11-to-DB9 Firmware Upgrade Cable
• Mounting Hardware
• External Power Supply
• Rubber Feet
• CD with Owner's Manual And Device Files
• Quick Start Guide
