Thermaltake View 390 TG White PC Case
Thermaltake View 390 TG White PC Case
Low stock: 5 left
Save 10%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
Thermaltake View 390 TG White PC Case

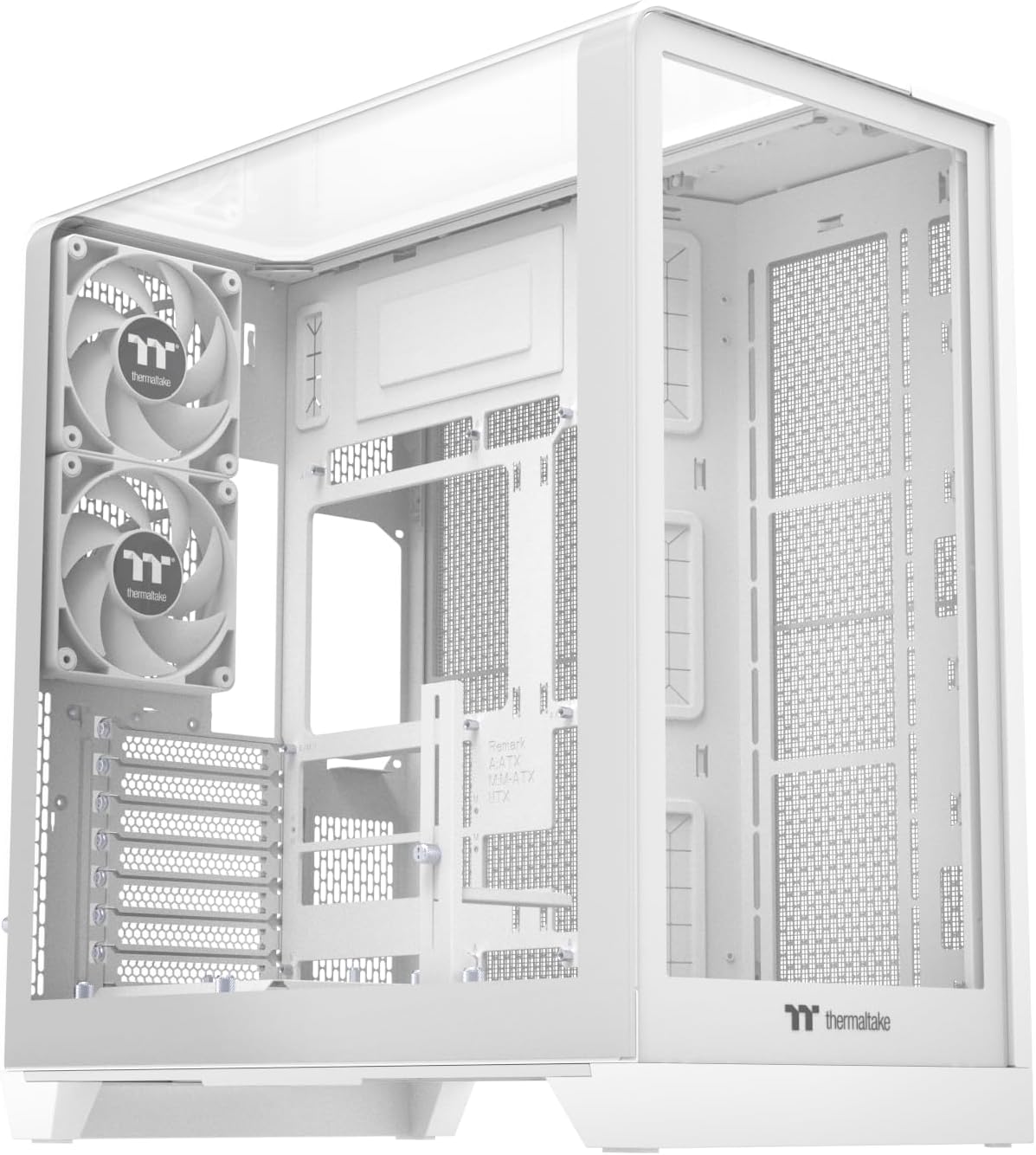

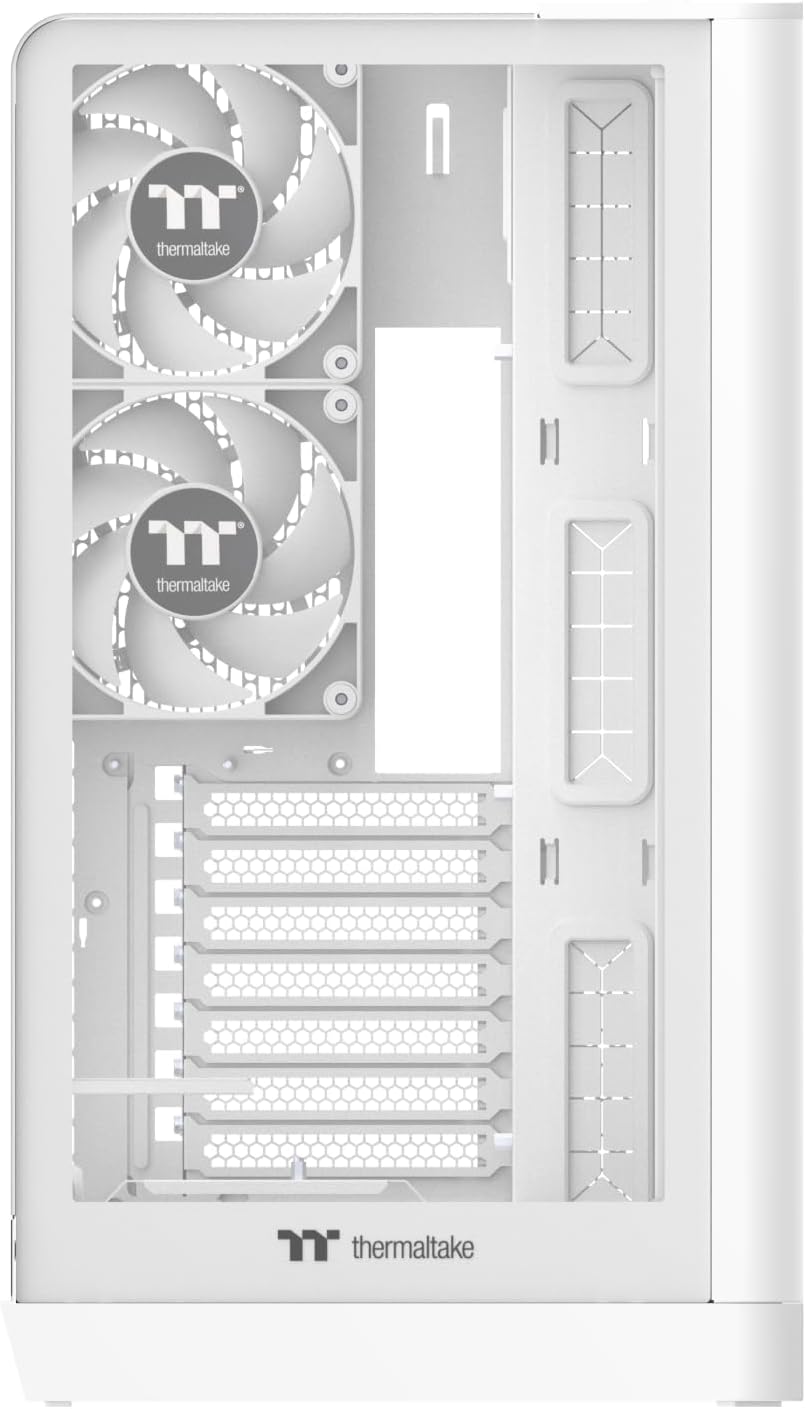

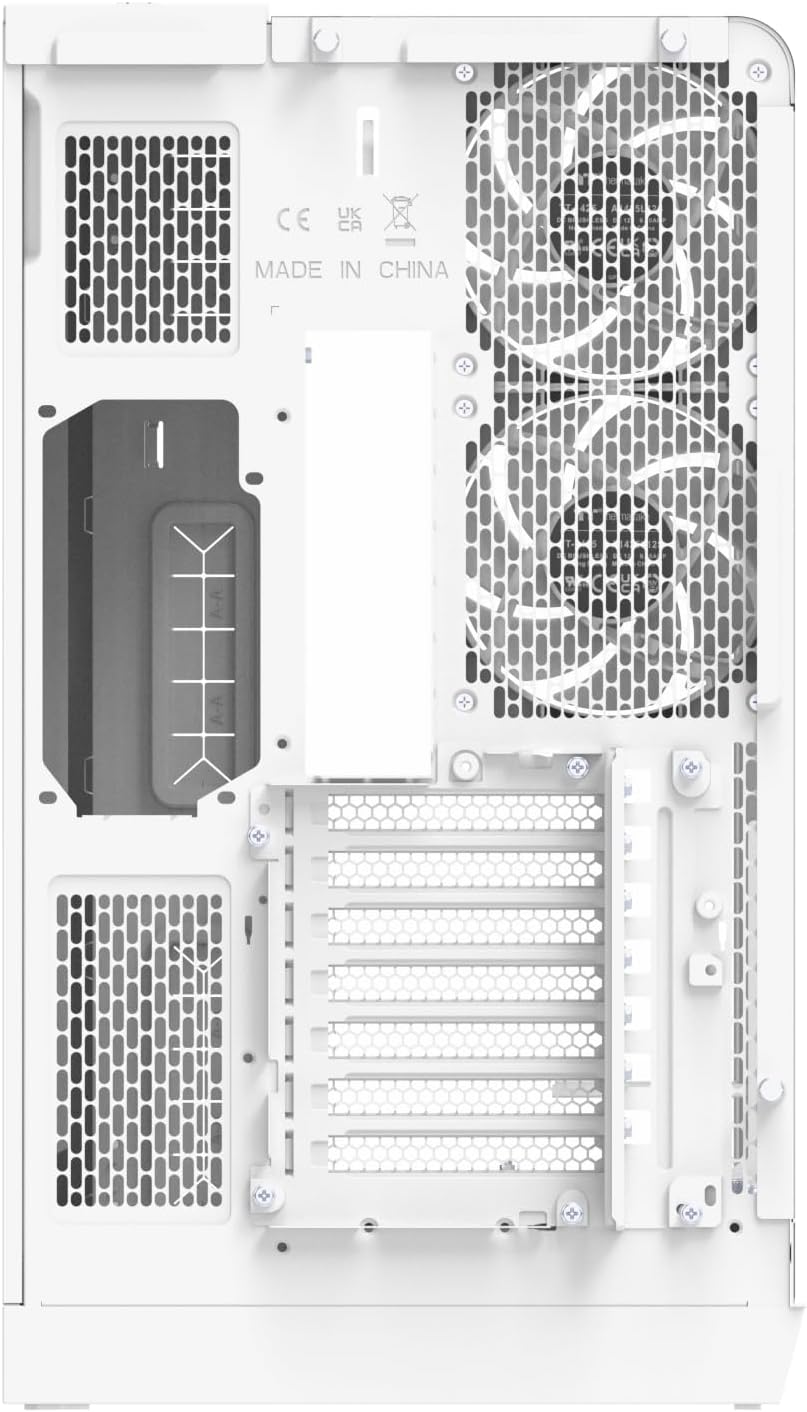

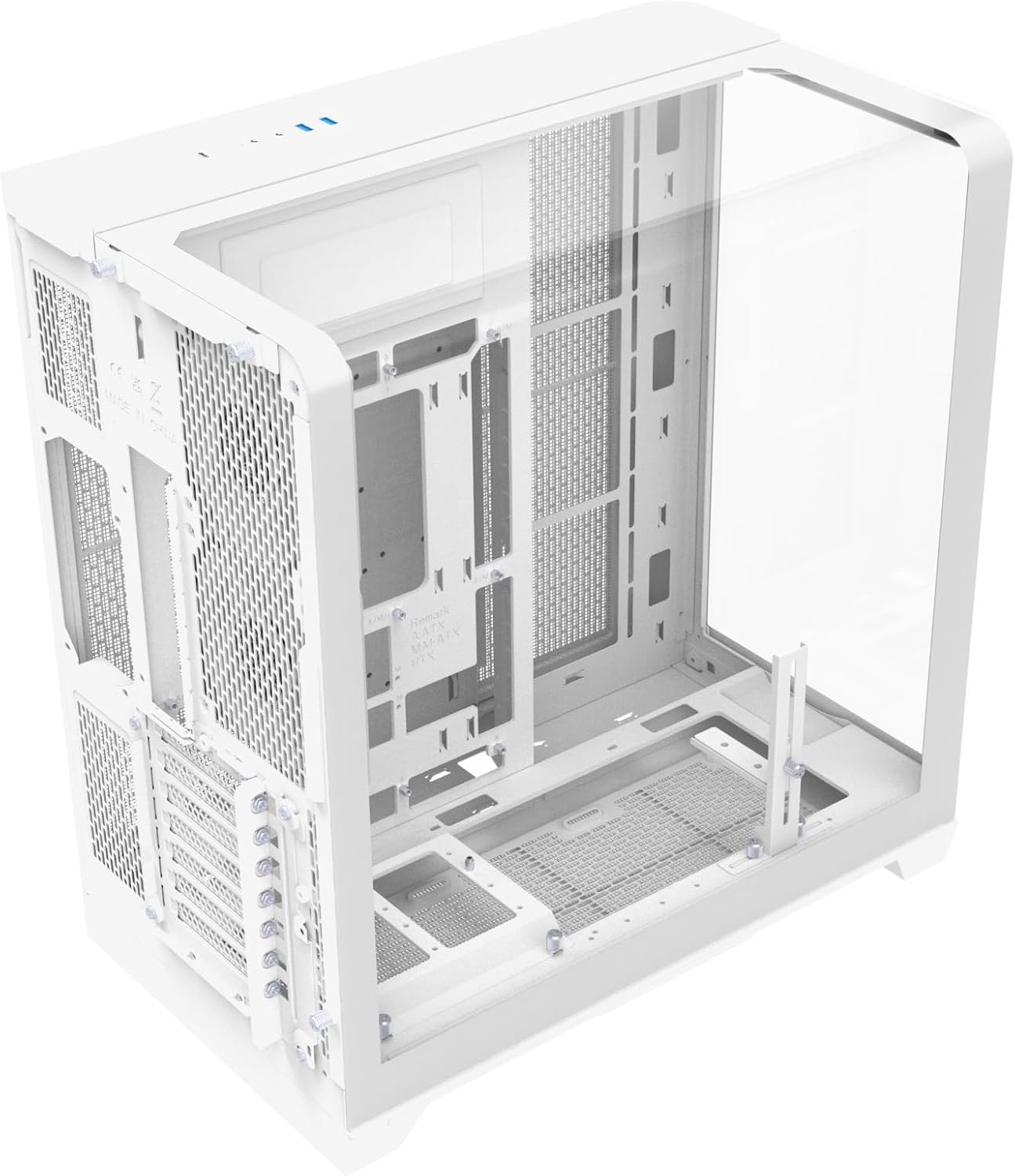

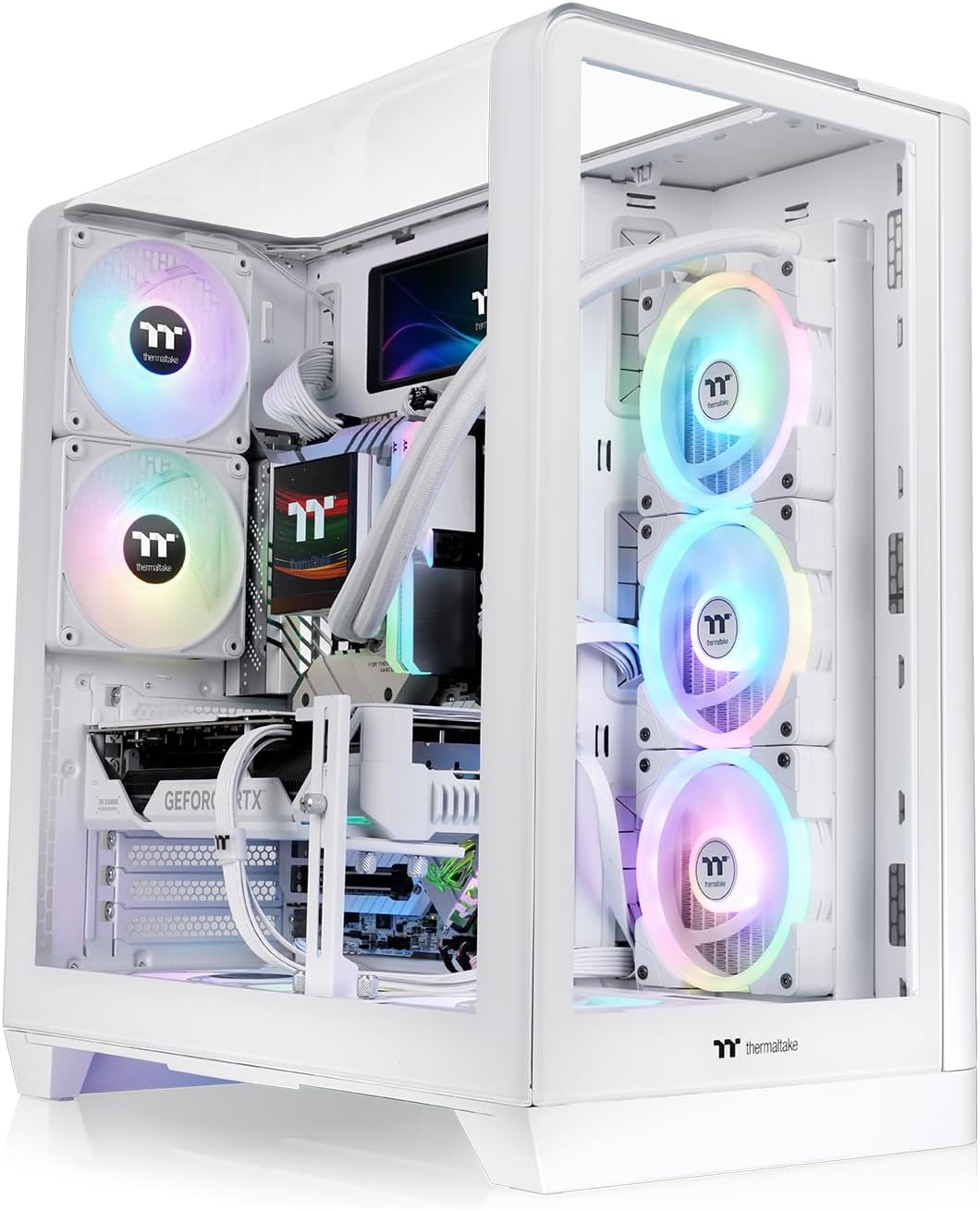

This is a mid-tower PC case from Thermaltake, model View 390 TG White. It features a tempered glass front panel and curved tempered glass side panel for showcasing components. The design supports GPUs up to 460mm, radiators up to 360mm, and PSUs up to 260mm. Updated motherboard tray accommodates standard and hidden connector motherboards, with a rotatable PCIe tray for horizontal or vertical GPU orientation. MPN: CA-11F-00M6WN-01; UPC: 840480300357.
Key Design and Compatibility Features
- Tempered Glass Panels – TG front panel and curved tempered glass side for clear internal views, throwback to classic View series styling.
- Component Clearance – GPU up to 460mm length, radiator up to 360mm (front/top), PSU up to 260mm.

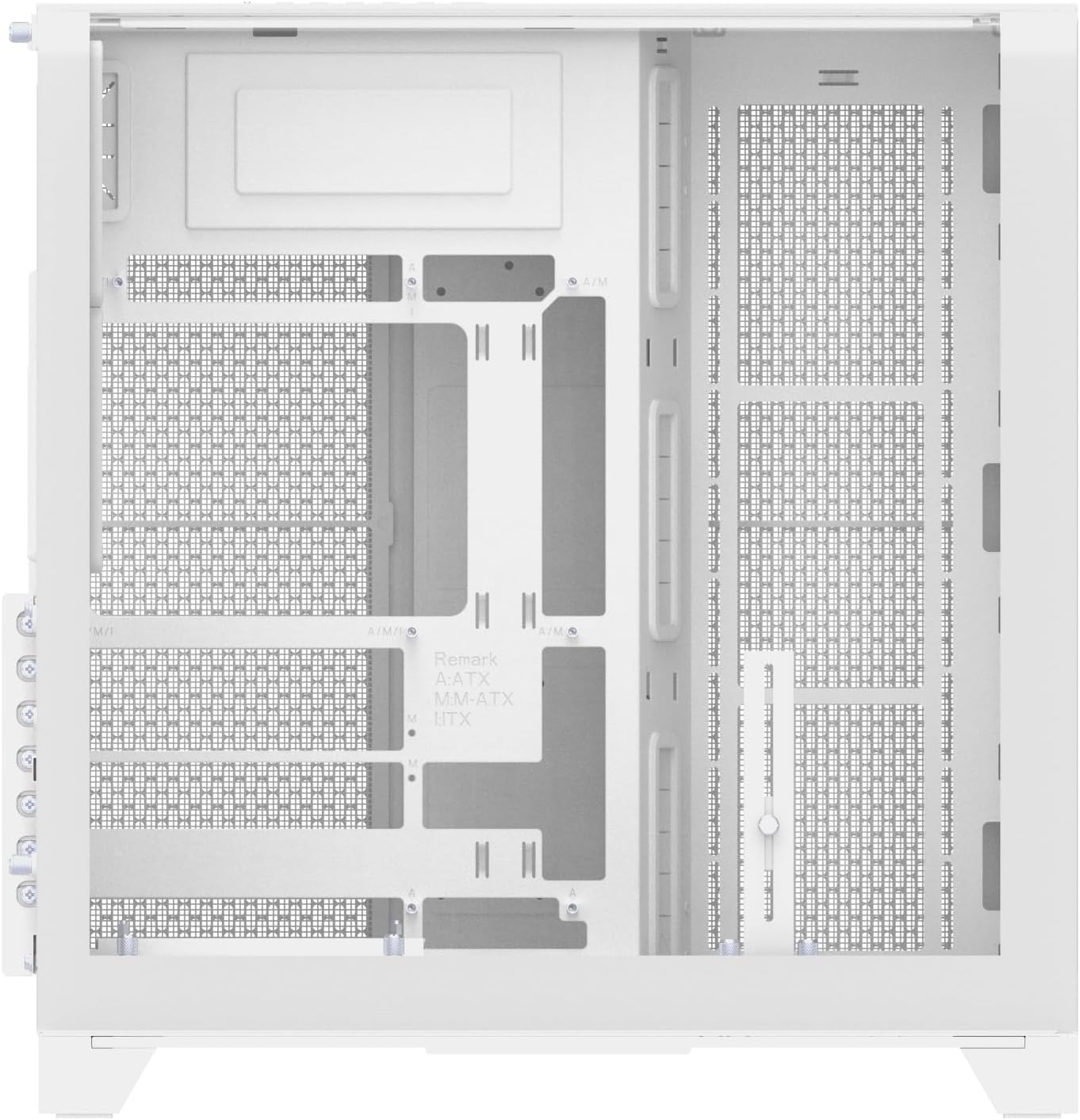

- Motherboard Versatility – Supports E-ATX (up to 280mm width), ATX, Micro-ATX, Mini-ITX; compatible with standard and back-connect motherboards.
- PCIe Flexibility – Rotatable PCIe tray enables vertical GPU mounting.
- Drive Bays – 2 x 3.5"/2.5" combo, 2 x 2.5" dedicated SSD mounts.
- Cooling Support – Front: 3x120/140mm fans or 360mm radiator; Top: 3x120/2x140mm or 360mm radiator; Rear: 1x120/140mm; Bottom: 3x120mm; PSU shroud: 2x120mm; HDD cage: 2x120mm.
- Expansion Slots – 7 horizontal + 2 vertical.
- I/O Panel – 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1, 2x USB 2.0, HD Audio.
- Cable Management – 23mm behind motherboard tray.
- CPU Cooler Height – Up to 210mm.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Thermaltake |
| Model | View 390 TG White |
| MPN | CA-11F-00M6WN-01 |
| UPC | 840480300357 |
| Chassis Type | Mid Tower |
| Color | Snow White |
| Material | SPCC Steel, Tempered Glass |
| Dimensions (H x W x D) | 21.0" x 23.2" x 14.7" (533 x 590 x 373 mm) |
| Weight | 29.0 lbs (13.1 kg) |
| Country of Origin | China |
| Motherboard Support | E-ATX (up to 280mm), ATX, mATX, Mini-ITX; standard & hidden connector |
| Max GPU Length | 460mm |
| Max CPU Cooler Height | 210mm |
| Max PSU Length | 260mm |
| Max Radiator Support | 360mm (front/top) |
| Fan Support (Front) | 3 x 120mm / 3 x 140mm |
| Fan Support (Top) | 3 x 120mm / 2 x 140mm |
| Fan Support (Rear) | 1 x 120mm / 1 x 140mm |
| Drive Bays (3.5"/2.5") | 2 |
| Drive Bays (2.5") | 2 |
| Expansion Slots | 7 + 2 (vertical) |
| I/O Ports | 1x USB 3.2 Gen2x2 Type-C, 2x USB 3.2 Gen1, 2x USB 2.0, HD Audio |
| Front Panel | Tempered Glass |
| Side Panel | Curved Tempered Glass |
| Pre-Installed Fans | None |
| Warranty | 3 Year |
Why Choose Thermaltake View 390 TG White
Ideal for builders seeking a balance of visibility, airflow potential, and modern build flexibility in a mid-tower chassis. The rotatable PCIe tray and back-connect motherboard support streamline high-end custom PC assembly.
Build your ultimate PC with Thermaltake View 390 TG White—order now!
Brand: Thermaltake
Color: White
Model: View 390 TG White
MPN: CA-11F-00M6WN-01
Case Material: Steel
Country of Origin: China
Manufacturer Warranty: 3 Years
Form Factor: ATX Mid
Case Type: Mid Tower Case
Number of 3.5 in Drive Bays: 2
Front Ports: Audio
UPC: 840480300357
