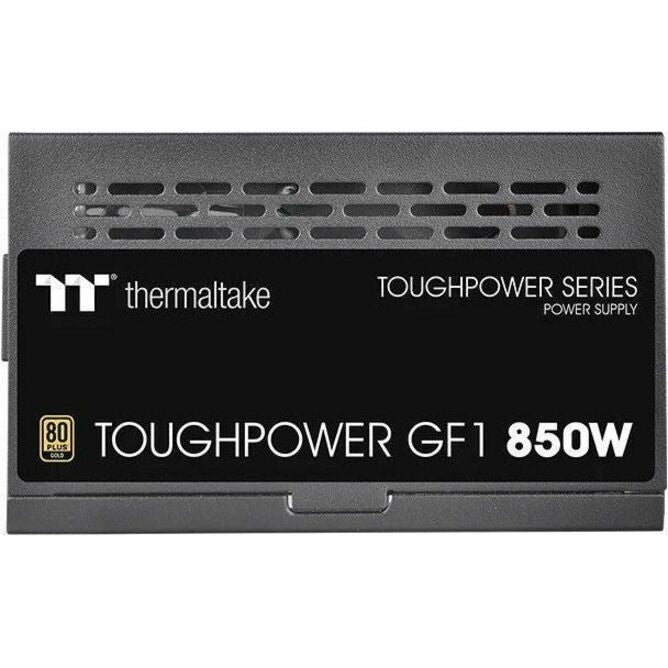

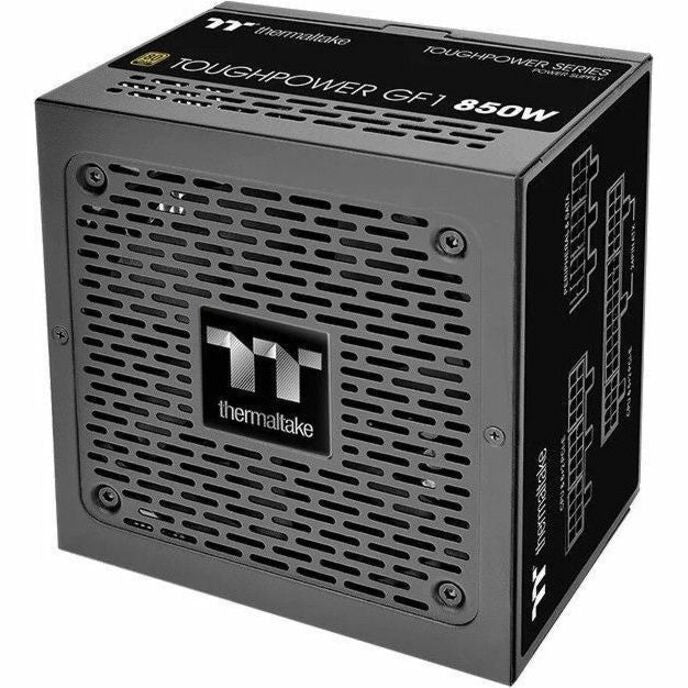

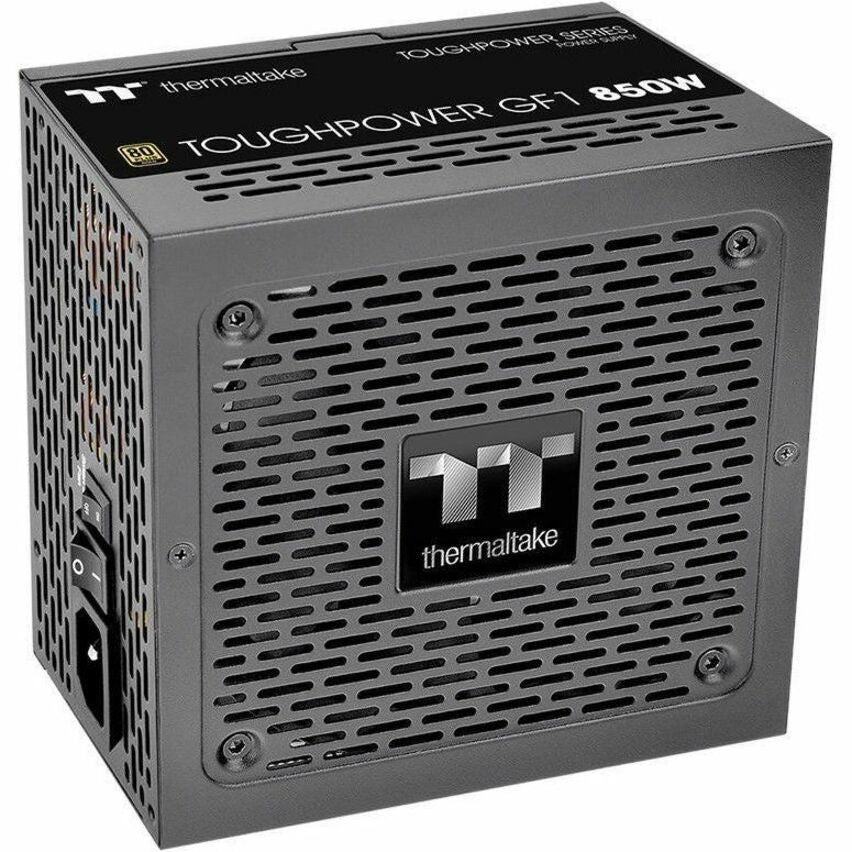

Thermaltake Toughpower GF1 TPD-850AH2FLG 850W Fully Modular 80+ Gold Power Supply
This is the Thermaltake Toughpower GF1 TPD-850AH2FLG 850W Power Supply, a fully modular ATX12V unit designed for high-performance PC builds. Featuring 80 PLUS Gold efficiency up to 90%, a single high-amperage +12V rail, and advanced protections, it delivers reliable power with MPN: PS-TPD-0850FNFAGU-P and UPC: 841163090848. Ideal for enthusiasts seeking compact design, quiet operation, and premium components including 105°C main capacitors.
Key Features of Thermaltake Toughpower GF1 850W PSU
- Compact Design – 140mm depth (150mm L x 86mm H x 140mm D) for improved cable management and chassis compatibility.
- Zero Cable Platform – Copper plate connects back panel to PCB for enhanced heat dissipation and power quality.

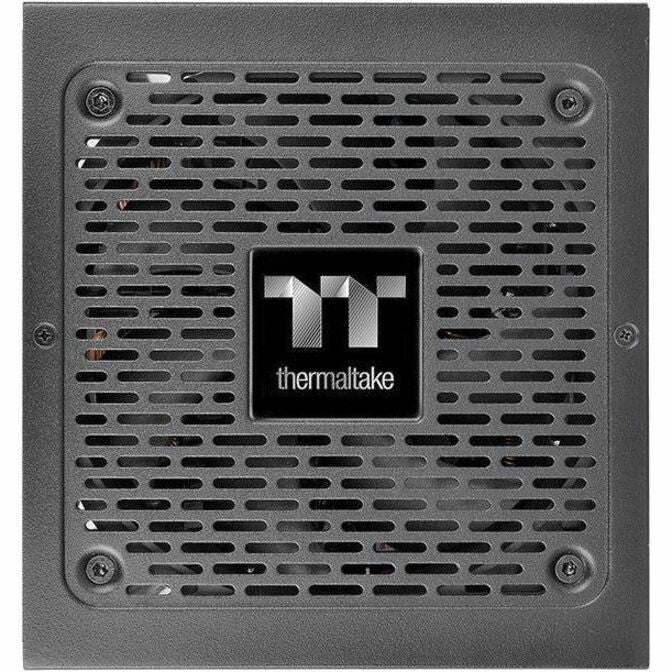

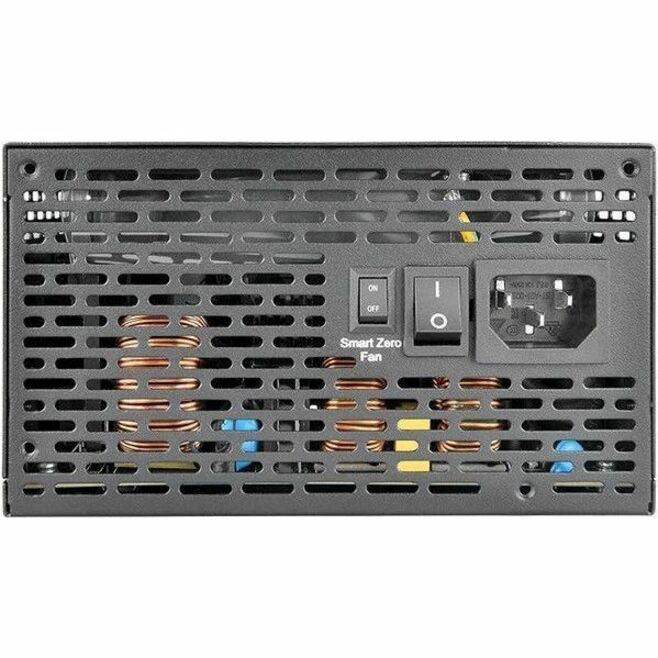

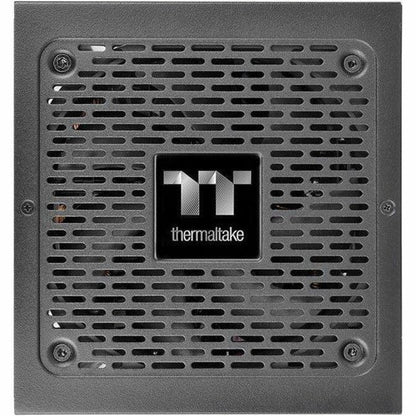

- Smart Zero Fan – 120mm fluid dynamic bearing fan remains off until load exceeds threshold, ensuring silent operation.

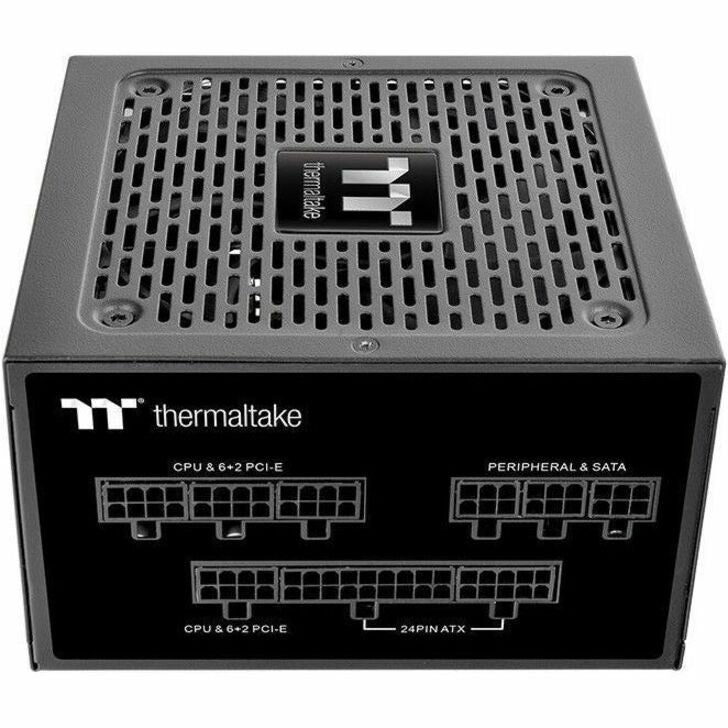

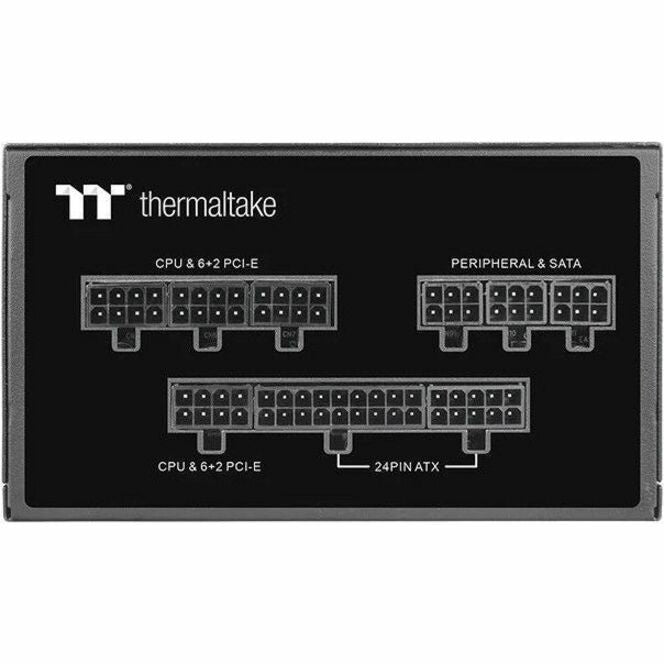

- Fully Modular Low-Profile Flat Cables – Black flat cables reduce clutter, simplify routing, and boost airflow.
- High-Quality 105°C/221°F Main Capacitors – Japanese-grade for superior durability, stability, and reliability.
- Single +12V Rail – 62.5A output with LLC resonant and DC-to-DC topology for stable power delivery.
- 80 PLUS Gold – Up to 90% efficiency, optimized for Intel C6/C7 states across all processor generations.
- Industrial-Grade Protections – OCP, OVP, UVP, OPP, SCP, OTP safeguard components.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Thermaltake |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Product Line | ToughPower GF1 |
| Product Model | TPD-850AH2FLG |
| MPN | PS-TPD-0850FNFAGU-P |
| UPC | 841163090848 |
| Product Type | Power Supply |
| Form Factor | Internal (ATX) |
| Total Output Power | 850 W |
| Number of +12V Rails | 1 |
| Output Voltage Details | +3.3 V @ 20 A; +5 V @ 20 A; +12 V @ 62.5 A; -12 V @ 0.5 A; +5 V SB @ 3.5 A |
| Output Voltages | 3.3 V DC, 5 V DC, 12 V DC, -12 V DC, 5 V SB |
| Input Voltage | 120 V AC / 230 V AC |
| Input Frequency | 50 Hz / 60 Hz |
| Power Factor Correction (PFC) | Active |
| Efficiency | 90% |
| Energy Efficiency Certification | 80 PLUS Gold |
| Specification Compliance | ATX12V |
| Modular | Yes (Fully Modular) |
| Number of Fans | 1 |
| Fan Size / Type | 120 mm Fluid Dynamic Bearing |
| Protection Types | OCP (Over Current), OVP (Over Voltage), UVP (Under Voltage), OPP (Over Power), SCP (Short Circuit), OTP (Over Temperature) |
| Main Capacitors | 105°C / 221°F Rated |
| Dimensions (H x W x D) | 3.4 in x 5.9 in x 5.5 in (86 mm x 150 mm x 140 mm) |
| Weight | 6.20 lbs |
| Operating Temperature | 41°F (5°C) to 104°F (40°C) |
| Environmentally Friendly | Yes |
| Warranty | 10 Years |
Installation & Maintenance for Thermaltake Toughpower GF1 PSU
Standard ATX installation applies. Pro tip: Ensure chassis airflow supports 140mm depth and modular cables are routed neatly for optimal cooling.
- Power off system and unplug from wall.
- Mount PSU in chassis with fan facing intake or exhaust per case design.
- Connect modular cables only as needed: 24-pin ATX, EPS/CPU, PCIe, SATA, etc.
- Secure cables with ties to avoid fan interference.
- Test under load; monitor for quiet fan activation.
- Clean dust from fan periodically with compressed air.
Why Choose Thermaltake Toughpower GF1 TPD-850AH2FLG 850W
Built for PC enthusiasts with premium features like zero-fan startup, flat modular cables, and comprehensive protections, this 80 PLUS Gold PSU offers long-term reliability backed by a 10-year warranty.
Power your build reliably—Order the Thermaltake Toughpower GF1 850W today!
Brand: Thermaltake
Type: Power Supply
Color: Black
Features: Modular
Compatible Brand: For Thermaltake
Model: TPD-850AH2FLG
MPN: PS-TPD-0850FNFAGU-P and UPC
Compatible Model: TPD-850AH2FLG
Manufacturer Warranty: 10 Years
Maximum Power: 850 W
Connectors: 24 Pin
Voltage Compatibility: 120 V
Form Factor: ATX
Cooling: 1 Fan
Item Height: 86 mm
Item Width: 150 mm
Item Length: 140 mm
UPC: 841163090848
