Description
Thermaltake The Tower 300 Gravel Sand Micro Tower Chassis
This is a Thermaltake The Tower 300 Gravel Sand Micro Tower Chassis, a premium computer case from the iconic Tower series featuring an innovative octagonal prism design. MPN: CA-1Y4-00SGWN-00; UPC: 841163095744. It supports high-end components like a 4090 GPU up to 400mm, PSUs up to 220mm, and 420mm AIO radiators, with pre-installed 140mm fans for optimal airflow in Mini ITX and Micro ATX builds.
Key Design and Cooling Features
- Octagonal Prism Vertical Design – Smaller footprint with classic Tower aesthetics, minimizing desk obstructions for gaming setups.
- Tool-Free 3mm Tempered Glass Panels – Three front glass panels and two perforated side panels for easy access and showcase.

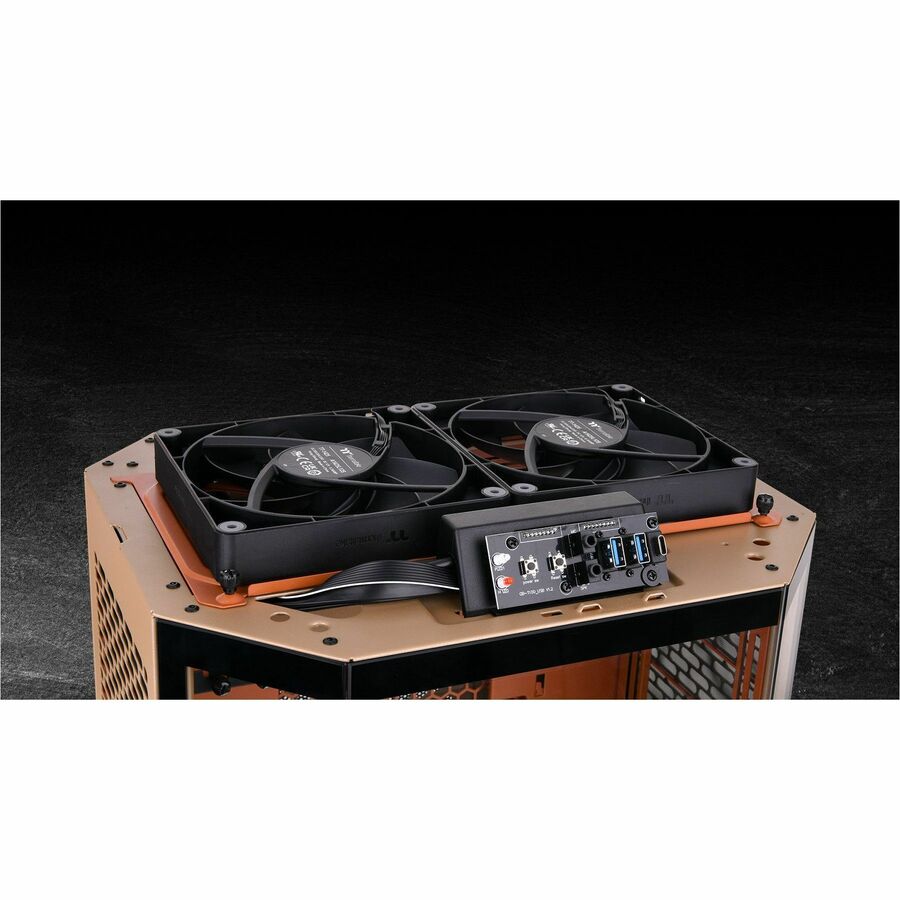

- Pre-Installed 2x 140mm CT140 PWM Fans – Mounted on top for immediate cooling; compatible with Thermaltake CT series in black/white, RGB/non-RGB.

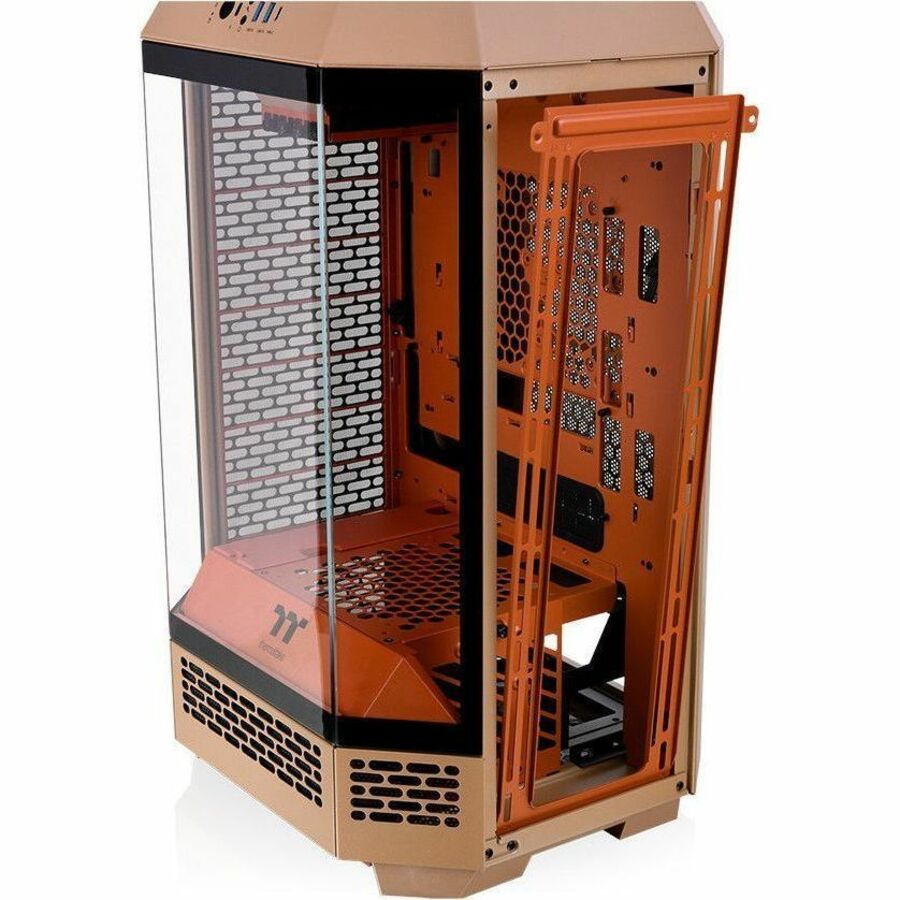

- 420mm Right-Side Radiator Support – Exceptional cooling capacity with removable fan bracket for simple AIO or fan installation.
- Optional Upgrades – 3.9" LCD Screen Kit (128x480 resolution, TT RGB Plus software for real-time info, GIFs, weather/time) and Chassis Stand Kit for horizontal placement.
- Dust Filters and Windowed Panels – Enhanced airflow with protection; fully windowed for component visibility.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Thermaltake Technology Co., Ltd |
| Brand Name | Thermaltake |
| Product Line | The Tower |
| MPN | CA-1Y4-00SGWN-00 |
| UPC | 841163095744 |
| Product Type | Computer Case |
| Form Factor | Micro Tower |
| Motherboard Supported | Mini ITX, Micro ATX |
| Number of Fans Supported | 8 |
| Number of Fans Installed | 2 |
| Fan Size Supported | 4.72" (120mm), 5.51" (140mm) |
| Installed Fan Size Details | 2 x 140mm PWM (CT140, top-mounted) |
| Features | Dust Filter, Window Panel |
| Number of Internal 2.5" Bays | 3 |
| Number of Total Expansion Bays | 3 |
| Total Number of Expansion Slots | 4 |
| Total Number of USB Ports | 3 |

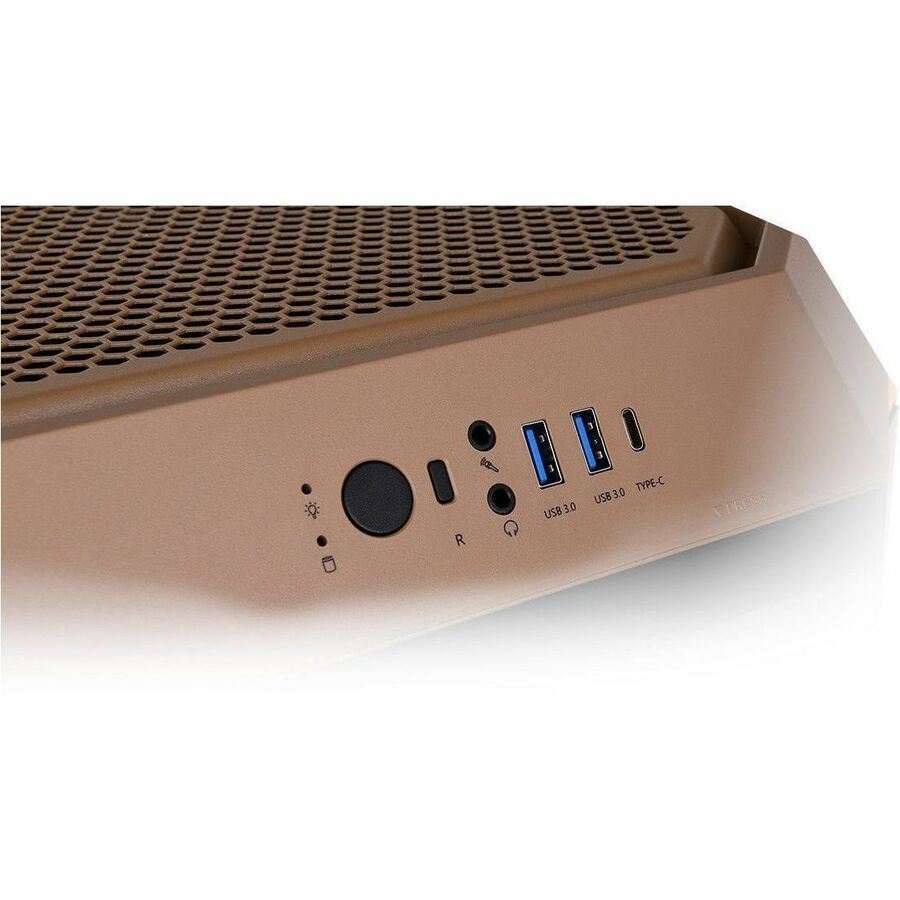

| USB Port Details | 1 x USB 3.2 (Gen 2) Type-C, 2 x USB 3.0 |
| Total Number of Audio In Ports | 1 (Front) |
| Total Number of Audio Out Ports | 1 (Front) |
| Product Color | Gravel Sand |
| Color Family | Beige |
| Product Material | Tempered Glass, SPCC |
| Cooler Type | Fan/Liquid Cooler |
| Maximum CPU Cooler Height | 8.27" (210mm) |
| Maximum PSU Length | 8.66" (220mm) |
| Maximum GPU Length | 15.75" (400mm) |
| Height | 21.7" |
| Width | 13.5" |
| Depth | 11.1" |
| Weight (Approximate) | 18.30 lb |
Installation and Customization Guide
Tool-free design simplifies builds; optional stand enables horizontal orientation.
- Remove tool-free panels for component access.
- Install motherboard, GPU (up to 4090/400mm), CPU cooler (up to 210mm), and PSU (up to 220mm).
- Mount right-side radiator (420mm) or fans using removable bracket.
- For horizontal placement with optional Chassis Stand Kit: Unscrew original feet, install bottom cover, place on stand.
- Add optional 3.9" LCD Screen Kit via TT RGB Plus for monitoring and customization.
Why Choose Thermaltake The Tower 300 Gravel Sand
Inherits legendary Tower series legacy with compact octagonal design, superior cooling, and upgrade potential for visually stunning, high-performance PC builds.
Build your ultimate PC with Thermaltake The Tower 300 Gravel Sand Micro Tower Chassis—Order now!
Brand: Thermaltake
Color: Gravel Sand
MPN: CA-1Y4-00SGWN-00
Case Material: Tempered Glass
Case Type: Mini Tower Case
Front Ports: Audio
Model: The Tower 300
Item Height: 21.7 in
Item Width: 13.5 in
Item Length: 11.1 in
UPC: 841163095744
