Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
This is a Targus USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery, the enterprise-class solution featuring dual DisplayLink DL-6910 chip technology for up to four extended 4K displays. Model DOCK570USZ with UPC 092636329662 supports notebooks via a single USB-C connection, delivering Gigabit Ethernet, extensive USB ports, and 100W power delivery. Compatible with virtually any laptop and standard peripherals, including legacy systems via included adapters, it reduces desk clutter with its sleek gray design, rubberized padded bottom, and VESA bracket mounting option.
Advanced Multi-Display and Connectivity Features
- Quad 4K Display Support: Dual DisplayLink DL-6910 chips enable four DisplayPort outputs at 3840 x 2160 @60Hz or four HDMI outputs at 3840 x 2160 @50Hz for maximum workstation viewing.
- 100W USB Power Delivery: Charges compatible notebooks while connected, powered by an included 180W AC to DC adapter (20V, 9A output).

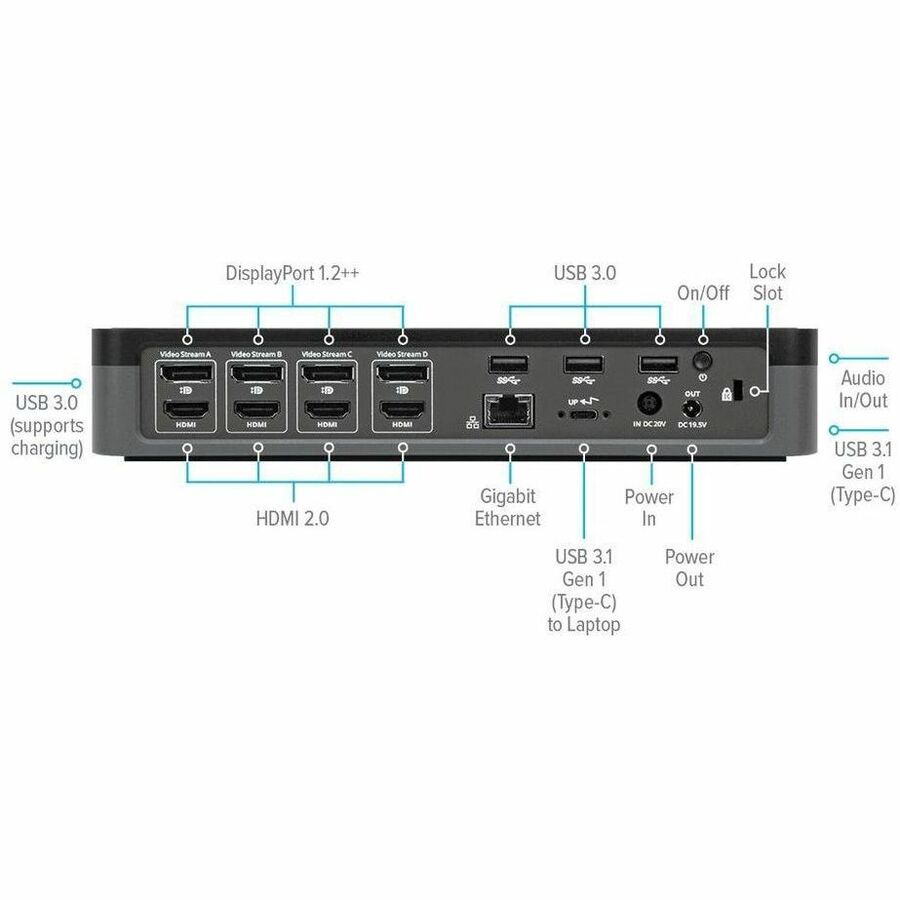

- Extensive Ports: 6 USB ports total (4x USB 3.0 Type-A, 2x USB 3.1 Gen 1 Type-C), 1x Gigabit Ethernet RJ-45, headphone/microphone combo jack.
- Universal Laptop Compatibility: USB 3.2 Gen 1 Type-C host interface works with modern and legacy laptops using included USB-C to USB-A adapter and charging tips.
- Enterprise Design: Kensington security slot, rubberized bottom to prevent scratches, VESA mount provision (Targus ACX003GLZ bracket sold separately) for space-saving behind-display installation.
- Broad OS Support: Windows, macOS, ChromeOS, Linux, Android, Ubuntu.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Targus |
| Manufacturer | Targus Group International |
| MPN / Model / Part Number | DOCK570USZ |
| UPC | 092636329662 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Device Supported | Notebook |
| Number of Displays Supported | 4 |
| Screen Mode Supported | 4K UHD |
| Supported Resolutions | 3840 x 2160 @60Hz (DisplayPort), 3840 x 2160 @50Hz (HDMI) |
| Ethernet Technology | Gigabit Ethernet |
| Host Interface | USB 3.2 (Gen 1) Type-C |
| Total Number of USB Ports | 6 |
| Number of USB 3.0 Ports | 4 (Type-A) |
| Number of USB 3.1 Gen 1 Type-C Ports | 2 |
| Number of RJ-45 Ports | 1 |
| DisplayPort | Yes (Version 1.2++, 4 outputs) |
| HDMI | Yes (Version 2.0, 4 outputs) |
| Headphone/Microphone Combo Port | Yes |
| USB Power Delivery | 100W |
| Operating Systems Supported | Windows, macOS, ChromeOS, Linux, Android, Ubuntu |
| Maximum Power Supply Wattage | 100W |
| Product Color | Gray |
| Dimensions (H x W x L) | 1.69" x 8.15" x 3.5" |
| Weight (Approximate) | 1.50 lb |
| Kensington Security Slot | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
Package Contents
- USB-C Universal Quad 4K (QV4K) Docking Station with 100W Power Delivery
- User Guide
- DC cable to power tip, 1M
- Input US AC Cable Cord
- Power Tips
- USB-C/M (screwed) to C/M (normal) Cable, 1M, 5A, 10Gbps
- Adapter, AC to DC, output: 20V, 9A, 180W
- USB-C/F to A/M Adapter
Why Choose Targus USB-C Universal Quad 4K Docking Station
Transform your workspace with single-cable connectivity for multiple 4K displays, peripherals, and fast charging. Its robust port array and broad compatibility make it ideal for enterprise environments seeking high-performance docking without compatibility limitations.
Enhance productivity with Targus USB-C Universal Quad 4K (QV4K) Docking Station 100W PD—Order now!
Material: Rigid Plastic
Country of Origin: Taiwan
UPC: 092636329662
MPN: DOCK570USZ
Item Length: 3.5 in
Item Height: 1.7 in
Item Width: 8.2 in
Compatible Brand: Universal
Color: Black
Brand: Targus
Compatible Product Line: Universal
Features: TARGUS USB-C UNIVERSAL QUAD 4K QV4K
Ports: Thunderbolt 3
Type: Docking Station
Model: DOCK570USZ
