Targus Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR DOCK230USZ

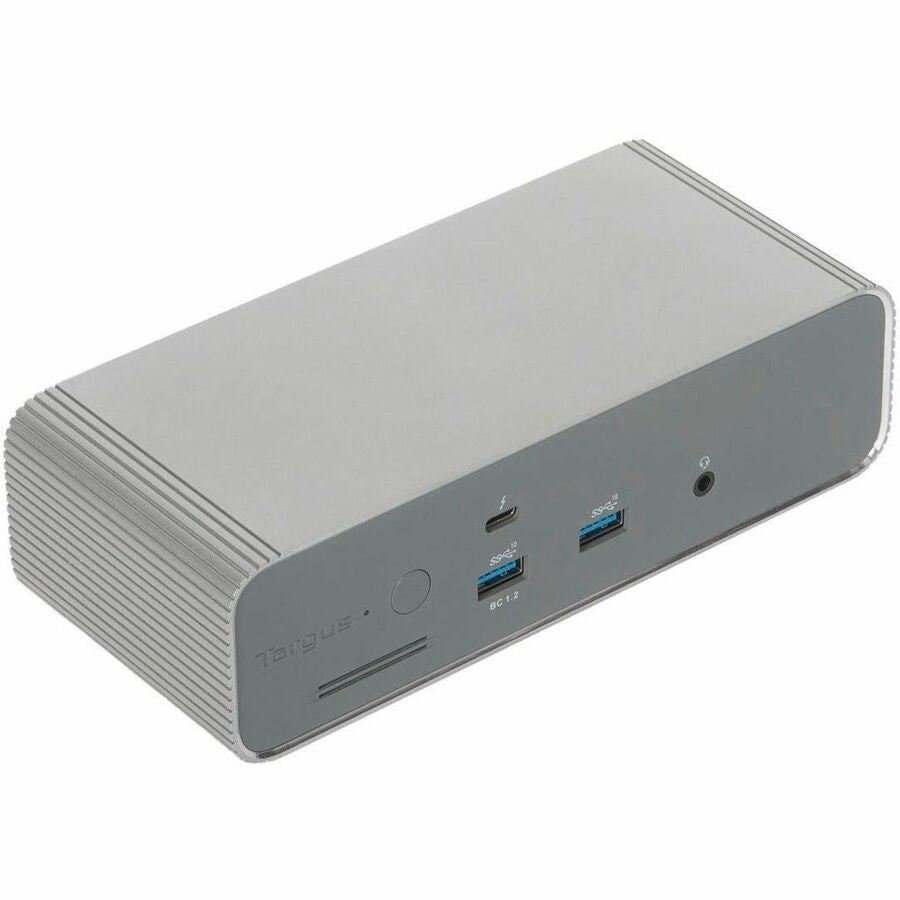

This is a Thunderbolt 5 Triple Video 8K EcoSmart Docking Station with 140W EPR from Targus. Model DOCK230USZ (UPC: 092636369958) delivers up to 80 Gbps data transfers and 120 Gbps video bandwidth, supporting three 8K displays at 7680 x 4320 resolution. It provides 140W charging for laptops and peripherals via three Thunderbolt 5 ports, four USB 3.2 Gen 2 Type-A ports, 2.5 Gigabit Ethernet, and a headphone/microphone combo jack. Compatible with Windows and macOS, fully backward compatible with Thunderbolt 4 and USB4 hosts. Crafted with 75% recycled post-consumer plastics and aluminum for sustainability.
Advanced Features of Targus Thunderbolt 5 EcoSmart Dock
- Thunderbolt 5 Connectivity – Up to 80 Gbps data and 120 Gbps video bandwidth, 3x faster than Thunderbolt 4/USB4; backward compatible.

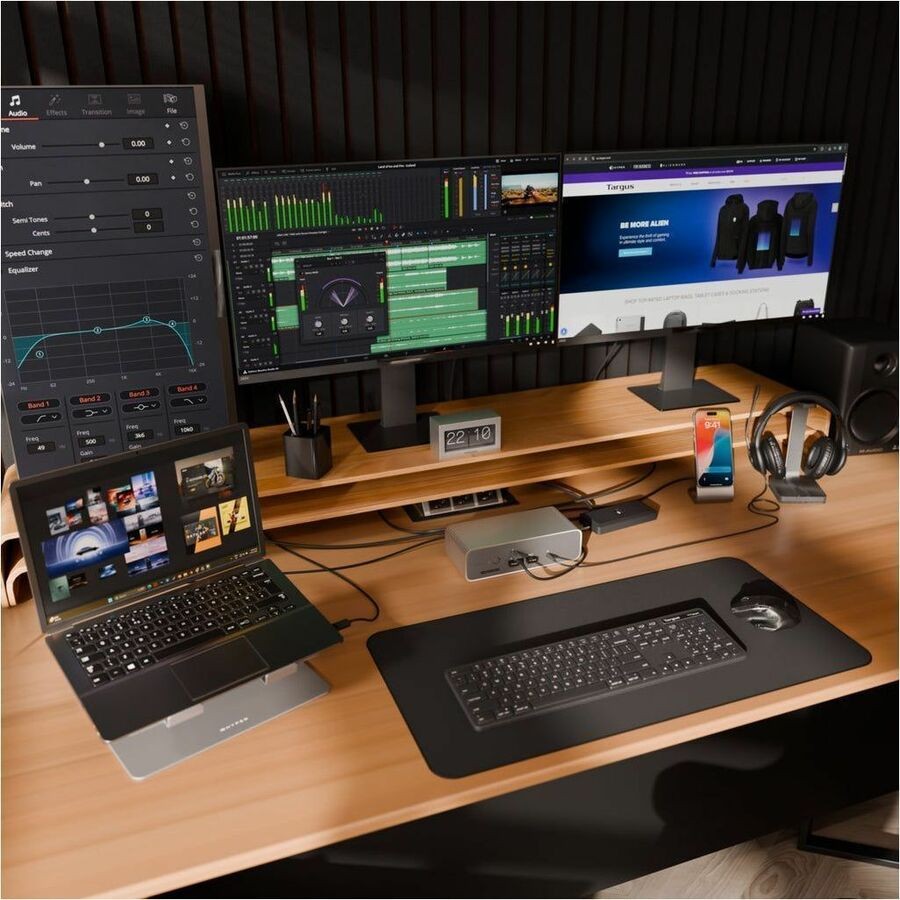

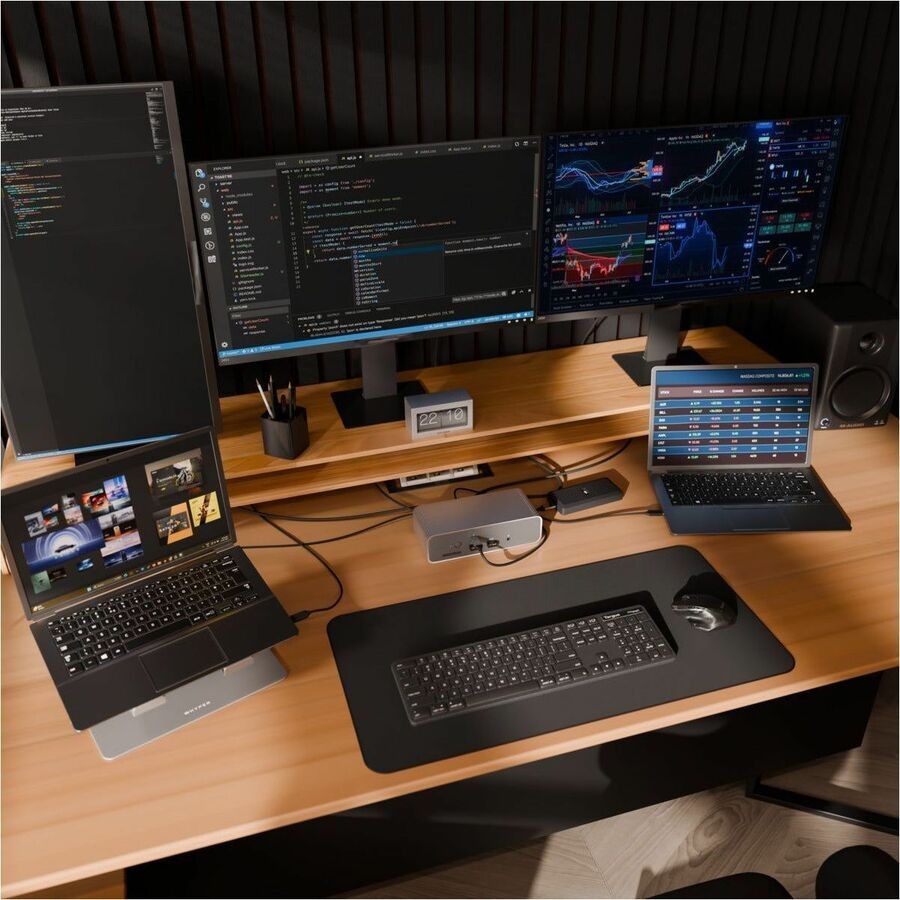

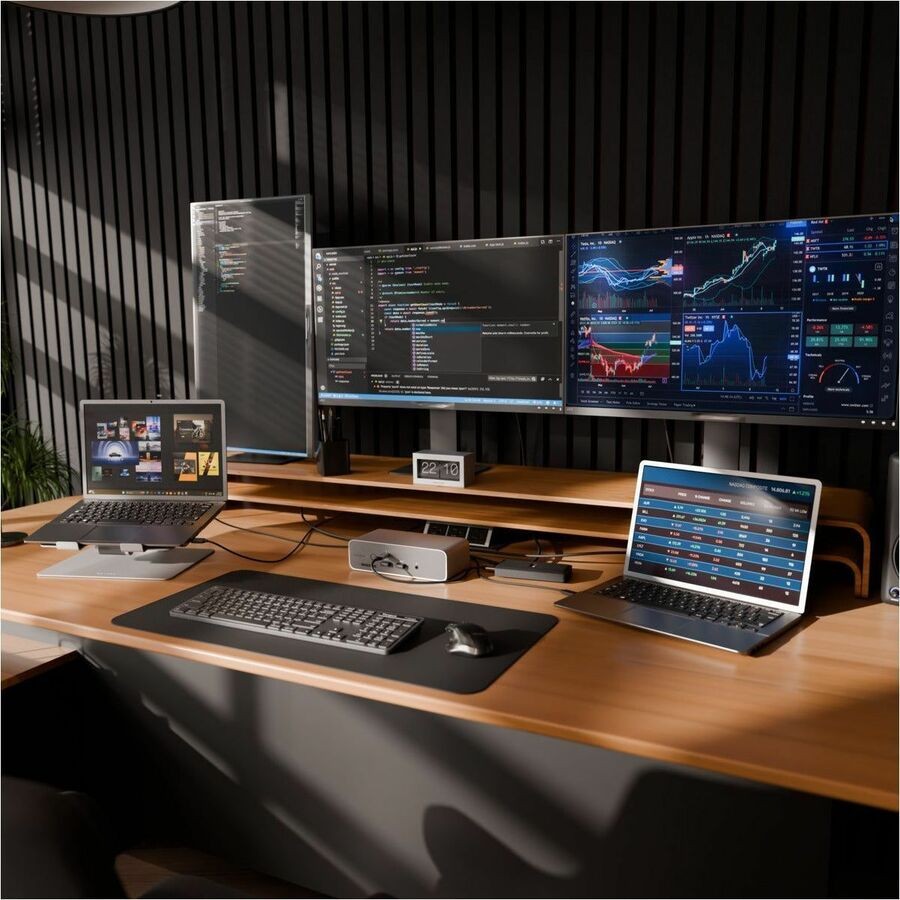

- Triple 8K Video Support – Connect up to three monitors at 8K (7680 x 4320) for maximum productivity.
- 140W EPR Charging – Powers high-performance laptops and accessories with 180W power supply (20V, 9A).

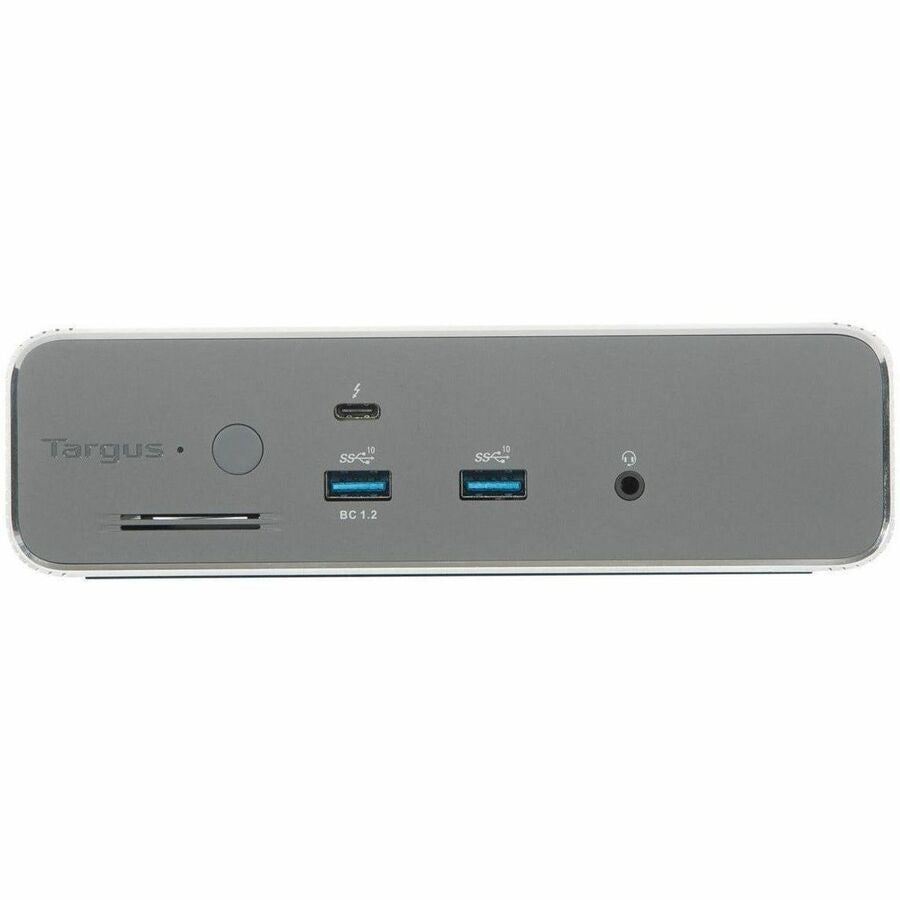

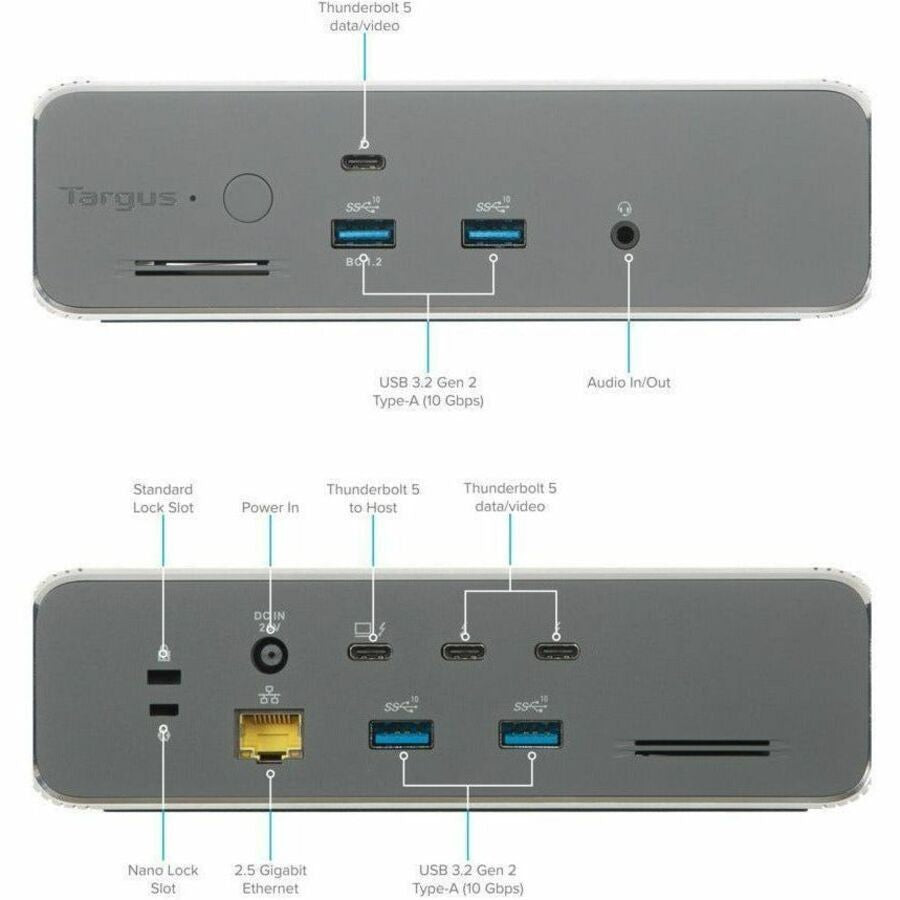

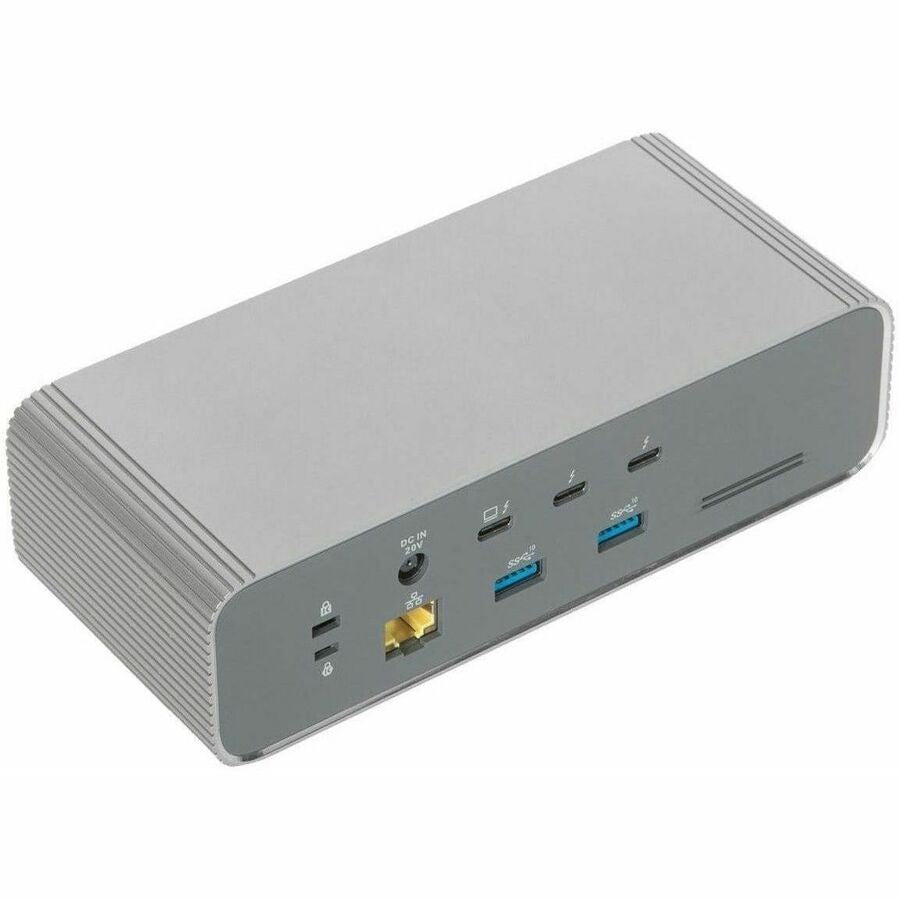

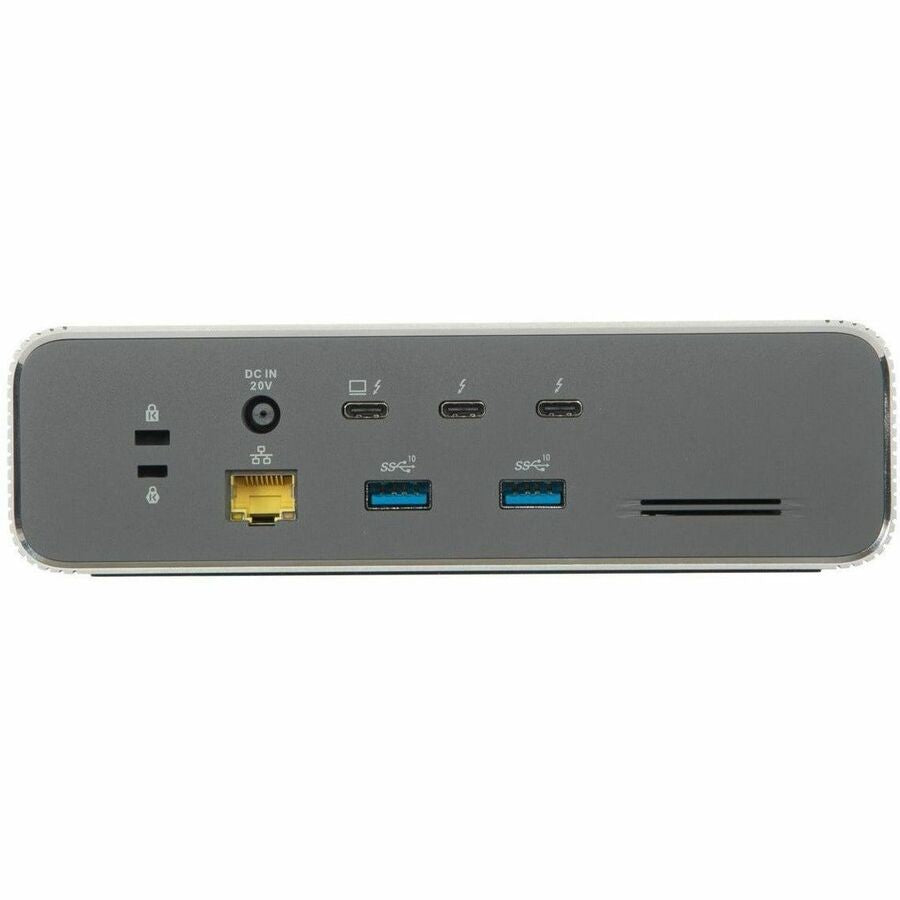

- Peripheral Ports – 4x USB 3.2 Gen 2 Type-A (10 Gbps), 1x 2.5G RJ-45 Ethernet, headphone/mic combo.
- Intel Thunderbolt Share – Share displays, files, and peripherals between two Thunderbolt PCs with included software.
- EcoSmart Design – 75% recycled materials; Kensington and Nano security slots.
- Power Delivery Pass-Through – 15 GB/s maximum data transfer rate; wired connectivity with 3.28 ft cable length.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | Targus |
| Manufacturer | Targus Group International |
| Manufacturer Part Number | DOCK230USZ |
| Product Model | DOCK230USZ |
| UPC | 092636369958 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Host Interface | Thunderbolt 5 |
| Thunderbolt Ports Quantity | 3 |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Number of RJ-45 Ports | 1 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 0 |
| Number of DisplayPorts | 0 |
| Number of Mini DisplayPorts | 0 |
| Number of VGA Outputs | 0 |
| USB Power Delivery | 140W |
| Charging Capability | Yes |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 8K |
| Supported Resolutions | 7680 x 4320 |
| Maximum Data Transfer Rate | 15 GB/s |
| Cable Length | 3.28 ft |
| Features | Power Delivery Pass-through |
| Security Slot Type | Nano Security Slot, Kensington Security Slot |
| Operating System Supported | Windows, macOS |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Product Color | Silver |
| Weight (Approximate) | 2.33 lb |
| Height | 3.3" |
| Width | 7.2" |
| Depth | 8.8" |
| Post-consumer-waste% | 75% |
| Country of Origin | THAILAND |
| Manufacturer Warranty | 2 Year |
| Device Supported | Workstation, Microphone, Speaker, Headphone, Display Screen, Keyboard, Mouse, Monitor |

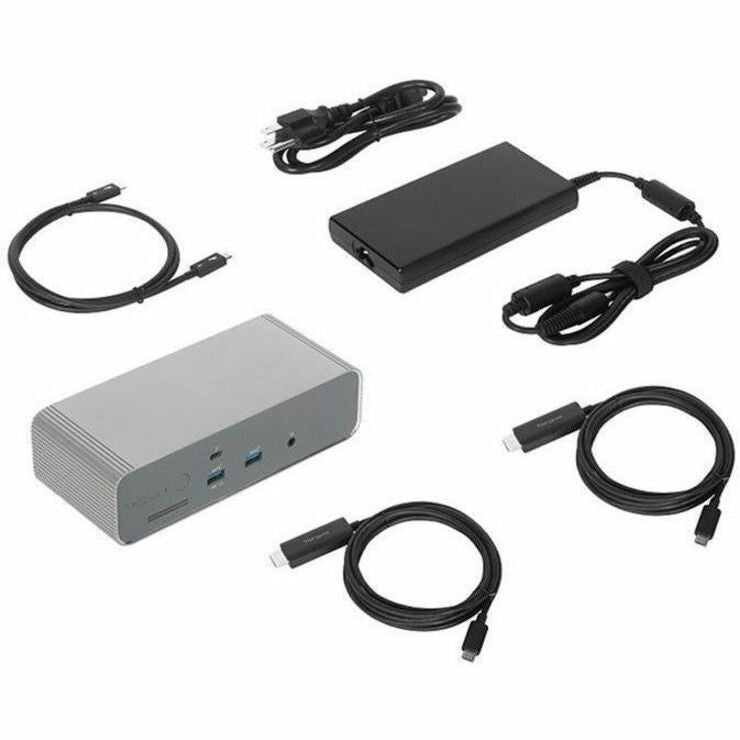

Package Contents
- Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR
- Quick Start Guide

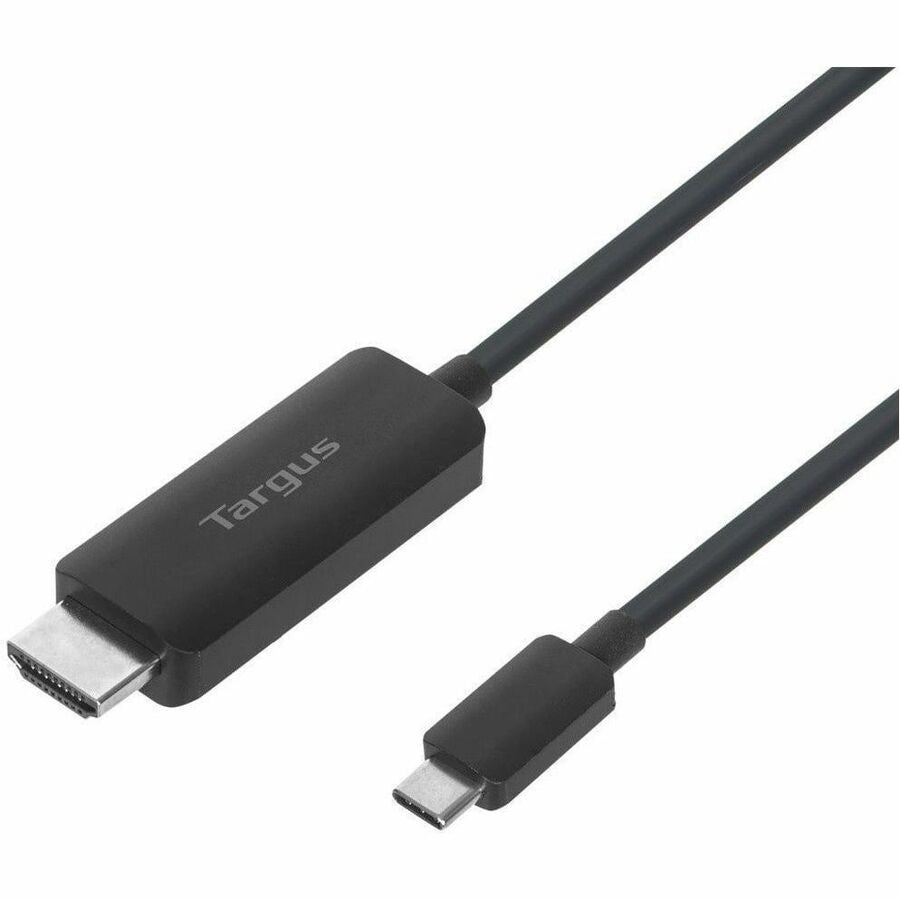

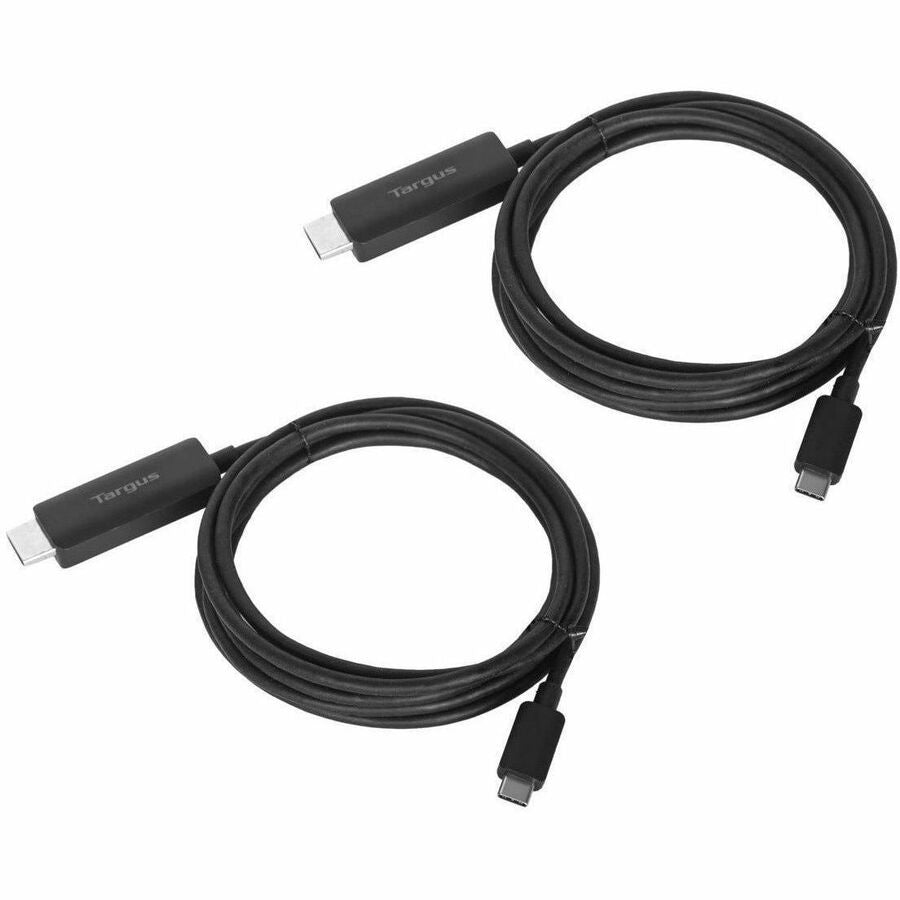

- 2 x USB-C to HDMI Hi-Speed 8K video cables, Black; 2m

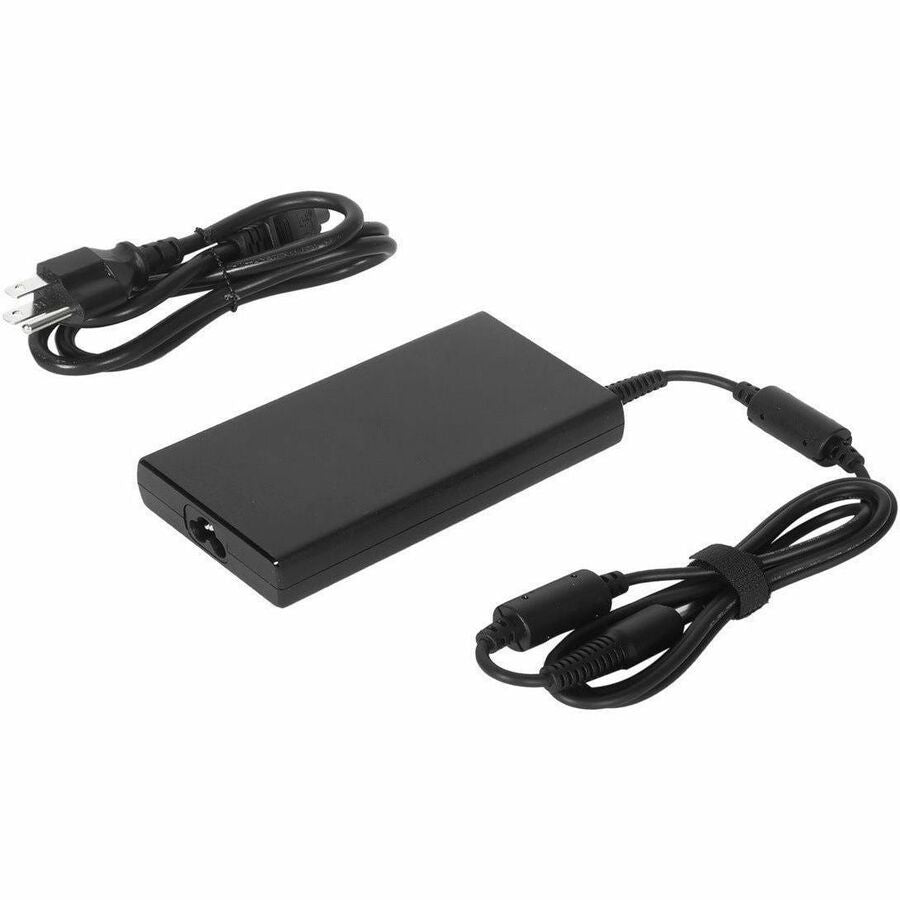

- Adapter, AC to DC, output: 20V, 9A, 180W, Desk type
- Cable, Input US AC cable cord set, 3pins, 1.8M, C5 connector
- 1.0M passive Thunderbolt 5 detachable cable (80 Gbps data / 120 Gbps video bandwidth, C/M to C/M)
Elevate your workstation with the Targus Thunderbolt 5 DOCK230USZ—order now!
Brand: Targus
Type: Docking Station
Compatible Brand: Targus
Color: Silver
Model: DOCK230USZ
Compatible Model: DOCK230USZ
MPN: DOCK230USZ
Material: Aluminum
Country of Origin: Thailand
Manufacturer Warranty: 2 Years
Ports: Audio Out
Item Height: 3.3 in
Item Width: 7.2 in
Item Length: 8.8 in
UPC: 092636369958
