Description
StarTech Thunderbolt 5 Universal Docking Station, Multi-Display Hub, 8K 60Hz / 4K 144Hz, 120Gbps Bandwidth Boost, 140W PD, USB 10Gbps
This is a StarTech Thunderbolt 5 Universal Docking Station, a high-performance multi-display hub supporting Thunderbolt 5, Thunderbolt 4, and USB4 laptops with up to triple 4K@144Hz or dual 8K@60Hz displays, 140W power delivery, 2.5G Ethernet, and 120Gbps bandwidth boost. MPN: 215N-TB5USB4DOCK; UPC: 065030923101. It simplifies workspaces with driverless compatibility for Windows 11 and macOS Sequoia 15 / Tahoe 26.0, including an 180W power adapter for charging high-performance laptops like the MacBook Pro M4.
Advanced Features of StarTech Thunderbolt 5 Dock

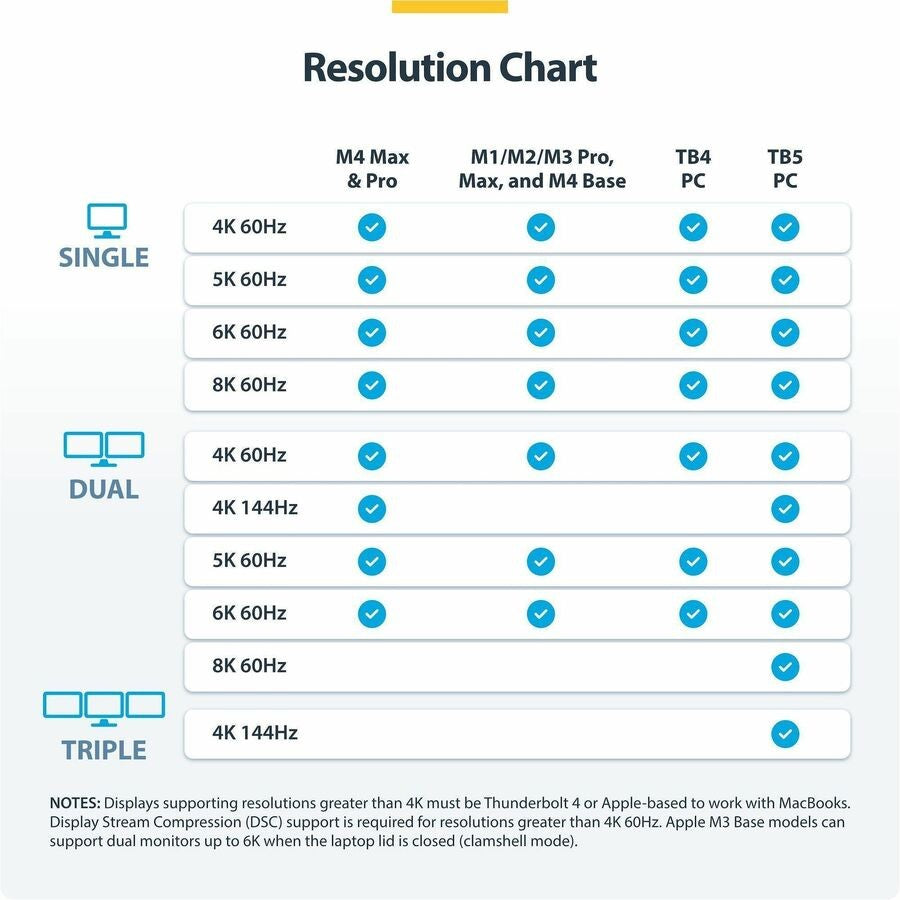

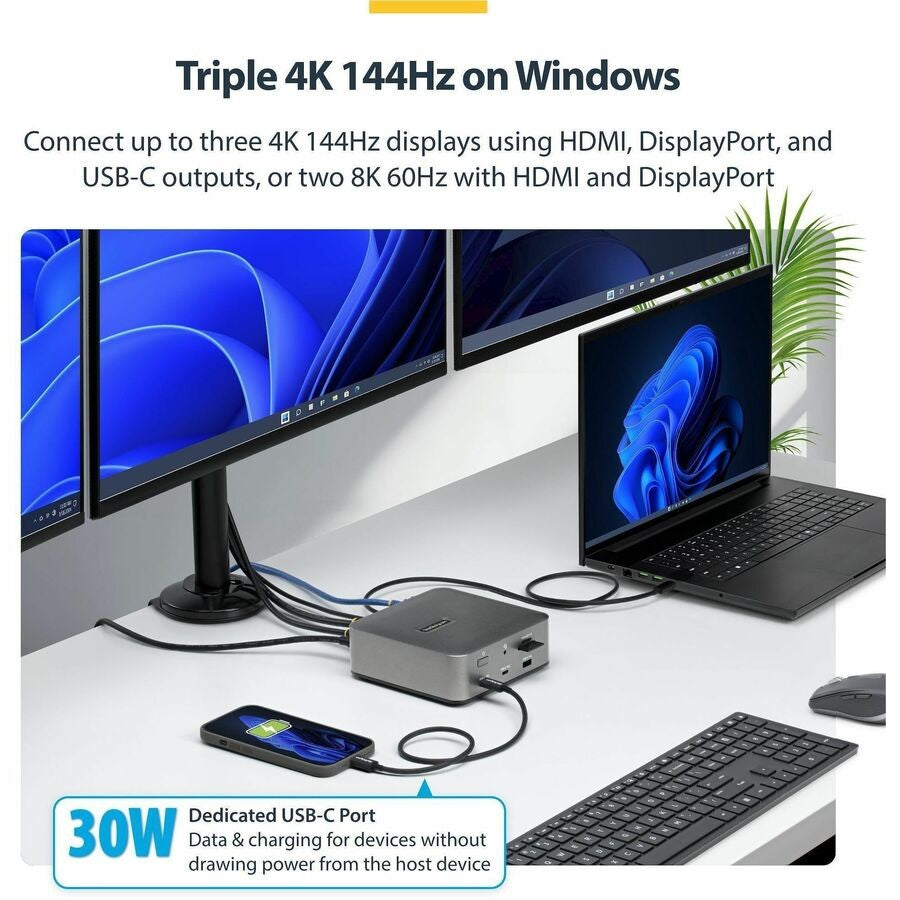

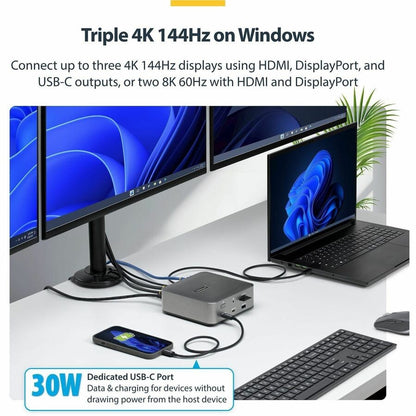

- Multi-Display Support: Connect up to three 4K@144Hz displays via HDMI, DisplayPort, USB-C or dual 8K@60Hz; resolutions up to 7680x4320@60Hz.

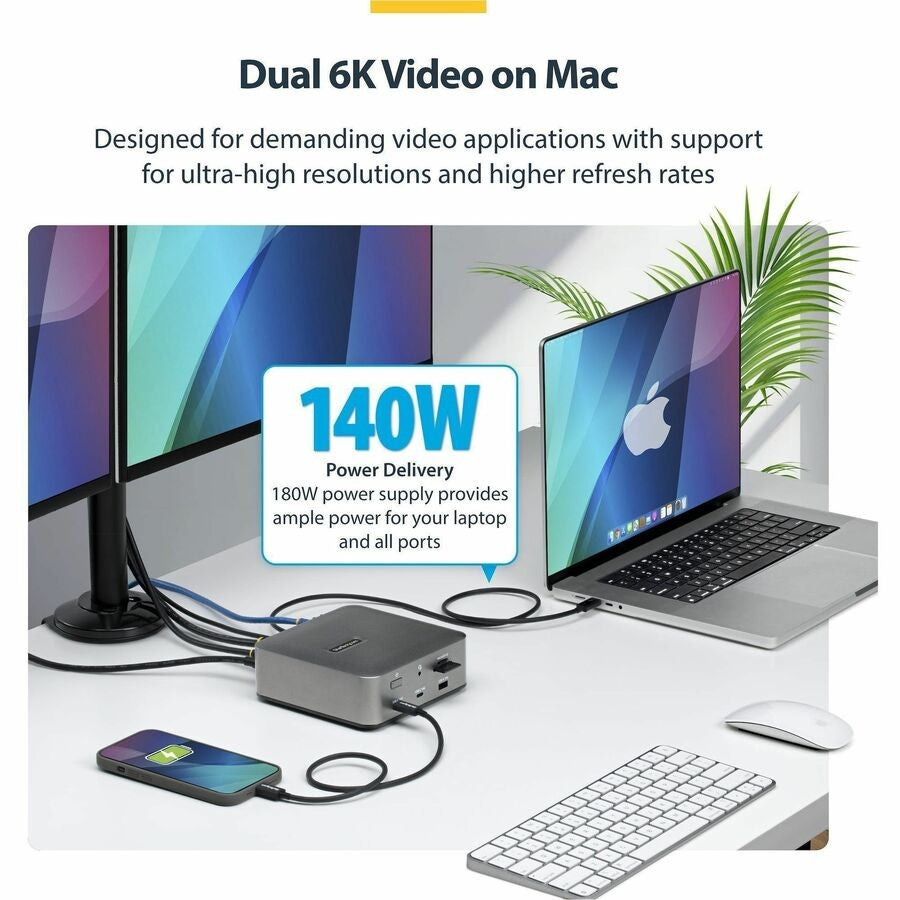

- 140W Power Delivery: 180W adapter delivers up to 140W to host laptop; dedicated 30W USB-C port for peripherals without host power draw.

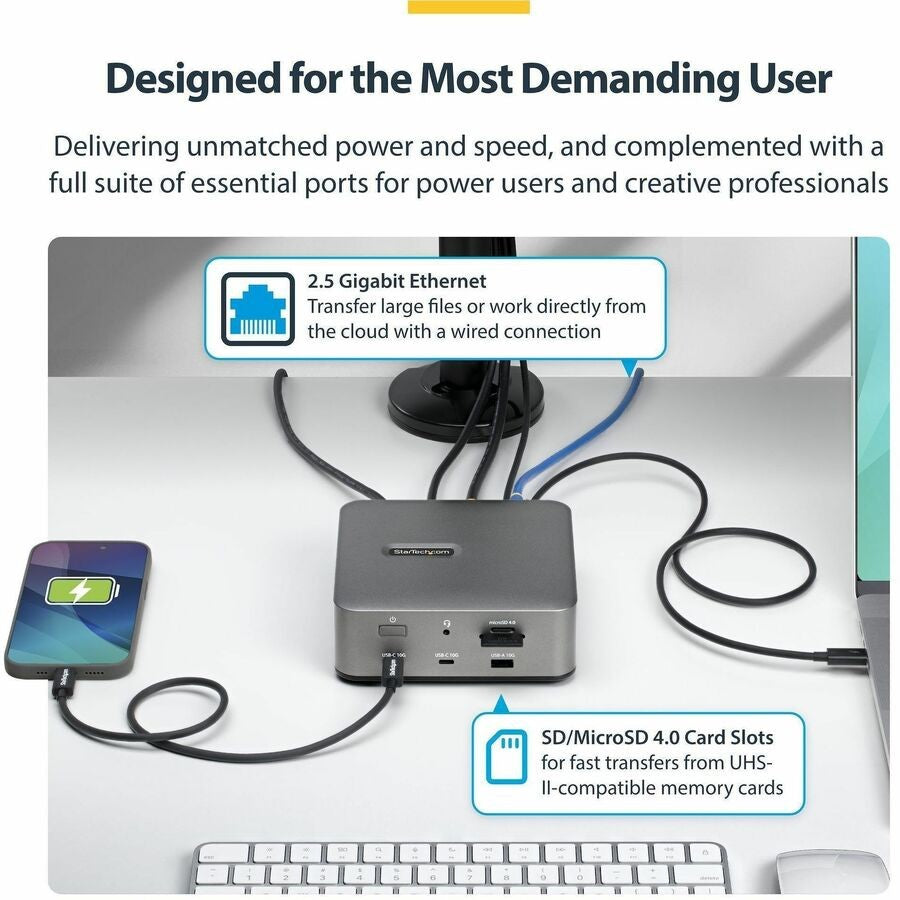

- High-Speed Connectivity: 120Gbps Thunderbolt 5 bandwidth, 2.5G Ethernet for fast networking, 10Gbps USB ports, SD 4.0 / microSD 4.0 UHS-II card readers.
- Security & Audio: Kensington and Nano security slots, 3.5mm headphone/microphone combo jack for conferencing.
- Management Tools: StarTech.com Connectivity Tools with MAC address pass-through, Wi-Fi auto-switch, USB monitoring; PXE Boot, Wake-on-LAN.
- Plug and Play: LED power indicator, power delivery pass-through; wired connectivity technology.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 215N-TB5USB4DOCK |
| UPC | 065030923101 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |

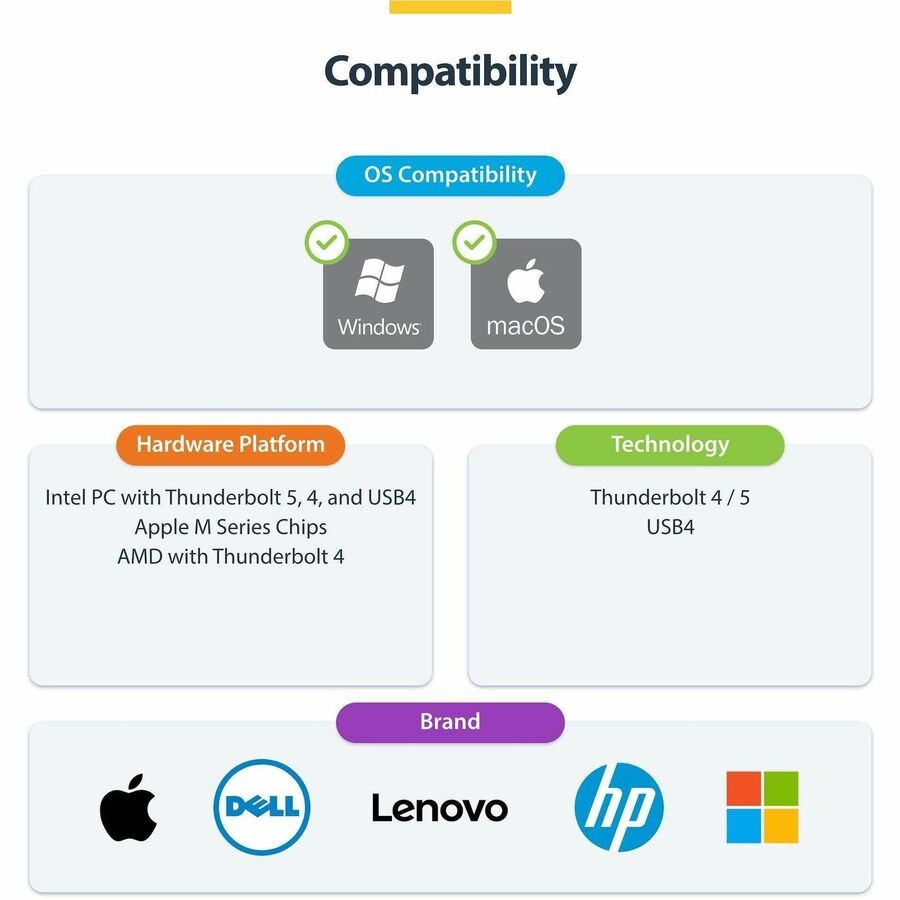

| Host Interface | Thunderbolt 5, Thunderbolt 4, USB4 |

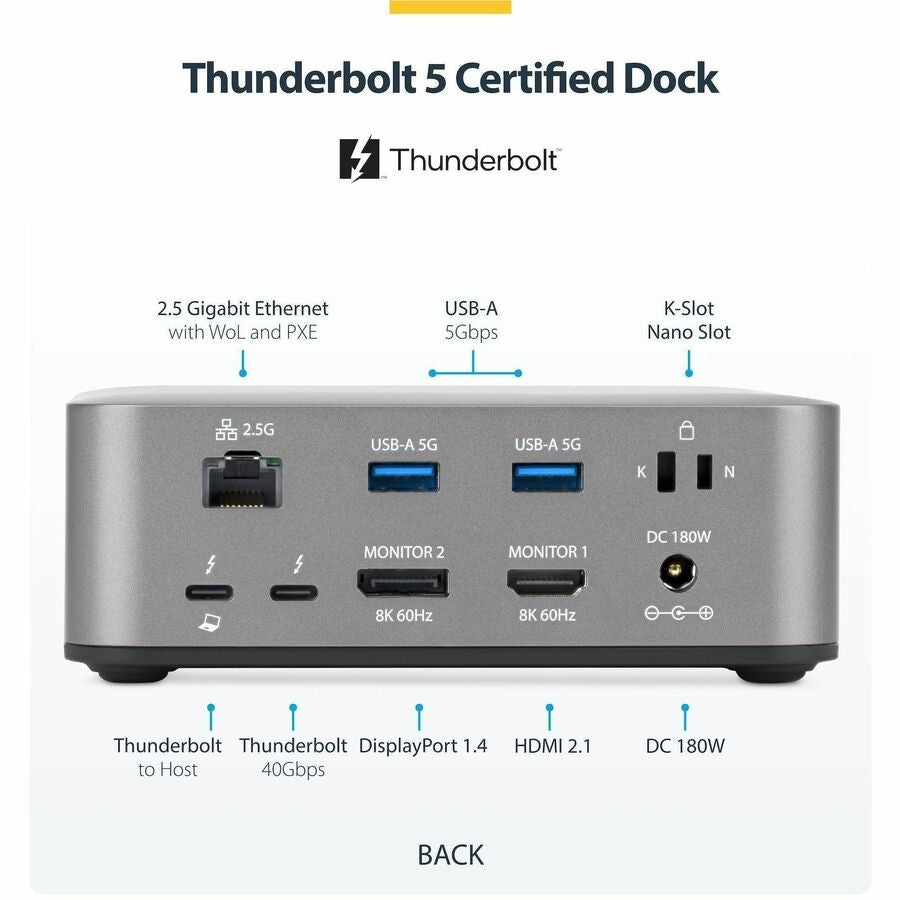

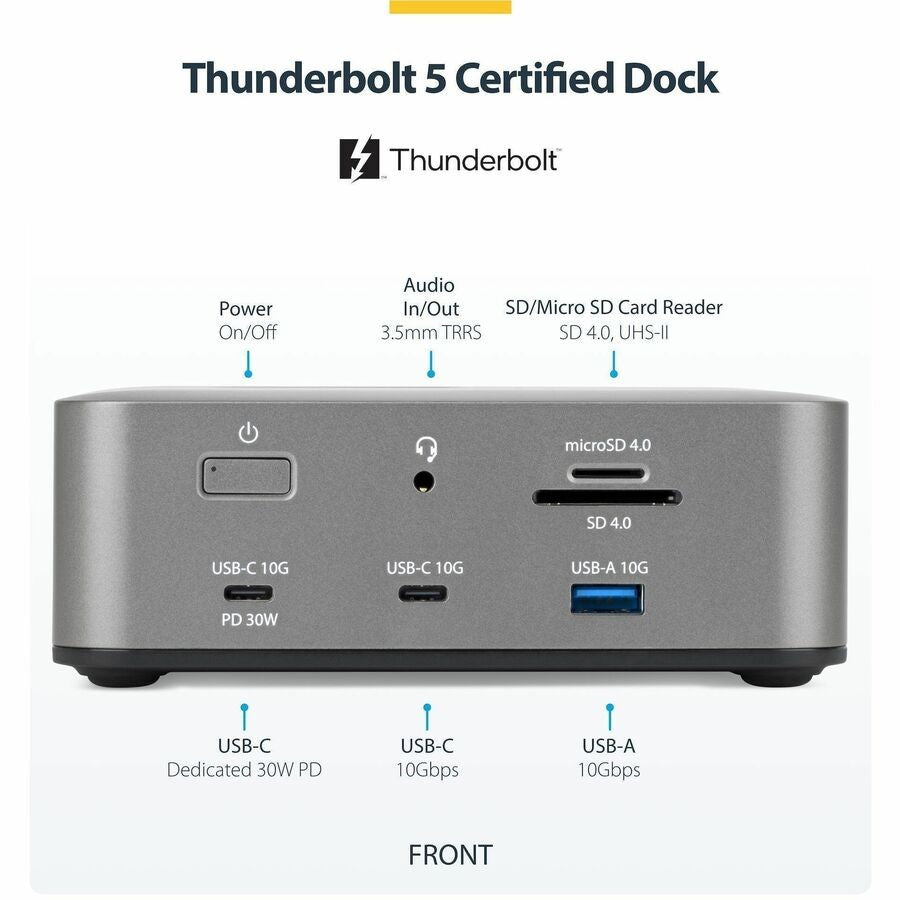

| Total Number of USB Ports | 5 |
| Number of USB Type-A Ports | 3 (2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-A) |
| Number of USB Type-C Ports | 2 x USB 3.2 Gen 2 Type-C (10Gbps) |
| Number of RJ-45 Ports | 1 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 1 |
| Thunderbolt Ports Quantity | 2 |
| Headphone/Microphone Combo Port | Yes |
| USB Power Delivery | 140W |
| Maximum Power Supply Wattage | 180W |
| Power Source Type | Power Adapter |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 4K @ 60Hz, 4K @ 144Hz, 4K, 6K @ 60Hz, 8K @ 60Hz |
| Supported Resolutions | 3840 x 2160, 5760 x 3240, 7680 x 4320 |
| Maximum Data Transfer Rate | 5 GB/s |
| Memory Card Reader | Yes (SD 4.0, microSD 4.0) |
| Cable Length | 2.62 ft (Thunderbolt 5 Host Cable) |
| Product Color | Space Gray |
| Color Family | Gray |
| Height | 1.20" |
| Width | 0.90" |
| Weight (Approximate) | 2.20 oz |
| Shipping Weight | 3.90 lbs |
| Shipping Dimensions (HxWxD) | 2.50" x 11.90" x 6.80" |
| Country of Origin | VIET NAM |
| Operating System Supported | Windows 11, macOS Sequoia 15, macOS Tahoe 26.0 |
| Security Slot Type | Kensington Security Slot, Nano Security Slot |
| TAA Compliant | Yes |
| Environmental Compliance | WEEE, RoHS |
| Manufacturer Warranty | 3 Years |

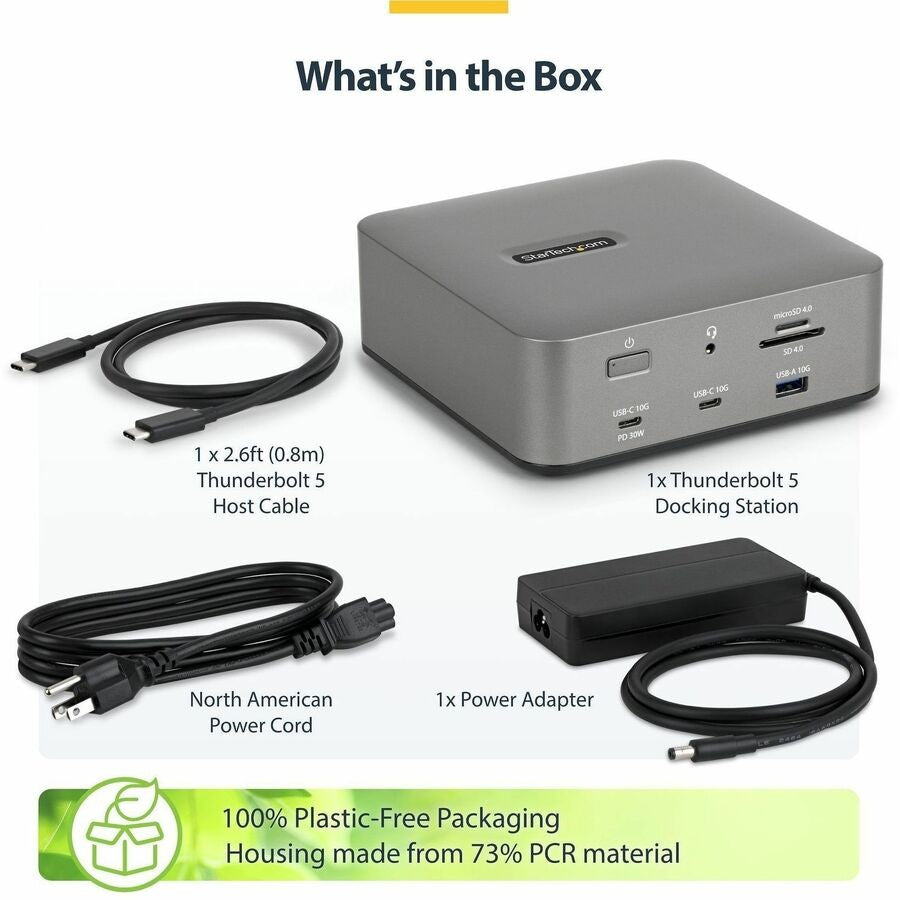

Package Contents & Additional Details
- Docking Station
- 1 x Thunderbolt 5 Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Product Documentation
Device Supported: Desktop PC, Notebook, Mobile Device, Monitor, Smartphone, Tablet, Computer. Features: LED Power Indicator, Power Delivery Pass-through, Plug and Play. Management Features: PXE Boot, Wake-on-LAN, MAC Address Pass-through. Charging Capability: Yes.
Why Choose StarTech Thunderbolt 5 Universal Docking Station
Engineered for enterprise efficiency with secure physical slots, high-speed data transfers up to 5GB/s, and tools for IT management, this dock ensures consistent performance in shared or high-traffic environments.
Elevate your setup with StarTech Thunderbolt 5 Dock—order the 215N-TB5USB4DOCK today!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 215N-TB5USB4DOCK
Material: Aluminum
Manufacturer Warranty: 3 Years
Ports: Audio Out
Compatible Product Line: Universal
Item Height: 1.20"
Item Width: 0.90"
UPC: 065030923101
