StarTech PEXUSB312A2C2V 4-Port 10Gbps USB 3.2 Gen 2 PCIe Card 2xA/2xC TAA
StarTech PEXUSB312A2C2V 4-Port 10Gbps USB 3.2 Gen 2 PCIe Card 2xA/2xC TAA
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech 4-Port USB PCIe Card, 10Gbps USB PCI Express Expansion Card w/2 Controllers, 2x USB-C & 2x USB-A ports (USB 3.2 Gen 2), TAA

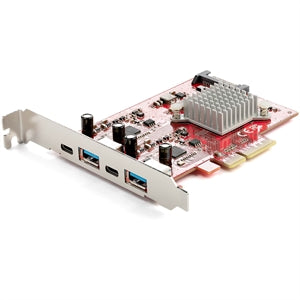

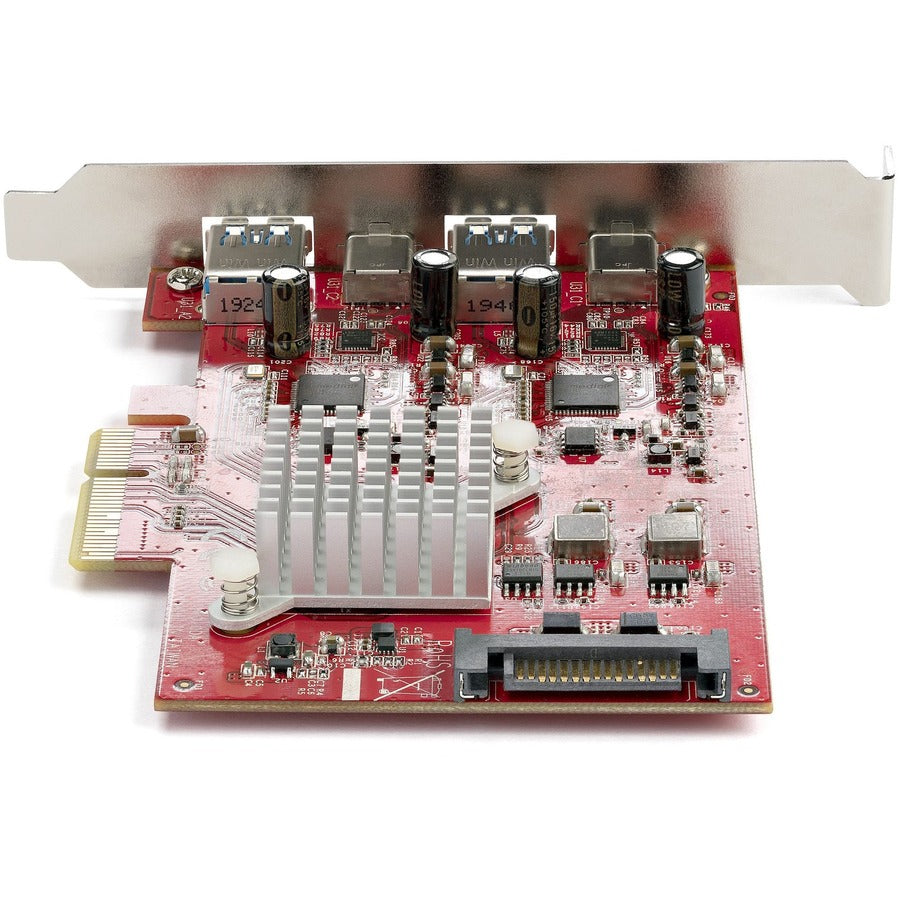

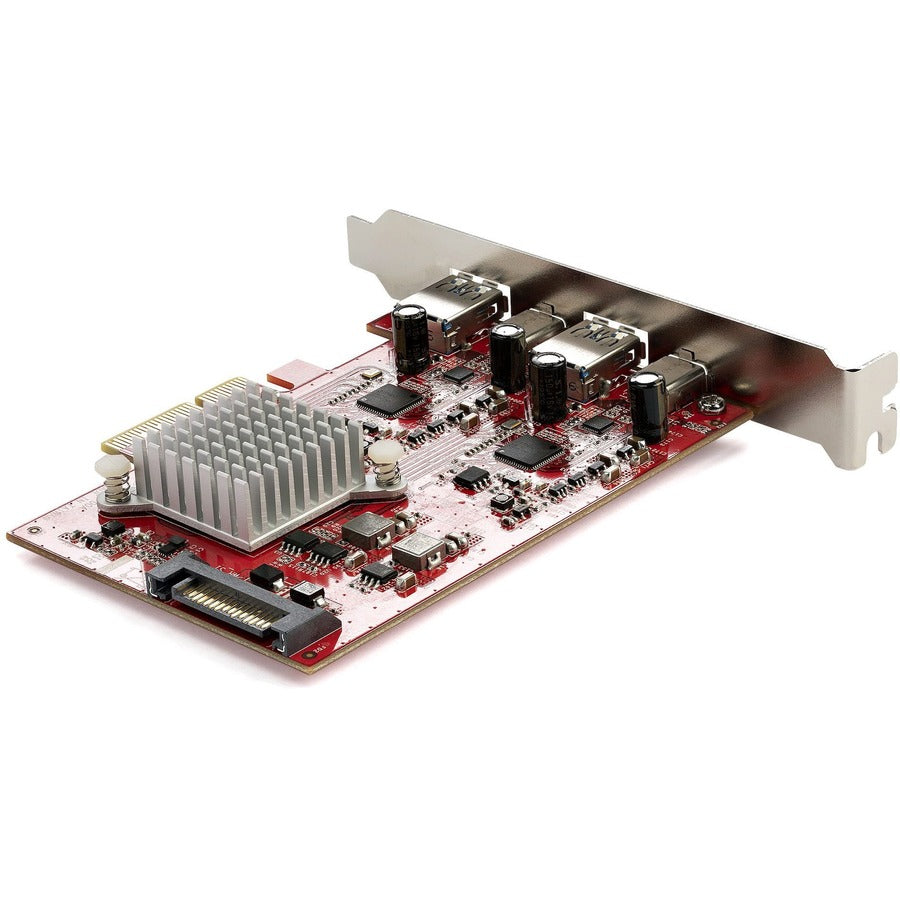

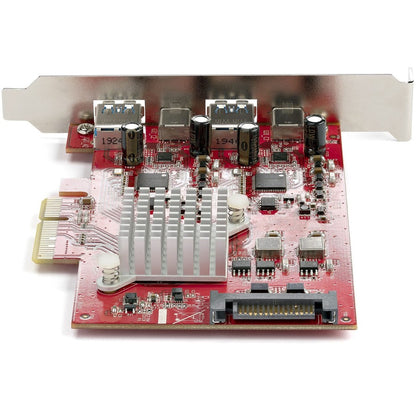

This is a StarTech.com PEXUSB312A2C2V 4-port USB 3.2 Gen 2x1 (10Gbps) PCI Express expansion card with two independent ASM3142 controllers for up to 20Gbps total bandwidth. It adds two USB Type-C ports and two USB Type-A ports at 10Gbps each to desktops or servers via a single PCIe 3.0 x4 slot. UPC: 065030887076. TAA compliant for government use, with UASP support and backward compatibility to USB 3.0/2.0/1.1 devices including SSDs and NVMe drives.
Key Features of StarTech PEXUSB312A2C2V USB PCIe Card

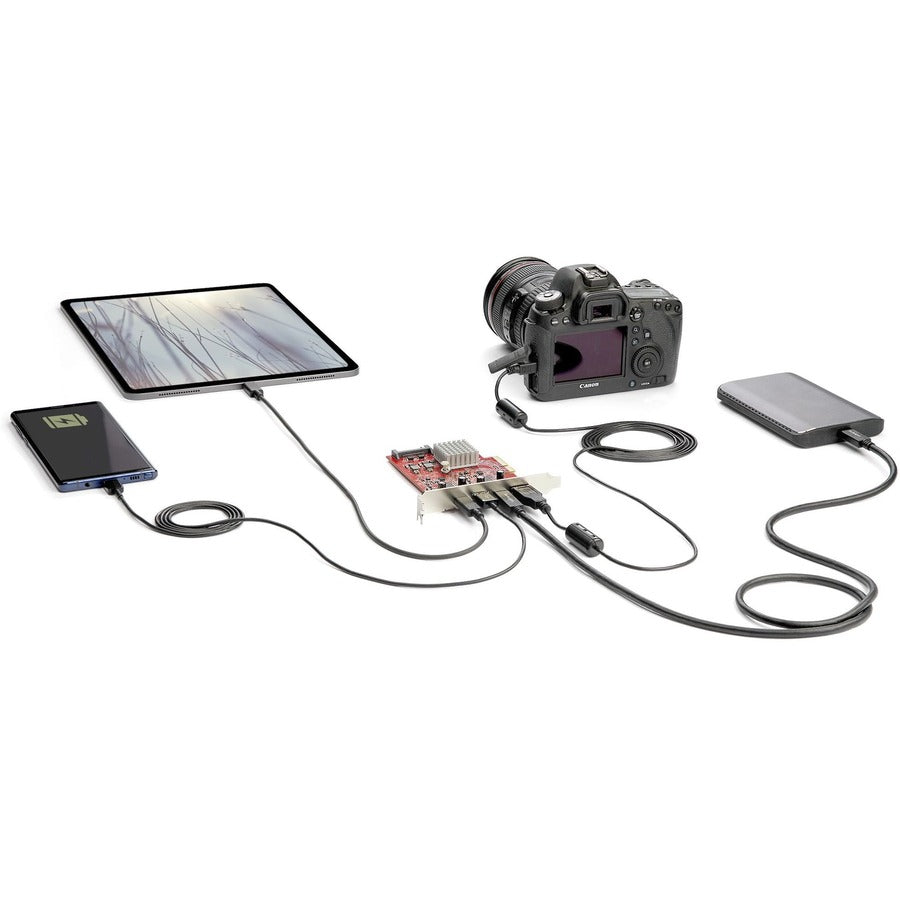

- Dual USB-C and USB-A Ports – Two 10Gbps USB Type-C and two 10Gbps USB Type-A ports for versatile connectivity to modern and legacy devices.
- High-Speed Performance – USB 3.2 Gen 2x1 (10Gbps, also known as USB 3.1 Gen 2) per port; two ASM3142 controllers enable simultaneous full-speed operation up to 20Gbps total.
- PCIe Expansion – Plugs into PCI Express x4 slot (PCIe 3.0 compatible); full-profile bracket included, frees up case space versus multiple cards.
- Backward Compatibility – Works with USB 3.0 (5Gbps), 2.0, and 1.1 devices; ideal for external SSDs, NVMe enclosures, peripherals.
- UASP Support – Enhances transfer speeds with compatible devices; reduces bottlenecks for large file operations.
- TAA Compliant – Meets Trade Agreements Act standards; environmentally certified with EU RoHS, REACH, WEEE compliance.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer Part Number (MPN) | PEXUSB312A2C2V |
| UPC | 065030887076 |
| Product Type | USB Adapter / PCI Express USB Card |
| Host Interface | PCI Express x4 (PCIe 3.0) |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Ports | 4 (2x USB-C 10Gbps, 2x USB-A 10Gbps) |
| Controllers | 2x ASMedia ASM3142 |
| Data Throughput | Up to 10Gbps per port (20Gbps total) |
| UASP Support | Yes |
| Form Factor | Plug-in Card (Full Profile) |
| Product Color | Red |
| Dimensions (HxWxL) | 0.9" x 3.3" x 4.4" |
| Weight (Approximate) | 2.80 oz |
| Power Option | Optional SATA power connector |
| OS Compatibility | Windows 7/8/8.1/10/11, Windows Server 2008 R2/2012/2016/2019/2022, Linux 3.5+ (LTS), macOS 10.13+ to 13.0 (High Sierra to Ventura) |
| Platforms Supported | PC, Linux, Mac |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Certifications | EU RoHS, REACH (free of SVHC), WEEE |
| Warranty | 2-Year Manufacturer Warranty |
Package Contents & Installation Overview
- PCI Express USB Card
- Full Profile Bracket (Installed)
- Quick-Start Guide
Installation: Power off PC, insert into available PCIe x4 slot, secure bracket. Connect optional SATA power if needed for powered devices. No drivers required for most OS; boot and use immediately. Pro tip: Verify PCIe slot compatibility and airflow in case.
Why Choose StarTech PEXUSB312A2C2V 10Gbps PCIe Card
Expands connectivity with high-bandwidth USB 3.2 ports in a single slot solution, supporting diverse devices from legacy to high-speed storage. Backed by 2-year warranty and lifetime technical support from StarTech.com.
Enhance your system's USB performance—Add the StarTech PEXUSB312A2C2V to your cart today!
Type: USB Adapter / PCI Express USB Card
MPN: PEXUSB312A2C2V
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Manufacturer Warranty: 2 Years
Compatible Port: PCI Express x4
Number of Ports: 4 Ports
Maximum Data Rate: 10 Gbps
Item Height: 0.9"
Item Width: 3.3"
Item Length: 4.4"
Brand: Does not apply
UPC: 065030887076
