StarTech Desk Mount Monitor Arm 34" 8kg 2x USB 3.0 VESA C-Clamp
StarTech Desk Mount Monitor Arm 34" 8kg 2x USB 3.0 VESA C-Clamp
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech Desk Mount Monitor Arm with 2x USB 3.0 Ports for VESA Display up to 34" (17.6lb/8kg), C-Clamp/Grommet, Mechanical Spring
This is a premium aluminum desk mount monitor arm from StarTech.com, model ARMPIVOT2USB3 (UPC: 065030888349). Designed to save desk space by suspending VESA-compatible flat panel displays (75x75 or 100x100 mounting pattern) from 17" to 34" with up to 17.6 lb (8 kg) capacity. Features full-motion articulation including pan ±90°, tilt ±90°, rotate ±90°, height adjustment up to 24.4" (620 mm), 20.2" (514 mm) extension, built-in 2x USB 3.0 passthrough ports, cable management, C-clamp or grommet installation, and mechanical spring tension for smooth operation. Heavy-duty construction supports ultrawide 34" (21:9) or 32" (16:9) monitors ergonomically.
Advanced Features of StarTech Desk Mount Monitor Arm
- Space-Saving Design – Suspends monitor above desk surface for increased workspace and cleaner setup.
- Versatile VESA Compatibility – Fits 75x75mm and 100x100mm patterns on monitors from 17" minimum to 34" maximum.

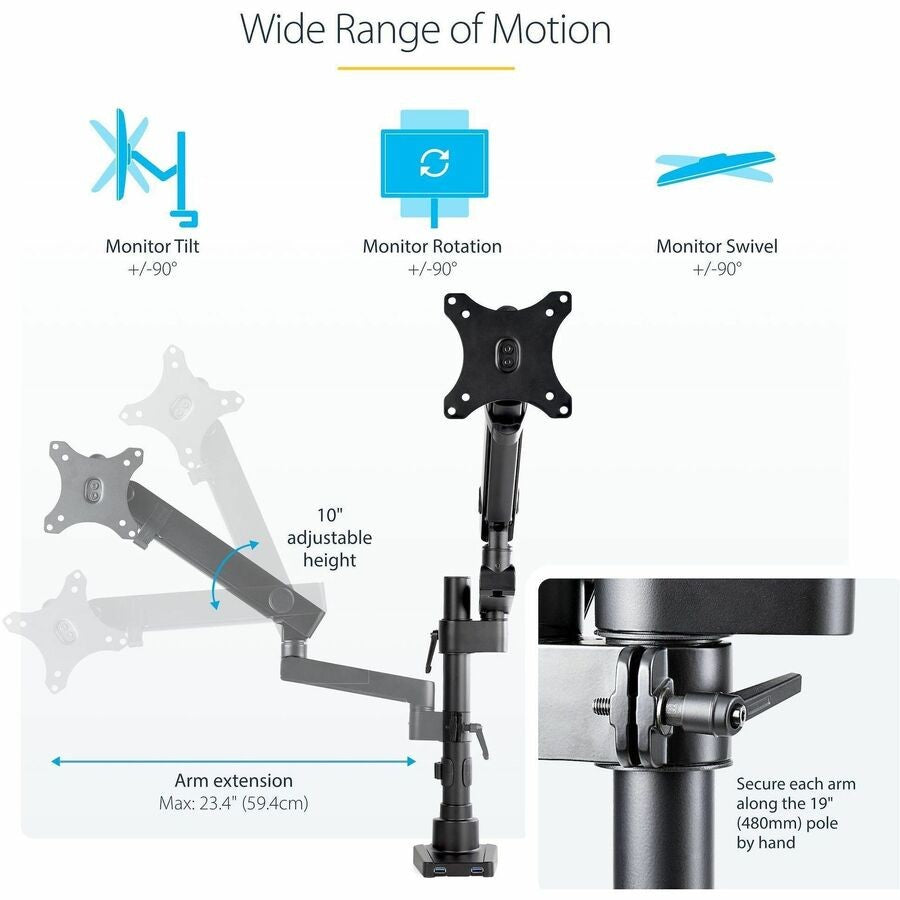

- Full Motion Articulation – Pan left/right ±90°, tilt up/down ±90°, rotate landscape/portrait ±90° for optimal viewing angles.
- Height Adjustable – Raise/lower along pole up to 24.4" (620 mm) for ergonomic positioning.
- Extended Reach – Arm extends 20.2" (514 mm) with effortless side-to-side movement.

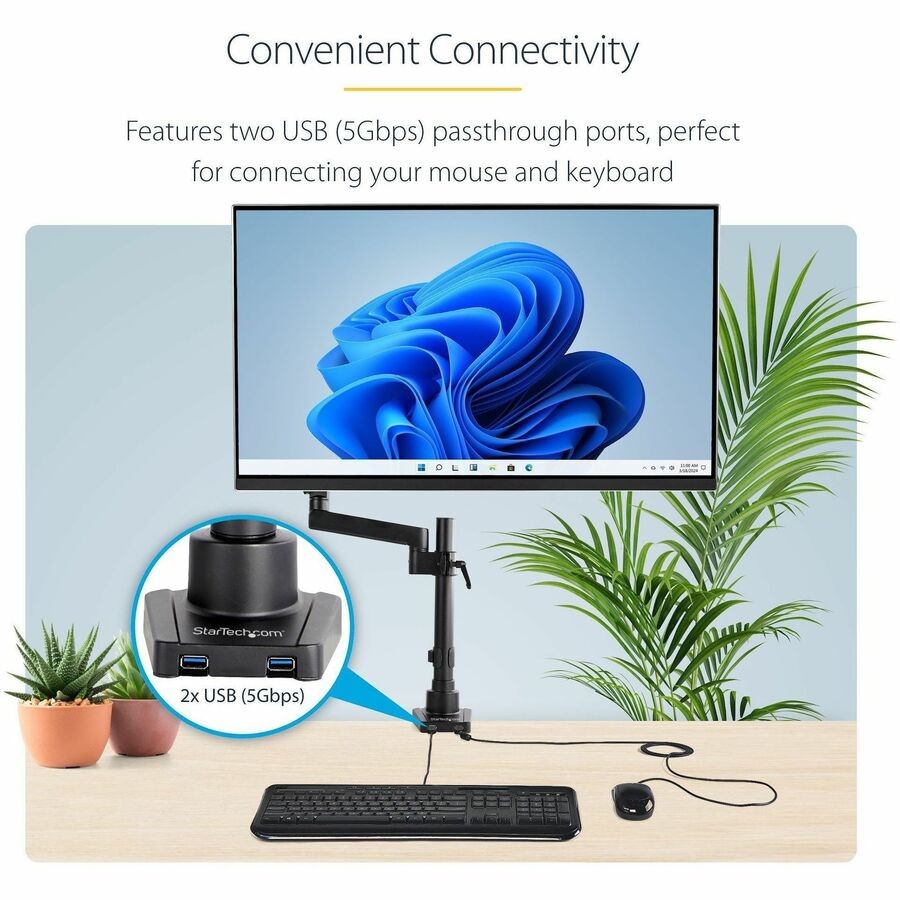

- Integrated 2x USB 3.0 Ports – Convenient passthrough connectivity for peripherals directly from the arm.
- Heavy Duty Aluminum Build – Provides stable support for up to 17.6 lb (8 kg) loads.
- Cable Management & Grommet Support – Includes clips and grommet plate for tidy routing.

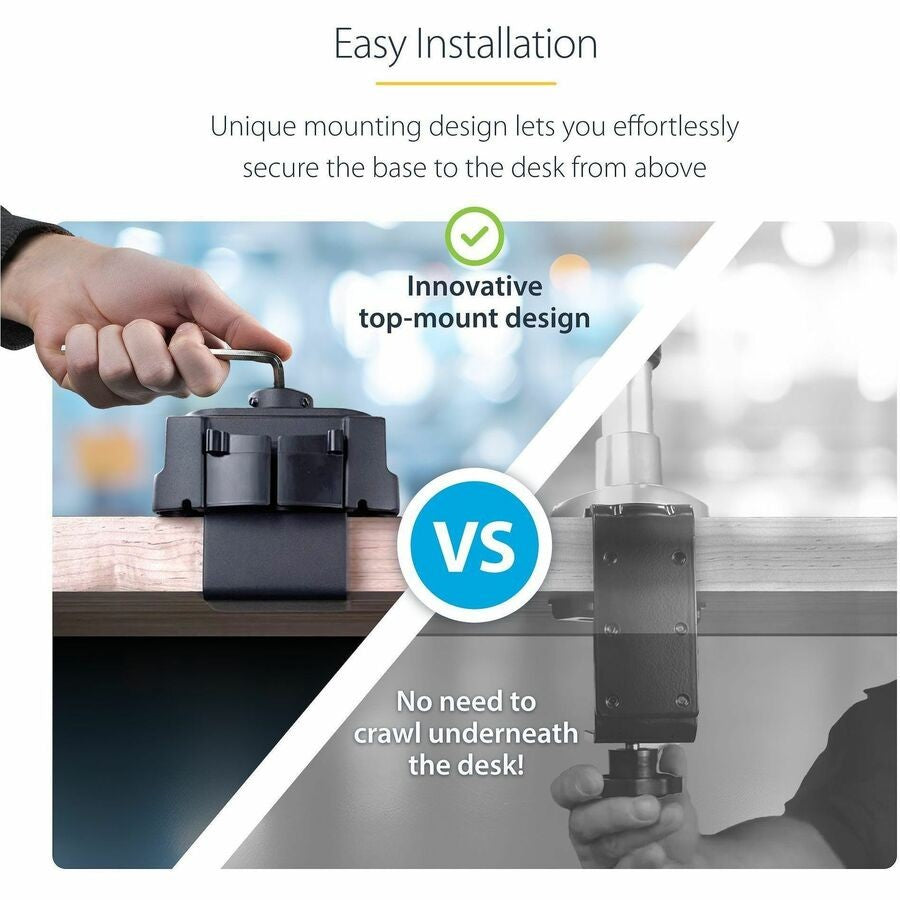

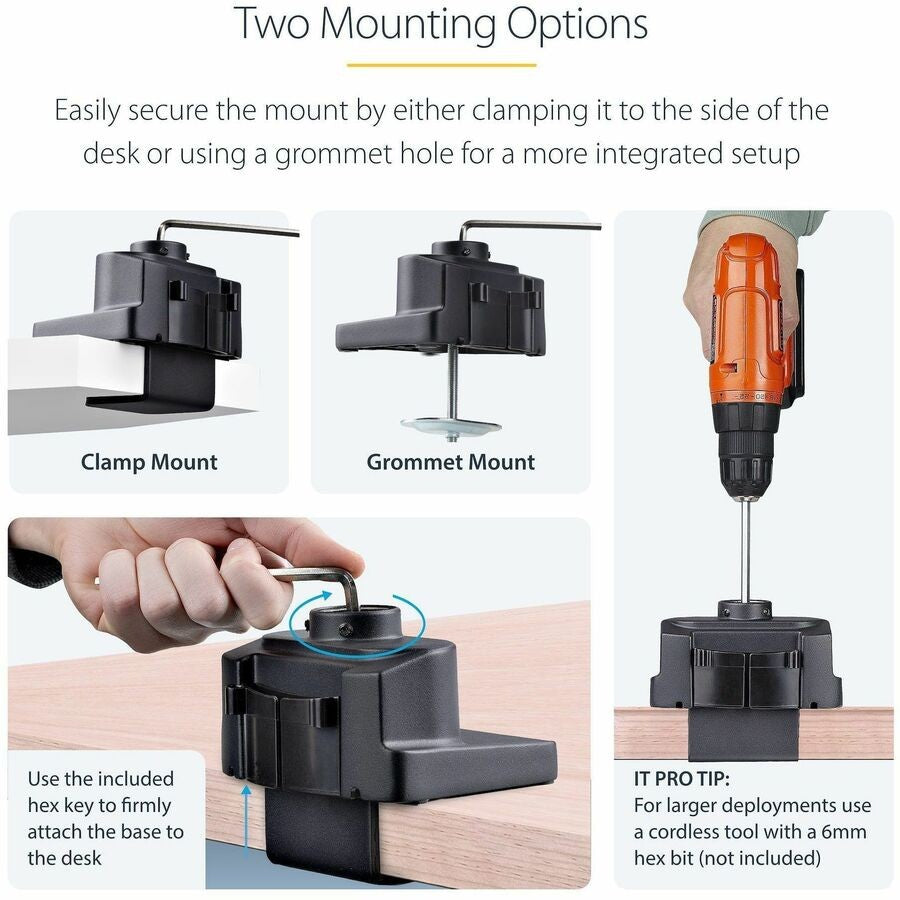

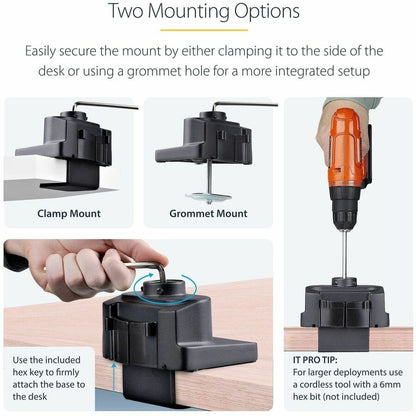

- Dual Mounting Options – Secure C-clamp or grommet installation on desks.
- Ergonomic & Mechanical Spring – Smooth adjustments with tension control for precise positioning.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| MPN / Model / Part Number | ARMPIVOT2USB3 |
| UPC | 065030888349 |
| Product Type | Mounting Arm |
| Device Supported | Monitor / Flat Panel Display |
| Number of Displays Supported | 1 |
| Minimum Screen Size Supported | 17" |
| Maximum Screen Size Supported | 34" |
| Maximum Load Capacity | 17.64 lb (8 kg) |
| Mounting Pattern | 75 x 75 / 100 x 100 |
| Product Material | Aluminum |
| Product Color | Black |

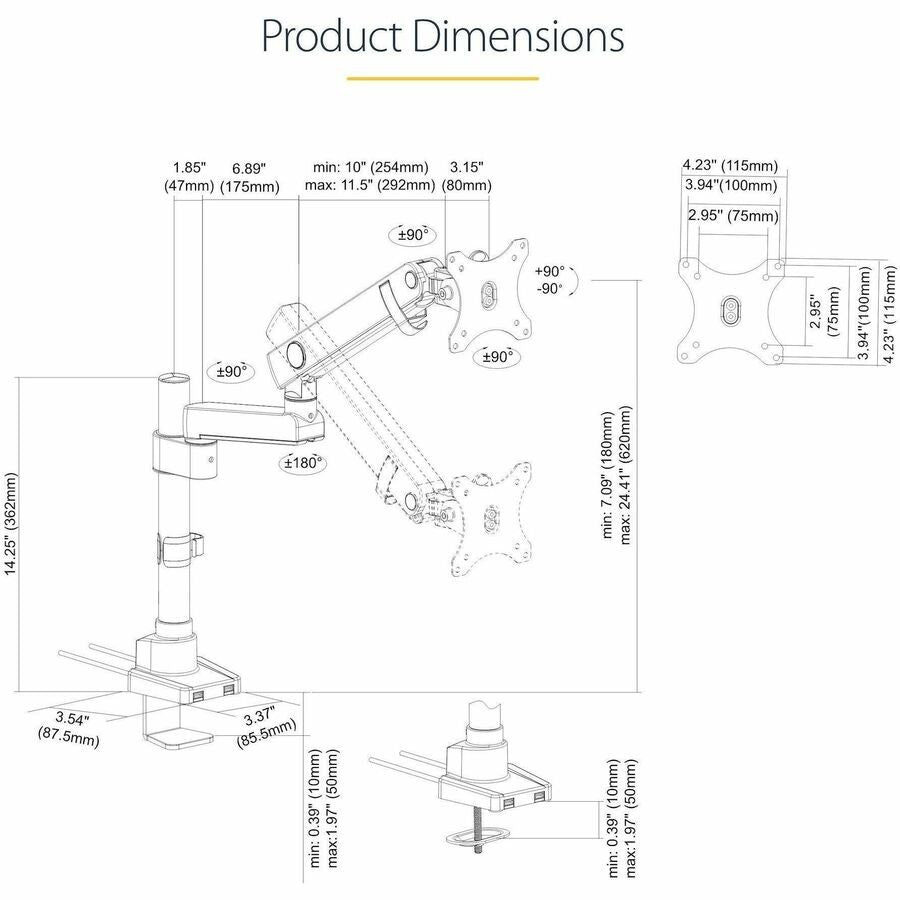

| Product Height | 24.40" (620 mm) |
| Product Width | 1.40" |
| Product Length | 23.40" |
| Product Weight (Approximate) | 7.20 lb (3.26 kg) |
| Arm Extension | 20.2" (514 mm) |
| Height Adjustment Range | Up to 24.4" (620 mm) |
| Pan Adjustment | ±90° |
| Tilt Adjustment | ±90° |
| Rotate Adjustment | ±90° |
| USB Ports | 2 x USB 3.0 (passthrough) |
| Mounting Options | C-Clamp / Grommet |
| Features | Articulating, Ergonomic, Rotate, Swivel, Tilt, Pan, USB Port, Grommet, Full Motion, Heavy Duty, Cable Management, Space Saving Design, Height Adjustable |
| Country of Origin | China |
| Manufacturer Warranty | 2 Years + Free Lifetime Technical Support |
| Environmental Compliance | EU RoHS, REACH (free of SVHC), WEEE |
| Package Weight | 9.20 lb |
| Package Dimensions (HxWxD) | 4.60" x 17.10" x 9.40" |
Complete Package Contents
- Base Assembly
- Lower Arm
- Upper Arm
- Pole
- VESA Plate
- Arm Shoulder
- Tool Holder
- Cable Management Clip
- Grommet Plate
- Grommet Screw
- 3mm Hex Key
- 6mm Hex Key
- M4 x 12mm Screws
- M5 x 12mm Screws
- Washer
Assembly & Adjustment Guide
Assembles with included hex keys and screws. Pro tip: Adjust mechanical spring tension after mounting monitor for balanced movement.
- Secure base via C-clamp or grommet to desk (up to specified thickness).
- Attach pole to base.
- Assemble lower and upper arms with shoulder and tool holder.

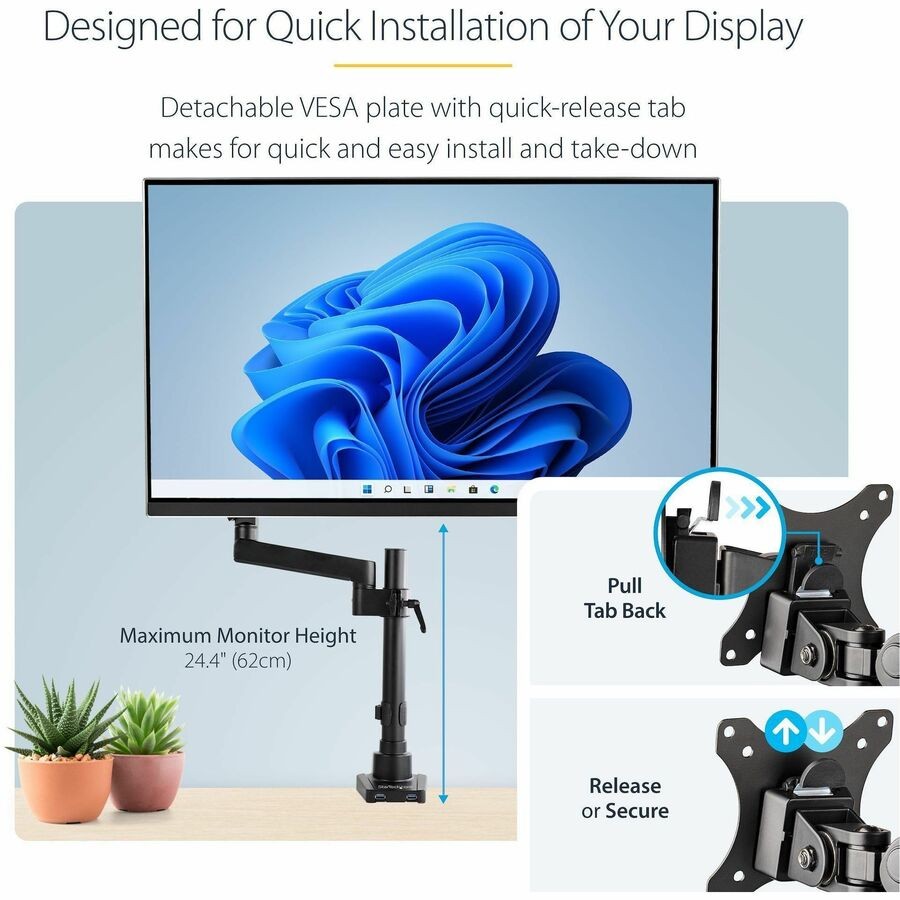

- Mount VESA plate to monitor using M4/M5 screws and washers.
- Connect arms to VESA plate and pole; route cables through clips.
- Tighten joints and test adjustments: pan, tilt, rotate, height, extension.
Why Choose StarTech Desk Mount Monitor Arm
StarTech.com products undergo rigorous compatibility testing for IT professionals since 1985. The ARMPIVOT2USB3 offers reliable performance, 2-year warranty, lifetime technical support, and eco-friendly compliance including EU RoHS and REACH.
Optimize your workspace with the StarTech ARMPIVOT2USB3—Order today!
Brand: StarTech
Type: Mounting Arm
Color: Black
MPN: ARMPIVOT2USB3
Country of Origin: China
Manufacturer Warranty: 2 Years
Number of Monitors: 1
To Fit Screen Size: 32 in
VESA Size: 75x75 mm
Item Height: 24.40 in
Item Width: 1.40 in
Item Length: 23.40 in
UPC: 065030888349
