Description
StarTech.com USB4 Thunderbolt 4 Dock 98W Quad Display HDMI/DP Mac/Win
This is a StarTech.com Universal USB4 & Thunderbolt 4 Docking Station, a Thunderbolt Certified dock supporting 98W Power Delivery and up to quad displays. Engineered for Windows and Mac compatibility, it expands connectivity with multiple HDMI/DP ports, USB ports, 2.5GbE, and SD card reader. MPN: 132N-TB4USB4DOCK; UPC: 065030899277. Ideal for notebooks, tablets, and peripherals in professional workspaces.

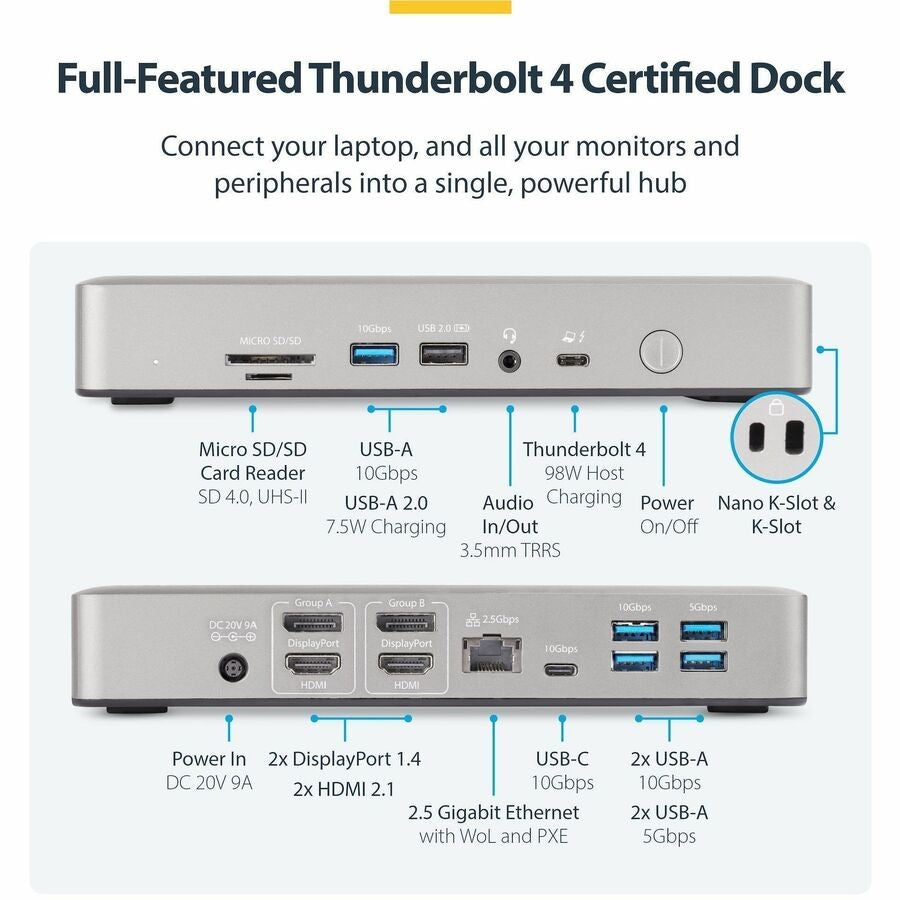

Advanced Connectivity and Productivity Features
- Thunderbolt 4 / USB4 Host – 40Gbps data transfer (5 GB/s), single cable for video/power/data.

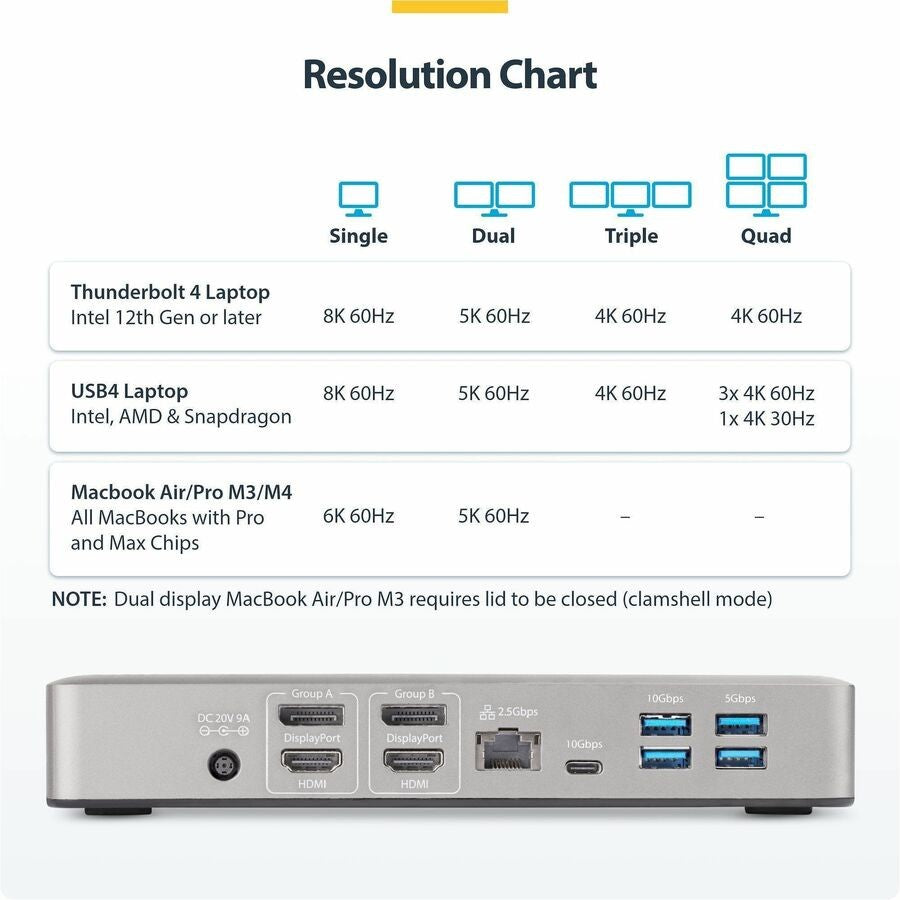

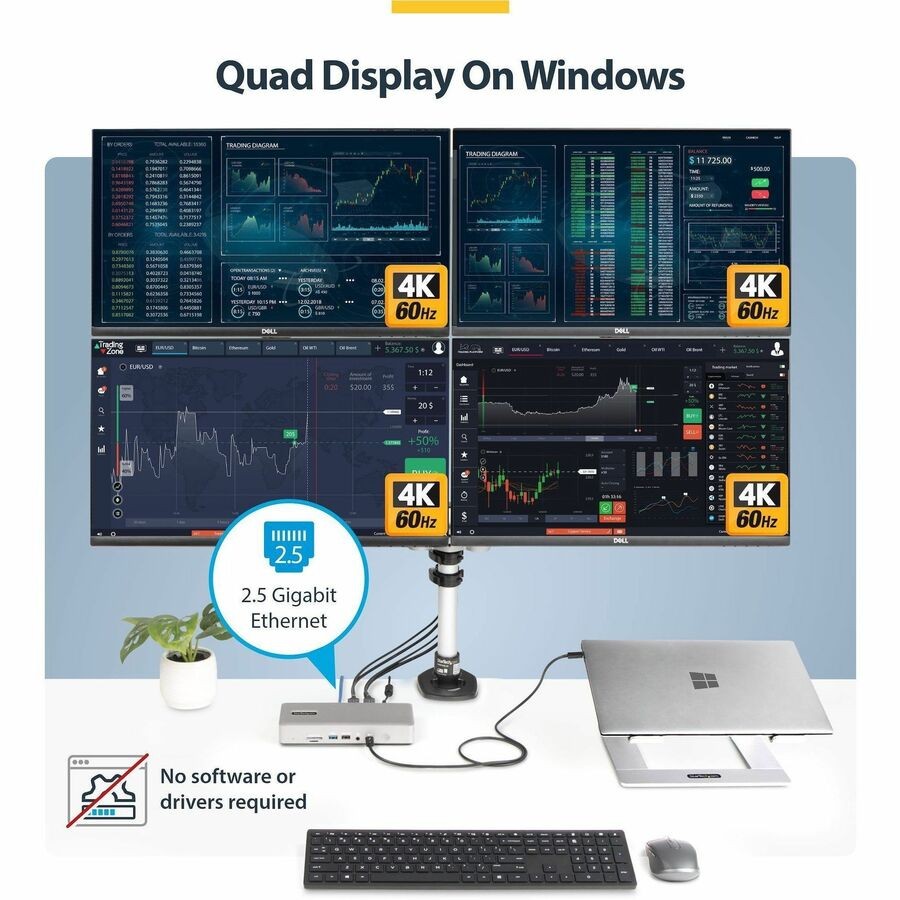

- Multi-Display Support – Up to 4 displays: quad 4K@60Hz (Windows qualified), 8K capable, resolutions 3840x2160 / 7680x4320.

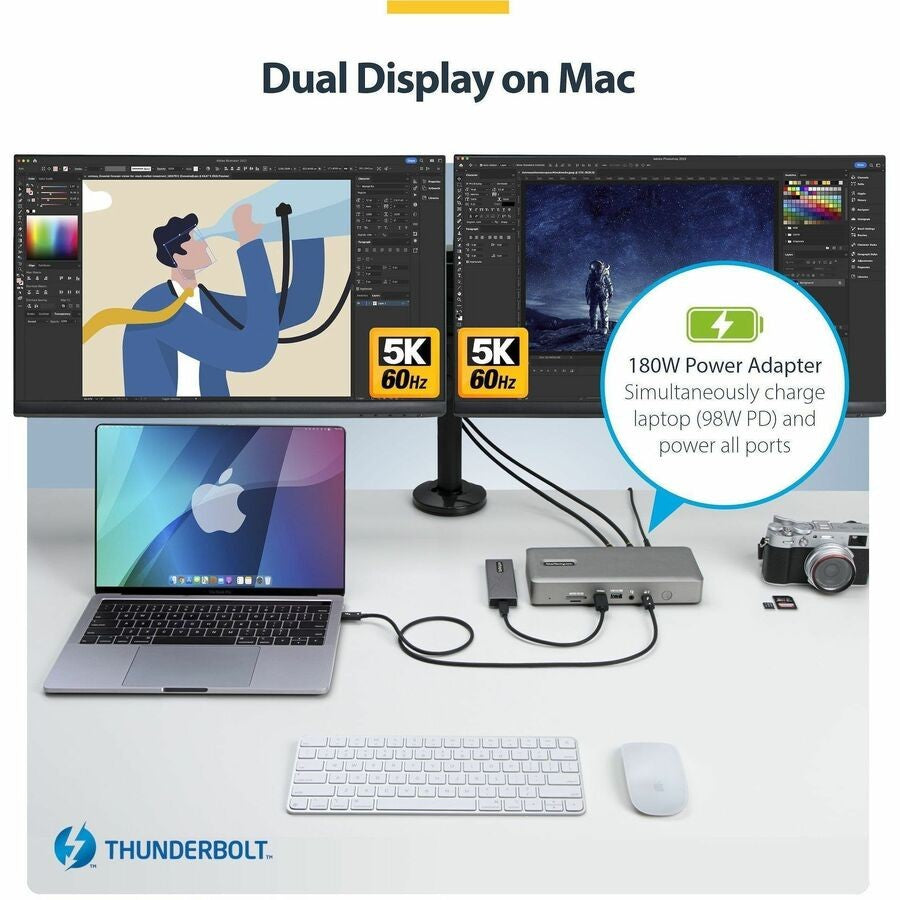

- 98W Power Delivery – Charges laptops via 180W adapter; extra 7W (1.5A BC 1.2) for USB devices like phones/tablets.
- 7 USB Ports – 6x Type-A (3x USB 3.2 Gen 2 10Gbps, 2x Gen 1 5Gbps, 1x USB 2.0), 1x USB-C 3.2 Gen 2 10Gbps.
- Video Outputs – 2x HDMI 2.1, 2x DisplayPort 1.4; 1x downstream Thunderbolt 4 port.
- 2.5 Gigabit Ethernet – RJ-45 port for fast wired networking.
- SD/microSD Card Reader – Supports SD/SDHC/SDXC/microSD/microSDHC/microSDXC/MMC.
- Enterprise Tools – MAC pass-through, PXE Boot, Wake-on-LAN, Wi-Fi auto-switch, USB monitoring; download from StarTech.com.
- Additional – Headset jack, Kensington lock, LED indicator; supports speakers/headsets/monitors/tablets/notebooks/smartphones.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| MPN / Part Number | 132N-TB4USB4DOCK |
| UPC | 065030899277 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Host Interface | Thunderbolt 4 |
| Thunderbolt Ports | 1 x Thunderbolt 4 |
| Total USB Ports | 7 |
| USB Type-A Ports | 6 (3 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 1 x USB 2.0) |
| USB Type-C Ports | 1 x USB 3.2 Gen 2 (10Gbps) |
| RJ-45 Ports | 1 |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| HDMI Outputs | 2 x HDMI 2.1 |
| DisplayPort Outputs | 2 x DisplayPort 1.4 |
| Headphone/Microphone Port | Yes |
| Number of Displays Supported | 4 |
| Screen Modes Supported | 8K, 4K @ 60Hz |
| Supported Resolutions | 3840 x 2160, 7680 x 4320 |
| Maximum Data Transfer Rate | 5 GB/s |
| USB Power Delivery | 98W |
| Power Supply Wattage | 180W |
| Input Voltage | 120 V AC / 230 V AC |
| Cable Length | 3.28 ft (Thunderbolt 4 Host Cable) |
| Memory Card Reader | Yes (microSD, SD, MMC, SDHC, SDXC, microSDHC, microSDXC) |
| Product Color | Space Gray |
| Dock Dimensions (H x W x L) | 1.40" x 8.30" x 3.8" |
| Dock Weight | 7.10 oz (Approximate) |
| Package Dimensions (H x W x D) | 3.60" x 5.80" x 9.20" |
| Package Weight | 2.90 lbs |

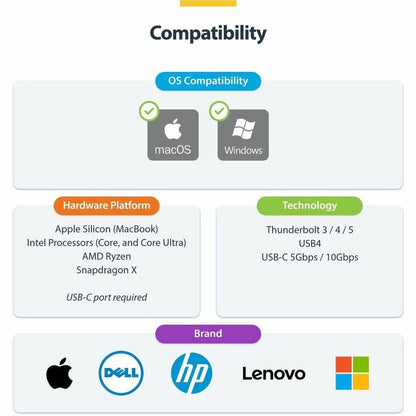

| Operating Systems Supported | Windows 11, Windows 10, macOS Big Sur, macOS Monterey, macOS Ventura, macOS Sonoma, macOS Sequoia 15 |

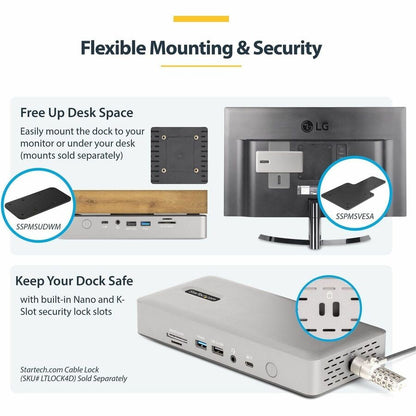

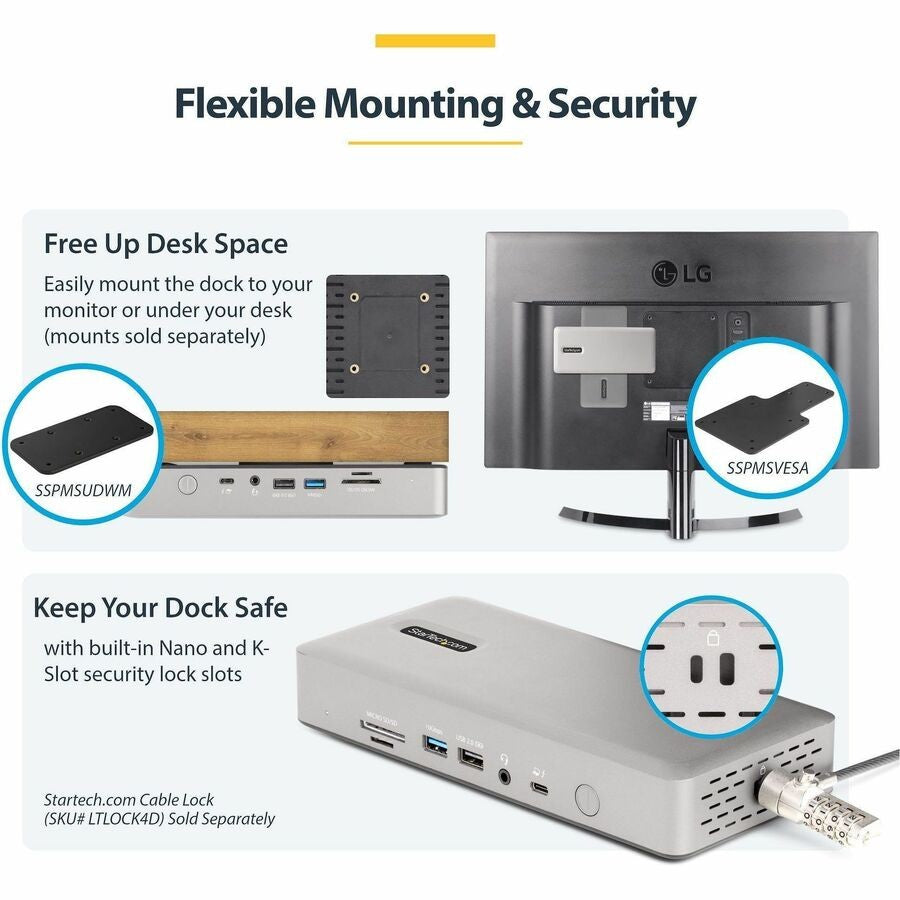

| Security Slot | Kensington Security Slot |
| Environmental Compliance | RoHS, WEEE |

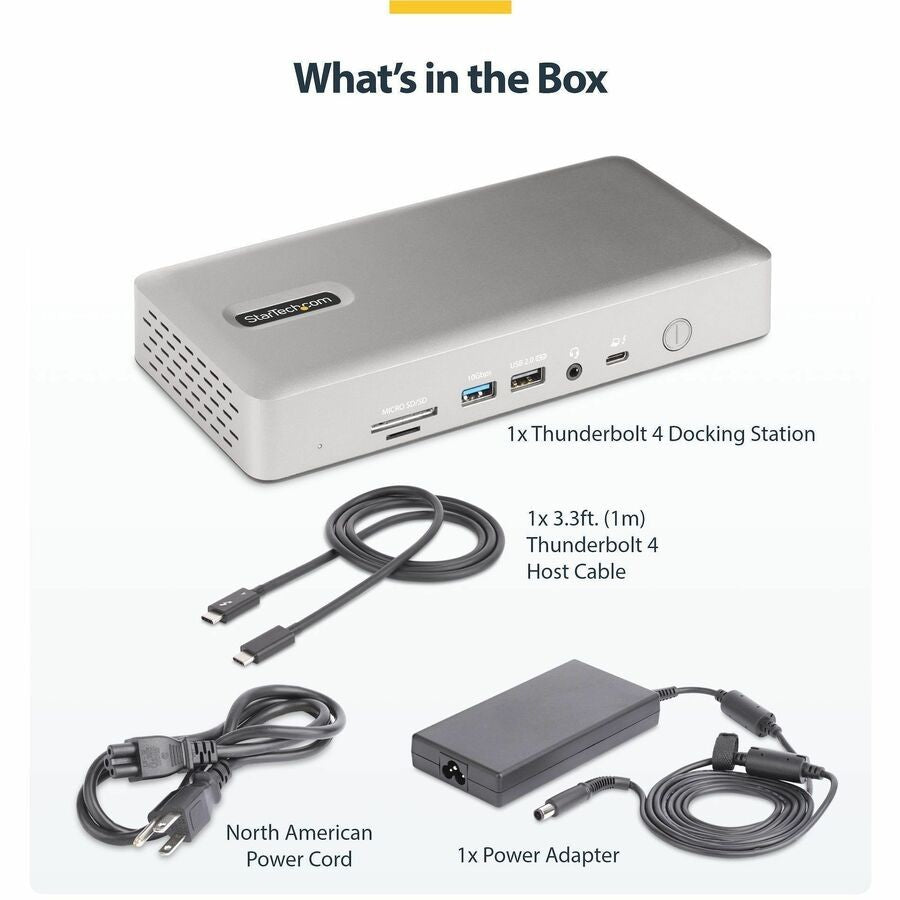

Package Contents and Management Features
- Docking Station
- 1 x 3ft (1m) Thunderbolt 4 Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
Management Features: PXE Boot, Wake-on-LAN, MAC Address Pass-through, LED Power Indicator. StarTech.com Connectivity Tools for device management, Wi-Fi auto-switch, USB monitoring.
Maximize your workspace with StarTech.com USB4 Thunderbolt 4 Docking Station—Order now!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 132N-TB4USB4DOCK
Material: Aluminum
Ports: Audio Out
Compatible Product Line: Universal
Item Height: 1.40 in
Item Width: 8.30 in
Item Length: 3.8 in
UPC: 065030899277
