Description
StarTech.com USB4 Docking Station Dual 4K 60Hz HDMI 6 USB 2.5GbE 100W PD

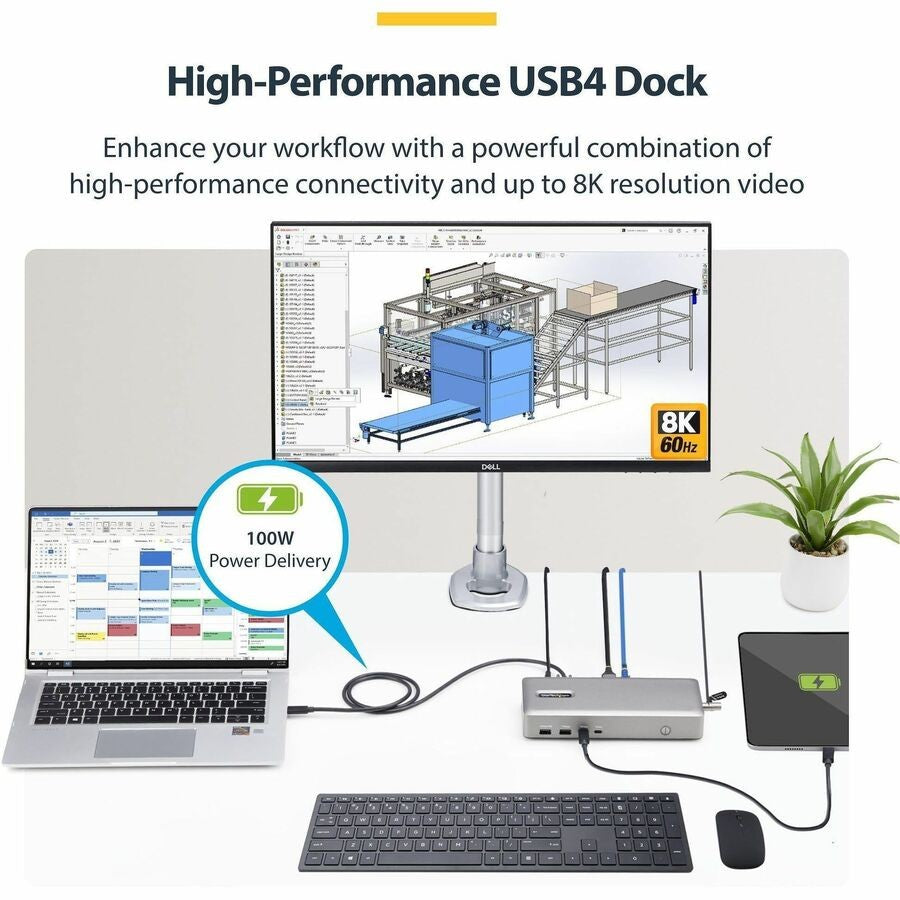

This is a StarTech.com USB4 Docking Station (model 155NA-USB4-DOCK, UPC 065030899673) that connects via a single USB-C 40Gbps or Thunderbolt port to deliver high-performance multi-monitor support, extensive USB expansion, 2.5GbE networking, and 100W power delivery for laptops. Featuring dual HDMI 2.1 outputs for up to dual 4K 60Hz displays, a 6-port USB hub, and a 180W power adapter, this multi-monitor dock enhances productivity for USB4 and Thunderbolt-equipped notebooks, tablets, and workstations.
Key Features of StarTech.com USB4 Docking Station

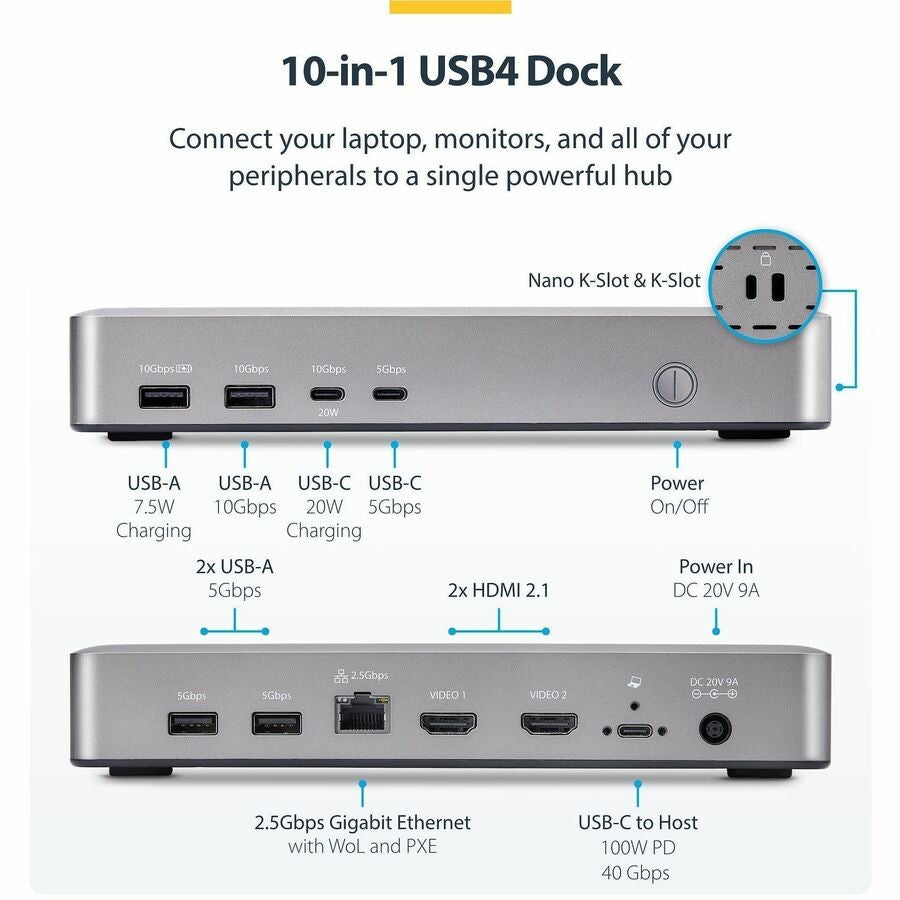

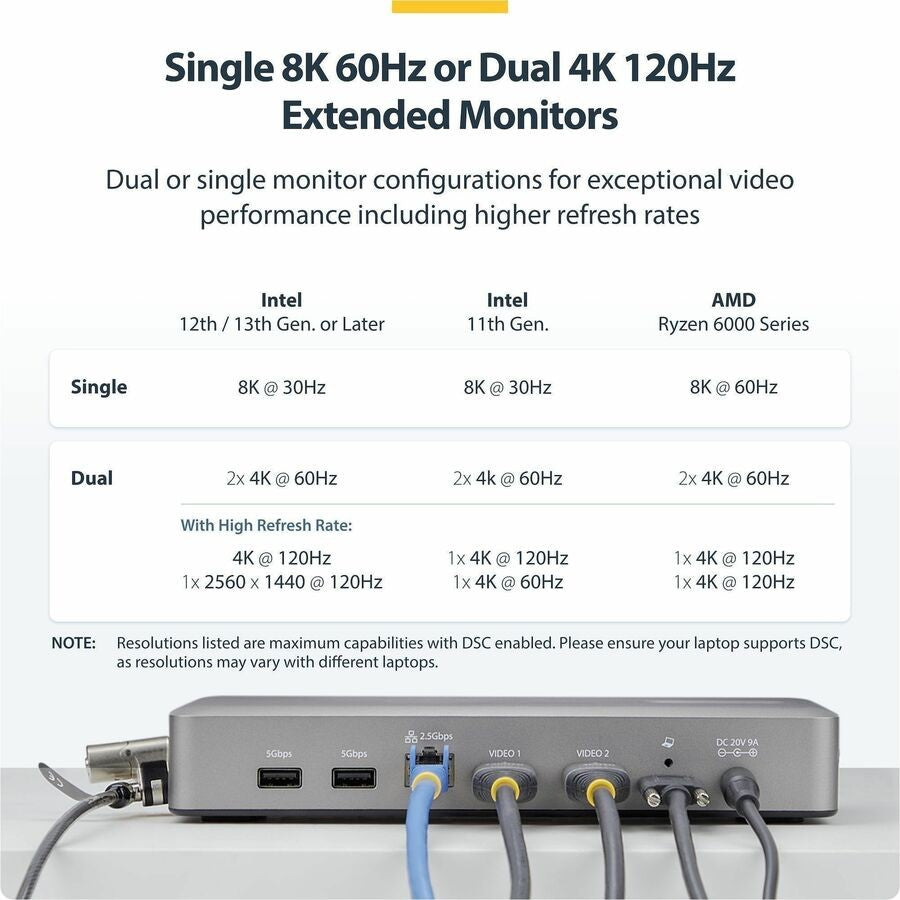

- Flexible High-Performance Video: 2x HDMI 2.1 ports support dual 4K 60Hz at 4:4:4 (RGB), dual 4K 120Hz at 4:2:2, or single 8K 30Hz 4:4:4 / 8K 60Hz 4:2:2.

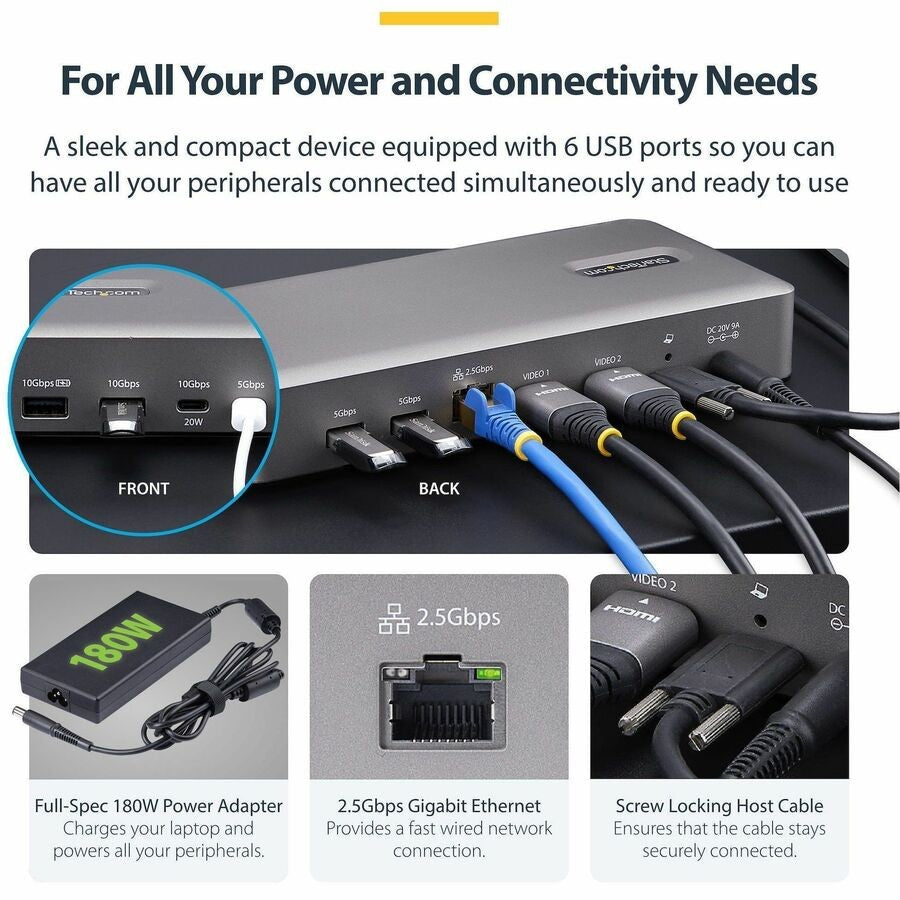

- 6-Port USB Hub: 2x USB-A 10Gbps (USB 3.2 Gen 2), 2x USB-A 5Gbps (USB 3.2 Gen 1), 1x USB-C 10Gbps, 1x USB-C 5Gbps; includes 20W USB-C PD and 7.5W BC 1.2 charging ports.
- 2.5 Gigabit Ethernet: RJ-45 port with PXE boot, Wake-on-LAN (WoL), and MAC Address Pass-through for secure wired LAN connectivity.
- 100W USB Power Delivery: Charges host laptop while powering peripherals; 180W adapter included for full downstream support.
- StarTech.com Connectivity Tools App: Includes Windows Layout Utility, MAC Pass-Through, USB Event Monitoring, Wi-Fi Auto Switch for enhanced management.
- Security & Management: Kensington Security Slot, Power Delivery Pass-through, maximum data transfer rate of 5 GB/s.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 155NA-USB4-DOCK |
| UPC | 065030899673 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Host Interface | USB4 (Thunderbolt 4/3 compatible) |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K, 4K @ 120Hz, 4K @ 60Hz, 8K, 8K @ 30Hz |
| Supported Resolutions | 3840 x 2160, 7680 x 4320 |
| HDMI | Yes, HDMI Version 2.1, 2 Outputs |
| Total Number of USB Ports | 6 |
| USB Type-A Ports | 4 (2x USB 3.2 Gen 2 10Gbps, 1x USB 3.2 Gen 1 5Gbps, 1x USB 3.2 Gen 1 5Gbps) |
| USB Type-C Ports | 2 (1x 10Gbps, 1x 5Gbps) |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Number of RJ-45 Ports | 1 |
| USB Power Delivery | 100W |
| Maximum Power Supply Wattage | 180 W |
| Power Source Type | Power Adapter |
| Product Color | Space Gray |
| Color Family | Gray |
| Form Factor | Desktop |
| Height | 1.30" |
| Width | 8.30" |
| Length | 3.8" |
| Weight (Approximate) | 4.90 oz |

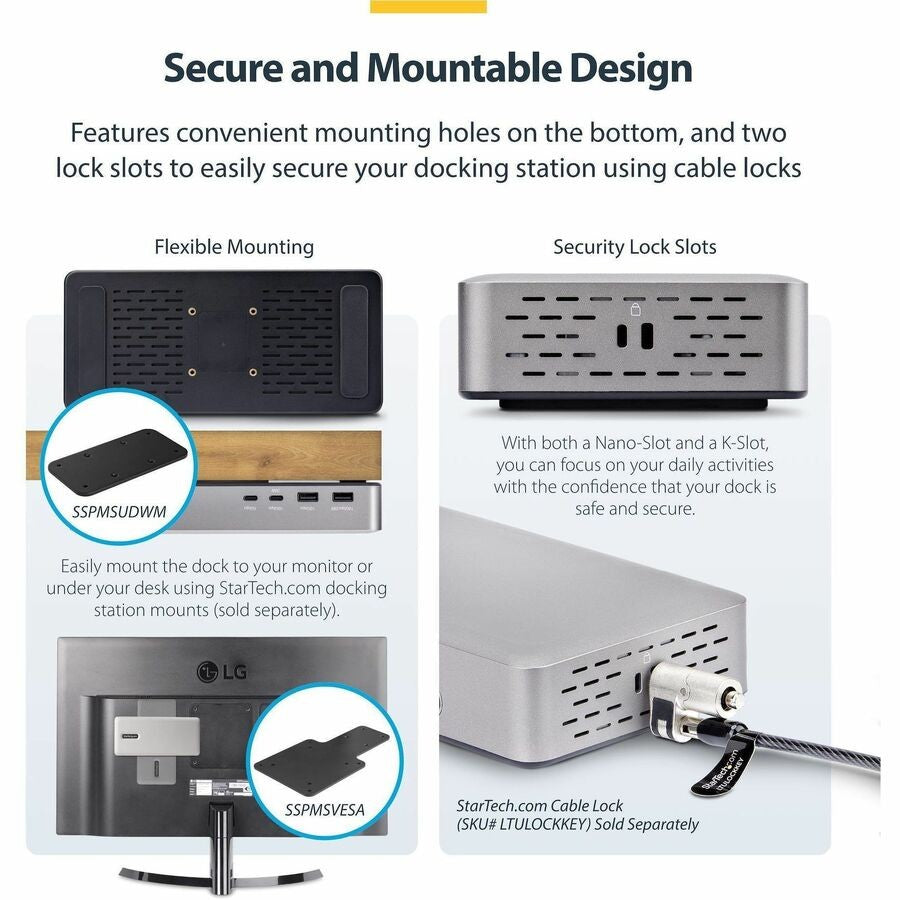

| Security Slot Type | Kensington Security Slot |
| Management Features | PXE Boot, Wake-on-LAN, MAC Address Pass-through |
| Maximum Data Transfer Rate | 5 GB/s |

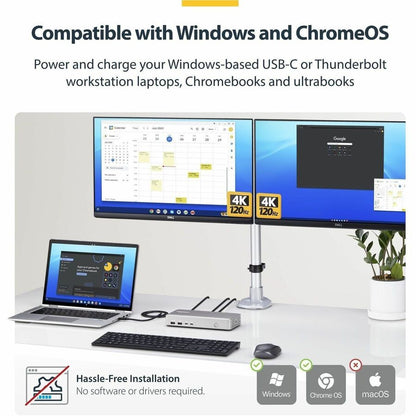

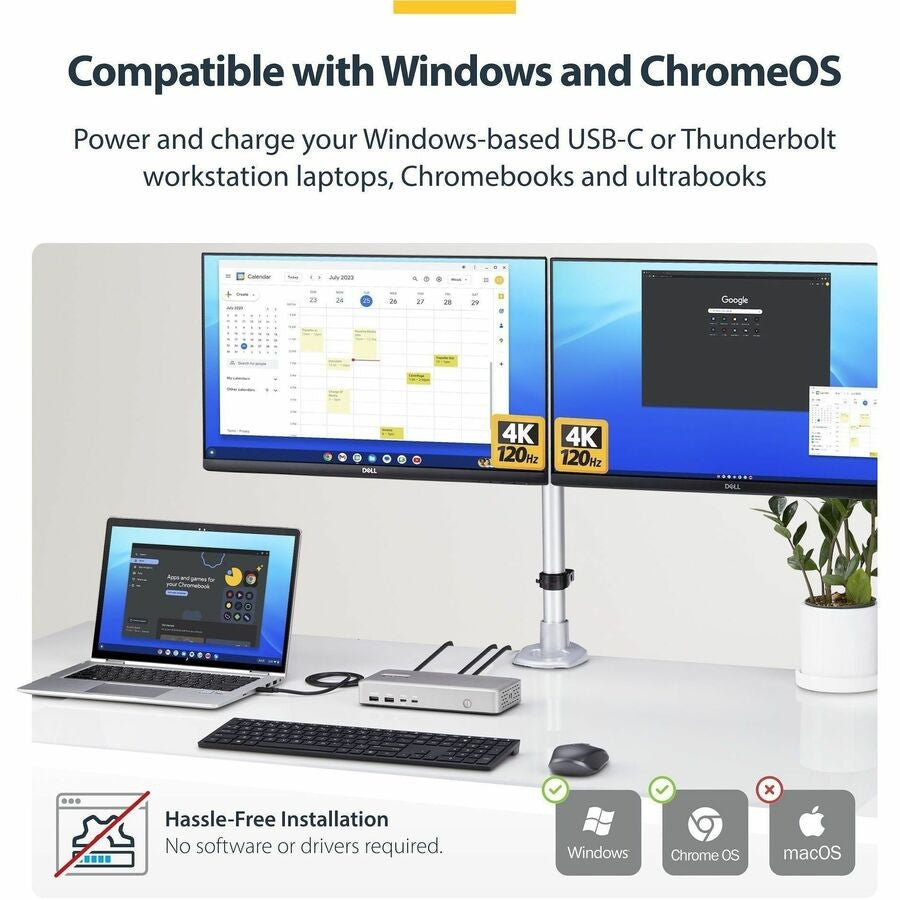

| Operating Systems Supported | Windows 10, Windows 7, Windows 8, ChromeOS, Windows 11 (64-bit) |
| Device Supported | Notebook, Tablet, Smartphone, Monitor |
| Charging Capability | Yes |

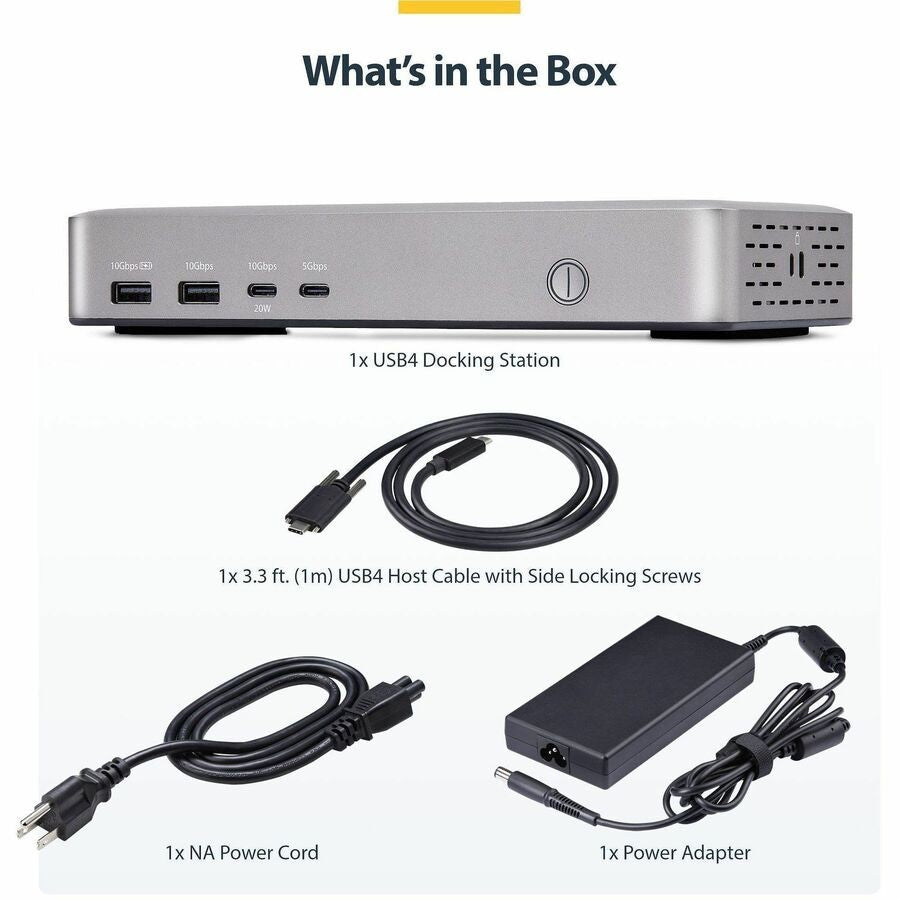

Package Contents & Additional Details
- 155NA-USB4-DOCK USB4 Docking Station
- 1 x 3 ft (1 m) USB4 Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
- Kensington Security Slot compatible
- Environmental Compliance: WEEE
Expand your workstation with the StarTech.com USB4 Docking Station—order now!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 155NA-USB4-DOCK
Material: Aluminum
Ports: HDMI
Compatible Product Line: Universal
Item Height: 1.30"
Item Width: 8.30"
Item Length: 3.8"
UPC: 065030899673
