StarTech.com USB-C Triple-Monitor Adapter Dual 4K 60Hz + 4K 30Hz HDMI DP 100W PD
StarTech.com USB-C Triple-Monitor Adapter Dual 4K 60Hz + 4K 30Hz HDMI DP 100W PD
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com USB-C Triple-Monitor Multiport Adapter, Dual 4K 60Hz + 4K 30Hz HDMI & DP, 4x USB-A, 100W PD Pass-Through, GbE, SD Card Reader
This is a StarTech.com USB-C Triple-Monitor Multiport Adapter, a compact docking station that supports up to three external displays via DP 1.4 Alt Mode and MST, with 1x HDMI 2.0b, 2x DisplayPort 1.4, 4x USB-A ports, Gigabit Ethernet, SD/microSD card readers, and 100W PD pass-through charging through a single USB-C connection. Featuring driverless setup and an integrated 11.8-inch host cable, MPN: 154B-USBC-MULTIPORT, UPC: 065030899499.

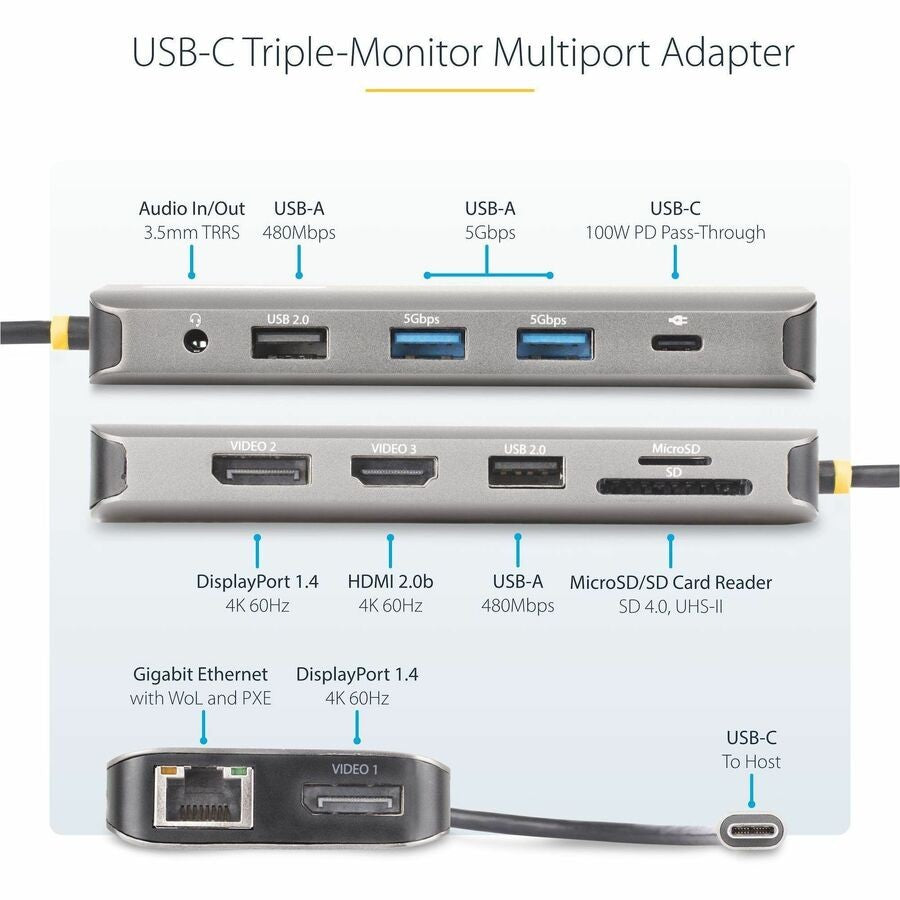

Advanced Triple-Monitor & Expansion Features

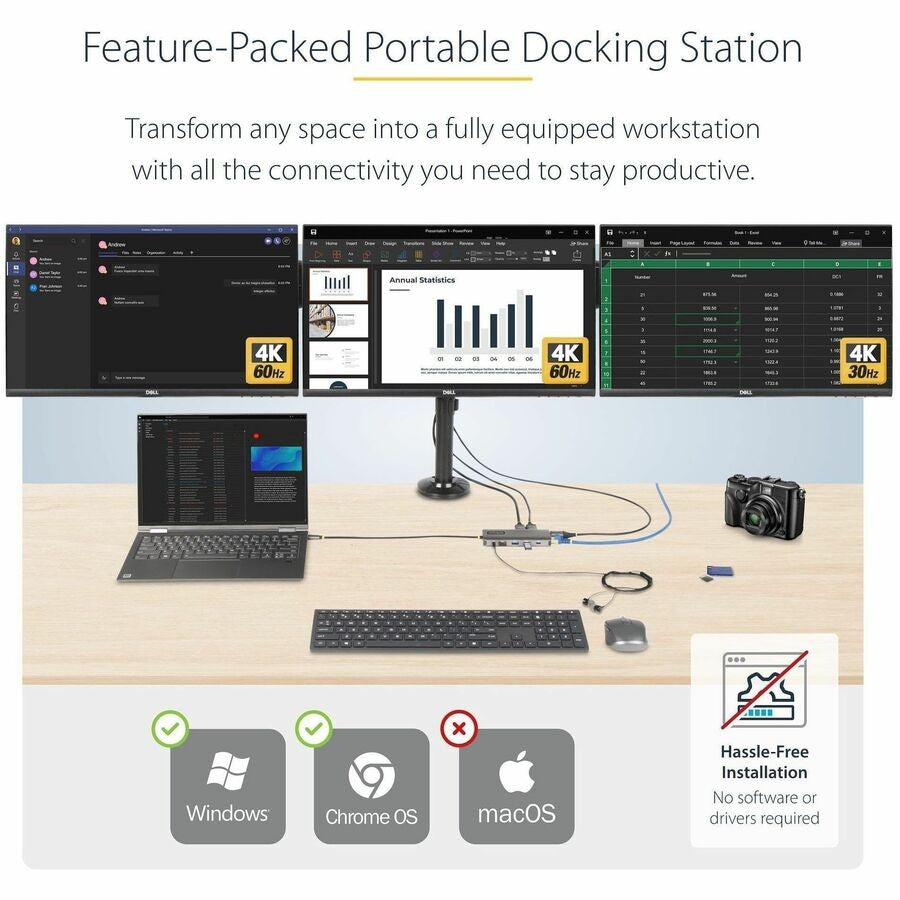

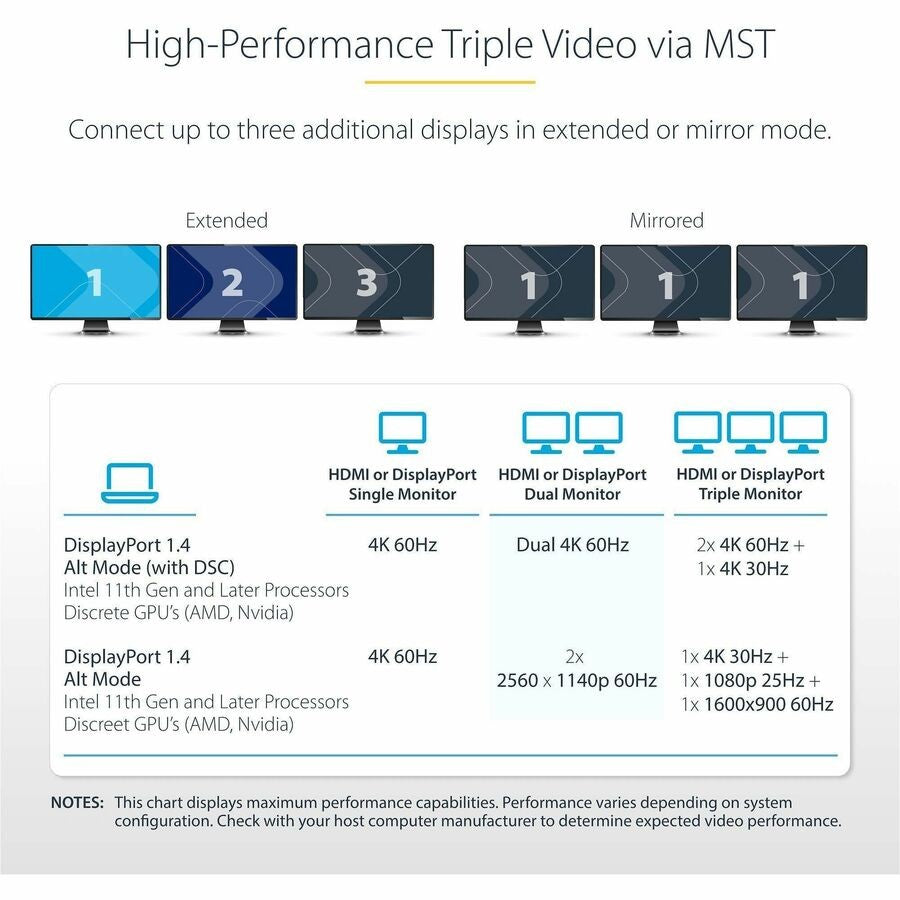

- Triple Video Outputs – 1x HDMI 2.0b + 2x DisplayPort 1.4 for high-performance MST multi-monitor setups utilizing host GPU.
- USB Expansion Hub – 4x USB-A ports (2x USB 3.2 Gen 1 / 5Gbps, 2x USB 2.0) for peripherals, storage, and HID devices.

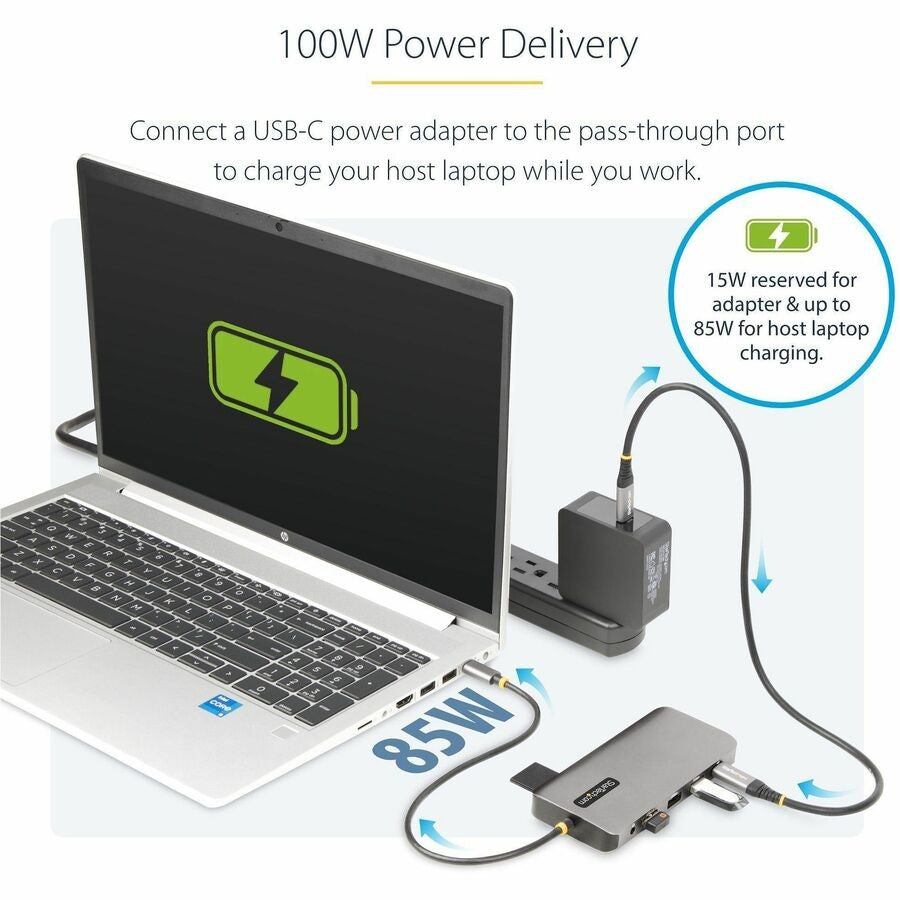

- 100W PD Pass-Through – Dedicated USB-C PD 3.0 port; up to 85W to host laptop (15W reserved for adapter).
- Gigabit Ethernet – RJ-45 port with WoL, PXE Boot, and MAC Address Pass-Through support for reliable wired networking.
- SD/microSD Readers – Supports SD/SDHC/SDXC, microSD/uSD, MMC/miniSD for direct media access.

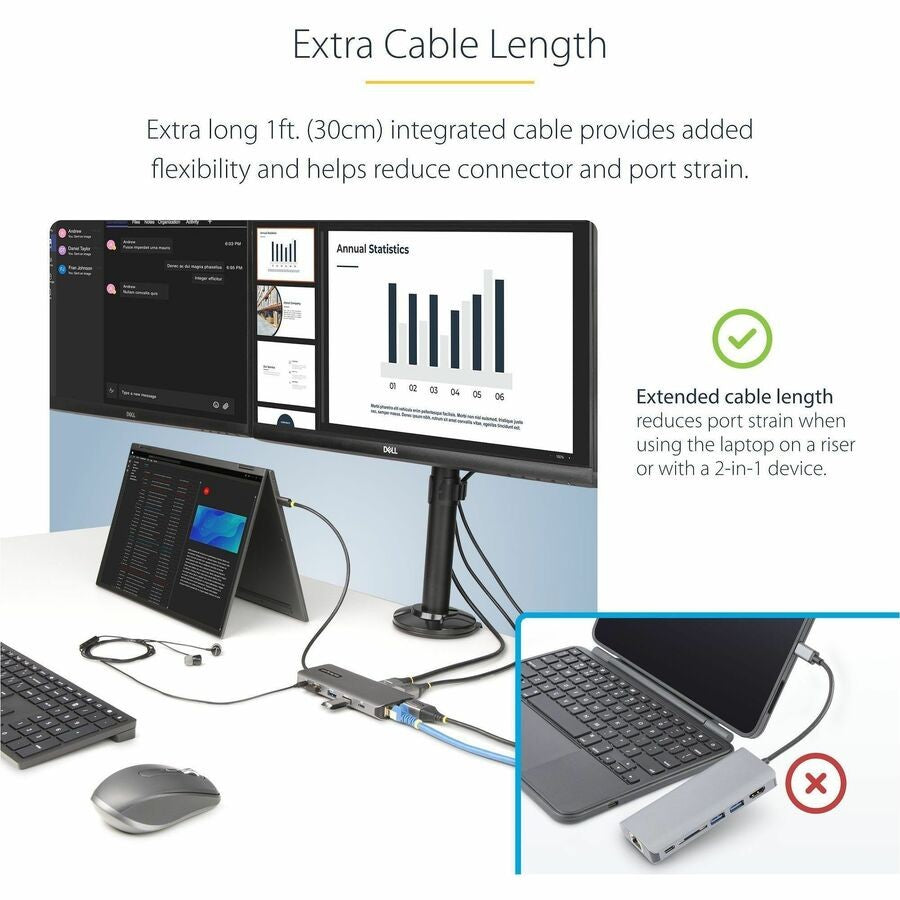

- Durable Design – Aluminum housing, integrated 11.8-inch USB-C host cable with TPE jacket and strain relief; rugged build.
- Audio Support – 3.5mm line-out for headphones.
- StarTech Connectivity Tools – Free app with Windows Layout Utility, MAC Pass-Through, USB Monitoring, Wi-Fi Auto Switch.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 154B-USBC-MULTIPORT |
| UPC | 065030899499 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported | Monitor, Desktop PC, Notebook, Headphone, Card Reader |
| Cable Length | 11.80" |
| Memory Card Reader | Yes |
| Memory Card Supported | SD, microSD, Micro Size MultiMediaCard (MMC), SDHC, SDXC, miniSD |
| Features | Power Delivery Pass-through |
| Management Features | PXE Boot, Wake-on-LAN, MAC Address Pass-through |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 4K @ 60Hz, 4K UHD |
| Supported Resolutions | 3840 x 2160 |
| Maximum Data Transfer Rate | 640 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Host Interface | USB 3.2 (Gen 1) Type C |
| Audio Line Out | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 2 |
| Number of USB Type-A Ports | 4 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 1 |
| USB Type-C Detail | 1 x USB Type-C (24 pin) USB Power Delivery Only, 1 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| Number of RJ-45 Ports | 1 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| Number of DisplayPort Outputs | 2 |
| HDMI | Yes |
| HDMI Version | 2.0b |
| Number of HDMI Outputs | 1 |
| USB Power Delivery | 100W |
| Operating System Supported | Windows 10, Windows 11, Windows 8.1, ChromeOS 78.x |
| Power Source Type | Power Adapter |
| Rugged | Yes |
| Product Color | Space Gray |

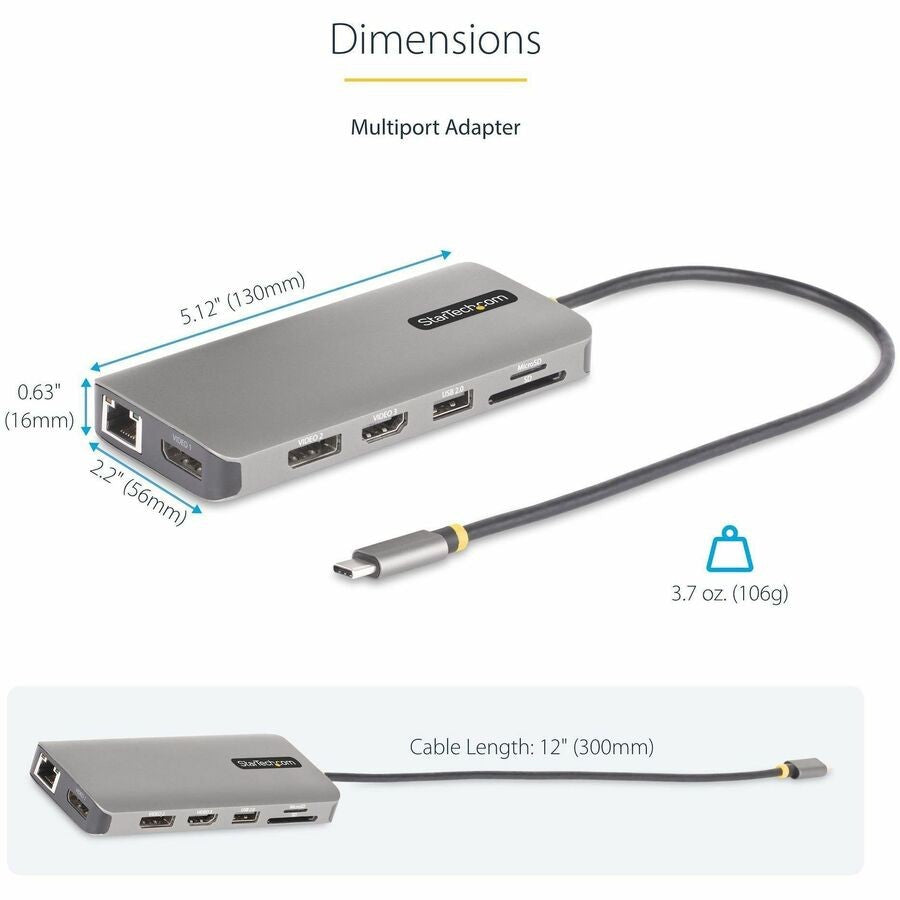

| Height | 0.60" |
| Width | 2.20" |
| Weight (Approximate) | 3.70 oz |
| Package Contents | Docking Station, 1 x Quick-Start Guide |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
Simple Plug-and-Play Installation
Driverless setup for supported OS; no software required for basic operation.
- Connect the built-in 11.8-inch USB-C host cable to your compatible laptop's USB-C or Thunderbolt 3/4 port.
- Attach monitors to HDMI and DisplayPort outputs, peripherals to USB-A ports, Ethernet cable to RJ-45, and insert SD/microSD cards as needed.
- Plug a USB-C PD charger (100W recommended) into the pass-through PD port to power the host.
- Configure displays via host OS display settings; download StarTech Connectivity Tools app for advanced features.
Why Choose StarTech.com USB-C Triple-Monitor Adapter
Enhance productivity with versatile connectivity, durable aluminum construction, and tools for optimized performance and security on Windows and ChromeOS systems.
Boost your setup with the StarTech.com USB-C Triple-Monitor Multiport Adapter—Order now!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 154B-USBC-MULTIPORT
Material: Aluminum
Ports: Audio Out
Item Height: 0.60"
Item Width: 2.20"
UPC: 065030899499
