StarTech.com USB-C Triple 4K Docking Station 116N-USBC-DOCK
StarTech.com USB-C Triple 4K Docking Station 116N-USBC-DOCK
Low stock: 5 left
Save 11%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

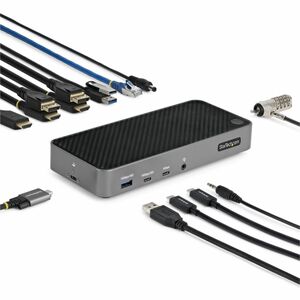

StarTech.com USB-C Triple Monitor Docking Station - Triple 4K HDMI/DP USB-C Dock - 5x USB Hub - GbE - 100W PD - Universal / Multi Monitor
This is a USB-C Triple 4K Monitor Docking Station from StarTech.com, model 116N-USBC-DOCK, enabling wide workstation flexibility with USB-C or Thunderbolt 3/Thunderbolt 4 laptops and support for multiple Ultra HD 4K DisplayPort and HDMI monitor combinations. It features an integrated DisplayLink graphics controller combined with the host's DP Alt Mode USB-C port for three independent 4K displays, plus 100W Power Delivery, Gigabit Ethernet, and five USB ports. UPC: 065030896061.
Key Features & Capabilities

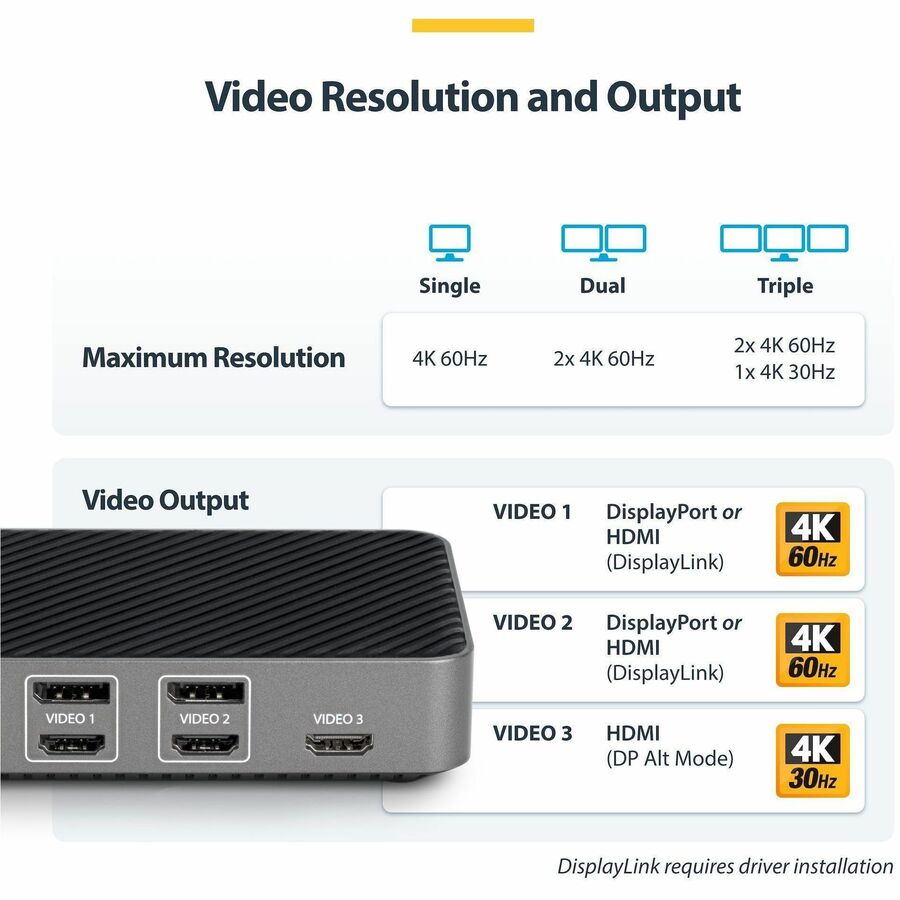

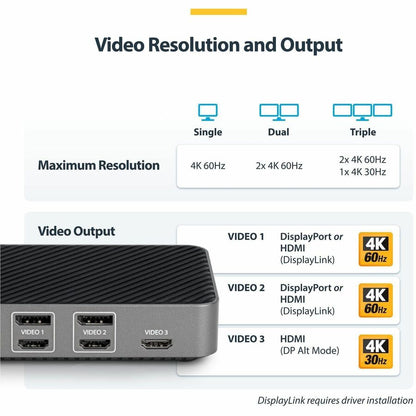

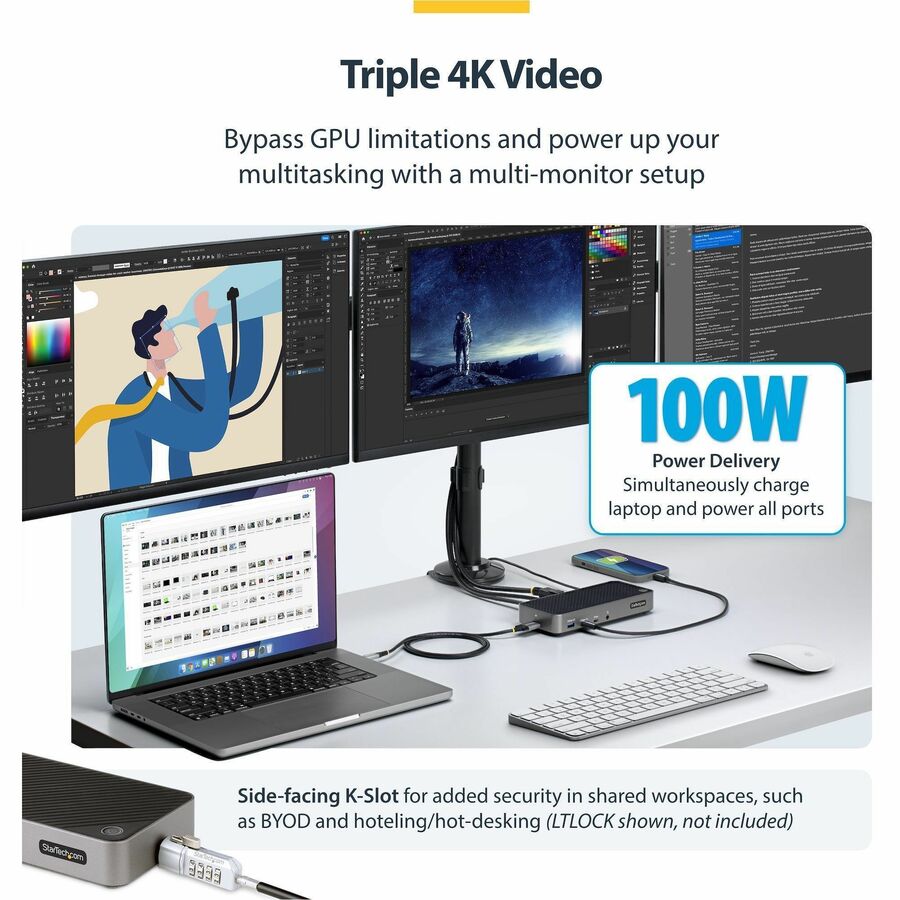

- Triple 4K Video Support: Video Ports 1-2 (DisplayLink) for HDMI/DP up to 4K 60Hz; Video Port 3 (DP Alt Mode) HDMI up to 4K 30Hz; resolutions 3840x2160, 4096x2160; also supports 2K.

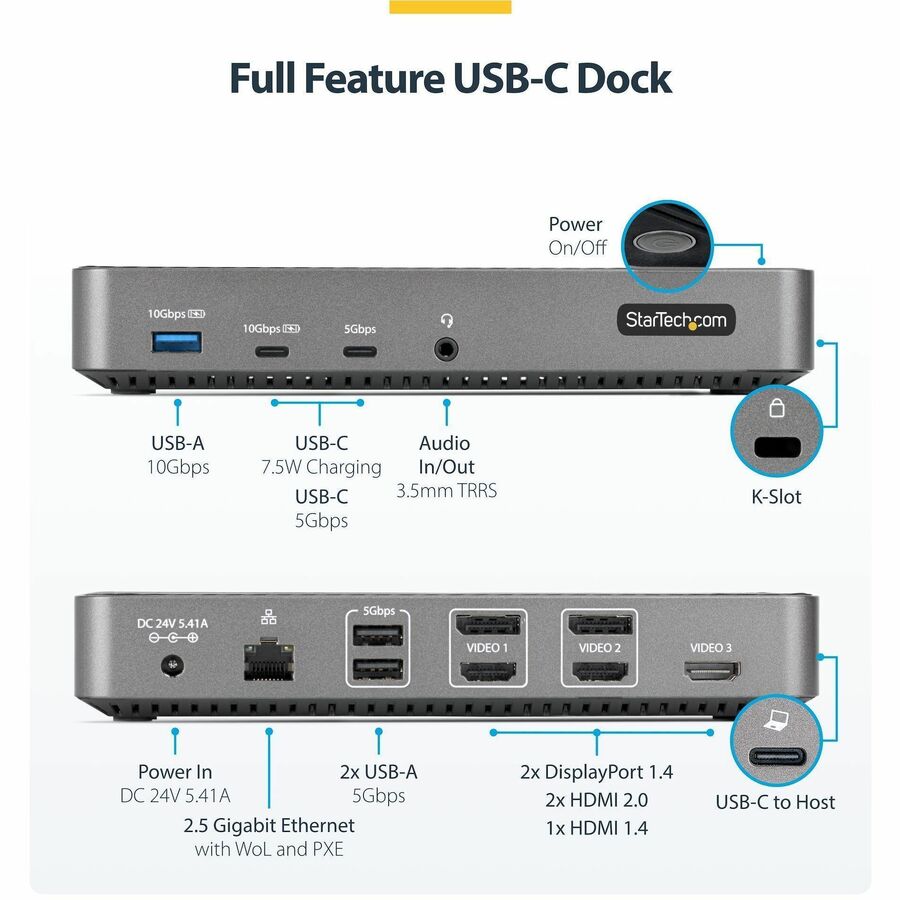

- USB Expansion Hub: 5x USB ports including 3x USB-A (1x USB 3.2 Gen 2 10Gbps with BC 1.2 7.5W charging, 2x USB 3.2 Gen 1 5Gbps), 2x USB-C (1x Gen 1 5Gbps, 1x Gen 2 10Gbps with charging); Overcurrent Protection (OCP).
- Connectivity Ports: 1x Gigabit Ethernet RJ-45 with Wake-on-LAN (WoL), 1x 3.5mm TRRS headphone/microphone combo jack, 2x DisplayPort 1.4, 3x HDMI 2.0, Thunderbolt compatible.
- 100W USB Power Delivery: Charges host laptop and peripherals via included power adapter (100-240V AC input).
- Security & Software: Side-facing Kensington K-Slot; StarTech.com Connectivity Tools app (Windows Layout Utility, Mac Address Pass-Through, USB Event Monitoring, Wi-Fi Auto Switch).
- Build & Design: Space Gray finish; compact form factor; environmentally friendly (WEEE compliant); 3-year warranty with lifetime 24/5 technical support.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number / MPN | 116N-USBC-DOCK |
| UPC | 065030896061 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Device Supported | Notebook, Monitor, Tablet, Workstation |
| Number of Displays Supported | 3 |
| Screen Mode Supported | 4K, 2K |
| Supported Resolutions | 3840 x 2160, 4096 x 2160 |
| Ethernet Technology | Gigabit Ethernet |
| Host Interface | USB 3.2 (Gen 2) Type C |
| Total Number of USB Ports | 5 |
| Number of USB Type-A Ports | 3 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 1 |
| Number of USB Type-C Ports | 2 |
| USB Type-C Detail | USB-C port must support USB Power Delivery 2.0 |
| Number of RJ-45 Ports | 1 |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Number of HDMI Ports | 3 |
| HDMI Version | 2.0 |
| Headphone/Microphone Combo Port | Yes |
| Thunderbolt | Yes |

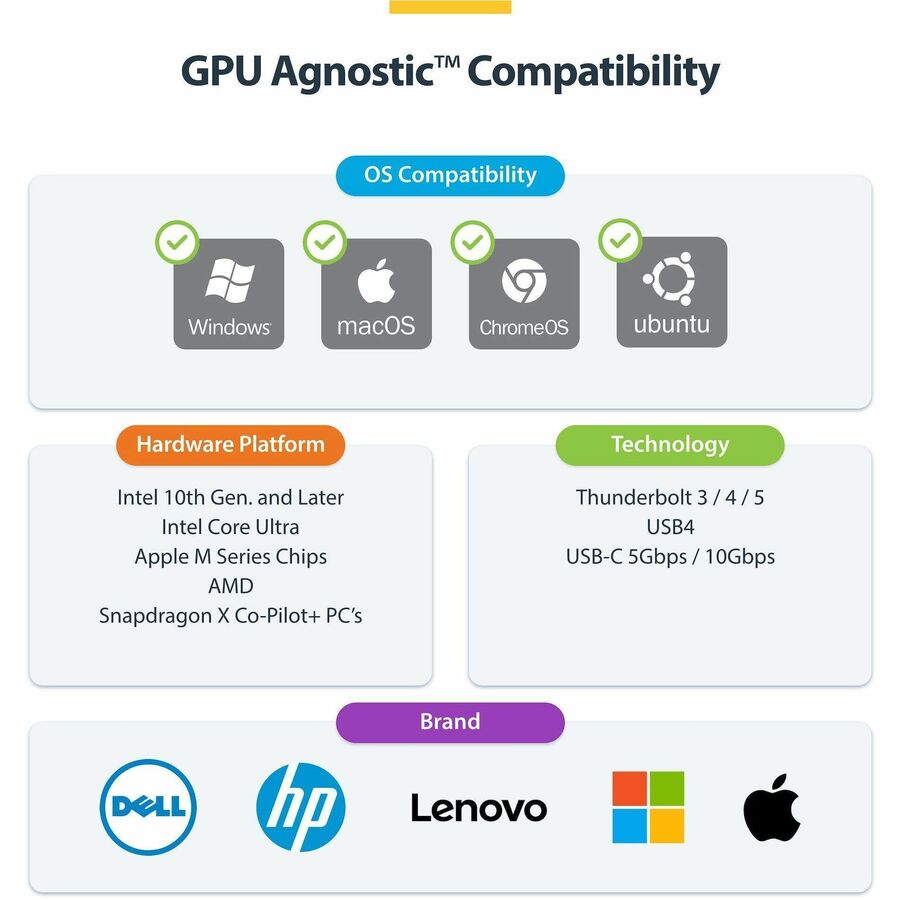

| Operating Systems Supported | Windows 7/8/8.1/10/11, macOS 10.11 El Capitan/10.12 Sierra/10.14 Mojave/10.15 Catalina/Big Sur/Monterey, ChromeOS, Android, Ubuntu |
| Maximum Power Supply Wattage | 100 W |
| Power Source Type | Power Adapter |
| Power Supply Input Voltage | 100 - 240 AC |
| Product Color | Space Gray |
| Height | 1.20" |
| Width | 3.30" |
| Weight (Approximate) | 12.40 oz |
| Kensington Security Slot | Yes |
| Country of Origin | China |
| Warranty | 3 Years |

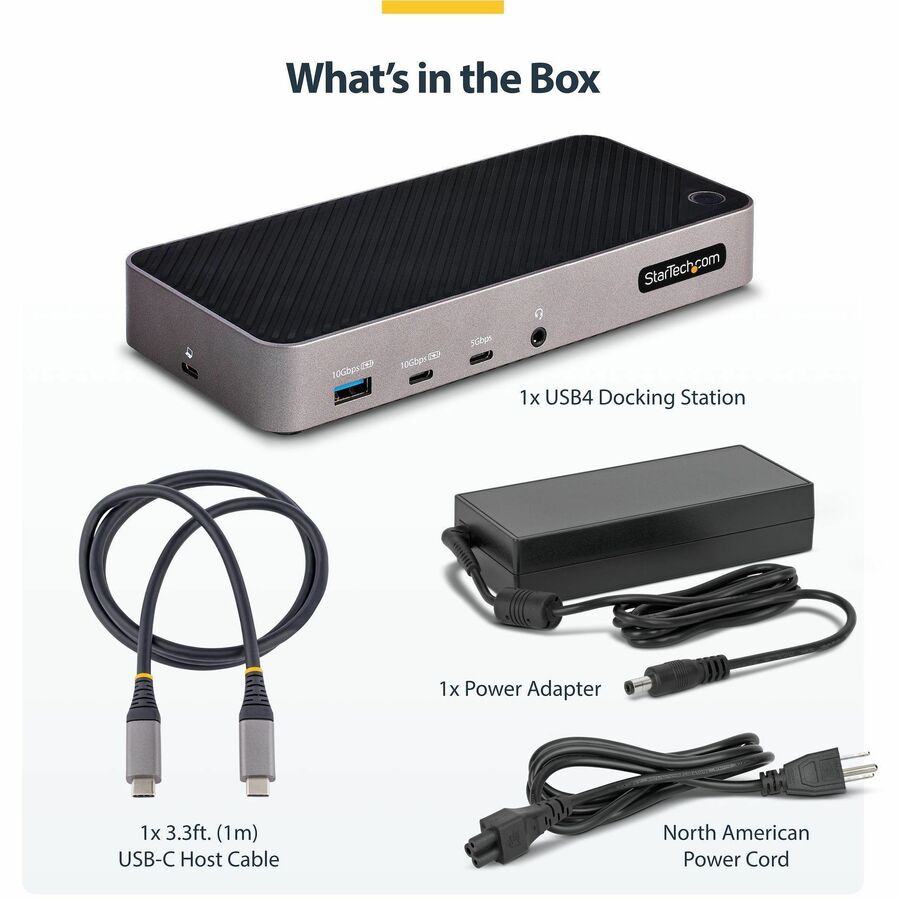

Package Contents & Deployment
- Docking Station
- 1 x 3.3 ft (1 m) USB-C Host Cable
- 1 x Power Adapter (North America)
- 1 x Quick-Start Guide
Connect the dock to your USB-C host using the included 1m cable for immediate multi-monitor and peripheral expansion across supported operating systems.
Why Choose StarTech.com 116N-USBC-DOCK
This full-featured universal docking station expands laptop capabilities with triple-4K video, robust USB charging and data ports, Gigabit LAN, audio support, and enterprise-grade tools for productivity and security in office or hot-desking environments.
Expand your workstation with StarTech.com USB-C Triple 4K Docking Station—order 116N-USBC-DOCK now!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 116N-USBC-DOCK
Material: Aluminum
Country of Origin: China
Manufacturer Warranty: 3 Years
Ports: Audio Out
Compatible Product Line: Universal
UPC: 065030896061
