Description
StarTech.com USB C Multiport Adapter, Dual HDMI, 4K 60Hz, 2x 5Gbps USB-A Hub, 100W Power Delivery, GbE, SD/MicroSD, USB C Mini Dock
This is a StarTech.com USB Type-C Multiport Adapter and portable docking station (MPN: 120B-USBC-MULTIPORT; UPC: 065030895576) that supports dual-HDMI video up to 4K 60Hz via DP 1.4 Alt Mode with DSC and MST. It connects laptops to two HDMI monitors, USB peripherals, Gigabit Ethernet, SD/microSD cards, and provides 100W USB Power Delivery pass-through through a single USB-C or Thunderbolt 3/4 connection with an integrated 12-inch (30 cm) host cable.

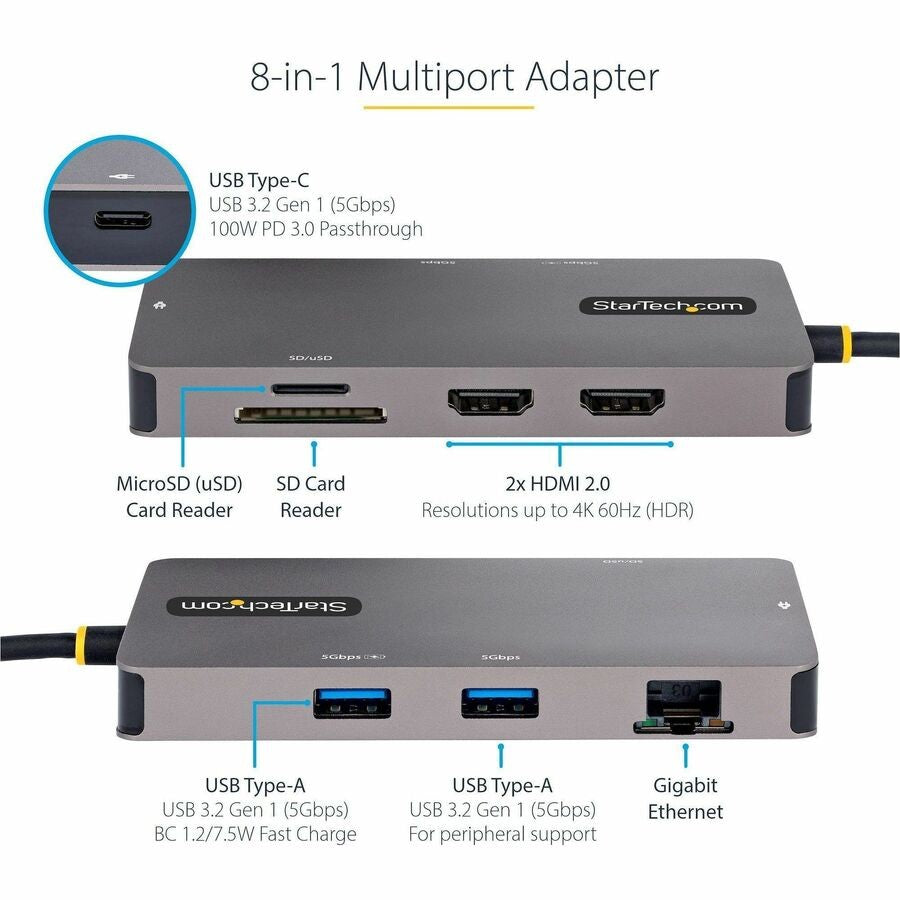

High-Performance Dual-HDMI USB-C Multiport Dock Features
- Dual HDMI 2.0 Outputs – Up to uncompressed 4K (3840x2160)@60Hz on two displays (host-dependent); supports HDR and ultrawide monitors.
- 2x USB 3.2 Gen 1 Type-A Ports (5Gbps) – Includes BC 1.2 fast-charge port for peripherals.

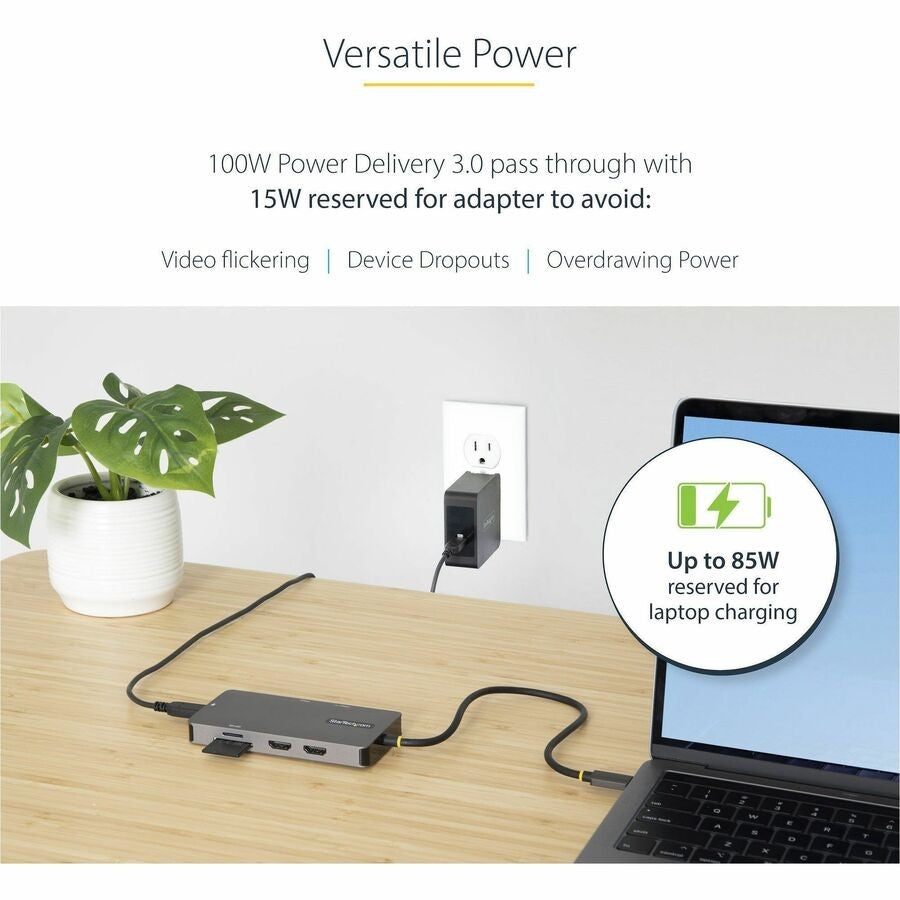

- 100W USB PD 3.0 Pass-Through – Charges laptop via separate USB-C power adapter on dock.
- Gigabit Ethernet (RJ-45) – Stable wired network connection.
- SD/microSD Card Readers – Supports SD/SDHC/SDXC and microSD.

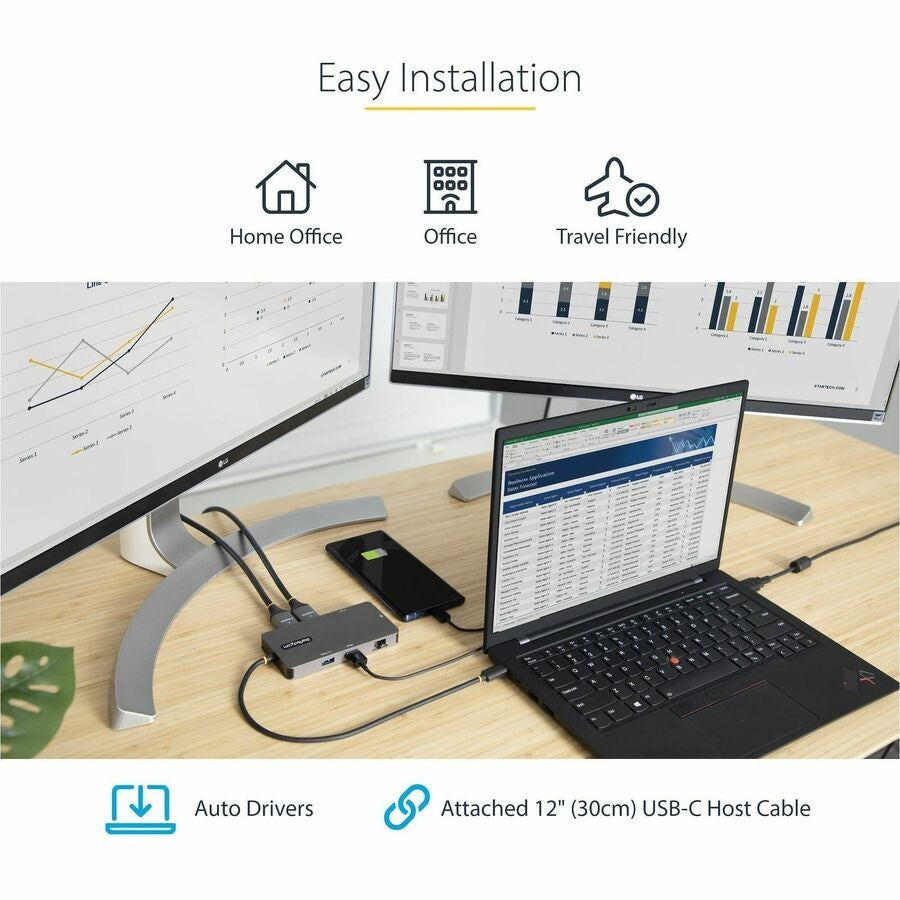

- Portable Design – Space Gray, lightweight with built-in 12-inch USB-C host cable; bus-powered or with PD adapter.

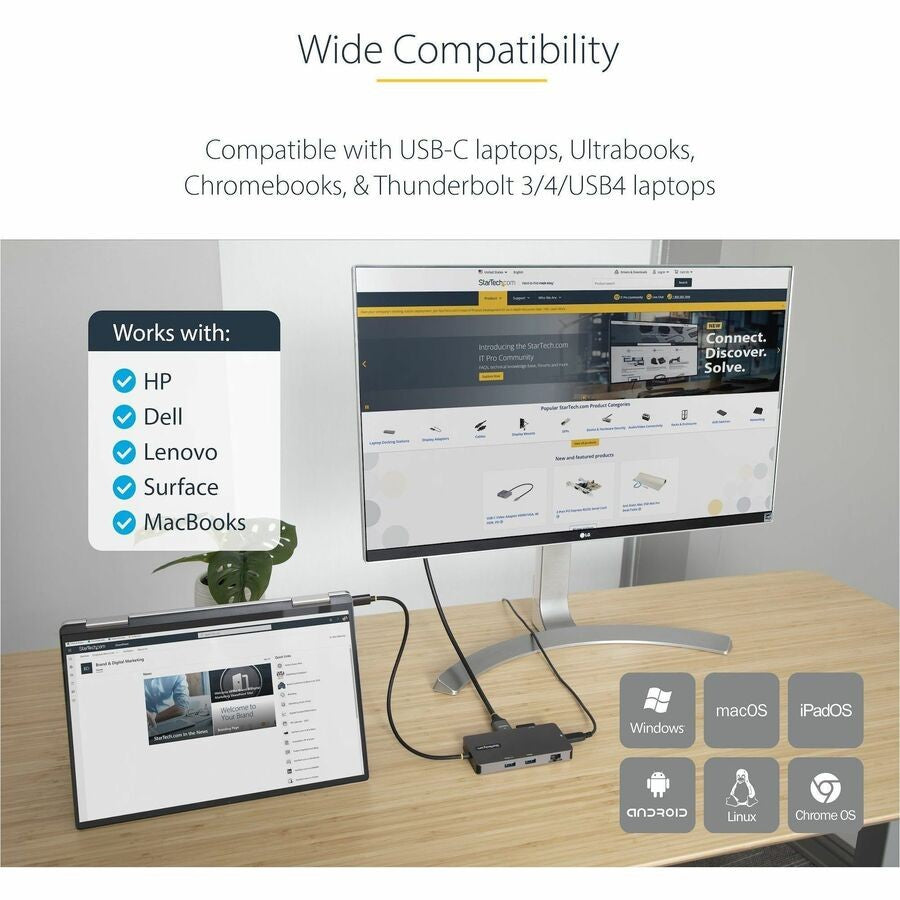

- Versatile Use – Office, home, travel; turns USB-C laptops/tablets into workstations.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | 120B-USBC-MULTIPORT |
| UPC | 065030895576 |
| Product Type | Docking Station / USB Type-C Multiport Adapter |
| Connectivity Technology | Wired |
| Device Supported | Notebook / Tablet PC |
| Host Interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160 @ 60Hz |
| HDMI | Yes (Version 2.0) |
| Number of HDMI Outputs | 2 |
| Number of USB Type-A Ports | 2 (USB 3.2 Gen 1, 5Gbps; 1x BC 1.2) |
| Number of USB Type-C Ports | 2 (1x host integrated cable, 1x PD pass-through) |
| Number of RJ-45 Ports | 1 |
| Ethernet Technology | Gigabit Ethernet |
| Memory Card Reader | Yes (SD, microSD, SDHC, SDXC) |
| Maximum Power Supply Wattage | 100 W (USB PD 3.0 pass-through) |
| Form Factor | Portable |
| Product Color | Space Gray |

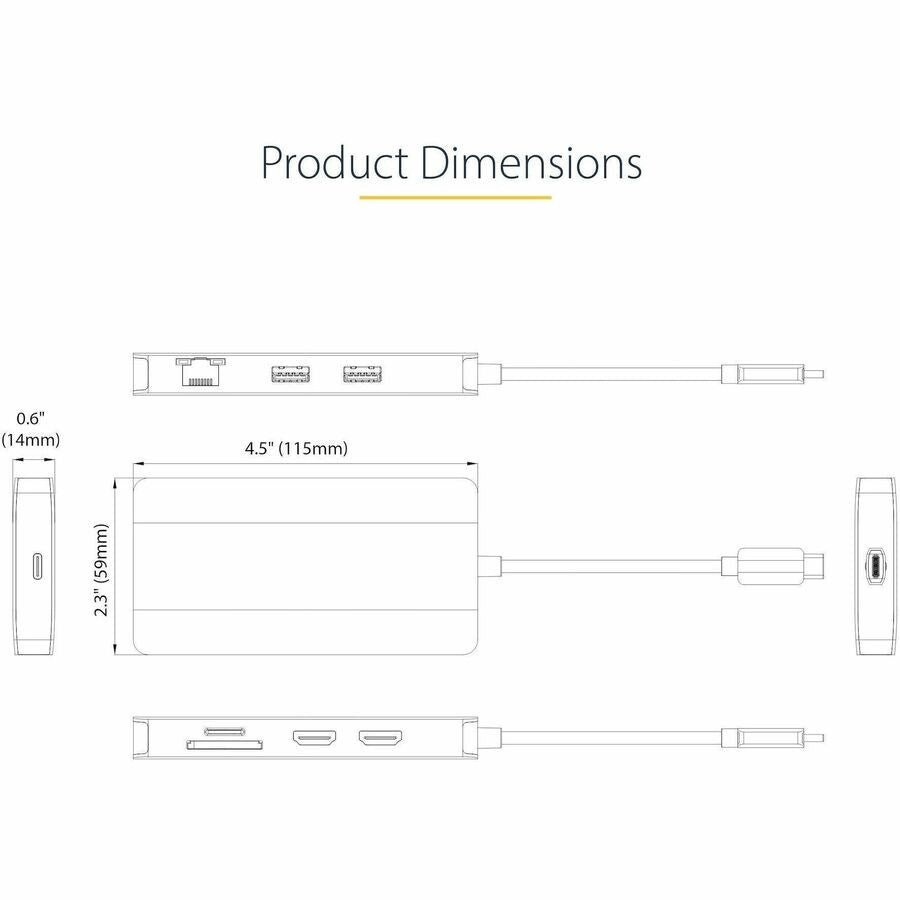

| Height | 0.60" |
| Width | 5.70" |
| Weight (Approximate) | 5.80 oz |
| Package Contents | Docking Station; 1 x Quick-Start Guide |
| Operating Systems Supported | Windows 7, 8, 8.1, 10, 11; ChromeOS |
| Country of Origin | Vietnam |
| Environmental Compliance | RoHS; WEEE |
Video Performance Benchmarks
Tested by StarTech.com on major laptops:
- Dual Display: Lenovo X1 Carbon G9 (3840x2160@60Hz x2); HP EliteBook 850 G8 (3840x2160@60Hz / 3840x2160@30Hz); Dell XPS 9310 (2560x1600@60Hz x2).
- Single Display: Up to 3840x2160@60Hz on Dell XPS 9310, Lenovo X1C G9, HP EliteBook 850, HP ProBook 450 G8, Surface Laptop 3, Dell G5 SE (AMD).
Requires host DisplayPort 1.4 with DSC and compatible HDMI displays.
Why Choose StarTech.com USB-C Dual HDMI 4K 60Hz Multiport Dock
Transforms USB-C laptops into portable workstations with dual 4K@60Hz video, full peripheral connectivity, and 100W charging in a compact, bus-powered design suitable for office, home, or travel.
Enhance your laptop setup with StarTech.com USB-C Multiport Adapter—Order now!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 120B-USBC-MULTIPORT
Material: Aluminum
Country of Origin: Vietnam
Ports: HDMI
Compatible Product Line: For Dell XPS
Item Height: 0.60 in
Item Width: 5.70 in
UPC: 065030895576
