Ergonomic Features & Adjustments

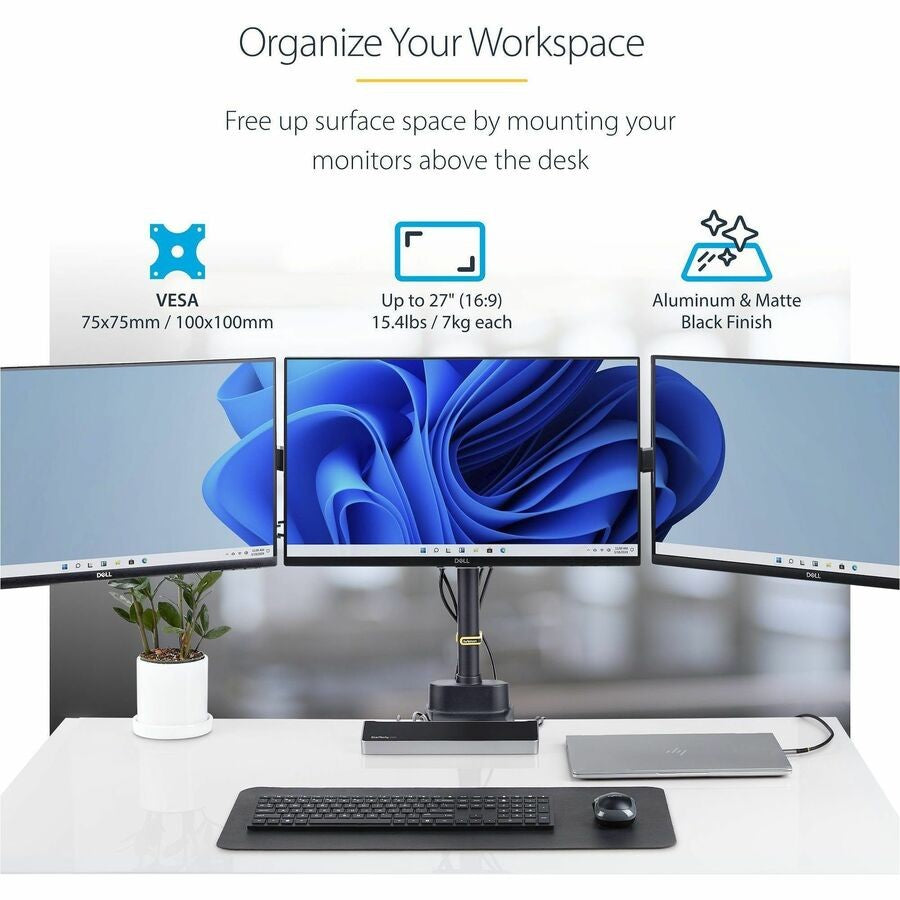

• Triple Monitor Support – Holds up to 3 displays, maximum screen size 27"; minimum load capacity 15.43 lb, maximum load capacity 46.30 lb.

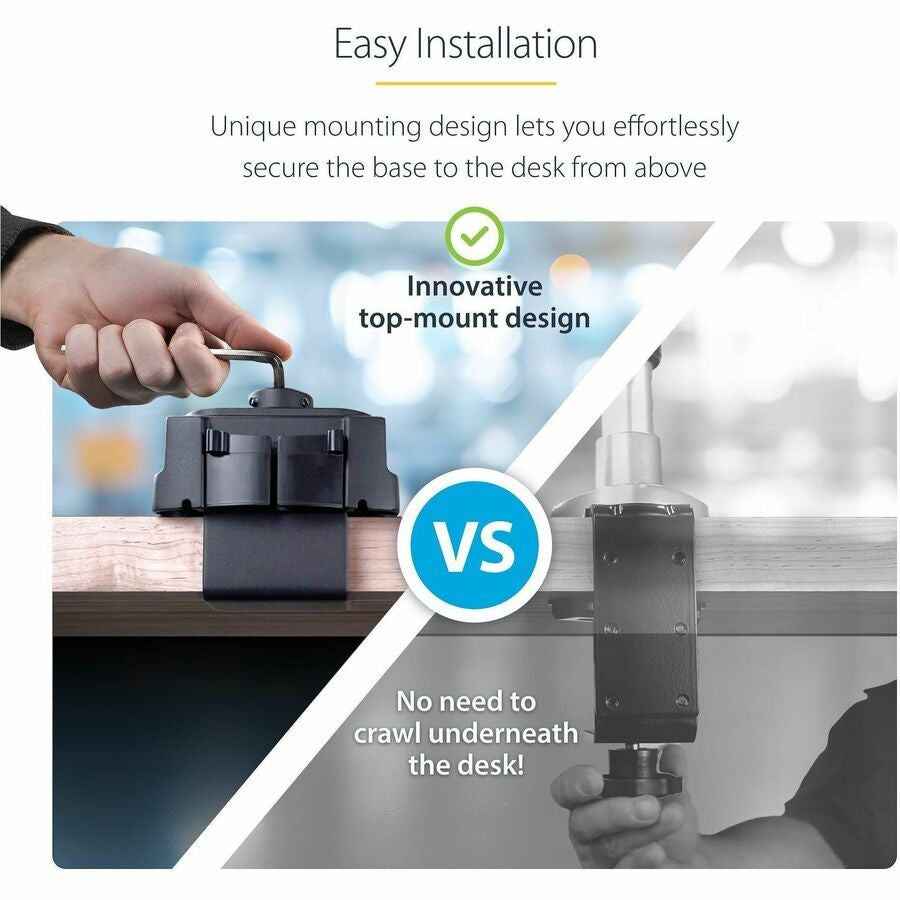

• Top-Down Installation – Unique top-screw desk clamp tightens from above with hex key or hand drill; interchangeable C-clamp and grommet for desks up to 2 inches (50mm) thick.

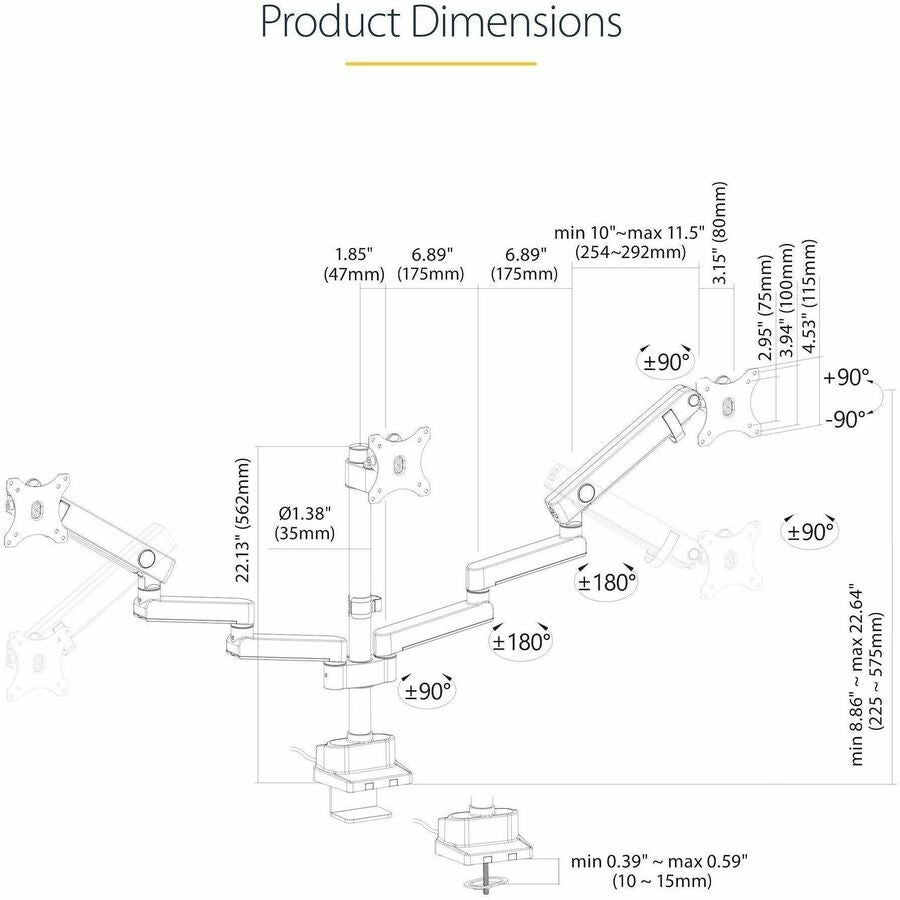

• Height Adjustments – Central mount along 22-inch (562mm) pole; outboard arms with independent tool-less adjustment up to 10in (255mm); reposition arms for ranges; minimum extended height 8.90".

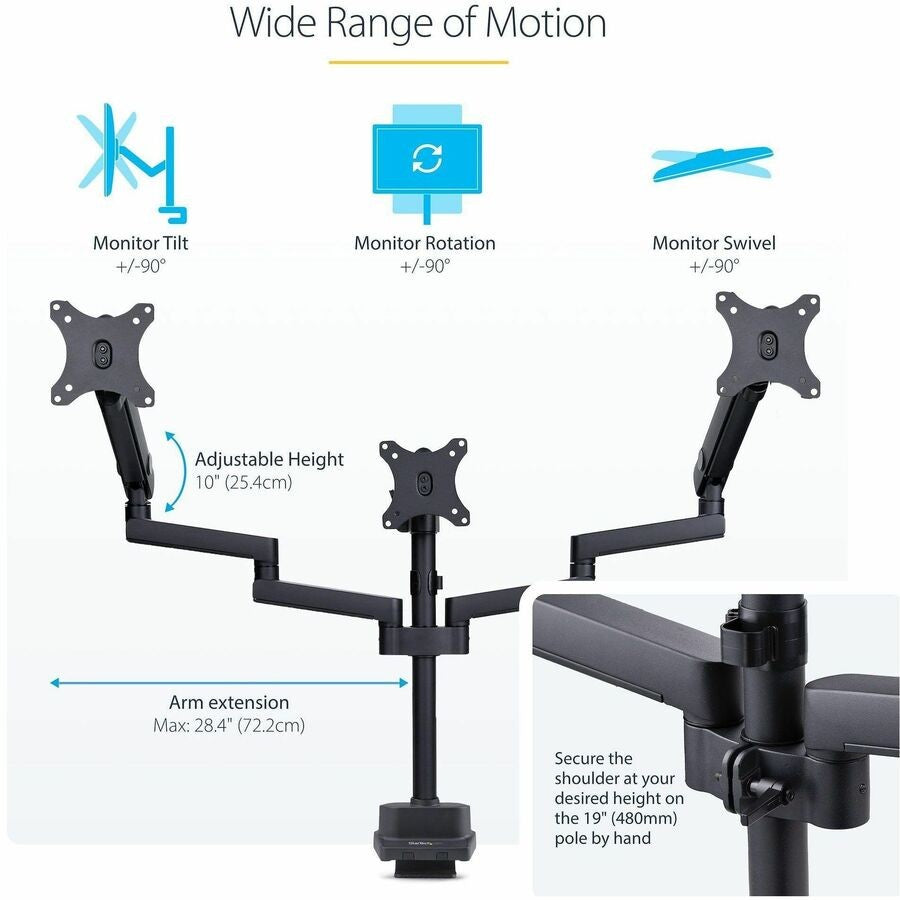

• Range of Motion – Tool-less +/-180° horizontal swivel, +/-90° screen rotation for portrait/landscape, +/-90° display tilt; articulating arms extend up to 28.4in (722mm).
• Cable Management – Channels on arms underside and cable clip on pole for organized workspace.
• Additional Features – Ergonomic design, spring-loaded mechanism, grommet mount, flexible easy one-touch articulating arm, adjustable viewing angle, cable clip, quick release mechanism, tool-less adjustment, extendable arm, +/-180° pivot, tilt orientation landscape/portrait, height adjustable, fixed mount profile.

Comprehensive Technical Specifications

Package Contents

• 2 x Spring Arm
• 4 x Swivel Arm
• 1 x Pole
• 3 x VESA Monitor Mount
• 1 x Cable Management Clip
• 1 x 3mm Hex Key with Flat Screwdriver
• 1 x 6mm Hex Key
• 12 x M4x12mm Screws
• 12 x M4x16mm Screws
• 12 x M5x12mm Screws
• 12 x M5x16mm Screws
• 12 x Flat Washers
• 12 x Spacers
• 1 x Desk Clamp
• 1 x Shoulder Pole Mount
• 1 x Center Pole Mount
• 1 x Center Monitor Mount
• 1 x Tool Holder
• 1 x Grommet Clamping Plate
• 1 x Grommet Clamping Screw
• 1 x User Manual

Installation Guide

Pro tip: Assemble in a clear workspace; universal guidance for desk mounts includes verifying desk stability before loading monitors.

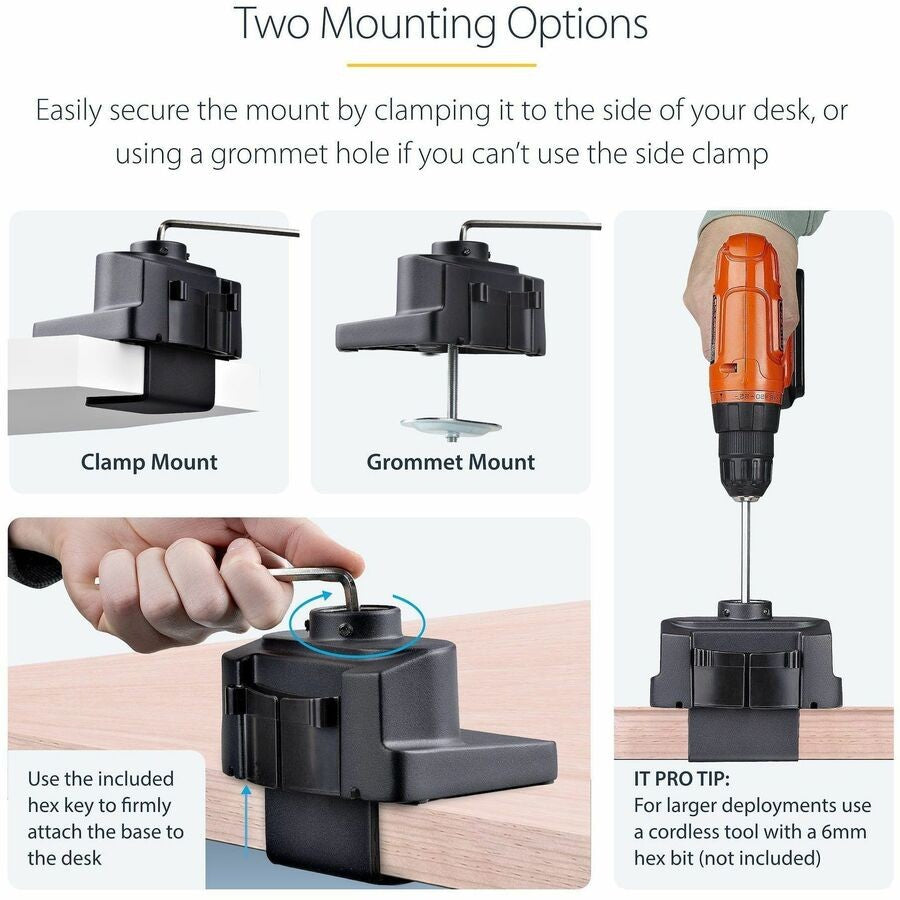

1. Select C-clamp or grommet based on desk configuration (up to 2" thick).
2. Attach pole using top-screw desk clamp; tighten from above with hex key or drill – no under-desk access needed.
3. Mount central monitor on pole; adjust height along 22" pole.
4. Attach outboard arms; perform tool-less height adjustments up to 10" and position along pole.

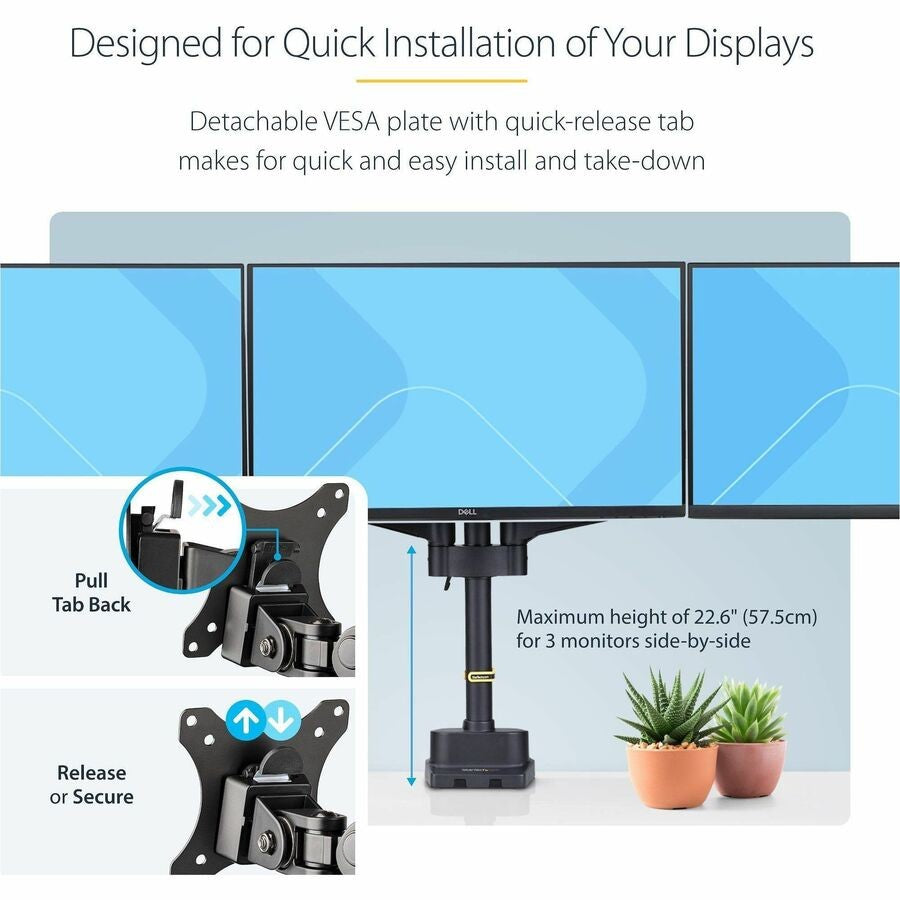

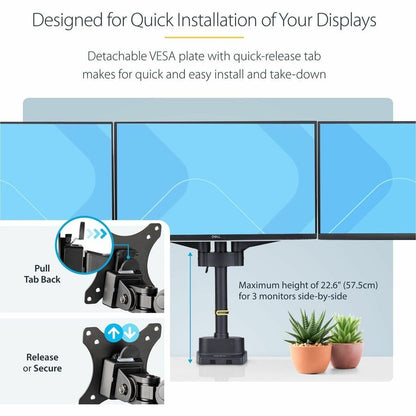

5. Secure VESA plates to monitors; attach to arms and route cables through channels and clip.
6. Adjust swivel (+/-180°), tilt (+/-90°), rotation (+/-90°) for ergonomic positioning.

Why Choose StarTech.com Triple Monitor Desk Mount

Engineered for productivity with spring-assisted arms, extensive adjustments, and cable management to suit ergonomic needs in workspace setups.
