Description
StarTech.com ST7200USBM Mountable Rugged Industrial 7-Port USB 2.0 Hub
This is a TAA compliant 7-port industrial USB 2.0 hub designed for harsh environments like factories, product and repair labs, conference rooms, or office workstations. The StarTech.com Mountable Rugged Industrial 7 Port USB 2.0 Hub (MPN: ST7200USBM, UPC: 065030837910) features a rugged industrial-grade metal housing with wide-range 7-24V DC terminal block power input, surge and ESD protection on each port, and versatile mounting options including built-in brackets and DIN rails. It supports full 480 Mbps USB 2.0 bandwidth and backward compatibility with older USB devices on PC and Mac platforms.
Key Features for Industrial USB Expansion

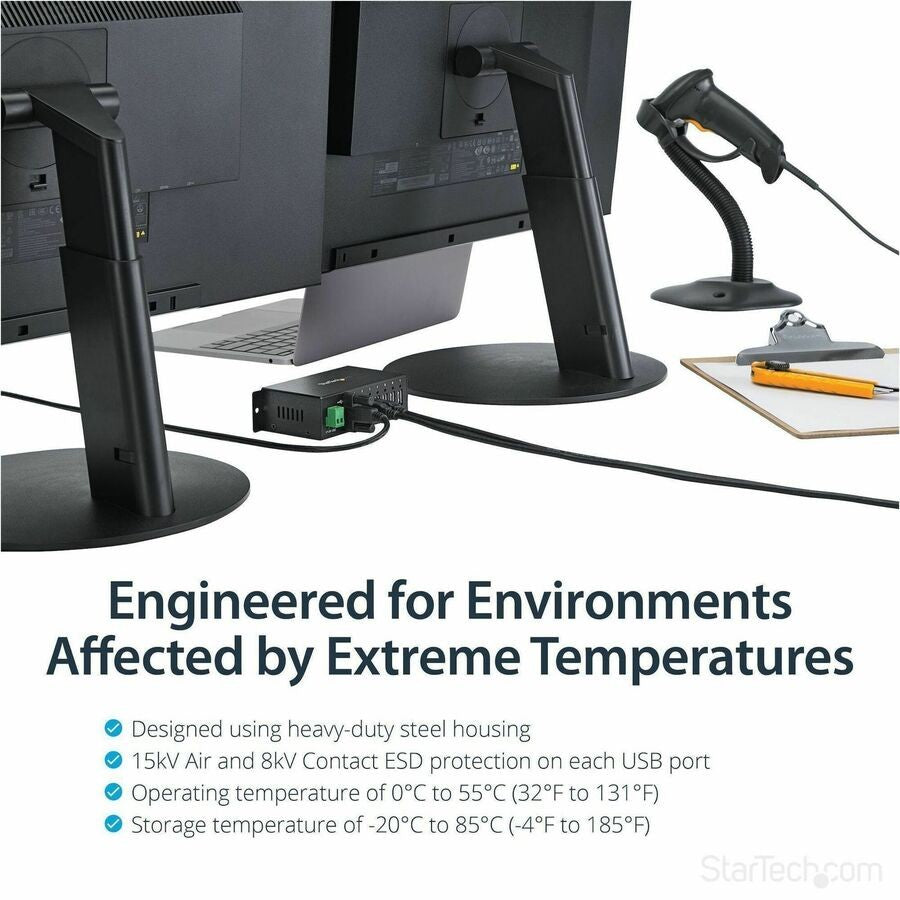

- Rugged Metal Housing – Heavy-duty construction withstands demanding factory and office settings with a wide operating temperature range of 0°C to 55°C.

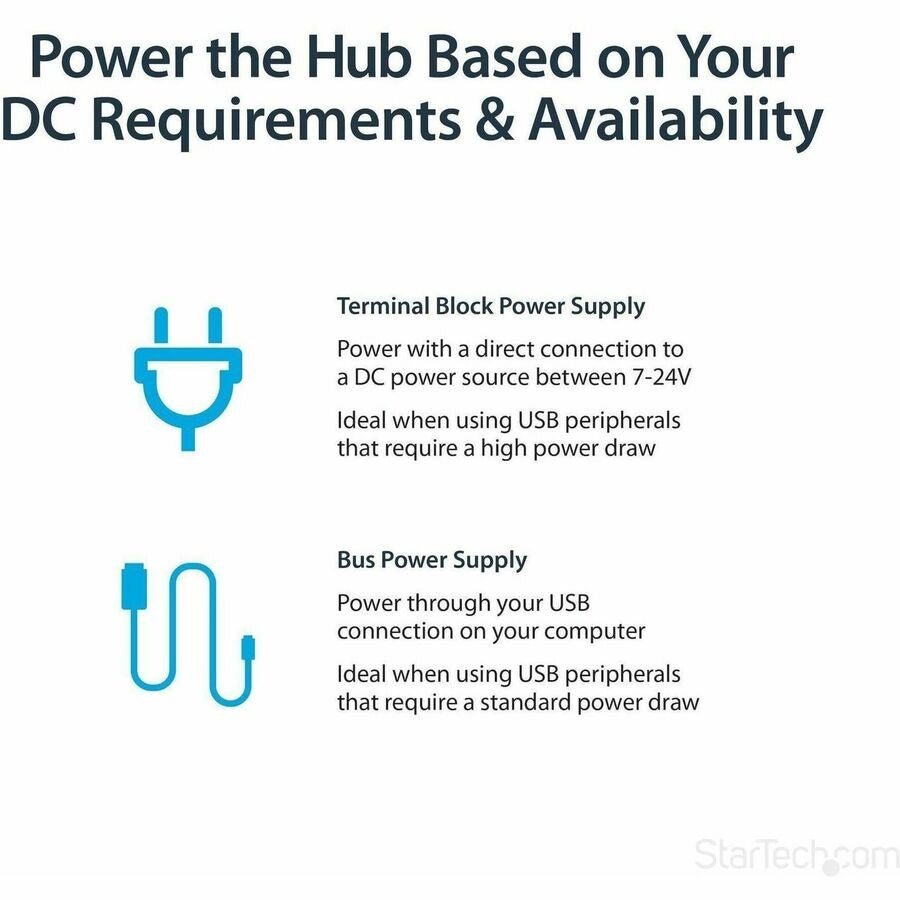

- Flexible Power Options – Accepts 7-24V DC terminal block input for custom power setups; optional external adapter ITB20D3250 available separately.
- Per-Port Protection – Surge and ESD safeguards on all 7 USB 2.0 ports to protect connected devices.

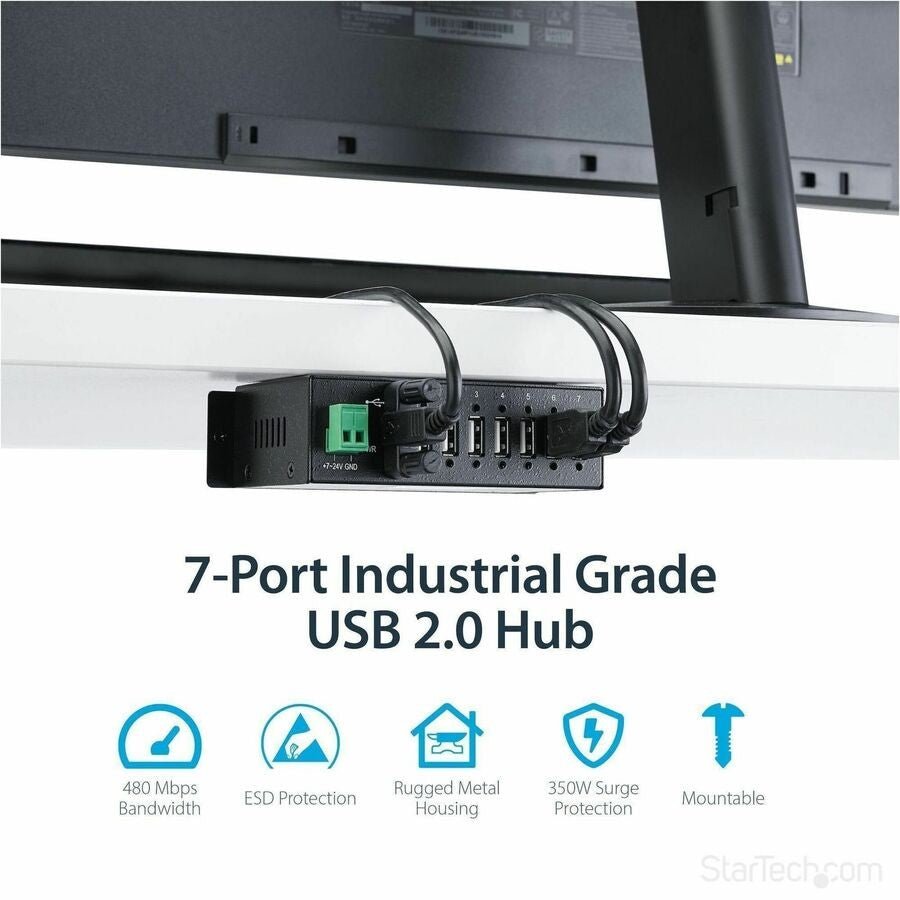

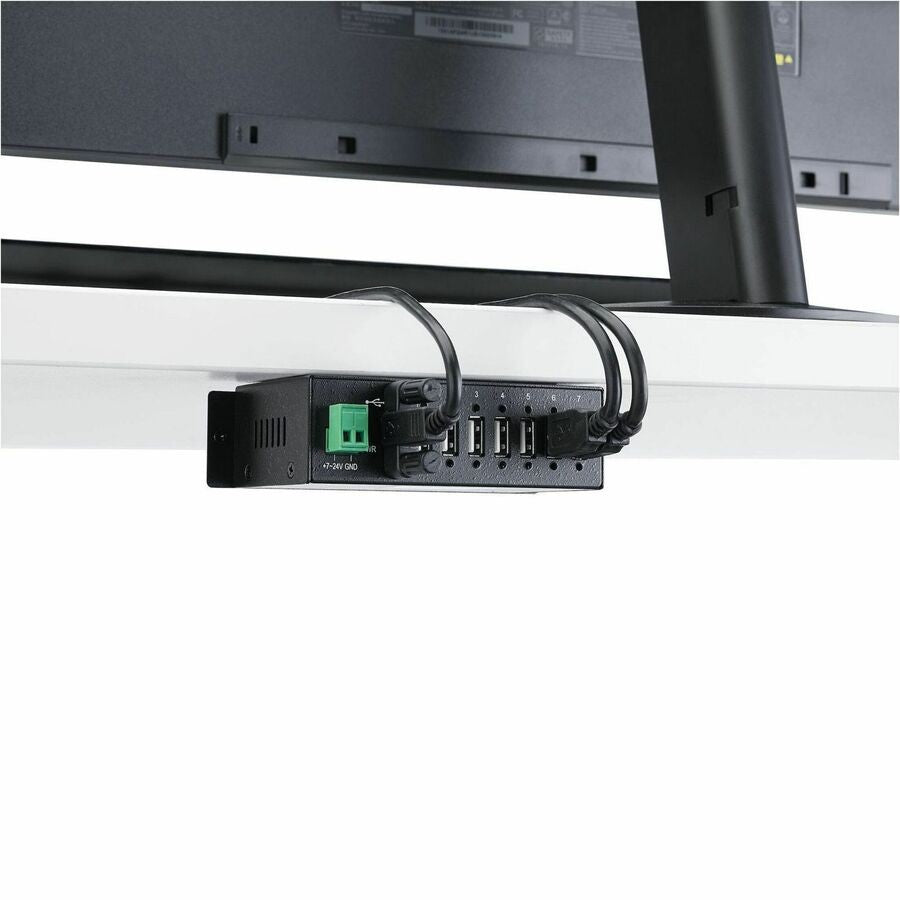

- Versatile Mounting – Built-in brackets and included DIN rail mounting kit for secure installation on walls, under desks, or in racks.
- High-Capacity Connectivity – Expands a single USB host to 7 ports at full 480 Mbps speed, ideal for multiple peripherals.
- TAA Compliant – Meets Trade Agreements Act requirements; backed by 2-year warranty and lifetime technical support.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| MPN / Manufacturer Part Number | ST7200USBM |
| UPC | 065030837910 |
| Product Type | USB Hub |
| Host Interface | USB Type B |
| Data Transfer Rate | 480 Mbps |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 7 |
| Power Input | 7-24V DC terminal block |
| Operating Temperature | 0°C to 55°C |
| Housing Material | Industrial-grade metal |
| Color | Black |
| Form Factor | External |
| Dimensions (H x W x L) | 1.4" x 2.4" x 5.2" |
| Weight (Approximate) | 9.98 oz |
| Mounting Options | Surface mount brackets, DIN rail |
| Platform Supported | PC, Mac |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | 2-year |
Package Contents & Installation Overview
- Mountable Rugged Industrial 7 Port USB 2.0 Hub
- DIN Rail Mounting Bracket
- 6 ft [1.8 m] USB-B w/Screw Lock to USB-A Cable
- Screw Kit
- Instruction Manual
Pro tip: Connect the included USB cable to your host device, secure power via terminal block, and mount using provided brackets or DIN rails for optimal placement in industrial setups.
Why Choose StarTech.com ST7200USBM Industrial USB Hub
Engineered for reliability in extreme conditions, this hub provides scalable USB expansion with robust protection and flexible installation, ensuring dependable performance for high-volume device connections.
Expand your USB connectivity with the StarTech.com ST7200USBM—order now!
Brand: Art
Type: USB Hub
MPN: ST7200USBM
Color: Black
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Manufacturer Warranty: 2 Years
Connector A: USB Type B Female
Connector B: USB Standard Type A Female
Connection Split/Duplication: 1:7
Item Height: 1.4 in
Item Width: 2.4 in
Item Length: 5.2 in
UPC: 065030837910
