StarTech.com PLATE9M16 DB9 to 10-Pin IDC Slot Plate 41cm
StarTech.com PLATE9M16 DB9 to 10-Pin IDC Slot Plate 41cm
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com PLATE9M16 9-Pin Serial to 10-Pin Header Slot Plate - DB-9 Male to 10-Pin IDC Female, 41 cm
This is a StarTech.com 9-pin Serial to 10-pin Header Slot Plate adapter that features one DB9 male connector and one 10-pin IDC female connector for converting an internal motherboard serial header to an external DB9 serial port. Constructed of high quality components for durability and reliability, this serial panel slot plate supports motherboard and PC connections via a 41 cm serial cable. MPN: PLATE9M16; UPC: 065030827287. Ideal for systems requiring legacy serial port access through a standard expansion slot bracket.
Key Features of StarTech.com Serial Header Slot Plate Adapter
- DB9 Male to 10-Pin IDC Female – Provides external serial port access from internal motherboard header, enabling RS-232 connections for peripherals like modems or industrial devices.
- 41 cm (1.33 ft) Serial Cable Length – Sufficient reach for standard PC case installations, with copper conductors for reliable signal integrity.
- PCI Slot Bracket Design – Fits standard expansion slot plates, mounting securely in desktop PC chassis for clean rear I/O panel integration.
- High Quality Construction – Expertly designed for long-term durability, supporting consistent data transfer in serial applications.
- Gray Color Finish – Matches typical PC case aesthetics, with environmentally compliant materials including RoHS, REACH, and WEEE standards.
- Single Unit Packaging – Packaged quantity of 1 each, ready for immediate system integration.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | PLATE9M16 |
| Product Name | Motherboard Header Slot Plate / 9-pin Serial to 10-pin Header Slot Plate |
| UPC | 065030827287 |
| Product Type | Data Transfer Cable |
| Cable Type | Serial |
| Cable Length | 41 cm / 1.33 ft |

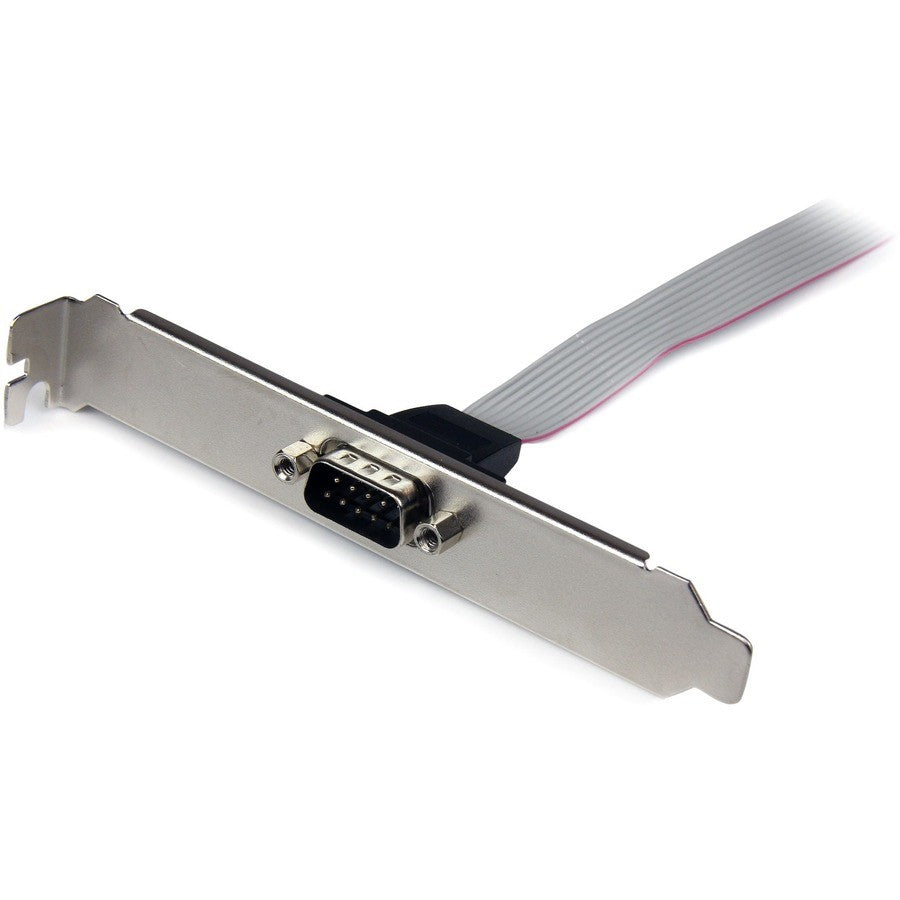

| Connector Type on First End | DB-9 Serial - Male |
| Connector on First End Details | 1 x 9-pin DB-9 Serial - Male |

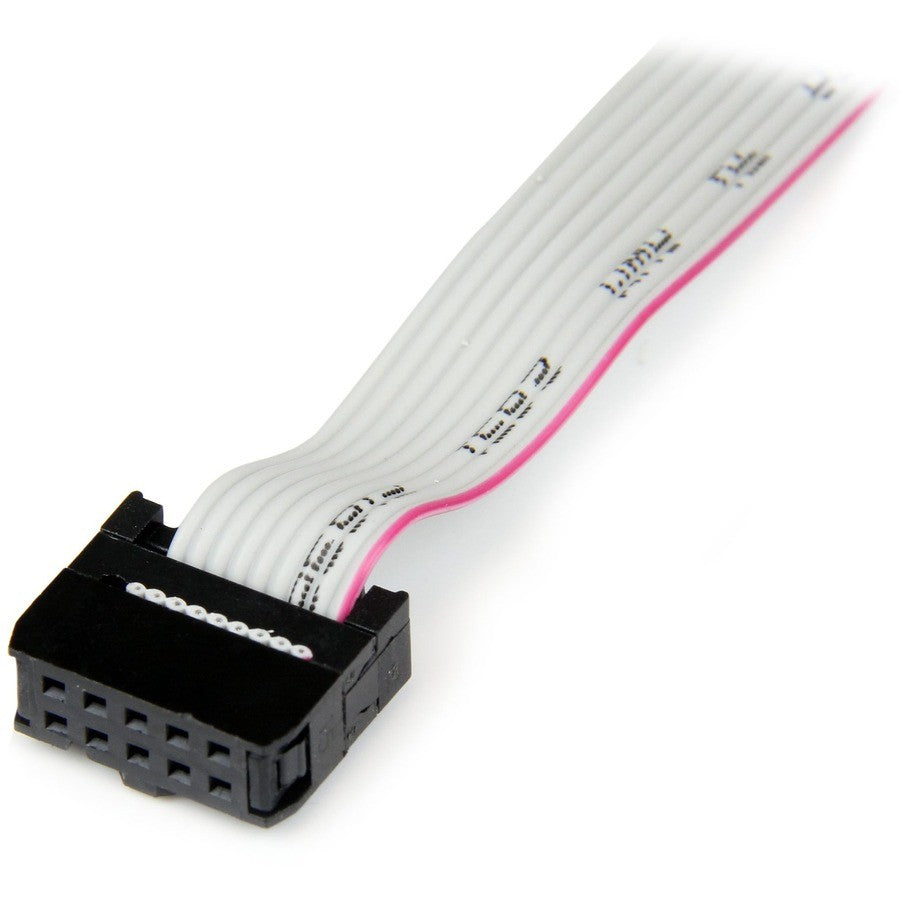

| Connector Type on Second End | IDC Serial - Female |
| Connector on Second End Details | 1 x 10-pin IDC Serial - Female |
| Conductor | Copper |
| Device Supported | Motherboard / PC |
| Product Color | Gray |
| Color Family | Gray |
| Weight (Approximate) | 1.10 lb |
| Packaged Quantity | 1 Each |
| Country of Origin | China |
| Environmental Compliance | RoHS / REACH / WEEE |
| Environmentally Friendly | Yes |
| Packaging Height | 1.00 |
| Packaging Width | 4.00 |
| Packaging Depth | 8.10 |
Installation Guide for Serial Slot Plate Adapter
Simple installation for experienced PC builders; typically completes in under 10 minutes with basic tools.
- Power off PC and open case; locate available PCI slot and 10-pin serial header on motherboard.
- Secure the slot plate bracket into the PCI slot opening on the rear I/O panel.
- Connect the 10-pin IDC female end to the motherboard serial header, ensuring correct pin orientation.
- Route the 41 cm cable neatly and close the case; test serial port functionality with connected device.
- Pro tip: Consult motherboard manual for header pinout to avoid signal issues; use cable ties for cable management.
Why Choose StarTech.com PLATE9M16 Serial Adapter?
StarTech.com delivers reliable legacy serial connectivity solutions built for professional and enthusiast PC builds, ensuring seamless integration with high-quality components and global environmental compliance.
Add external serial port capability to your PC—Order StarTech.com PLATE9M16 today!
Type: Cable
MPN: PLATE9M16
Color: Gray
Country of Origin: China
Compatible Brand: StarTech.com
Connector A: Serial (RS-232) Male
Connector B: Serial (RS-232) Female
Connection Split/Duplication: 1:1
Brand: Does not apply
UPC: 065030827287
