StarTech.com PEXUSB4DP 4-Port PCI Express Low Profile USB 2.0 Card
StarTech.com PEXUSB4DP 4-Port PCI Express Low Profile USB 2.0 Card
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com PEXUSB4DP 4-Port PCI Express Low Profile USB 2.0 Card

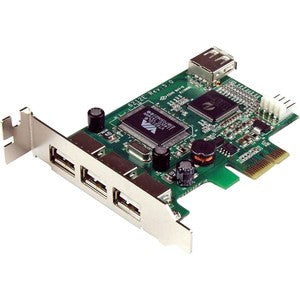

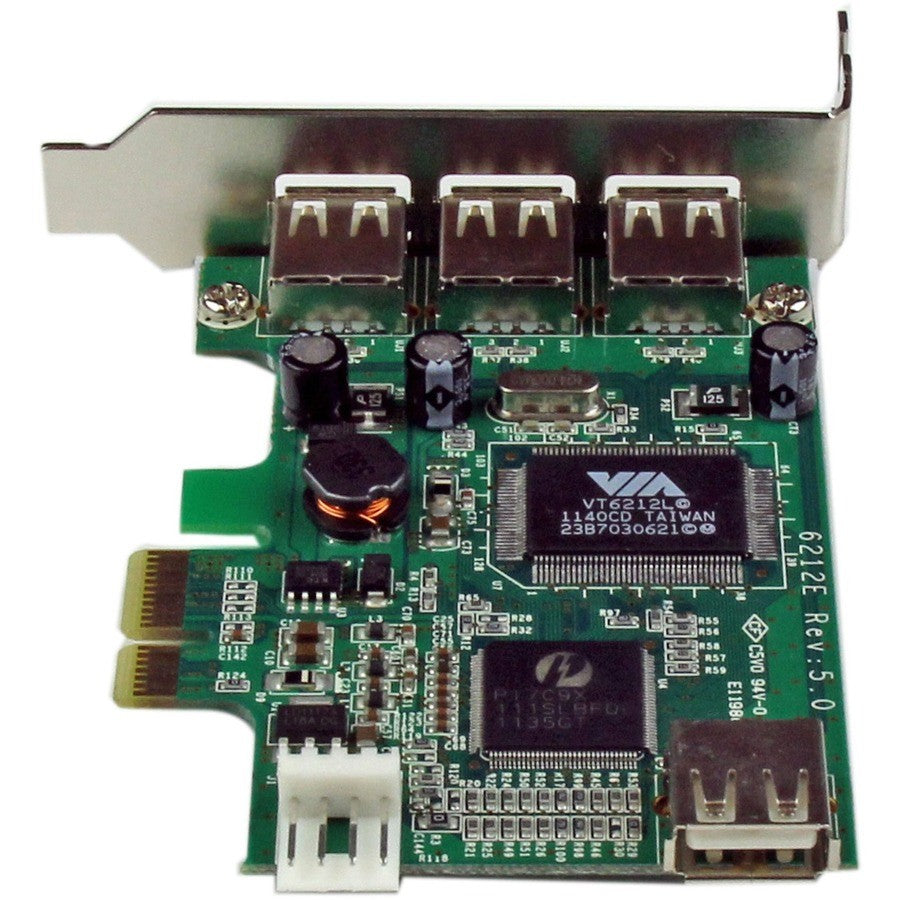

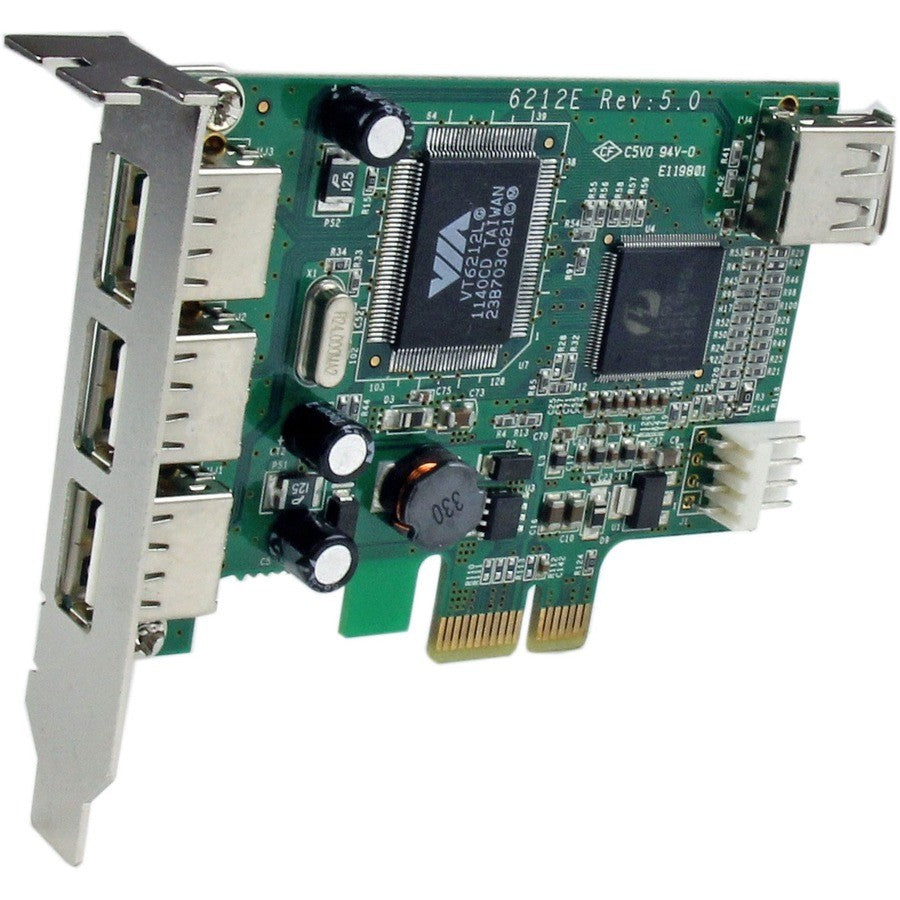

This is a low profile 4-port PCI Express USB adapter card designed for versatility and performance in system expansion. The StarTech.com PEXUSB4DP adds 3 external USB 2.0 ports and 1 internal USB 2.0 port, supporting high-speed data transfer rates of up to 480 Mbps with WHQL-certified drivers and plug-and-play installation. MPN: PEXUSB4DP; UPC: 065030836661. It includes a standard profile bracket for full form factor cases and is ideal for adding peripheral connections to PCs.
Key Features of StarTech.com 4-Port PCI Express LP USB Adapter Card

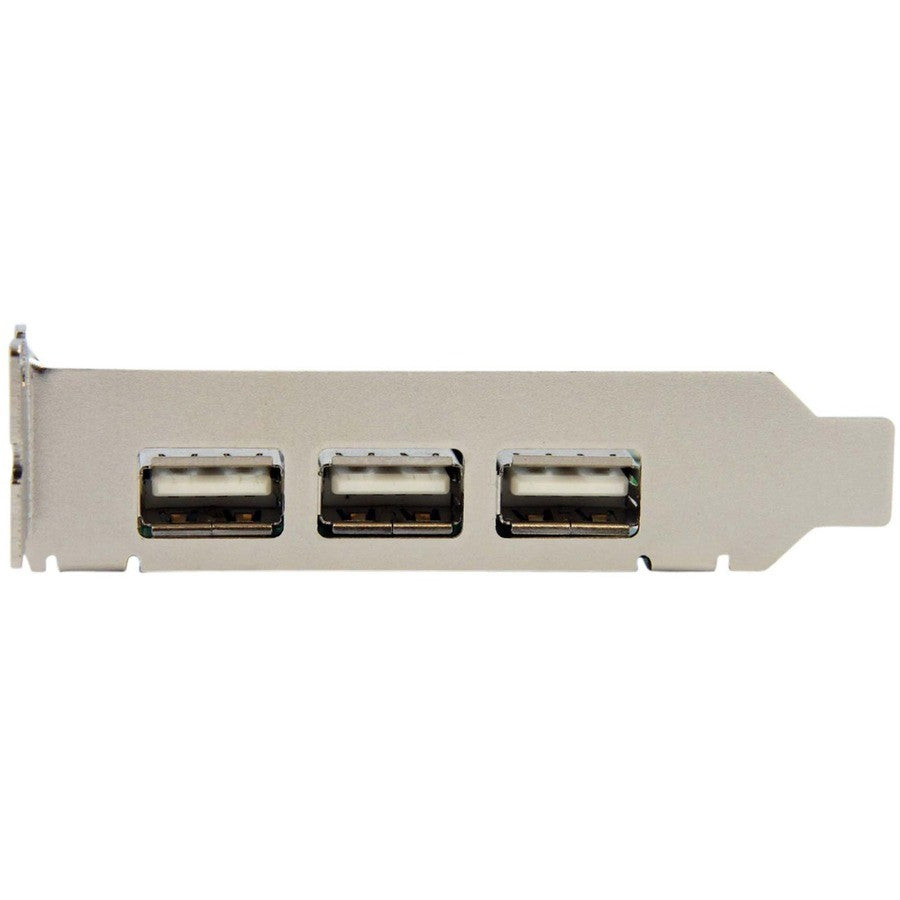

- 4 USB 2.0 Ports – 3 external slots and 1 internal 9-pin connector for expanded peripheral connectivity.
- High-Speed Performance – Supports USB 2.0 transfer rates up to 480 Mbps; backward compatible with USB 1.1 devices.
- Low Profile Design – Fits slimline and small form factor cases; includes full-height bracket for standard PCs.
- PCI Express Interface – PCIe x1 slot compatibility with bus-powered operation, no external power required.
- Plug-and-Play Installation – WHQL-certified drivers included on CD for seamless setup.
- TAA Compliant – Meets Trade Agreements Act standards; manufactured in Taiwan.
- Environmentally Friendly – RoHS compliant for reduced hazardous substances.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| MPN | PEXUSB4DP |
| UPC | 065030836661 |
| Product Type | USB Adapter |
| Host Interface | PCI Express (PCIe 2.0 x1) |
| Data Transfer Rate | 480 Mbps |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 4 (3 External USB-A, 1 Internal 9-pin) |
| Form Factor | Plug-in Card (Low Profile) |
| Card Height | 0.8 in [20.3 mm] |
| Card Width | 3.1 in [78.0 mm] |
| Card Length | 3.5 in [88.7 mm] |
| Card Thickness | 790 mil [20.0 mm] |
| Weight (Approximate) | 1.60 oz [45 g] |
| Chipset | VIA/VLI VL805 |
| OS Compatibility | Windows 2000, XP, Vista, 7, 8, 8.1, 10; Windows Server 2003, 2008 R2, 2012, 2016, 2019; Mac OS X 10.6 - 10.10; Linux 3.5.x - 4.11.x LTS |
| Platform Supported | PC, Mac, Linux |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes (RoHS) |
Package Contents & Installation Guide
- 4 Port PCI Express Low Profile High Speed USB Card
- 1 x Full Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Easy plug-and-play setup: Insert into available PCIe x1 slot, install drivers from CD if needed, and connect peripherals. Pro tip: Power off system before installation and verify slot compatibility for optimal performance.
- Power off and open PC case.
- Insert card into PCIe x1 slot.
- Secure bracket (use low-profile or full-height as needed).
- Boot system and install drivers from CD.
- Connect USB devices to external/internal ports.
Why Choose StarTech.com PEXUSB4DP USB Card?
Engineered for reliable expansion with verified compatibility across major OS platforms, this card provides essential USB connectivity in a compact low-profile form, backed by StarTech.com quality and lifetime warranty support.
Expand your PC's USB capabilities with StarTech.com PEXUSB4DP—Order today!
Type: USB Adapter
MPN: PEXUSB4DP
Model: 6212E Rev5.0
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Compatible Port: PCI Express x1
External Interfaces: USB 2.0
Number of Ports: 4 Ports
Manufacturer Warranty: Lifetime
Brand: Does not apply
UPC: 065030836661
