StarTech.com PEXUSB3S7 7-Port PCIe USB 3.0 Card 5Gbps Low-Profile
StarTech.com PEXUSB3S7 7-Port PCIe USB 3.0 Card 5Gbps Low-Profile
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com PEXUSB3S7 7-Port PCIe USB 3.0 Card 5Gbps Low-Profile

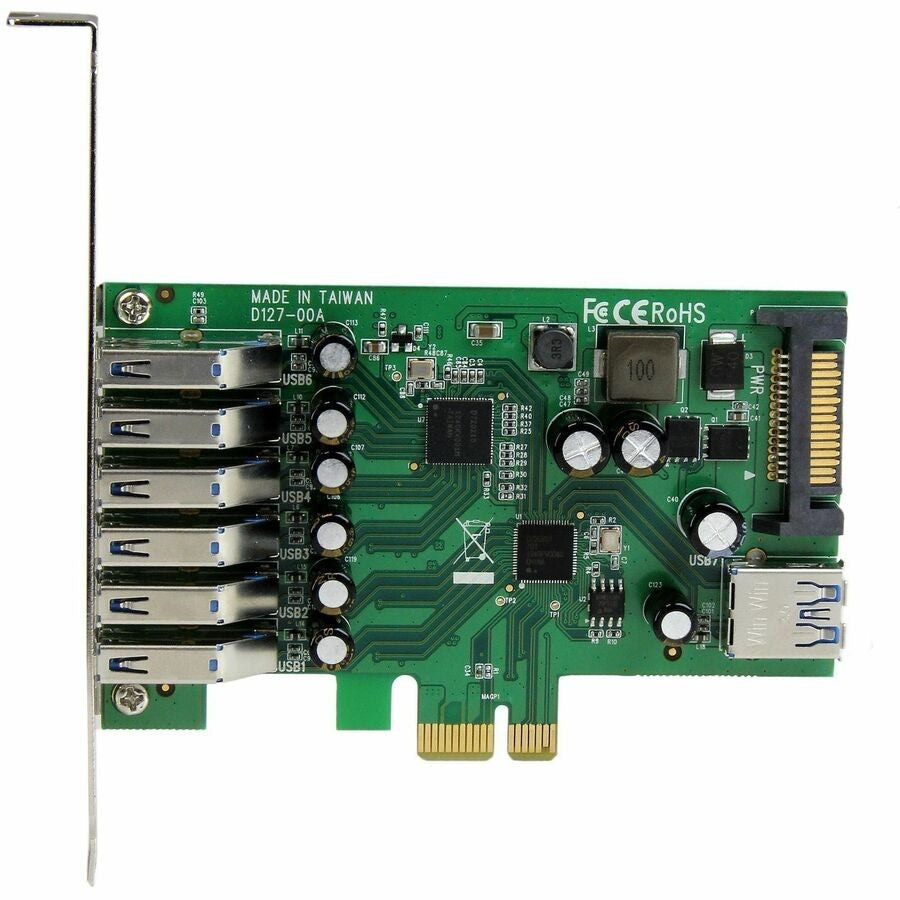

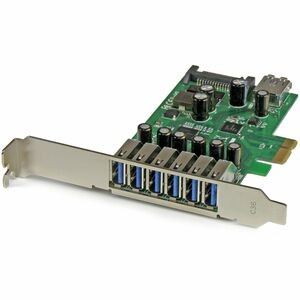

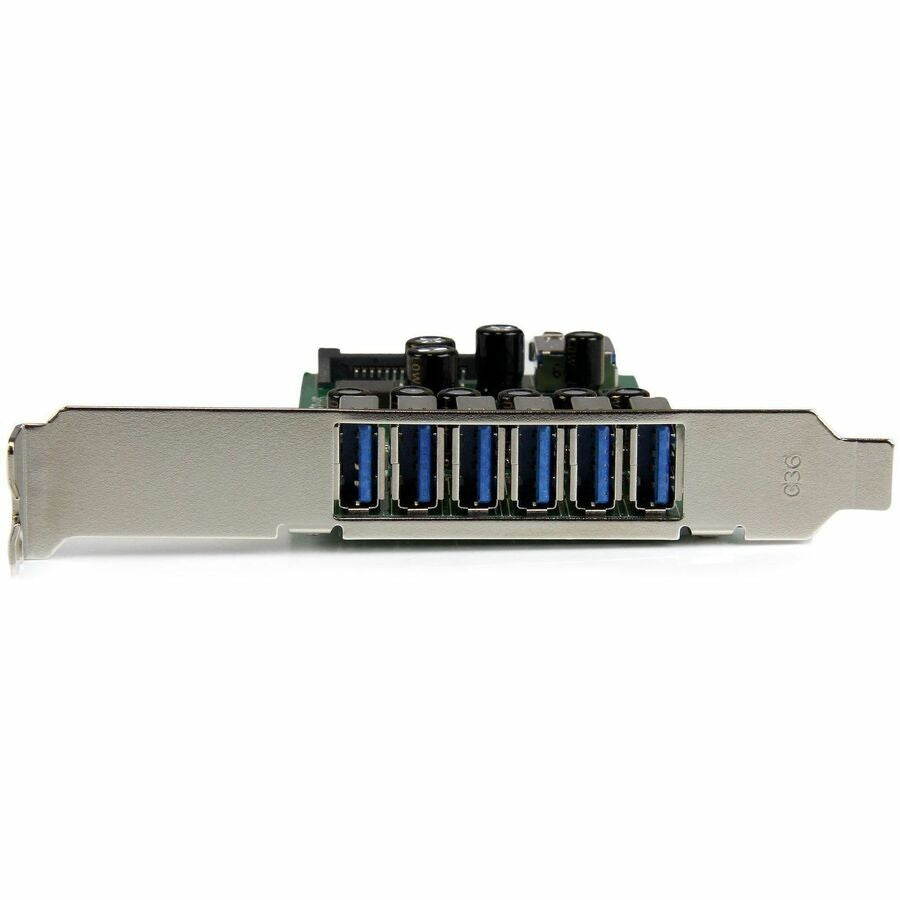

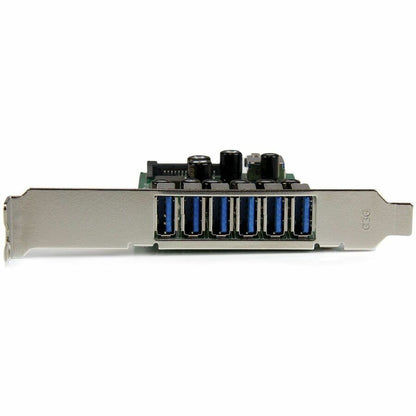

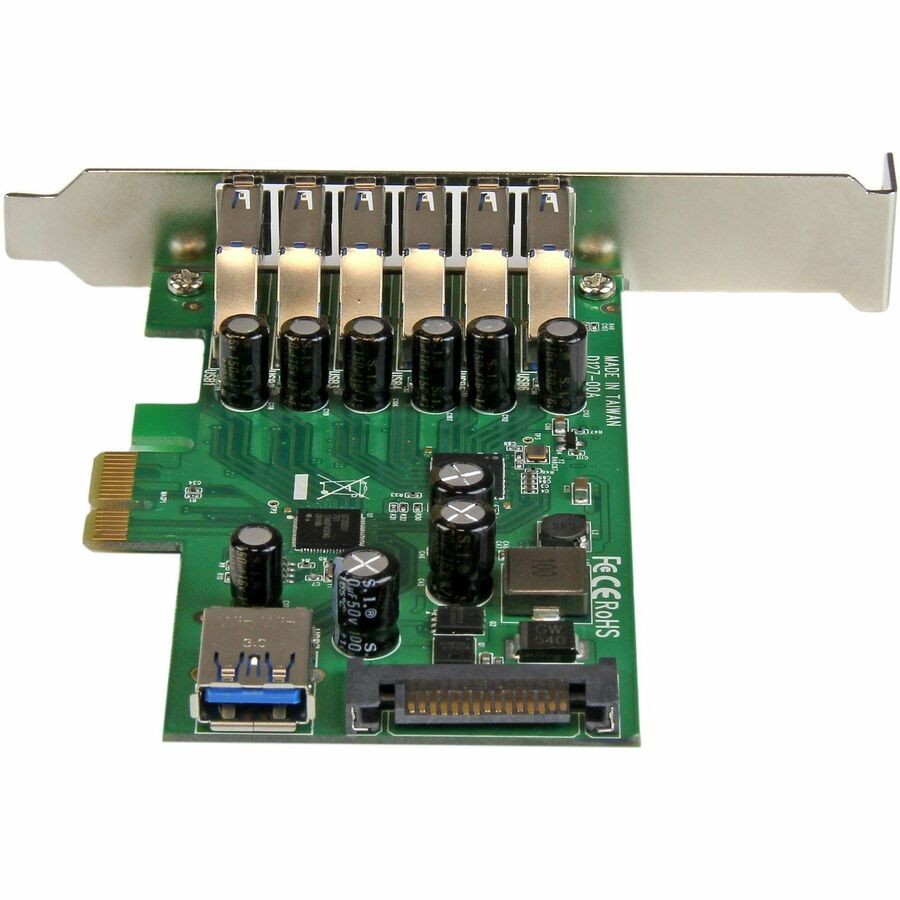

This is a StarTech.com 7 Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design, model PEXUSB3S7. This USB 3.2 Gen 1 PCIe expansion card adds seven USB 3.2 Gen 1 ports (six external, one internal) with SuperSpeed 5 Gbps transfer rates and UASP support for enhanced performance. UPC: 065030860345. Engineered with a stacked port layout and dual-profile brackets for compatibility with both standard and low-profile desktop computers.
Key Features & Performance
- Seven USB 3.2 Gen 1 Ports – Six external Type-A ports and one internal Type-A port for connecting tablets, smartphones, external drives, printers, and more simultaneously.
- Innovative Stacked Layout – Compact design fits low-profile and full-height slots; includes low-profile bracket.
- SuperSpeed 5 Gbps Bandwidth – Backward compatible with USB 2.0/1.x devices.
- UASP Support – Delivers ~70% faster read and 40% faster write speeds over traditional USB 3.2 Gen 1 when paired with UASP-enabled devices (Windows 8.1+, Linux kernel 2.6.37+).
- Native OS Installation – Automatic driver support in Windows 8.1 and later; compatible with a wide range of Windows, Server, and Linux versions.
- Rugged Build – Green plug-in card form factor for reliable, long-lasting multi-device connectivity; TAA compliant, made in Taiwan.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | PEXUSB3S7 |
| UPC | 065030860345 |
| Product Type | USB Adapter |
| Host Interface | PCI Express x1 |
| Total Number of USB Ports | 7 |
| Number of USB 3.2 Gen 1 Ports | 7 (6 External, 1 Internal) |
| UASP Support | Yes |
| Data Transfer Rate | Up to 5 Gbps |
| Product Color | Green |
| Form Factor | Plug-in Card |
| Card Dimensions (H x W x L) | 4.7" x 0.6" x 4.1" |
| Card Weight (Approximate) | 2.50 oz |
| Package Height | 1.30" |
| Package Width | 5.60" |
| Package Depth | 6.80" |
| Package Weight | 0.30 lbs |
| Operating Systems Supported | Windows XP, Vista, 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2016, 2019; Linux 2.6.31 to 4.11.x LTS |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Warranty | 2-Year Warranty and Free Lifetime Technical Support |
Package Contents & Installation
- 7-Port PCI Express USB 3.0 Card - 5Gbps - Standard and Low-Profile Design
- 1 x Low-Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Installation is straightforward: Insert into an available PCIe x1 slot (or larger), secure the bracket (standard or low-profile as needed), and connect power if required. Native support in Windows 8.1+ ensures plug-and-play operation.
Why Choose StarTech.com PEXUSB3S7
Expand connectivity efficiently with proven reliability, UASP-enhanced speeds, and broad OS compatibility for desktops requiring multiple high-speed USB ports.
Add seven USB 3.0 ports to your PC—Order the StarTech.com PEXUSB3S7 today!
Type: USB Adapter
MPN: PEXUSB3S7
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Manufacturer Warranty: 2 Years
Compatible Port: PCI Express x1
External Interfaces: USB 3.0
Number of Ports: 7 Ports
Model: PEXUSB3S7
Brand: Does not apply
UPC: 065030860345
