StarTech.com PEXSAT34RH 4-Port PCIe 2.0 SATA III 6Gbps RAID HyperDuo Card

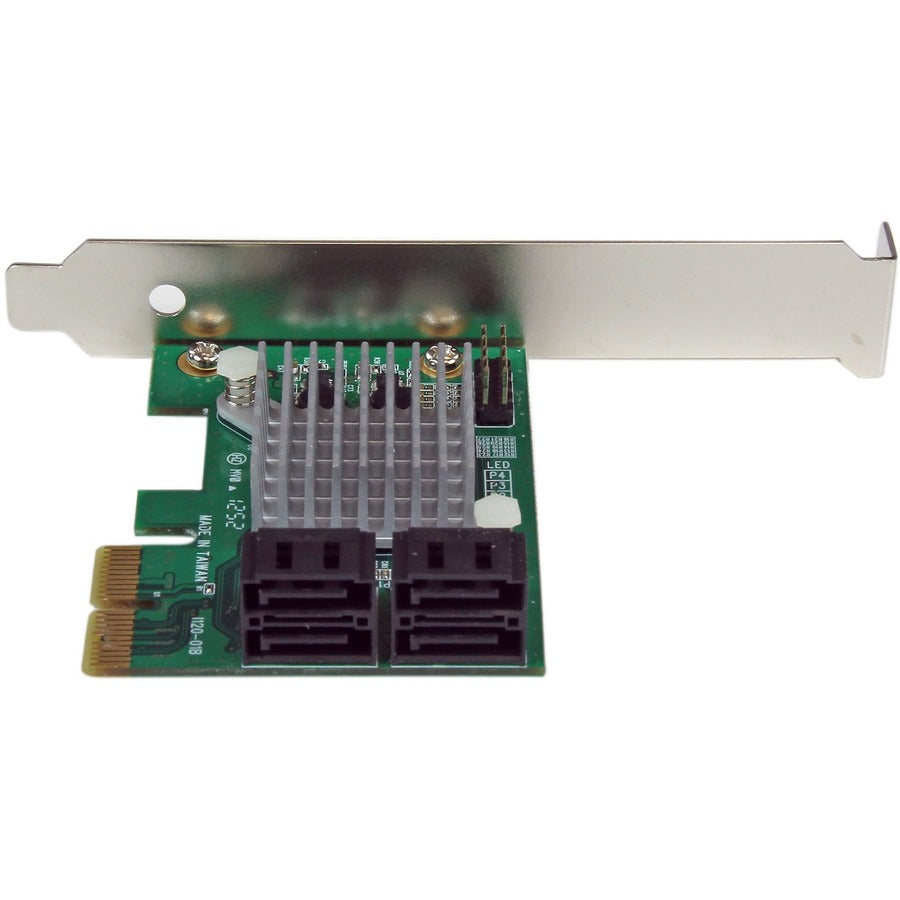

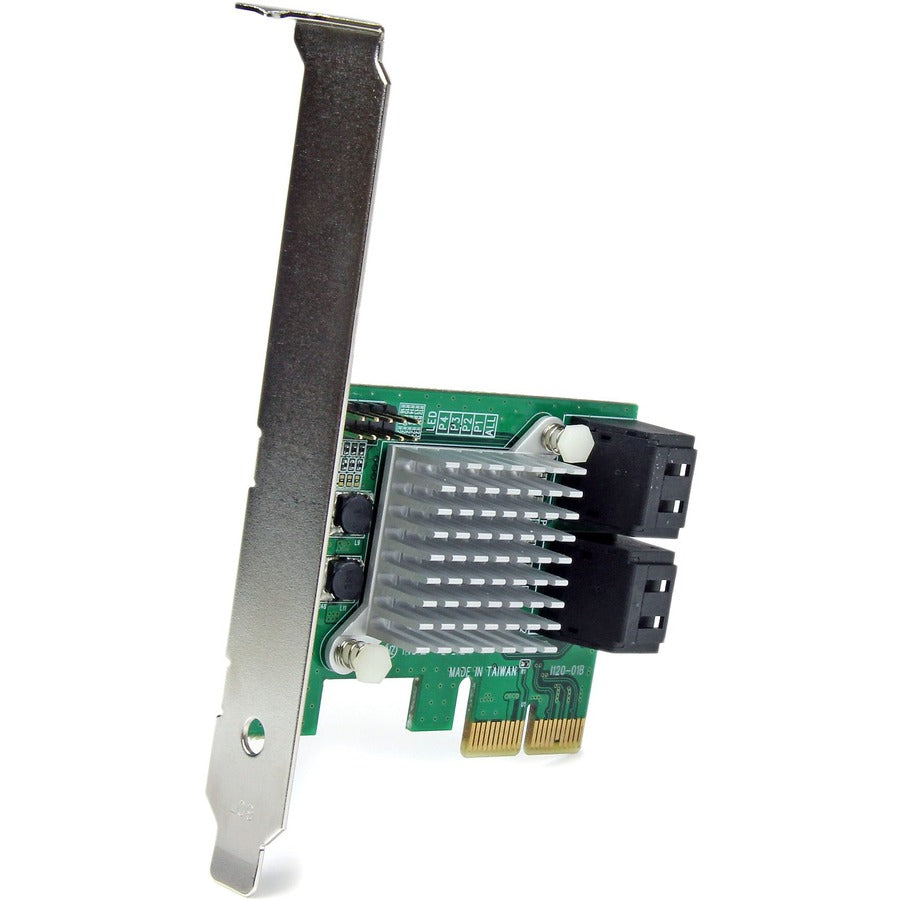

This is a StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering. The PEXSAT34RH adds 4 AHCI SATA III ports via PCIe x2 slot for high-performance HDDs and SSDs. MPN: PEXSAT34RH; UPC: 065030849951. Features HyperDuo auto-tiering, RAID support, and Port Multiplier for up to 7 drives.
Key Features of StarTech.com PEXSAT34RH SATA Controller Card
- HyperDuo SSD Tiering – Combines up to 3 SSD + 1 HDD into one volume; moves hot files to SSDs for up to 80% of SSD performance.
- 4x SATA III 6Gbps Ports – All internal; supports AHCI for high-speed drives.
- Port Multiplier (PM) – Connect up to 4 drives per port on one cable (total 7 drives max: 4 on one port + 1 each on others).
- Hardware RAID Support – Native RAID 0, 1, 1+0, JBOD.
- Heatsink Included – Ensures thermal stability during intensive use.

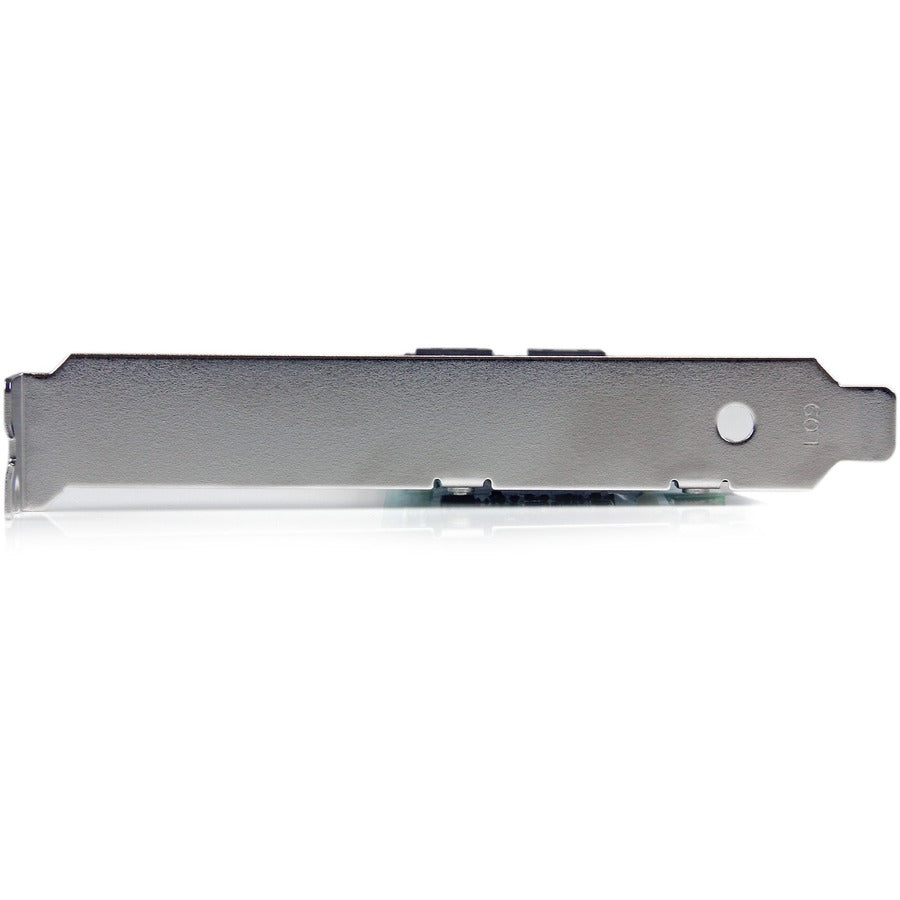

- Low-Profile Design – Includes low-profile bracket for compact cases.
- Throughput Benchmarks – 1x HDD: 112.81 MB/s (2TB); 1x SSD: 490.28 MB/s (120GB); 1 HDD+1 SSD HyperDuo: 489.28 MB/s; 1 HDD+2 SSD HyperDuo: 715.13 MB/s (IOmeter, 256KB seq read, QD=10).
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | PEXSAT34RH |
| Product Name | 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink |
| Product Type | SATA Controller |
| UPC | 065030849951 |
| Host Interface | PCI Express 2.0 x2 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | JBOD, 0, 1, 1+0 |
| Total Number of SATA Ports | 4 |
| Number of SATA Ports (Internal) | 4 |
| Height | 0.8" |
| Width | 4.7" |
| Length | 2.8" |
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Weight (Approximate) | 1.70 oz |
| Package Weight | 0.30 lbs |
| Package Height | 1.30" |
| Package Width | 5.60" |
| Package Depth | 6.90" |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmental Compliance | REACH, RoHS, WEEE |
| Warranty | 2-Year |
Platform and OS Compatibility
- OS Compatibility – Windows 10 (32/64-bit), 8/8.1 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit); Windows Server 2012, 2008 R2, 2003; Mac OS 10.6 and later (tested up to 10.10); Linux.
- Platform Supported – PC, Mac, Linux.
Package Contents
- 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
Installation Overview
Installs into available PCIe 2.0 x2 (or higher) slot. Includes driver CD for setup.
- Power off PC and install card in PCIe slot.
- Connect SATA drives to internal ports.
- Boot and install drivers from CD or download.
- Configure RAID/HyperDuo in BIOS if supported.
Enhance your storage with StarTech.com PEXSAT34RH—Order today!
Brand: Artec
Type: SATA Controller
Model: PEXSAT34RH
MPN: PEXSAT34RH
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Manufacturer Warranty: 2 Years
Compatible Port: PCI Express
Number of Ports: 4 Ports
RAID Levels: 0
Internal Interfaces: SATA III
Item Height: 0.8 in
Item Width: 4.7 in
Item Length: 2.8 in
UPC: 065030849951
