StarTech.com PEX8S1050 8-Port PCIe RS232 DB9 Serial Adapter
StarTech.com PEX8S1050 8-Port PCIe RS232 DB9 Serial Adapter
Low stock: 4 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com PEX8S1050 8-Port PCIe RS232 DB9 Serial Adapter Card - 16C1050 UART, 15kV ESD, TAA Compliant

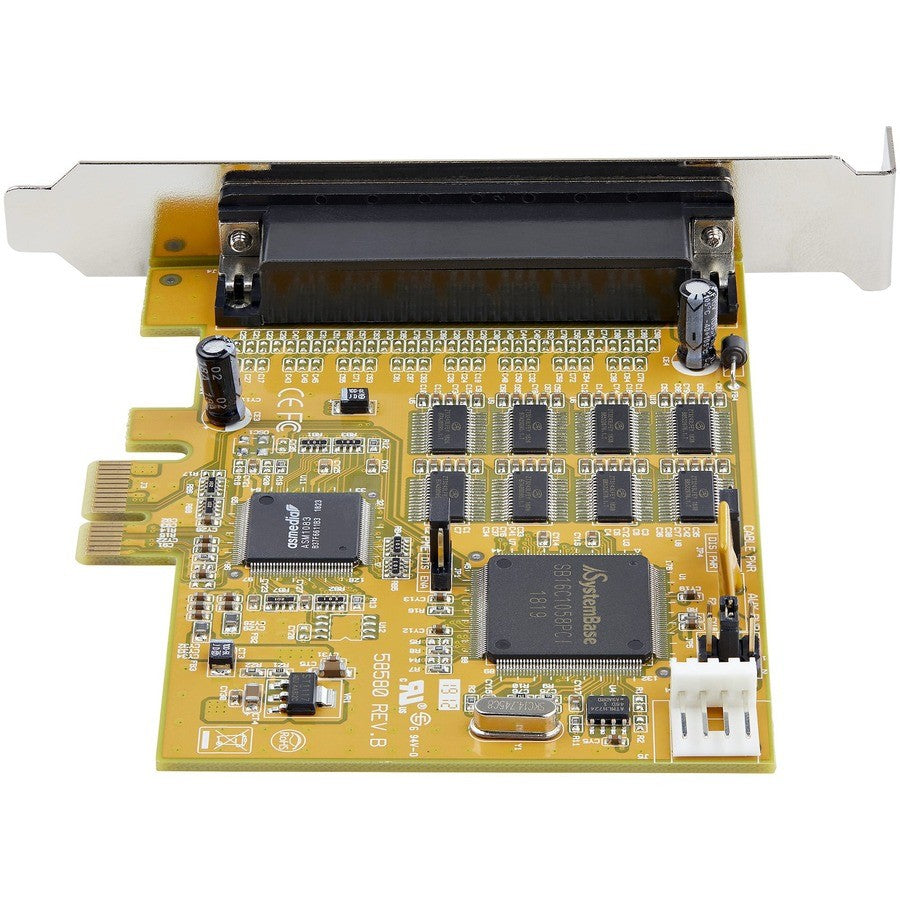

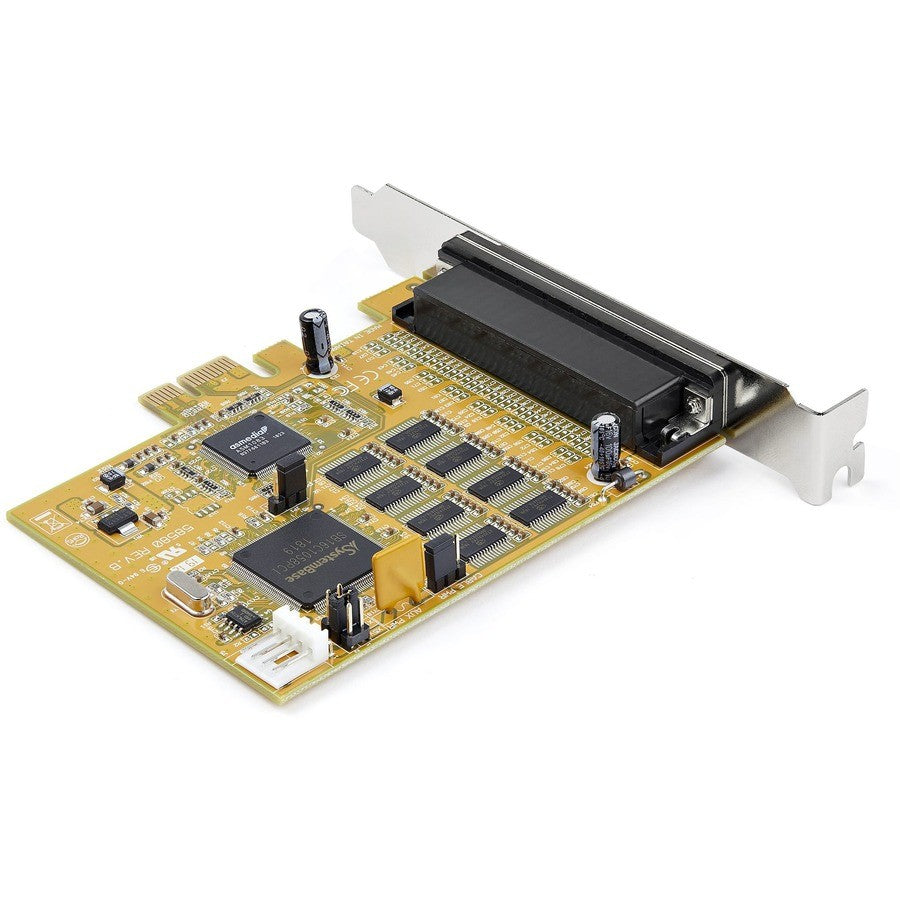

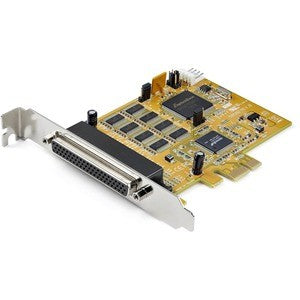

This is a StarTech.com 8-Port PCI Express RS232 Serial Adapter Card that adds eight RS-232 DB9 serial ports to your desktop computer through a PCIe expansion slot. Model PEX8S1050, UPC 065030888295, it includes an 8-port DB62 to DB9 breakout cable for connecting peripherals like printers, scanners, credit/debit card readers, PIN pads, modems, and industrial controls at speeds up to 921.4 Kbps. Featuring 16C1050 UART chips and 15kV ESD protection, this TAA-compliant plug-in card is designed for reliable serial connectivity.
Key Features of StarTech.com 8-Port PCIe Serial Adapter
- Eight RS-232 DB9 Ports – Via included breakout cable from DB62 connector; supports a wide variety of serial peripherals.
- High-Speed Performance – Up to 921.4 Kbps data transfer rate for efficient connections.
- 16C1050 UART Chips – Provides standard serial port compatibility with ESD protection up to 15kV.
- PCIe 1.0a x1 Host Interface – Easy installation in standard PCIe slots.
- Breakout Cable Included – DB62 to 8x DB9 for flexible port expansion.
- TAA Compliant – Meets Trade Agreements Act requirements.
- RoHS Compliant – Environmentally friendly design.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX8S1050 |
| UPC | 065030888295 |
| Product Type | Multiport Serial Adapter |
| Host Interface | PCI Express 1.0a x1 |
| UART Type | 16C1050 |
| Maximum Data Transfer Rate | 921.40 kbit/s |
| ESD Protection | 15kV |
| Number of Serial Ports | 1 (expands to 8) |
| Ports Expandability | 8 x DB-9 RS-232 via breakout cable |
| Form Factor | Plug-in Card |
| Product Color | Yellow |
| Card Height | 4.7" |
| Card Width | 0.6" |
| Card Weight (Approximate) | 2.60 oz |
| Package Weight | 1.40 lbs |
| Shipping Height | 2.80 in |
| Shipping Width | 7.50 in |
| Shipping Depth | 11.50 in |
| Country of Origin | Taiwan |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TAA Compliant | Yes |
Package Contents
- PCIe Serial Card

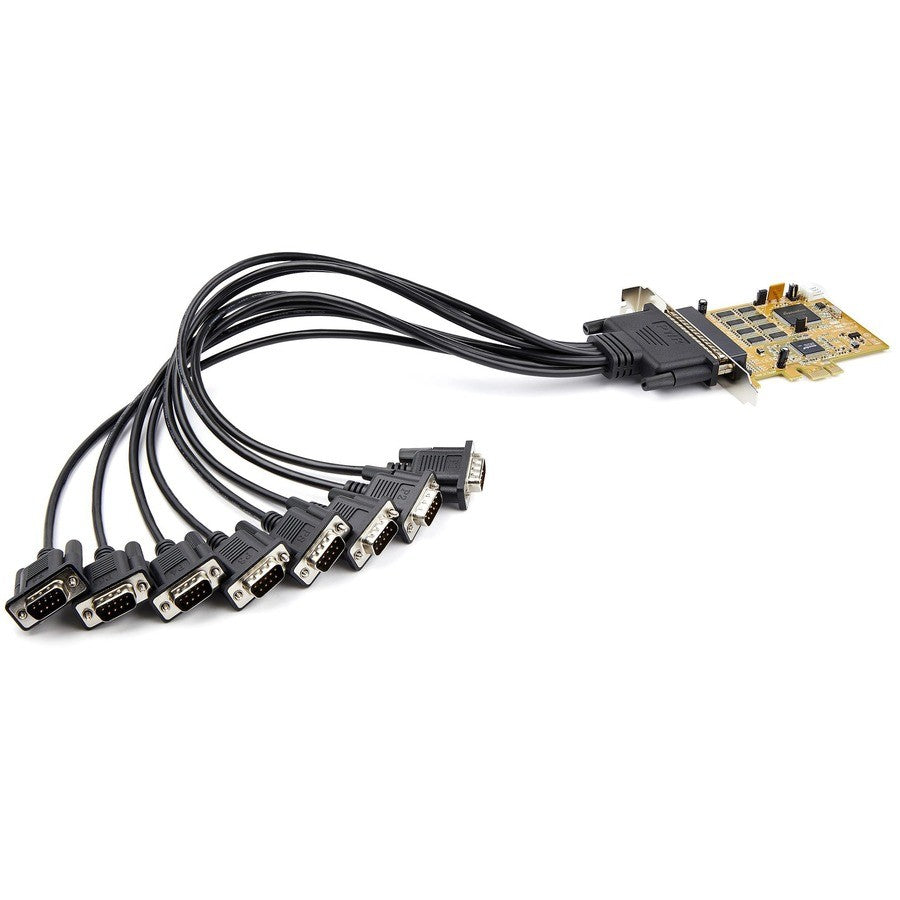

- 1 x DB62 to 8 Port DB9 Breakout Cable
- 1 x Quick Start Guide
- 8 x Optional DB9 Connector Hex Nut Pairs
Why Choose StarTech.com PEX8S1050 Serial Adapter?
Expand your desktop's serial connectivity with this reliable PCIe to RS232 adapter, featuring proven 16C1050 UART technology, robust ESD protection, and included breakout cabling for immediate multi-port use in Windows environments.
Add reliable 8-port RS232 serial expansion to your PCIe system—Order the StarTech.com PEX8S1050 today!
Brand: Artec
Type: Multiport Serial Adapter
MPN: PEX8S1050
Model: PEX8S1050
Compatible Brand: StarTech.com
Country of Origin: Taiwan
Compatible Port: PCI Express x1
External Interfaces: Serial (RS-232)
Number of Ports: 8 Ports
UPC: 065030888295
