StarTech.com PCI1PEX1 PCI to PCIe x1 Low Profile Riser Adapter Card 32-bit Slot
StarTech.com PCI1PEX1 PCI to PCIe x1 Low Profile Riser Adapter Card 32-bit Slot
Low stock: 5 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com PCI1PEX1 PCI to PCIe Low Profile Adapter Card

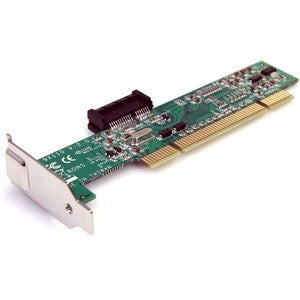

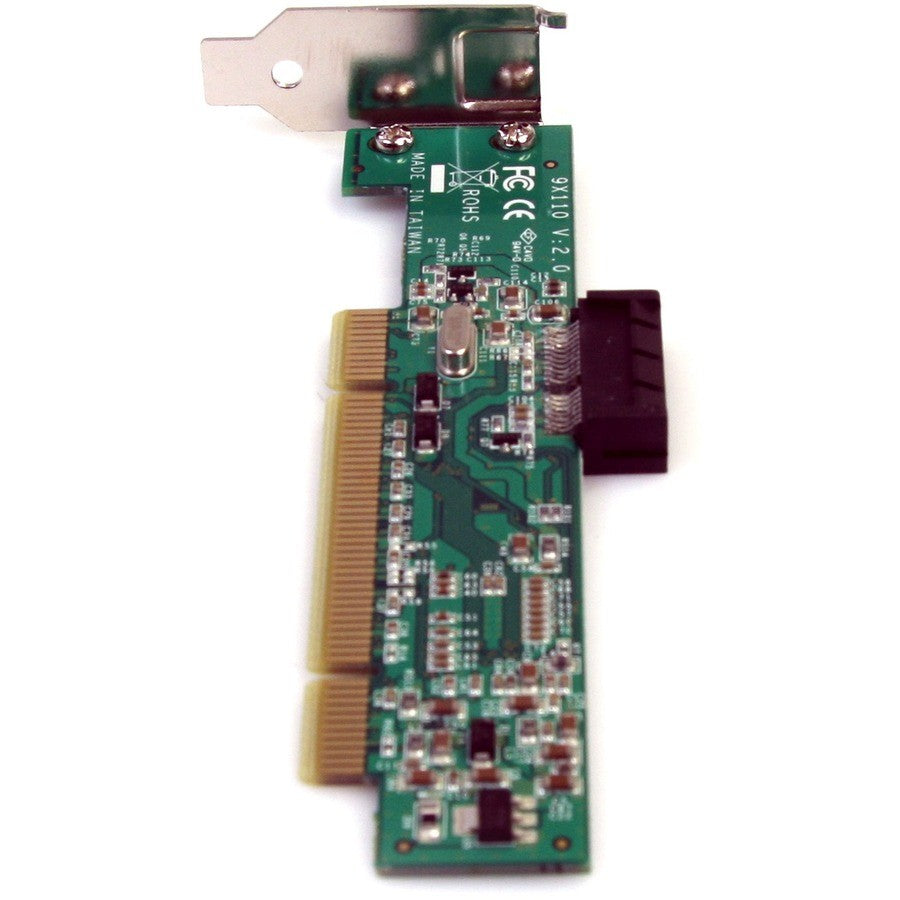

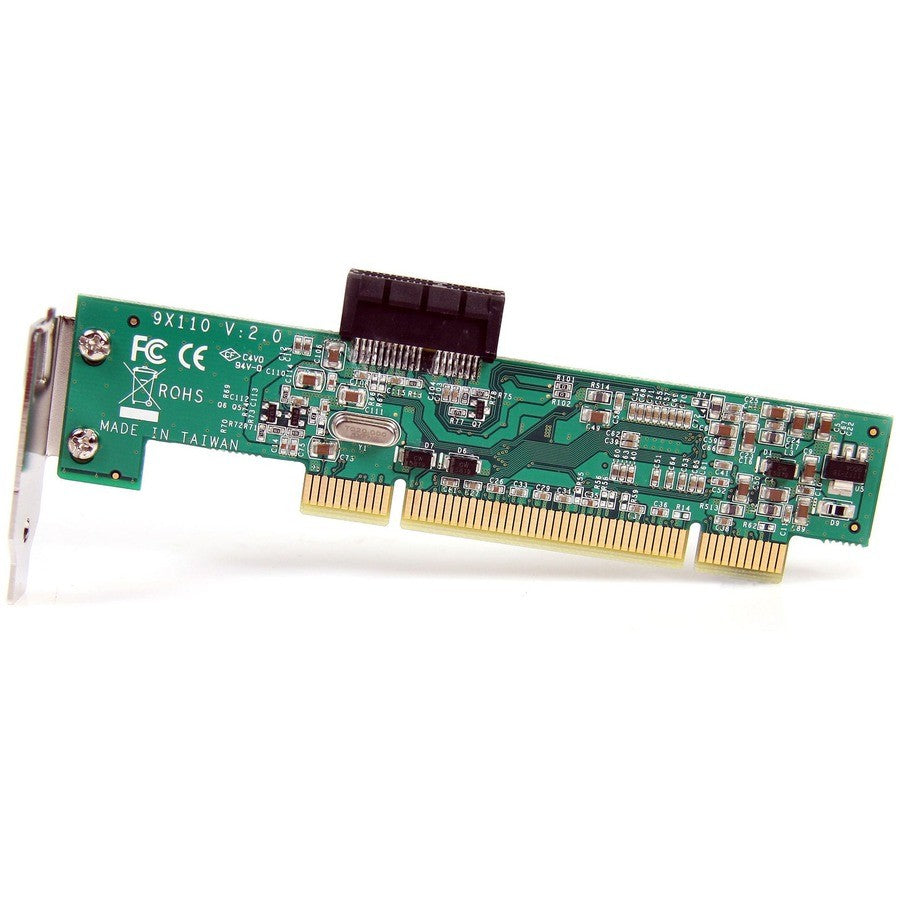

This is a StarTech.com PCI to PCI Express Adapter Card (model PCI1PEX1) that enables the use of low-profile PCIe expansion cards in a standard 32-bit PCI slot on server or desktop motherboards. The riser card connects via PCI to provide a low-profile PCIe x1 slot, including a spare full-size bracket for versatile installation. UPC: 065030837835. It offers an economical way to extend older PCI systems with modern low-profile PCIe cards lacking PCI equivalents.
Key Features of StarTech.com PCI1PEX1 Adapter
- PCI to PCIe Conversion – Installs in 32-bit PCI slots to deliver a functional low-profile PCIe x1 slot for compatible expansion cards.
- Innovative Bracket Design – Adapts and secures low-profile or half-height PCIe cards seamlessly in the converted PCI slot.

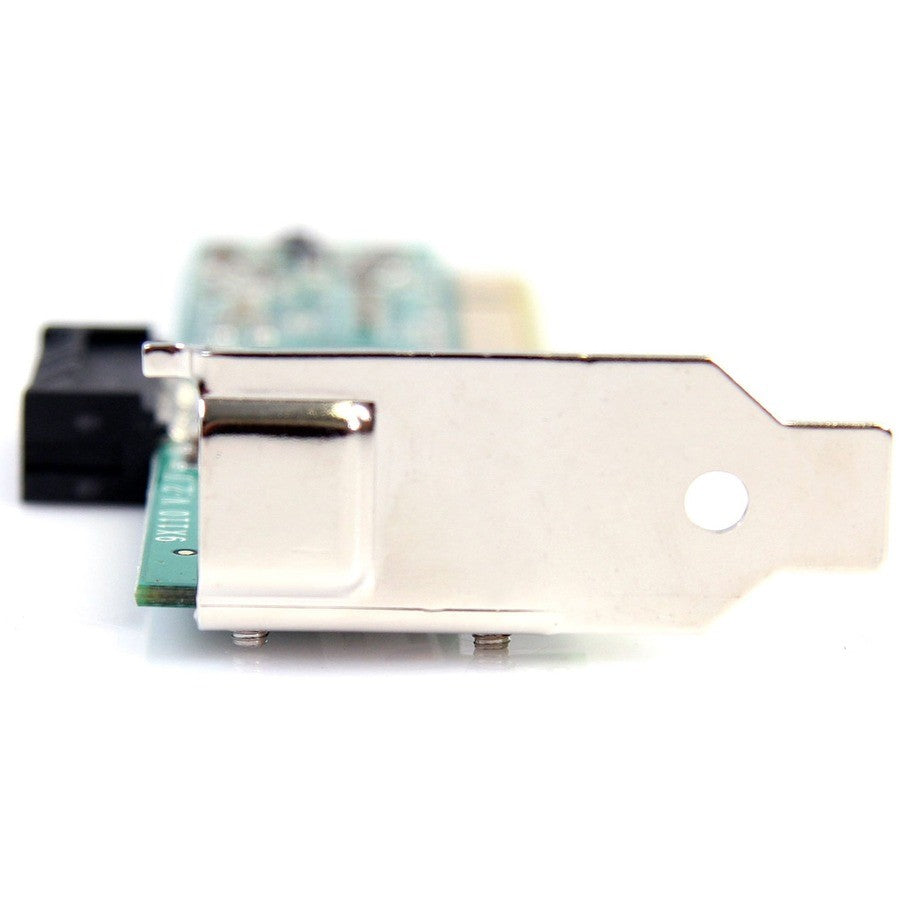

- Dual Bracket Support – Includes low-profile bracket plus spare full-profile bracket for standard desktop or server chassis.
- Riser Card Design – Provides one PCIe x1 low-profile expansion slot, ideal for legacy motherboard upgrades.
- Environmental Compliance – Meets RoHS, WEEE, and REACH standards; made in Taiwan with environmentally friendly materials.
- StarTech.com Support – Backed by 2-year warranty and free lifetime technical support.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | PCI1PEX1 |
| Product Model | PCI1PEX1 |
| Product Name | PCI to PCI Express Adapter Card |
| Product Type | Riser Card |
| Host Interface | PCI (32-bit) |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | PCI Express x1 (Low-profile) |
| Height | 0.8" |
| Width | 2.4" |
| Depth | 5.3" |
| Thickness | 790 mil |
| Weight (Approximate) | 1.13 oz |
| Packaged Quantity | 1 Each |
| UPC | 065030837835 |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | RoHS, WEEE, REACH |
| Warranty | 2-year warranty and free lifetime technical support |
Package Contents
- PCI to PCI Express Adapter Card
- 1 x Spare Full Profile Bracket
- 1 x Instruction Manual
Installation Guide for PCI1PEX1 Adapter Card
Simple plug-and-play installation for PCI slots; power off system first for safety.
- Power down and unplug the computer; open the case to access PCI slots.
- Insert the adapter into an available 32-bit PCI slot and secure with screw.
- Attach low-profile PCIe x1 card to the adapter's slot; use appropriate bracket (low-profile or full-size).
- Close case, power on, and install any required drivers for the PCIe card. Pro tip: Verify slot clearance and airflow.
- Maintenance: Dust-free environment; check connections periodically.
Why Choose StarTech.com PCI to PCIe Adapter
StarTech.com PCI1PEX1 provides reliable compatibility for low-profile PCIe cards in legacy PCI systems, with robust build quality, included accessories, and comprehensive support.
Extend your motherboard's capabilities with StarTech.com PCI1PEX1—Order now!
Brand: StarTech
MPN: PCI1PEX1
Model: PCI1PEX1
Type: Riser Card
Country of Origin: Taiwan
Compatible Port/Slot: PCI
UPC: 065030837835
