StarTech.com P10Q4C-USB-CARD 4-Port USB 3.2 10Gbps Type-C PCIe Card TAA
StarTech.com P10Q4C-USB-CARD 4-Port USB 3.2 10Gbps Type-C PCIe Card TAA
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com P10Q4C-USB-CARD 4-Port USB 3.2 10Gbps Type-C PCIe Card TAA Compliant

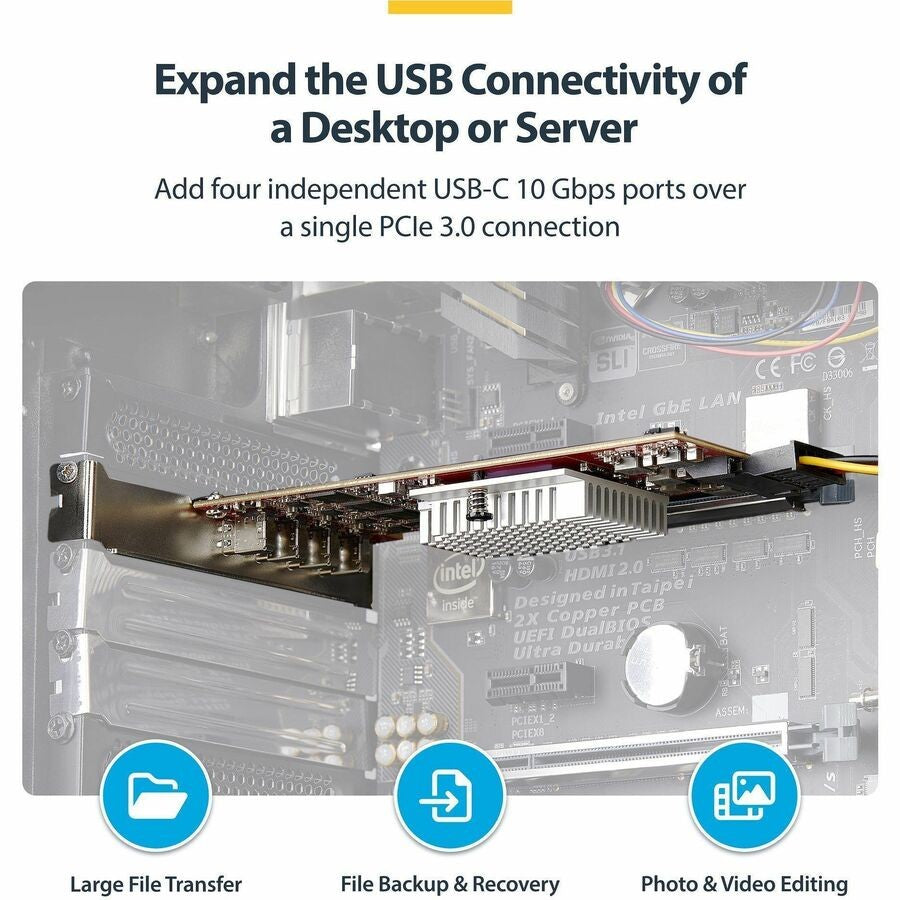

This is a StarTech.com 4-Port USB Type-C PCIe Card, USB 3.2 10Gbps expansion card with 4x independent USB controllers and TAA compliance. The internal PCI Express 3.0 x4 card expands desktop or server USB connectivity by adding four external USB-C ports, each supporting up to 10Gbps speeds. Manufacturer Part Number: P10Q4C-USB-CARD; UPC: 065030911436. Ideal for high-bandwidth tasks like large file transfers, video editing, and charging devices up to 15W per port.
Key Features of StarTech.com 4-Port USB-C PCIe Expansion Card

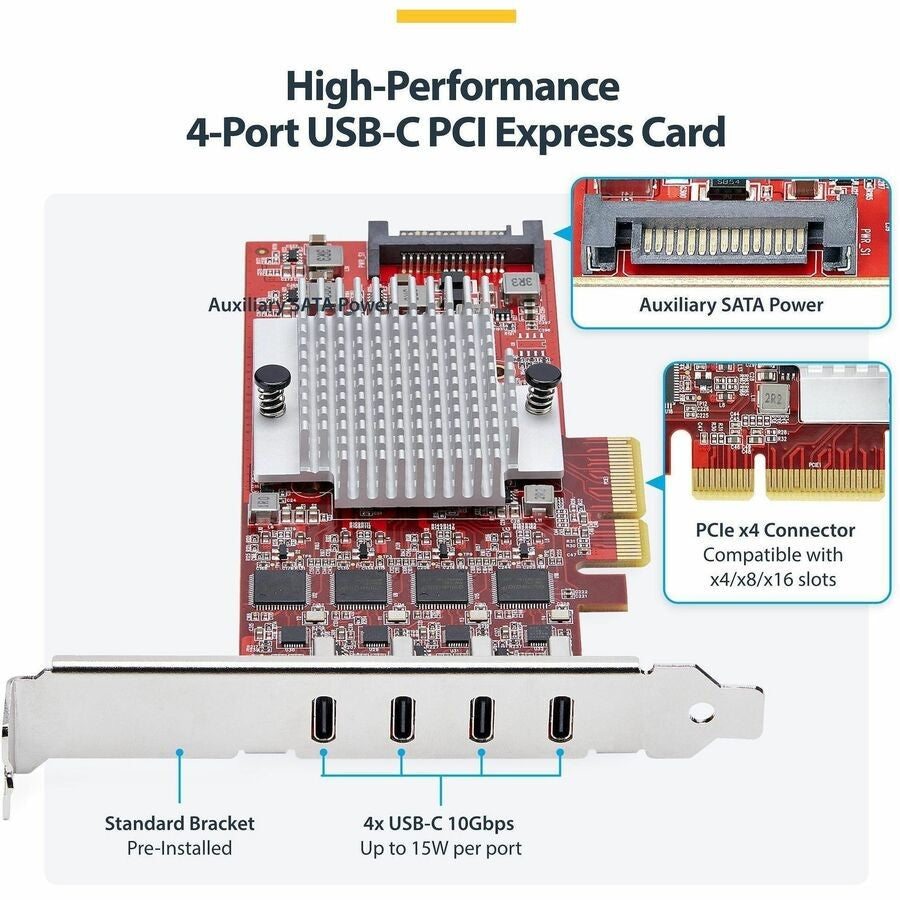

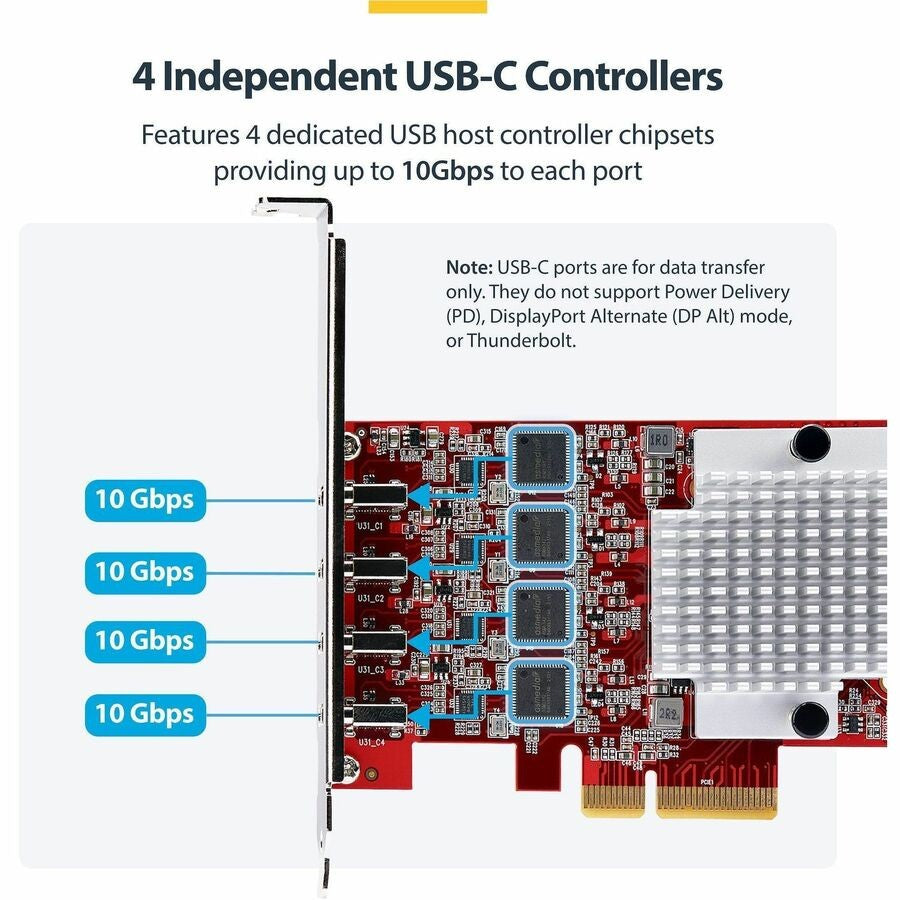

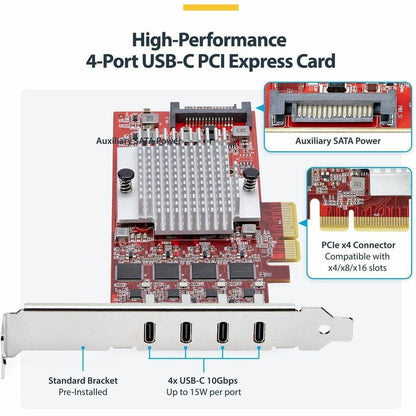

- Four Independent USB Controllers – Each USB 3.2 Gen 2 (10Gbps) Type-C port operates independently to maximize throughput and eliminate bandwidth sharing bottlenecks.
- High-Speed USB 3.2 Gen 2 Performance – Supports data transfer rates up to 1.25 GB/s per port; backward compatible with 640 MB/s, 60 MB/s, 1.50 MB/s, and 140.80 kB/s speeds; UASP support for enhanced performance.

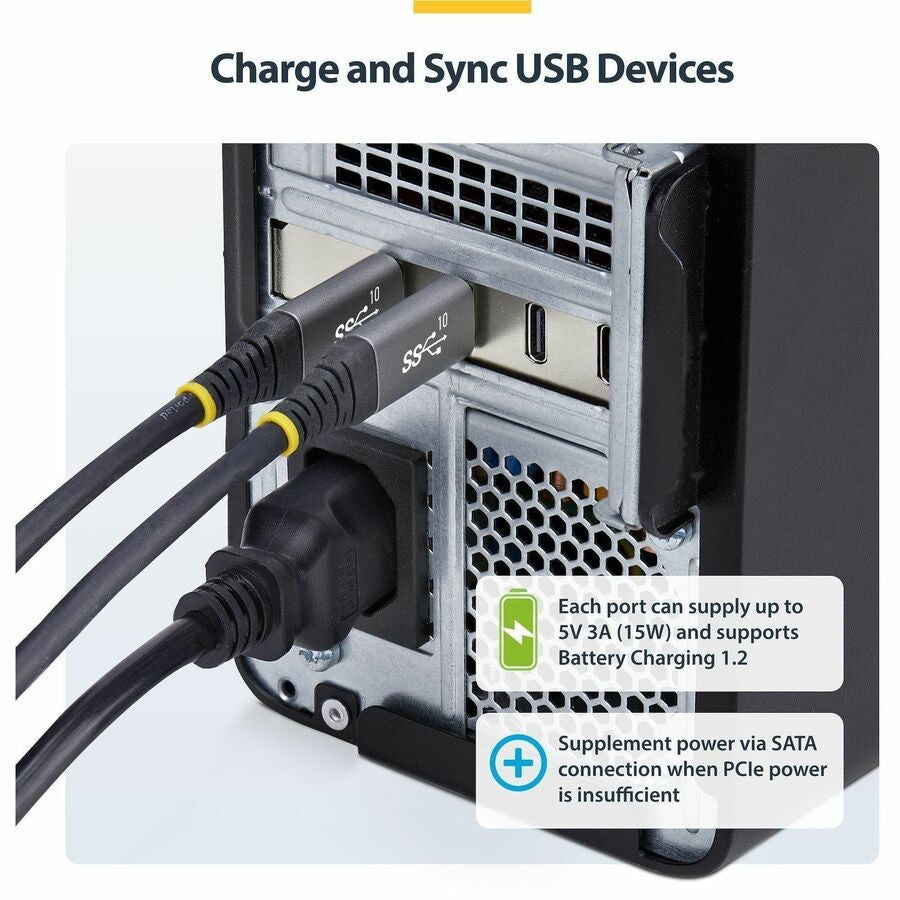

- Power Delivery – Provides up to 5V/3A (15W) per port for charging and syncing portable devices; includes SATA power connector for additional power if needed from motherboard.
- Plug-and-Play Compatibility – Works with PCI Express 3.0 x4, x8, or x16 slots; supported on Windows 10/11, Windows Server 2019/2022, Linux 2.6.31+, macOS Sonoma/Ventura.

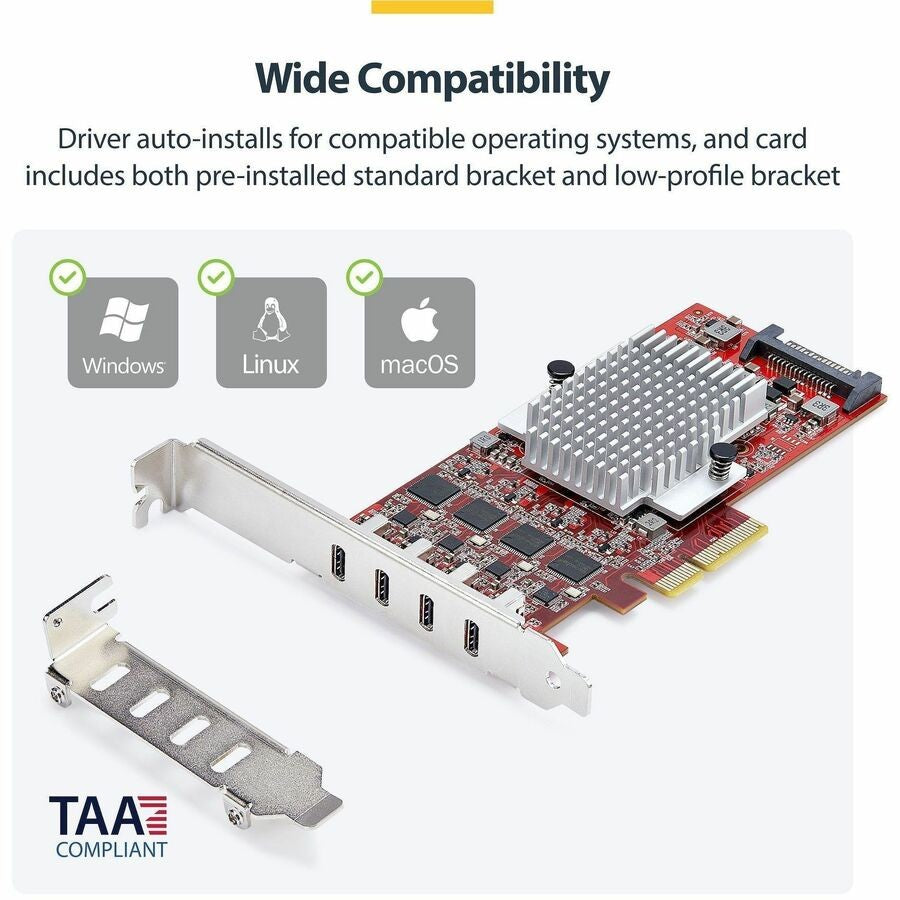

- Bracket Options – Pre-installed standard profile bracket plus included low-profile bracket for versatile chassis compatibility.
- TAA Compliant – Meets Trade Agreements Act requirements; red color for easy identification.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | P10Q4C-USB-CARD |
| UPC | 065030911436 |
| Product Type | USB Adapter |
| Product Name | USB Adapter |
| Host Interface | PCI Express x4 (PCIe 3.0 compatible with x4/x8/x16 slots) |
| USB Version | 3.2 Gen 2 |
| Total Number of USB Ports | 4 |
| USB Connector Type | Type-C |
| Number of SATA Ports | 1 (power connector) |
| Data Transfer Rate | 1.25 GB/s, 640 MB/s, 60 MB/s, 1.50 MB/s, 140.80 kB/s |
| UASP Support | Yes |
| Features | Plug and Play |
| Operating Systems Supported | Windows 10, Windows 11, Windows Server 2019, Windows Server 2022, Linux 2.6.31, macOS Sonoma, macOS Ventura |
| Form Factor | Internal |
| Product Color | Red |

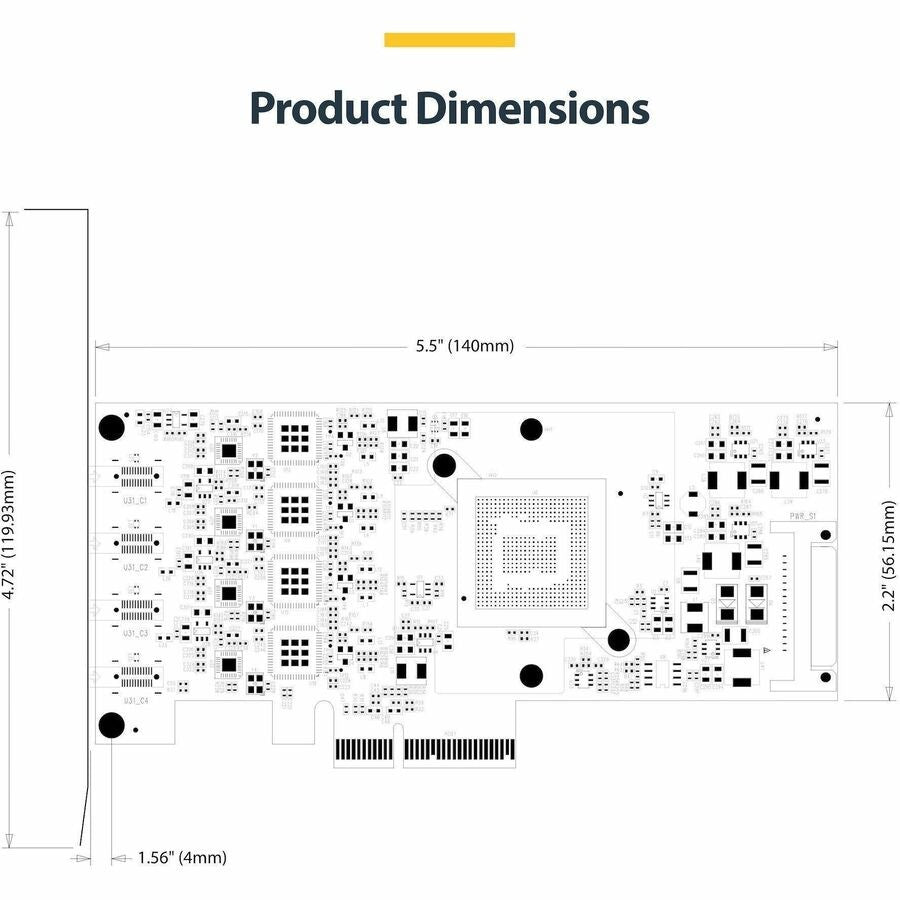

| Card Dimensions (HxWxL) | 4.7" x 2.2" x 5.5" |
| Weight (Approximate) | 4.20 oz |
| Package Weight | 0.40 lb |
| Package Dimensions (HxWxD) | 1.30" x 5.60" x 6.80" |
| Application/Usage | Desktop, Server |
| Platform Supported | PC, Mac |
| TAA Compliant | Yes |
| Packaged Quantity | 1 |
Package Contents & Installation Notes
- USB Adapter
- 1 x Low-Profile Bracket
- 1 x Quick-Start Guide
Installation is plug-and-play: Insert into compatible PCIe slot, connect SATA power if required, secure bracket. Pro tip: Verify sufficient chassis airflow for optimal performance in multi-port use.
Why Choose StarTech.com USB-C PCIe Card
Engineered for reliable expansion with dedicated controllers per port, this TAA-compliant card supports demanding workflows on desktops and servers across major OS platforms.
Enhance your system's USB capabilities—Add the StarTech.com P10Q4C-USB-CARD to your cart today!
Type: USB Adapter
MPN: P10Q4C-USB-CARD
Compatible Brand: StarTech.com
Compatible Port: PCI Express x4
External Interfaces: USB Cards
Number of Ports: 4 Ports
Model: P10Q4C-USB-CARD
Maximum Data Rate: 10 Gbps
Unit Quantity: 1
Item Height: 4.7 in
Item Width: 2.2 in
Item Length: 5.5 in
Brand: Does not apply
UPC: 065030911436
