StarTech.com I13-SERIAL-ETHERNET 1-Port RS232 Serial to Ethernet Device Server
StarTech.com I13-SERIAL-ETHERNET 1-Port RS232 Serial to Ethernet Device Server
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com I13-SERIAL-ETHERNET 1-Port Serial to Ethernet Adapter - RS232 Device Server
This is a 1-port serial-to-IP converter designed for remotely connecting and controlling RS232 serial devices over an IP-based network. The StarTech.com 1-Port Serial to Ethernet Adapter, IP Serial Device Server for Remote RS232 Devices features wall/DIN rail mounting and LAN to DB9 conversion. Manufacturer Part Number: I13-SERIAL-ETHERNET; UPC: 065030905978. It supports versatile configuration for direct RS232 control or end-to-end serial connections.
Key Features & Capabilities
- Customizable Serial over LAN – Supports direct remote control of RS232 devices or pairing two units for full RS232 serial extension across networks.
- Device Server Manager (DSM) Software – Windows-based tool creates virtual COM ports for seamless integration with existing serial applications; enables unified management of multiple converters.
- Web-Based Interface – Allows remote configuration and management in mixed OS environments.

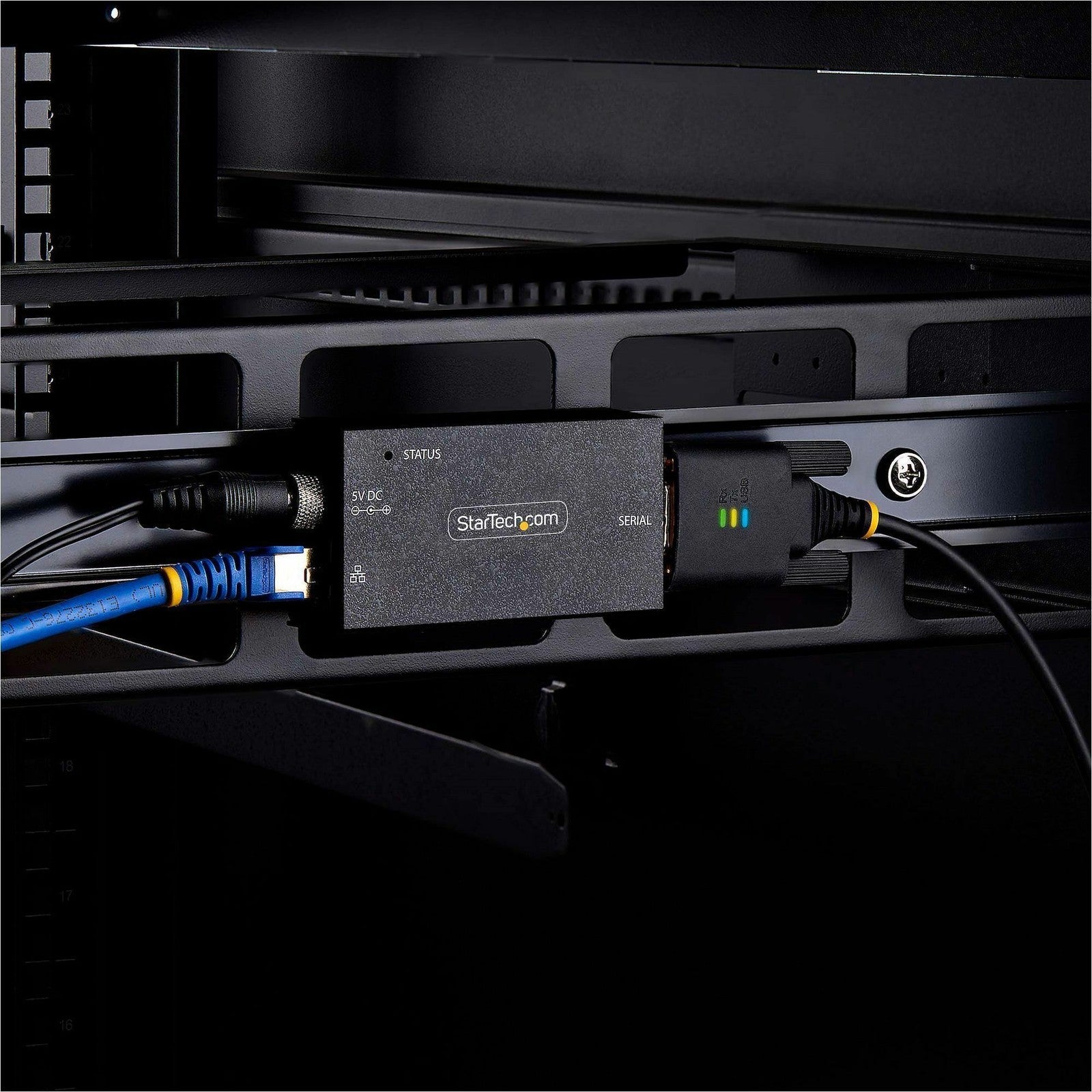

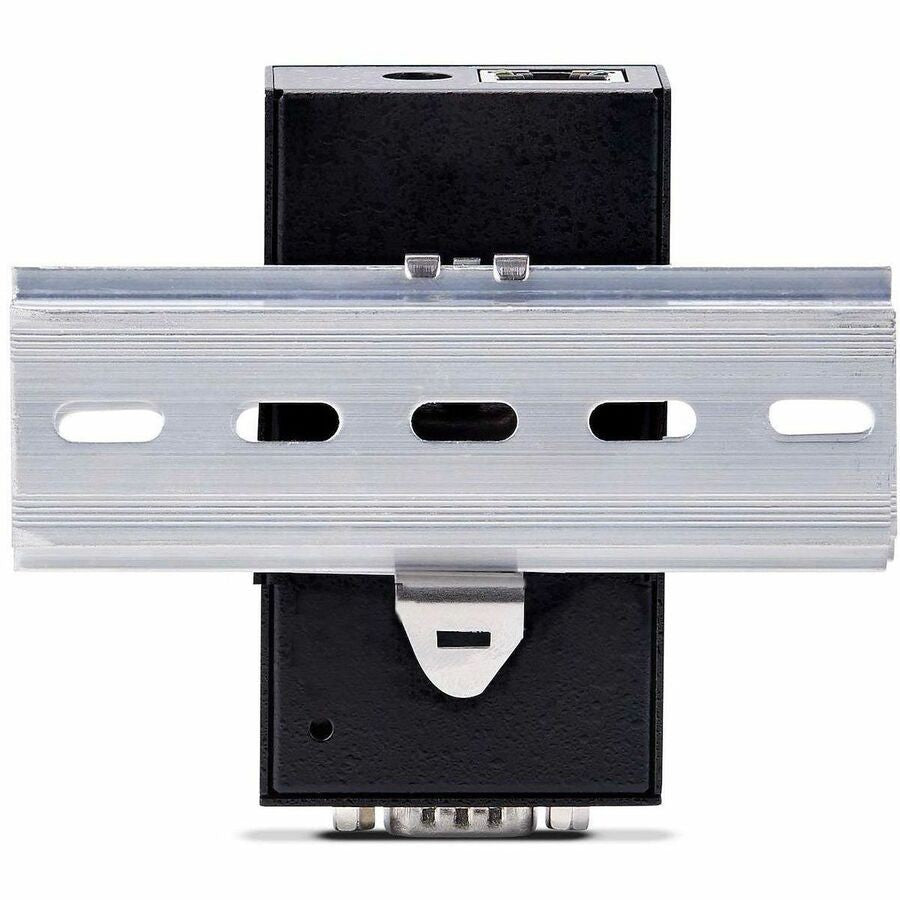

- Rugged Steel Chassis – Full metal enclosure with multiple mounting holes for flexible DIN rail, wall, or custom orientation installation; compact 1.8 x 1 x 3.2 in (46.1 x 25 x 81.9 mm) size.
- Network Protocols – Telnet Server (RFC2217), TCP Server, TCP Client, UDP for broad connectivity.
- ESD Protection & Power Options – Level-4 ESD (15kV air/8kV contact); supplies 5VDC over pin 9; includes universal power adapter.
- TAA Compliant – Meets government procurement standards.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | I13-SERIAL-ETHERNET |
| Product Type | Device Server |
| UPC | 065030905978 |
| Product Color | Black |
| Product Material | Steel |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Height | 1 in |
| Width | 3.2 in |
| Depth | 1.8 in (46.1 x 25 x 81.9 mm) |
| Weight (Approximate) | 5.50 oz |
| Connectivity Technology | Wired |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Standard | 10/100Base-T |
| Total Number of Network Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Number of Serial Ports | 1 |
| Serial Port | RS232 (DB9) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 100 V AC to 240 V AC |
| Power Consumption | 15 W |
| Input Current | 480 mA |
| Plug/Connector Type | Type M |
| Certifications & Standards | IEEE 802.3u, IEEE 802.3i |
| TAA Compliant | Yes |
| ESD Protection | Level-4 (15kV air/8kV contact) |
| Supported Protocols | Telnet Server (RFC2217), TCP Server, TCP Client, UDP |

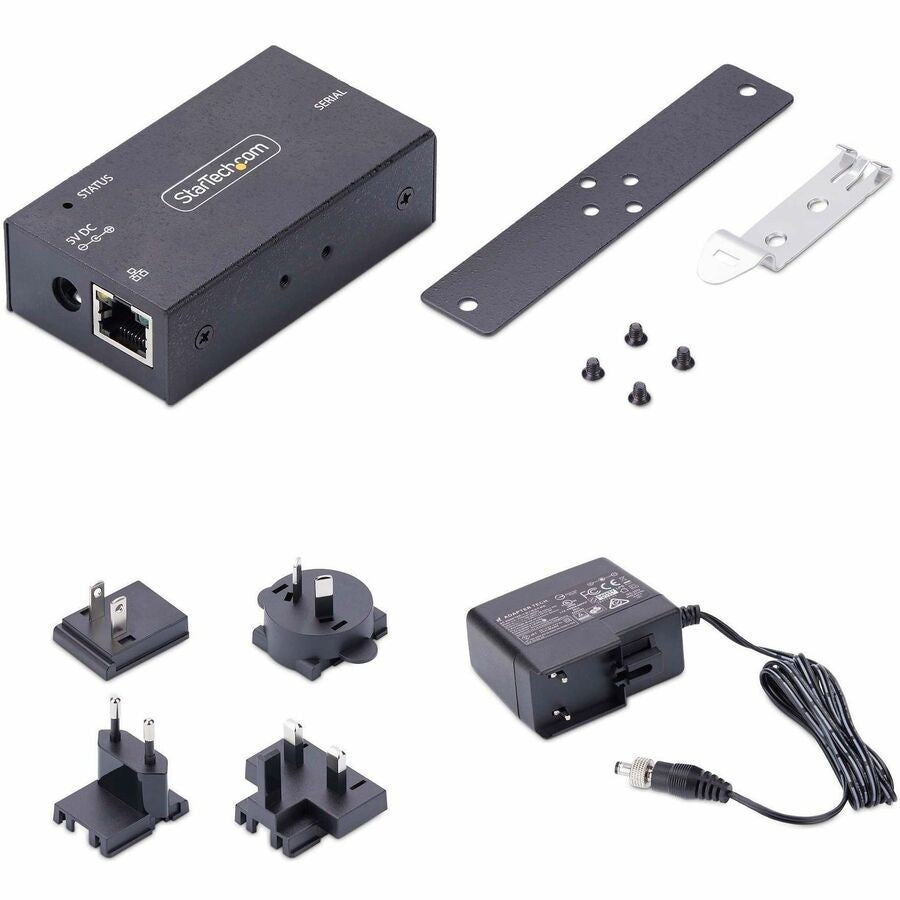

Package Contents & Installation Essentials
- Device Server
- 1 x DIN Rail Kit
- 1 x Mounting Bracket
- 4 x Mounting Bracket Screws
- 1 x Universal Power Adapter
- 1 x Quick-Start Guide
Packaged Quantity: 1. The included hardware supports flexible installation in industrial or space-constrained setups. Use DSM software or web interface for initial configuration.
Why Choose StarTech.com RS232 Serial Device Server
This TAA-compliant converter offers durable construction, broad protocol support, and easy management for reliable serial-to-Ethernet integration in professional networks.
Connect your RS232 devices over IP—Order the StarTech.com I13-SERIAL-ETHERNET today!
Brand: Art
Type: Device Server
MPN: I13-SERIAL-ETHERNET
Color: Black
Compatible Brand: StarTech.com
Connector A: Ethernet (RJ-45)
Item Height: 1 in
Item Length: 1.8 in
Item Width: 3.2 in
Output Voltage: 5 V
Unit Quantity: 1
UPC: 065030905978
