Description

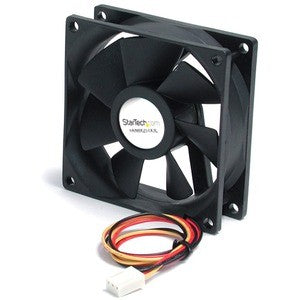

StarTech.com FAN8X25TX3L 80x25mm Ball Bearing Quiet Computer Case Fan w/ TX3 Connector - Fan Kit
This is a quiet dual ball-bearing 80mm (80x25mm) computer case cooling fan kit from StarTech.com, designed for replacing non-functional or noisy PC fans. Powered via a simple 3-pin TX3 female connector to the motherboard, the FAN8X25TX3L fan maintains optimal system temperatures for stable performance. MPN: FAN8X25TX3L; UPC: 065030788885.
Key Features of StarTech.com 80x25mm Ball Bearing Case Fan
- Dual Ball Bearing Design – Ensures reliability and longer life compared to sleeve bearings.
- Quiet Operation – Rated at 27 dB noise level for minimal disturbance.
- High Airflow Performance – Delivers up to 26.60 CFM at 2000 RPM maximum speed.
- TX3 Connector – 3-pin female interface for direct motherboard power and tachometer monitoring.
- Built-in Tachometer – Allows easy performance monitoring via motherboard software.
- Plastic Construction – Lightweight and durable for standard PC case mounting.
- Environmental Compliance – Meets REACH, RoHS, and WEEE standards.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | FAN8X25TX3L |
| UPC | 065030788885 |
| Product Type | Cooling Fan |
| Product Name | 80mm Ball Bearing Computer Case Fan |
| Application/Usage | Case |
| Fan Speed (Max) | 2000 rpm |
| Maximum Airflow | 26.60 CFM |
| Noise Levels | 27 dB |
| Connectors | 3-pin TX3 Female |
| Input Voltage | 12 V DC |
| Product Material | Plastic |
| Maximum Fan Diameter | 3.15" |
| Fan Height | 0.98" |
| Fan Width | 3.15" |
| Fan Depth | 3.15" |
| Weight (Approximate) | 2.56 oz |
| Packaged Quantity | 1 Each |
| Package Contents | 80mm Ball Bearing Computer Case Fan; 4 x Mounting Screws |
| Environmentally Friendly | Yes |
| Environmental Compliance | REACH; RoHS; WEEE |
| Country of Origin | China |
| Warranty | StarTech.com 2-year warranty and free lifetime technical support |
Installation & Maintenance for StarTech.com TX3 Case Fan
Simple plug-and-play installation suitable for standard PC cases. Pro tip: Ensure adequate clearance around the fan for optimal airflow.
- Power off and unplug the PC; open the case.
- Mount the fan using the included 4 screws in the desired case position.
- Connect the 3-pin TX3 female connector to a compatible motherboard fan header.
- Secure cables; close case and power on.
- Monitor via BIOS or software using the built-in tachometer.
- Clean dust periodically with compressed air; avoid direct contact with blades.
Why Choose StarTech.com FAN8X25TX3L Case Fan?
StarTech.com provides a cost-effective, reliable cooling solution with dual ball bearings for extended lifespan, quiet 27 dB operation, and easy TX3 integration for PC builders and upgraders.
Upgrade your PC cooling with StarTech.com 80x25mm ball bearing fan—order FAN8X25TX3L today!
Brand: Artec
Type: Cooling Fan
Color: Black
Material: Plastic
Compatible Brand: StarTech.com
MPN: FAN8X25TX3L
Country of Origin: China
Manufacturer Warranty: 2 Years
Power Connection: 3-Pin
Fan Diameter: 80 mm
Voltage: 12 V
Bearing Type: Ball
Maximum Fan Speed: 2000 RPM
UPC: 065030788885
