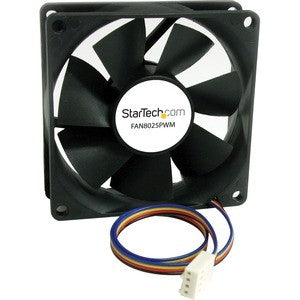

StarTech.com FAN8025PWM 80x25mm PWM Computer Case Fan
StarTech.com FAN8025PWM 80x25mm PWM Computer Case Fan
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com FAN8025PWM 80x25mm PWM Computer Case Fan
This is a StarTech.com 80x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector. The FAN8025PWM implements Pulse Width Modulation (PWM) technology for dynamic fan speed control via the motherboard, enabling reduced power consumption and noise during idle states while providing maximum cooling under full load. Manufacturer: StarTech.com; MPN: FAN8025PWM; UPC: 065030845311. It serves as an efficient air cooling solution for computer cases or enclosures, backed by a 2-year warranty and free lifetime technical support.
Key Features of StarTech.com 80x25mm PWM Case Fan
- PWM-Controlled Variable Speed – Dynamically adjusts via motherboard for optimal balance of cooling, power use, and noise levels across operating conditions.
- High-Performance Airflow – Delivers 25.02 CFM at up to 2500 RPM maximum speed to maintain component temperatures.
- 4-Pin PWM Connector – Standard interface for precise speed control; includes 9-inch PWM Y-cable for flexible connectivity.
- Lubricated Bearing Design – Ensures reliable long-term operation in case environments.
- Compact 80x25mm Dimensions – Fits standard PC case mounting points; plastic construction for lightweight durability.
- Certifications & Compliance – Meets CE standards; environmentally friendly with REACH, RoHS, and WEEE compliance.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | StarTech.com |
| Brand Name | StarTech.com |
| Manufacturer Part Number | FAN8025PWM |
| UPC | 065030845311 |
| Product Type | Cooling Fan |
| Packaged Quantity | 1 Each |
| Number of Fans | 1 |
| Fan Bearing Type | Lubricate Bearing |
| Fan Speed (Max) | 2500 rpm |
| Maximum Airflow | 25.02 CFM |
| Airflow Details | 1 x 25.02 CFM |
| Connectors | 4-pin PWM |
| Input Voltage | 12 V DC |
| Product Material | Plastic |
| Maximum Fan Diameter | 3.15" |
| Fan Diameter Details | 1 x 80mm |
| Fan Height | 0.98" |
| Fan Width | 3.15" |
| Fan Depth | 3.15" |
| Weight (Approximate) | 3.03 oz |
| Application/Usage | Case |
| Certifications & Standards | CE |
| Environmentally Friendly | Yes |
| Environmental Compliance | REACH, RoHS, WEEE |
| Country of Origin | China |
| Warranty | 2-year warranty and free lifetime technical support |
Package Contents & Application
- 80x25mm Computer Case Fan with PWM

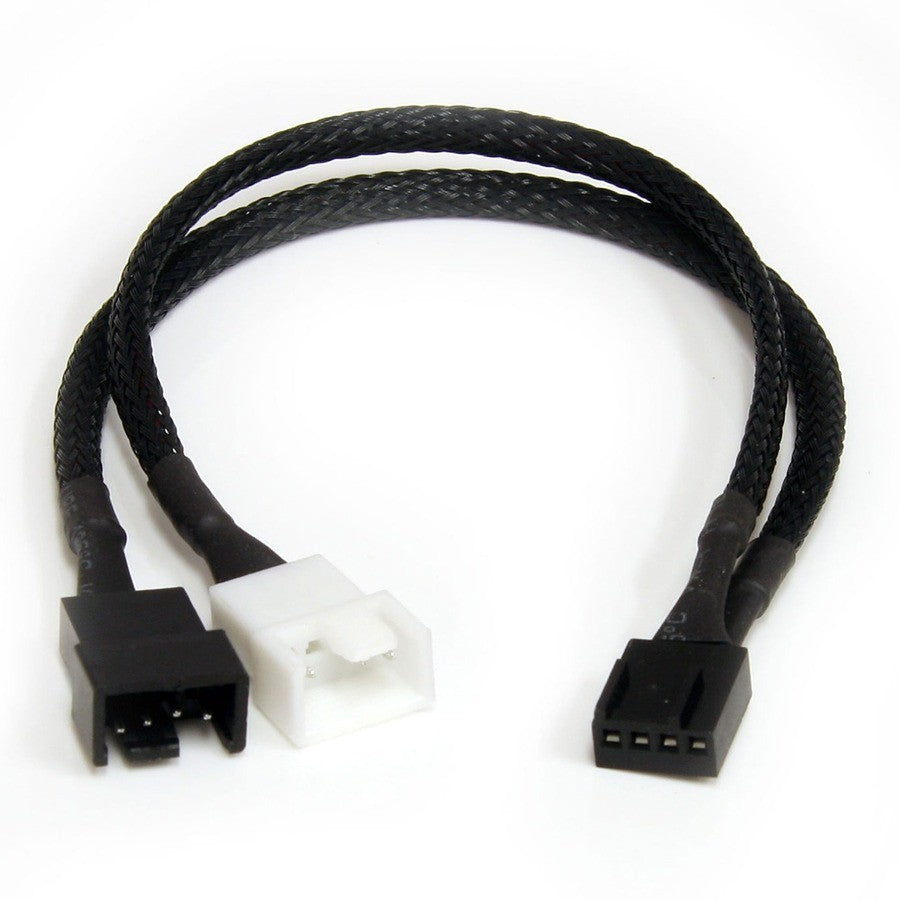

- 1 x 9 inch PWM Y-Cable
Designed for installation in computer cases or similar enclosures to enhance airflow and component cooling efficiency.
Why Choose StarTech.com FAN8025PWM PWM Case Fan
The StarTech.com FAN8025PWM offers reliable PWM-controlled cooling tailored for modern PC builds, with verified specifications for airflow and speed control to suit varying system demands.
Upgrade your PC cooling with the StarTech.com 80x25mm PWM Case Fan—Order the FAN8025PWM today!
Brand: Artec
Type: Cooling Fan
Color: Black
Material: Plastic
Compatible Brand: StarTech.com
MPN: FAN8025PWM
Country of Origin: China
Manufacturer Warranty: 2 Years
Power Connection: 4-Pin
Fan Diameter: 80 mm
Voltage: 12 V
Maximum Fan Speed: 2500 RPM
UPC: 065030845311
