StarTech.com FAN12025PWM 120x25mm PWM Case Fan 2200 RPM 78.41 CFM
StarTech.com FAN12025PWM 120x25mm PWM Case Fan 2200 RPM 78.41 CFM
Low stock: 5 left
Save 16%
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description

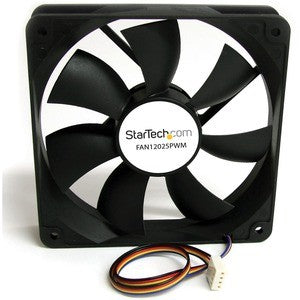

StarTech.com FAN12025PWM 120x25mm PWM Case Fan - 2200 RPM 78.41 CFM
This is a StarTech.com 120x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector, designed as an efficient air cooling solution for computer cases and enclosures. The FAN12025PWM features variable speed control via 4-pin PWM connector, enabling dynamic adjustment by the motherboard for optimal performance. MPN: FAN12025PWM; UPC: 065030845335. It delivers maximum airflow of 78.41 CFM at up to 2200 RPM while reducing noise and power use during idle conditions.
Key Features of StarTech.com PWM Case Fan
- PWM Technology – Dynamically controlled fan speed suits operating conditions, lowering power consumption and noise when idle, maximum cooling under full load.
- High Airflow Performance – 78.41 CFM maximum for effective cooling of internal components in PC cases or enclosures.
- Lubricated Bearing – Ensures smooth, reliable operation at speeds up to 2200 RPM.
- 4-Pin PWM Connector – Compatible with motherboard fan headers for precise speed control.

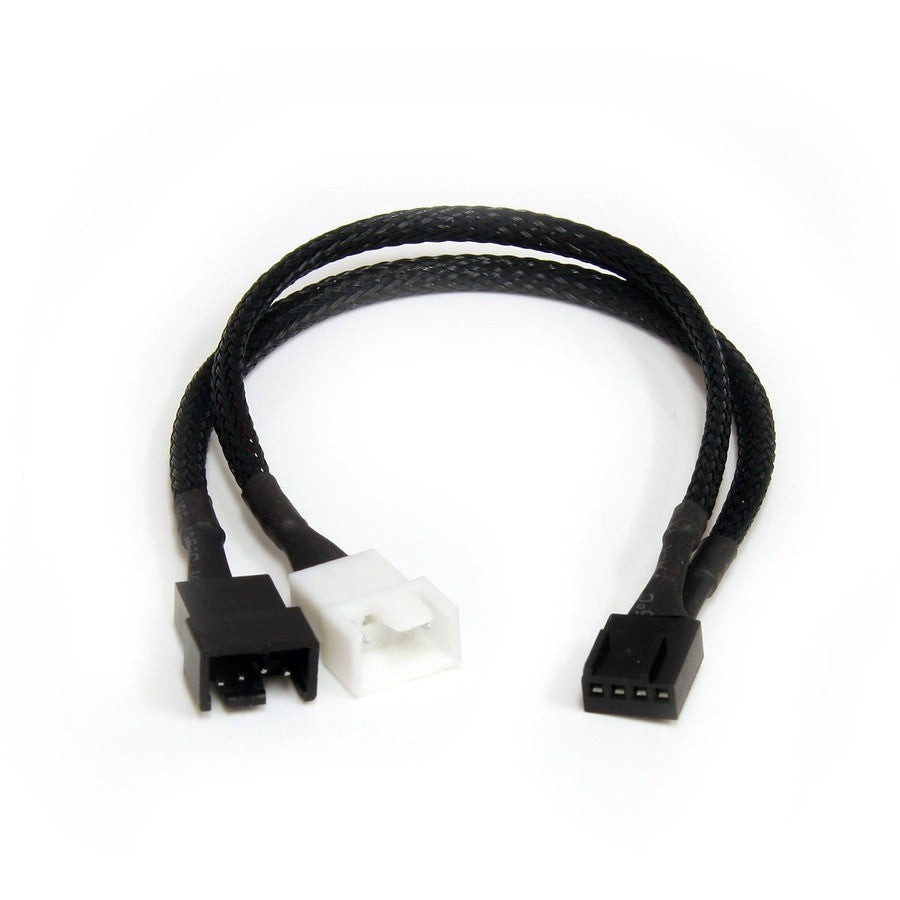

- Included PWM Y-Cable – 9-inch cable allows connection of two fans to a single header.
- Durable Plastic Construction – Lightweight at 4.16 oz, with 120 x 120 x 25 mm dimensions for standard case mounting.
- Environmental Compliance – Meets REACH, RoHS, and WEEE standards; made in China.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| MPN | FAN12025PWM |
| UPC | 065030845335 |
| Product Type | Cooling Fan |
| Number of Fans | 1 |
| Fan Bearing Type | Lubricated Bearing |
| Fan Speed (Max) | 2200 RPM |
| Maximum Airflow | 78.41 CFM |
| Airflow Details | 1 x 78.41 CFM |
| Connectors | 4-pin PWM |
| Input Voltage | 12 V DC |
| Product Material | Plastic |
| Fan Diameter | 120 mm (4.72 inch) |
| Fan Height/Thickness | 25 mm (0.98 inch) |
| Fan Width | 120 mm (4.72 inch) |
| Fan Depth | 120 mm (4.72 inch) |
| Weight (Approximate) | 4.16 oz |
| Application/Usage | Computer Case |
| Country of Origin | China |
| Environmental Compliance | REACH, RoHS, WEEE |
| Warranty | 2-Year Warranty with Free Lifetime Technical Support |
Installation & Maintenance for StarTech.com Case Fan
Simple plug-and-play installation compatible with standard PC case mounts and motherboard PWM headers. Pro tip: Ensure adequate clearance around the 25mm thickness.
- Mount the fan to the case using standard screw holes.
- Connect the 4-pin PWM cable to a motherboard fan header.
- Use the included 9-inch PWM Y-cable to daisy-chain a second fan if needed.
- Power via 12 V DC; speed controlled automatically by PWM signal.
- For maintenance, dust with compressed air periodically; lubricated bearing requires no user servicing.
Why Choose StarTech.com FAN12025PWM
Backed by StarTech.com 2-year warranty and lifetime technical support, this PWM case fan provides reliable cooling for PC builds, balancing noise, power efficiency, and airflow performance.
Upgrade your PC cooling with StarTech.com FAN12025PWM—Order today!
Brand: Artec
Type: Cooling Fan
Color: Black
Material: Plastic
Compatible Brand: StarTech.com
MPN: FAN12025PWM
Country of Origin: China
Manufacturer Warranty: 2 Years
Power Connection: 4-Pin
Fan Diameter: 120 mm
Voltage: 12 V
Maximum Fan Speed: 2200 RPM
UPC: 065030845335
