StarTech.com Dual-Monitor USB-C Dock DP/HDMI/VGA 4K 60Hz 7xUSB 85W PD
StarTech.com Dual-Monitor USB-C Dock DP/HDMI/VGA 4K 60Hz 7xUSB 85W PD
Low stock: 4 left
Couldn't load pickup availability
Free shipping across the continental US & free returns
Description
StarTech.com Dual-Monitor USB-C Docking Station, DisplayPort & HDMI/VGA Multi Monitor Dock up to 4K 60Hz, USB-C Dock, 7x USB Hub, 85W PD
This is a StarTech.com Dual-Monitor USB-C Docking Station that expands USB-C laptop connectivity for dual monitors via DisplayPort 1.4, HDMI 2.0b, and VGA outputs up to 4K 60Hz, with a built-in 7-port USB hub and 85W Power Delivery pass-through. Featuring driverless installation, locking USB-C host cable, and compatibility with USB-C and Thunderbolt 3/4 computers on Windows and ChromeOS. MPN: 101N-USBC-DOCK / 101NUSBCDOCK; UPC: 065030893985.

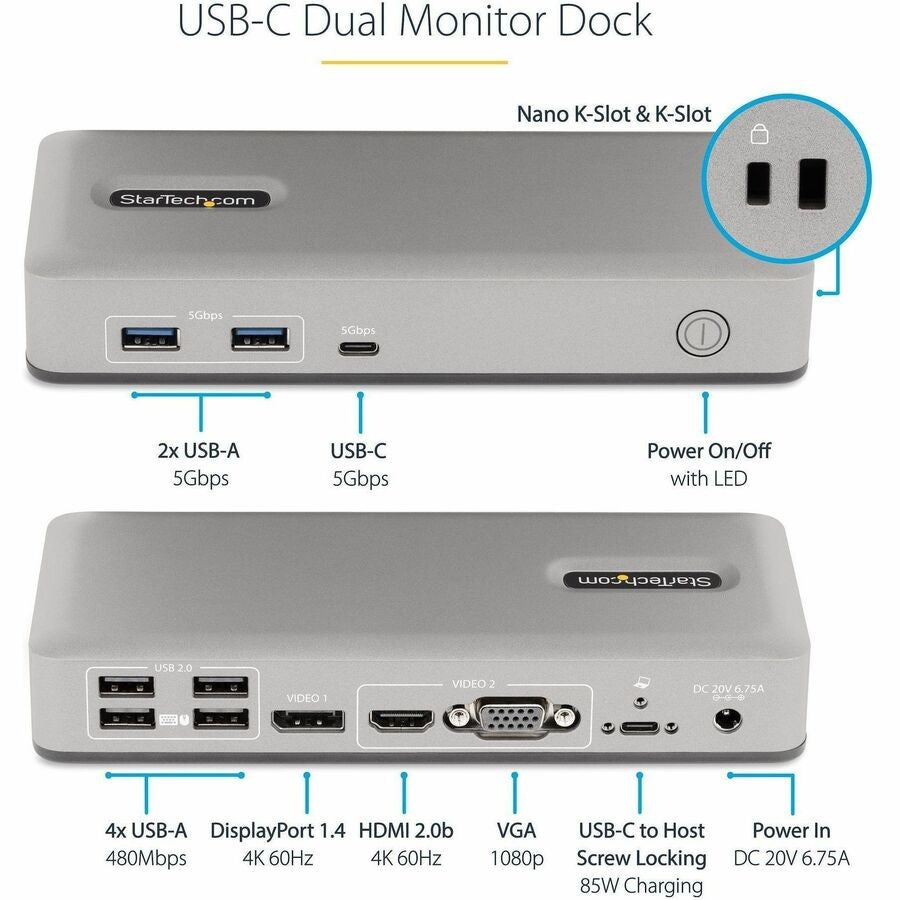

High-Performance Dual Video and Full-Featured USB-C Dock Capabilities

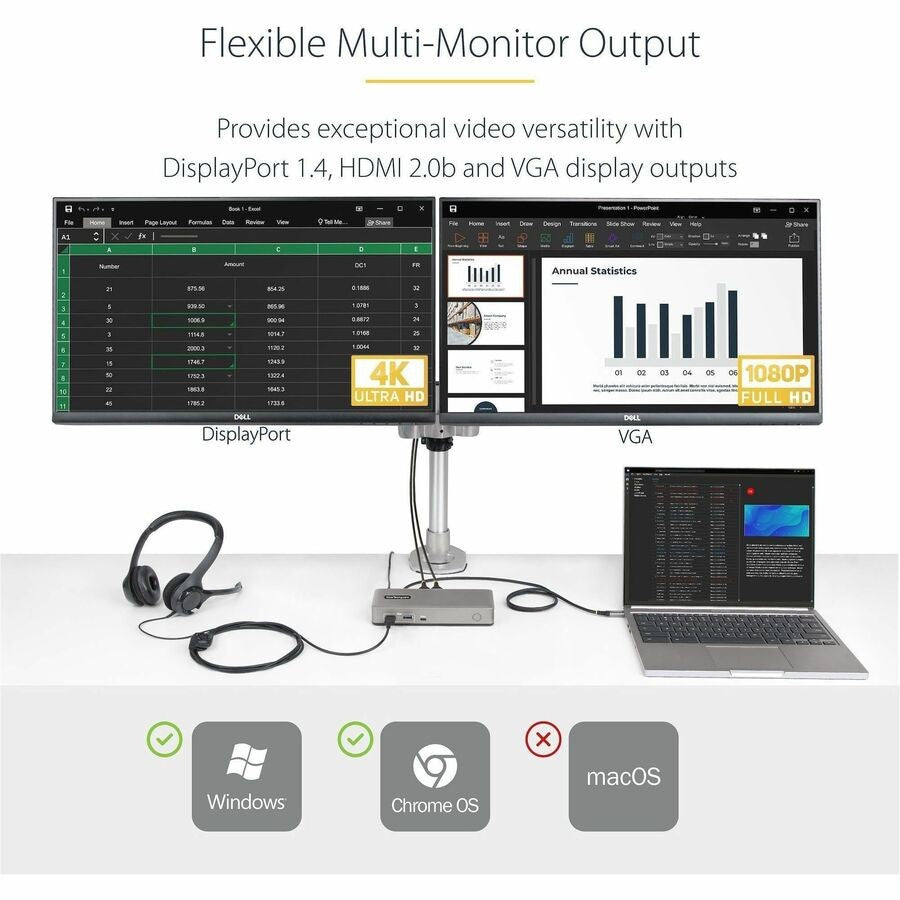

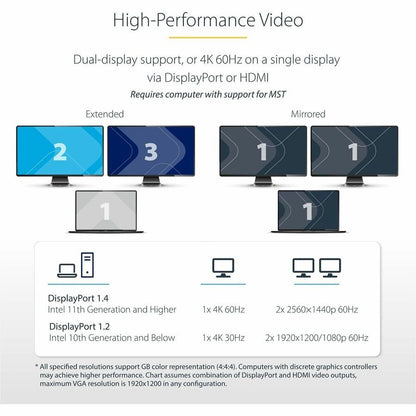

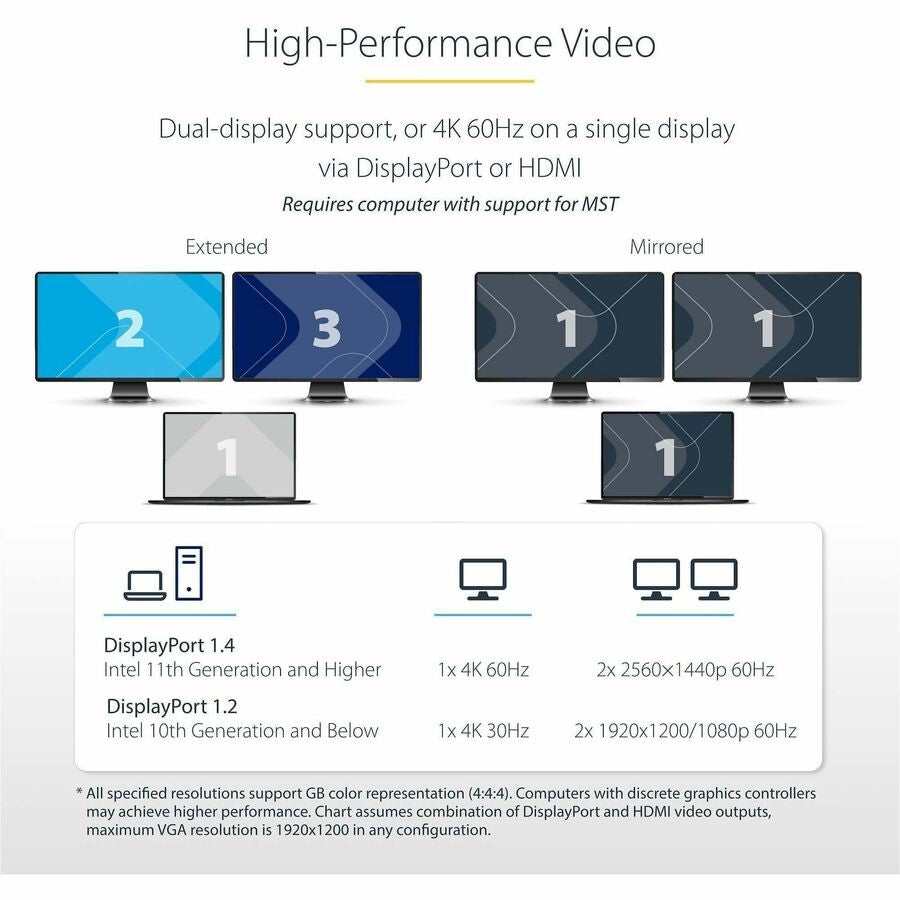

- Dual-Monitor Support via MST – DisplayPort 1.4 Alt Mode enables uncompressed dual 2560x1440@60Hz or single 4K@60Hz on DP/HDMI; flexible DP + HDMI/VGA combinations for workstation setups.

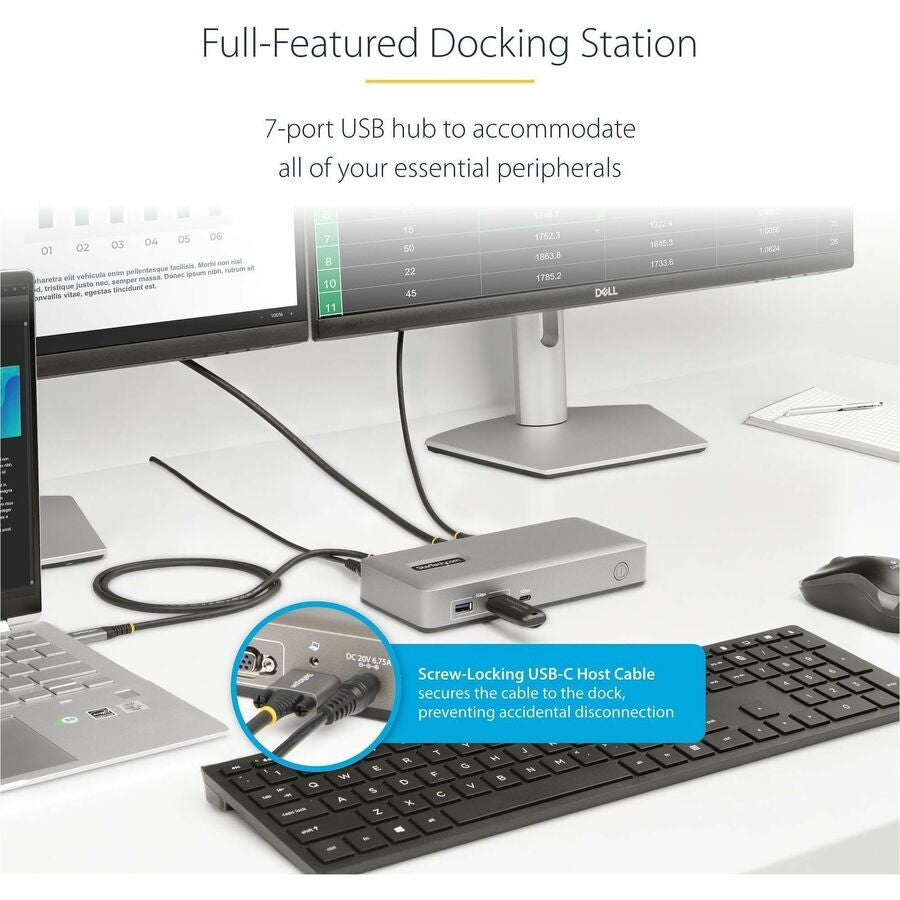

- 7-Port USB Hub – 2x USB-A 3.2 Gen 1 (5Gbps) for fast peripherals like SSDs, 4x USB-A 2.0 (480Mbps) for keyboard/mouse, 1x USB-C 3.2 Gen 1 (5Gbps); max data rate 640 MB/s.

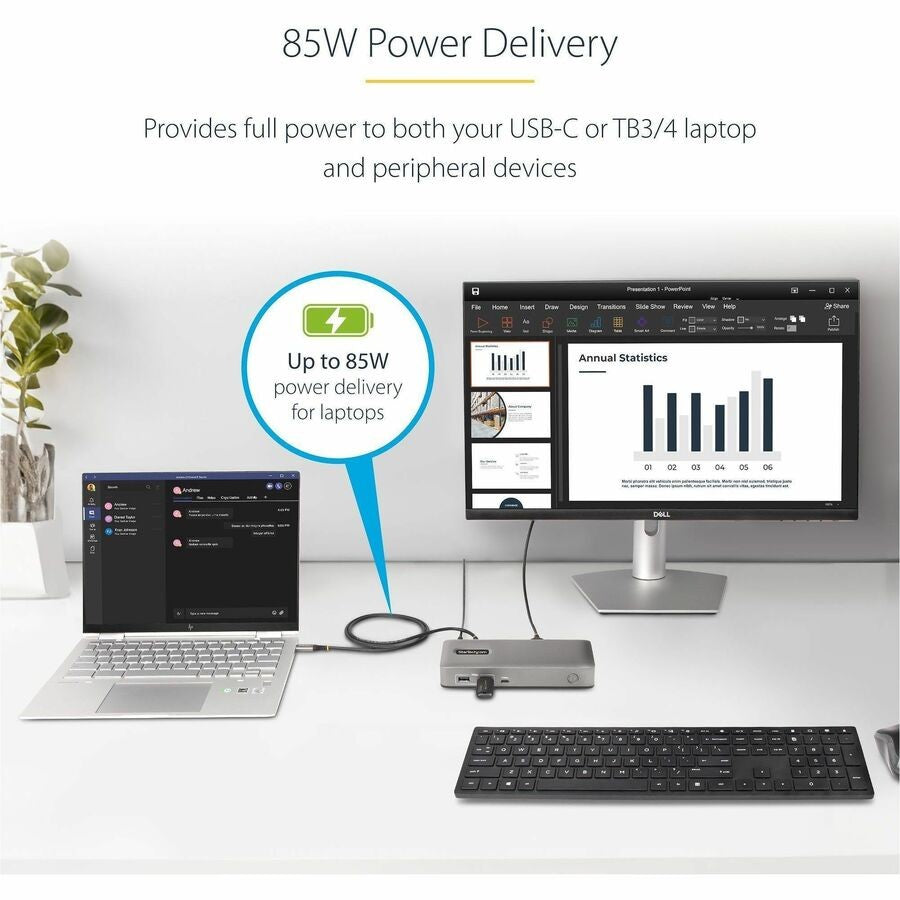

- 85W PD Pass-Through – Charges host laptop while docked; includes 135W universal power adapter.

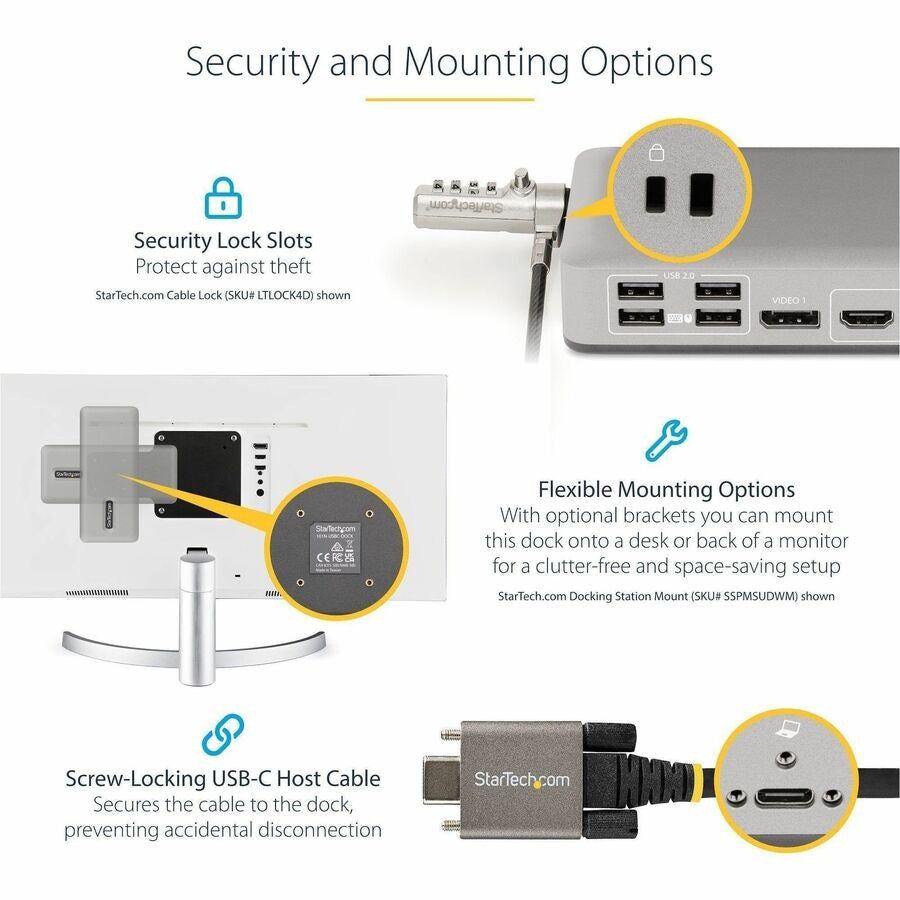

- Plug-and-Play Driverless – USB-IF certified 3.3ft (1m) screw-locking host cable; Kensington security slot for theft protection.
- Screen Modes – Supports 4K@60Hz, QHD, WUXGA, Full HD; devices include mouse, keyboard, monitor, notebook, desktop PC.
- TAA Compliant & Eco-Friendly – Meets RoHS/WEEE standards; space gray finish.
Comprehensive Technical Specifications
| Specification | Details |
|---|---|
| Brand | StarTech.com |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 101NUSBCDOCK |
| Manufacturer Item Number | 101N-USBC-DOCK |
| UPC | 065030893985 |
| Product Type | Docking Station |
| Connectivity Technology | Wired |
| Device Supported | Mouse, Monitor, Desktop PC, Notebook, Keyboard |
| Number of Displays Supported | 2 |
| Screen Mode Supported | 4K @ 60Hz, Full HD, WUXGA, QHD |
| Supported Resolutions | 3840 x 2160, 1920 x 1080, 1920 x 1200, 2560 x 1440 |
| Maximum Data Transfer Rate | 640 MB/s |
| Host Interface | USB 3.2 (Gen 1) Type C |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB Type-A Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
| Number of USB Type-C Ports | 1 |
| Number of VGA Outputs | 1 |
| DisplayPort | Yes; Number of DisplayPorts: 1; Version: 1.4 |
| HDMI | Yes; Number of HDMI Ports: 1; Version: 2.0b |
| USB Power Delivery | 85W |
| Operating System Supported | Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, ChromeOS |
| Maximum Power Supply Wattage | 135 W |
| Power Source Type | Power Adapter |
| Product Color | Space Gray |

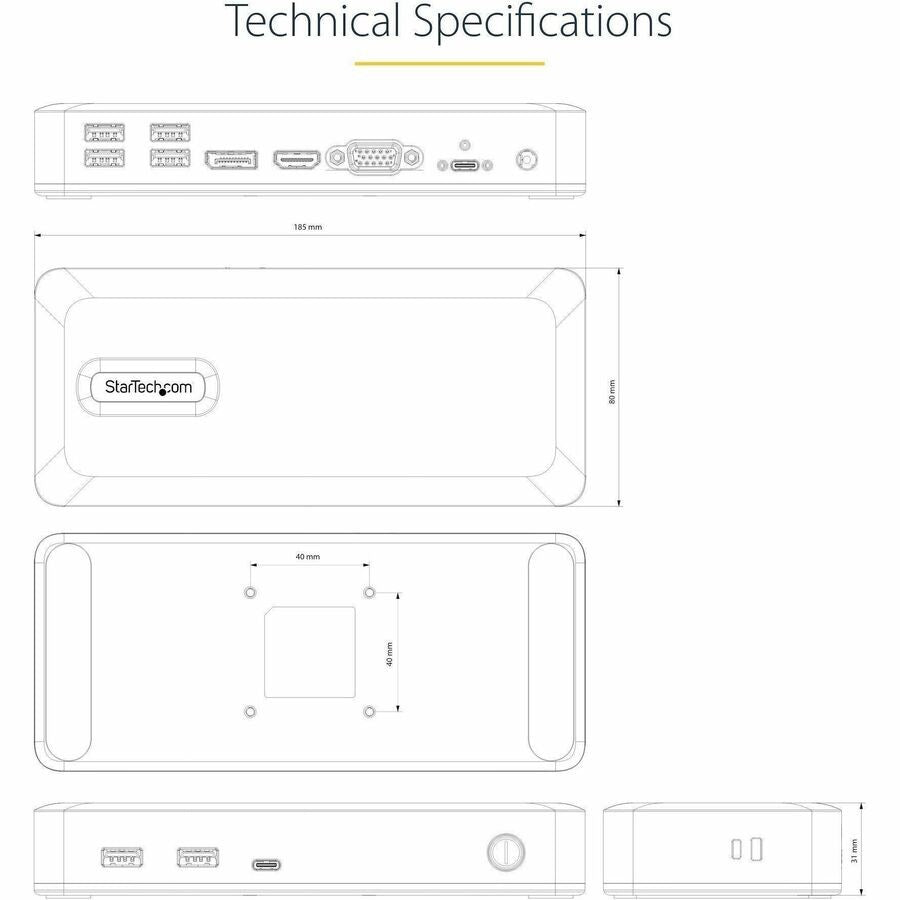

| Height | 1.20" |
| Width | 7.30" |
| Weight (Approximate) | 9.70 oz |
| Kensington Security Slot | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | RoHS, WEEE |
Package Contents
- Docking Station
- 1 x 3.3ft [1m] USB-C Host Cable (Screw Locking)
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
Expand your USB-C setup with StarTech.com Dual-Monitor USB-C Dock—order now!
Brand: StarTech
Type: Docking Station
Compatible Brand: StarTech.com
Color: Gray
MPN: 101N-USBC-DOCK / 101NUSBCDOCK
Material: Aluminum
Ports: DisplayPort
Compatible Product Line: Universal
Item Height: 1.20 in
Item Width: 7.30 in
UPC: 065030893985
